Race RIP Kit for 2500 4WD/AWD Sprinter by Agile Offroad

Race-Caliber Control For Your Sprinter

Adjustable Bypass Rear & Auxiliary Shocks

Crafted by Fox’s Factory Race Series division, these fully adjustable bypass shocks provide precision-tuned damping, letting you dial in performance for everything from high-speed trails to rocky crawls.

AO Fox 2.0 Auxiliary Front Shocks and mount kit will NOT fit vans with Mercedes-Benz factory rear mounted AC unit.

Agile Offroad’s 4WD 2500 RIP Kit Race Package is the top-tier choice for Sprinter owners who crave maximum adjustability, durability, and performance. Featuring Fox’s elite Factory Race Series shocks, this setup replaces standard dampers with 2.5 internal bypass rear shocks and 2.0 external bypass front auxiliary shocks—both fully adjustable and engineered by Fox’s premier racing division. Combined with Bilstein B6 front struts, reinforced rear shear brackets, and heavy-duty springs, this system delivers unmatched suspension control across brutal off-road terrain and rugged overland routes. Built to win, ready to go the distance.

Benefits:

• Fox Bypass Racing Shocks
• Smooth, controlled ride
• Optimized suspension matched vehicle weight
• Improved handling under braking, sway & rough terrain
• Long-lasting, trail-tested performance

Built for Heavy-Duty Abuse

Upper & Lower Rear Shear Brackets

These robust reinforcement brackets safeguard your rear shock mounts, ensuring they can handle extreme off-road loads without flexing or failure.

Sprinter Front Suspension, Fully Enhanced

Bilstein B6 Struts + Front Auxiliary Shock Kit

Combining Bilstein’s trusted B6 struts with Fox’s external bypass auxiliary shocks dramatically improves steering precision and front suspension response.

Tailored Support That Fits Your Sprinter

Custom Leaf Spring Selection

Select the exact spring rate for your van’s real-world rear axle weight, ensuring balance, comfort, and maximum suspension performance.

Direct Bolt-On Fitment to Factory Points

No Major Mods Required

Designed for seamless integration, this kit bolts directly onto your 4WD/AWD Sprinter 2500 without the need for modifications or fabrication work.

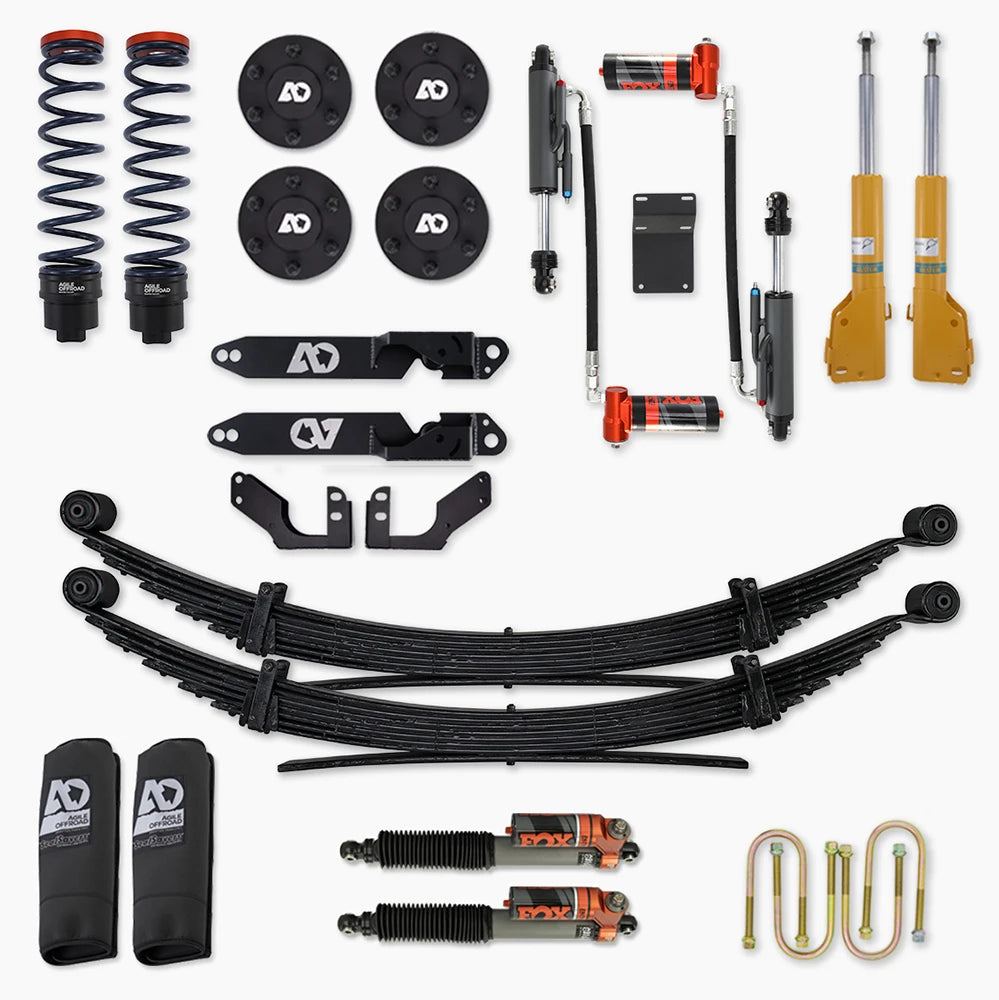

Full Component List:

• Fox Rear Bypass Racing Shocks (Qty: 1) – AO-S1S-1-6
• Fox Front Bypass Auxiliary Shocks (Qty: 1) – AO-S1S-1-4
• Bilstein Front Struts (Qty: 1) – AOR162
• Front Auxiliary Bracket Kit (Qty: 1) – AOR11123
• Rear Upper Shear Brackets (Qty: 1) – AOR2220-1
• Rear Lower Shear Brackets (Qty: 1) – AOR3330
• Coil Assist Kit (Qty: 1) – AOR70X
• Coil Covers (Qty: 1) – SSCOIL2.5PS
• Brake Line Cover (Qty: 1) – AOR259
• Leaf Spring U-Bolts (Qty: 1) – AOR274
• Leaf Springs (Qty: 1) – AO-S6S-X
• Wheel Spacer Kit (Qty: 1) – AOR000X

Configuration Options

Spring Rate (rear axle weight):

• 4200 lbs
• 4200 lbs w/ 1" Lift
• 4700 lbs
• 5400 lbs
• 6000 lbs

Wheel Type:

• Aftermarket Alloy - 16mm
• Aftermarket Alloy - 20mm
• Mercedes Factory Alloy - 16mm
• Mercedes Factory Steel - 16mm
• Mercedes Factory Steel - 20mm

*This kit contains heavy, oversized components and ships via freight.
