Premium RIP Kit for 3500 4WD/AWD Sprinter by Agile Offroad

Big Loads, Smooth Ride, Maximum Control

Fox 2.5 Rear Shocks Upgrade

The 2.5 commercial rear shocks are engineered to handle heavier loads with ease, providing consistent damping, superior durability, and a noticeable ride quality improvement over stock.

AO Fox 2.0 Auxiliary Front Shocks and mount kit will NOT fit vans with Mercedes-Benz factory rear mounted AC unit.

The 4WD/AWD 3500 RIP Kit Premium Package from Agile Offroad takes your Sprinter’s suspension performance to the next level. Upgrading from the standard 2.0 shocks, this package features 2.5 commercial-grade Fox rear shocks, Bilstein B6 front struts, and a front auxiliary shock kit for improved stability and fine-tuned handling. Designed to handle the heavier load of the 3500 dual rear wheel chassis such as Class C & RV platforms, this kit delivers unmatched comfort, better control over rough roads, and increased off-road capability, all while maintaining drivability and reliability on pavement.

Benefits:

• Boosts off-road capability and control
• Supports heavy rear axle loads confidently
• Smooths rough roads for better driver comfort
• Sharpens front-end handling and responsiveness
• Provides a complete, bolt-on upgrade solution

Precision with Bilstein Front Struts for Sprinter 3500

Bilstein B6 Front Struts Added

These premium struts enhance steering feel and maintain front-end stability under dynamic driving conditions, whether you’re on pavement or trail.

Enhanced Front-End Stability For 3500 Sprinter

Front Auxiliary Shock Kit

This auxiliary setup reduces front suspension stress and controls bounce, giving you more predictable handling across varying terrains.

Ready for Heavy-Duty Demands of the Class C & RV Platform

Custom-Tuned Leaf Springs

Tailored for the Sprinter 3500 platform, these springs balance heavy load-carrying capacity with improved suspension travel and ride comfort.

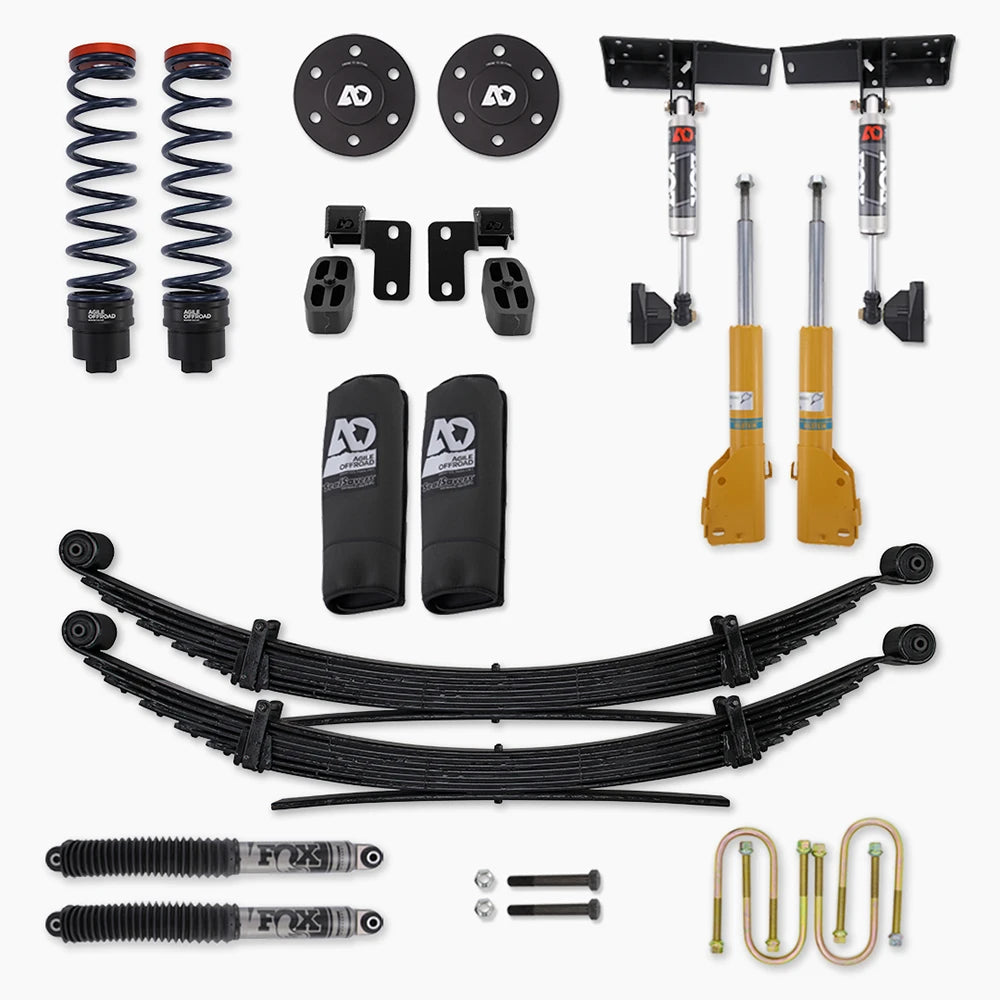

Full Component List:

• Fox 2.5 Rear Shocks (Qty: 1) – AOR0016-X
• Bilstein Front Struts (Qty: 1) – AOR162
• Front Auxiliary Brackets (Qty: 1) – AOR11123
• Front Auxiliary Shocks (Qty: 2) – 986-24-165
• Coil Assist Kit (Qty: 1) – AOR70X
• Coil Covers (Qty: 1) – SSCOIL2.5PS
• Leaf Spring Bolts (Qty: 2) – 16F12H10
• Leaf Spring Nuts (Qty: 2) – 16FNPTZ/DIN98
• Leaf Springs (Qty: 1) – AO-S6S-X
• Wheel Spacer Kit (Qty: 1) – AOR142
• Lift Block Kit (Qty: 1) – AO-S7S-2

Configuration Options

Spring Rate Options:

• 5500 lbs
• 6000 lbs
• 6500 lbs
• 7500 lbs

Spring Force Options:

• 150 lbs
• 200 lbs (C-class)

*This kit contains heavy, oversized components and ships via freight.
