ARB Onboard Air Kit for Ford Ranger Raptor by Agile Offroad

SKU: R11-1000
$1,199.99
Pre-order
  • Plug-and-play electrical integration
  • Discreet under-seat installation
  • Uses factory upfitter switch

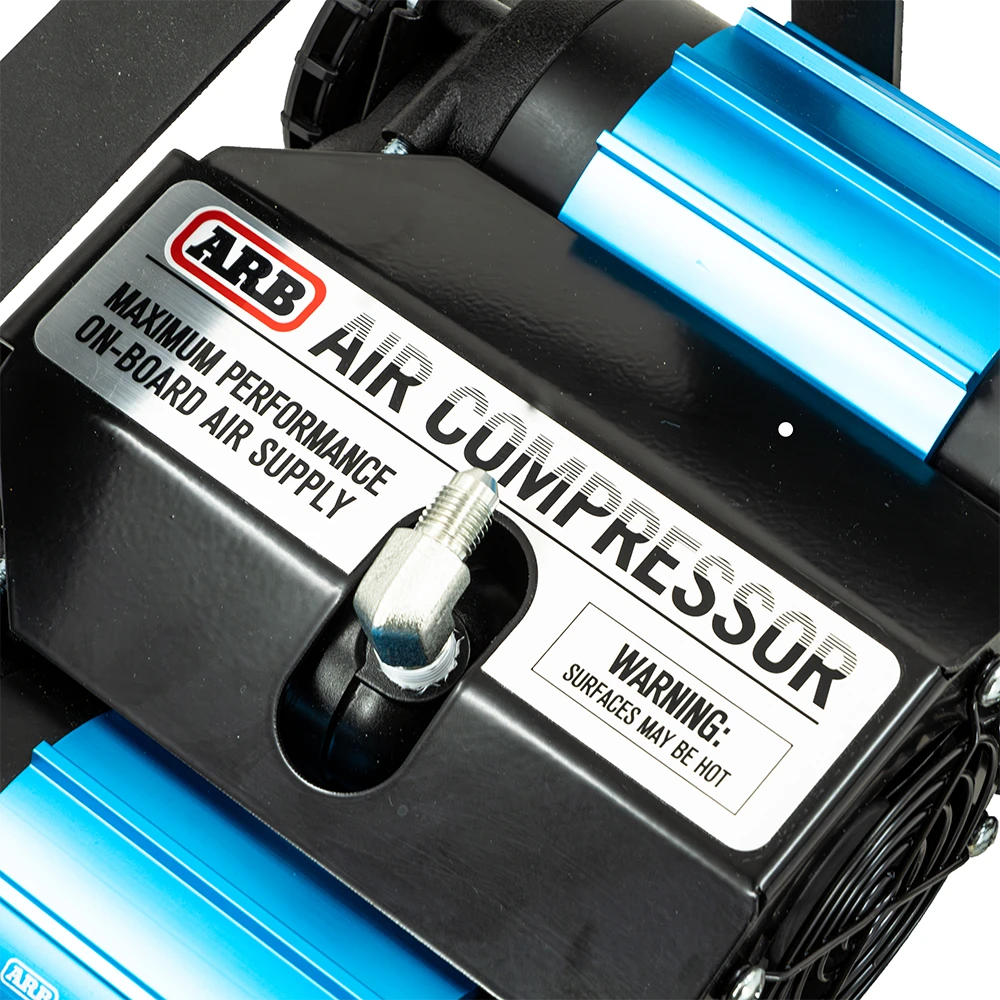

  • Powerful ARB twin compressor system

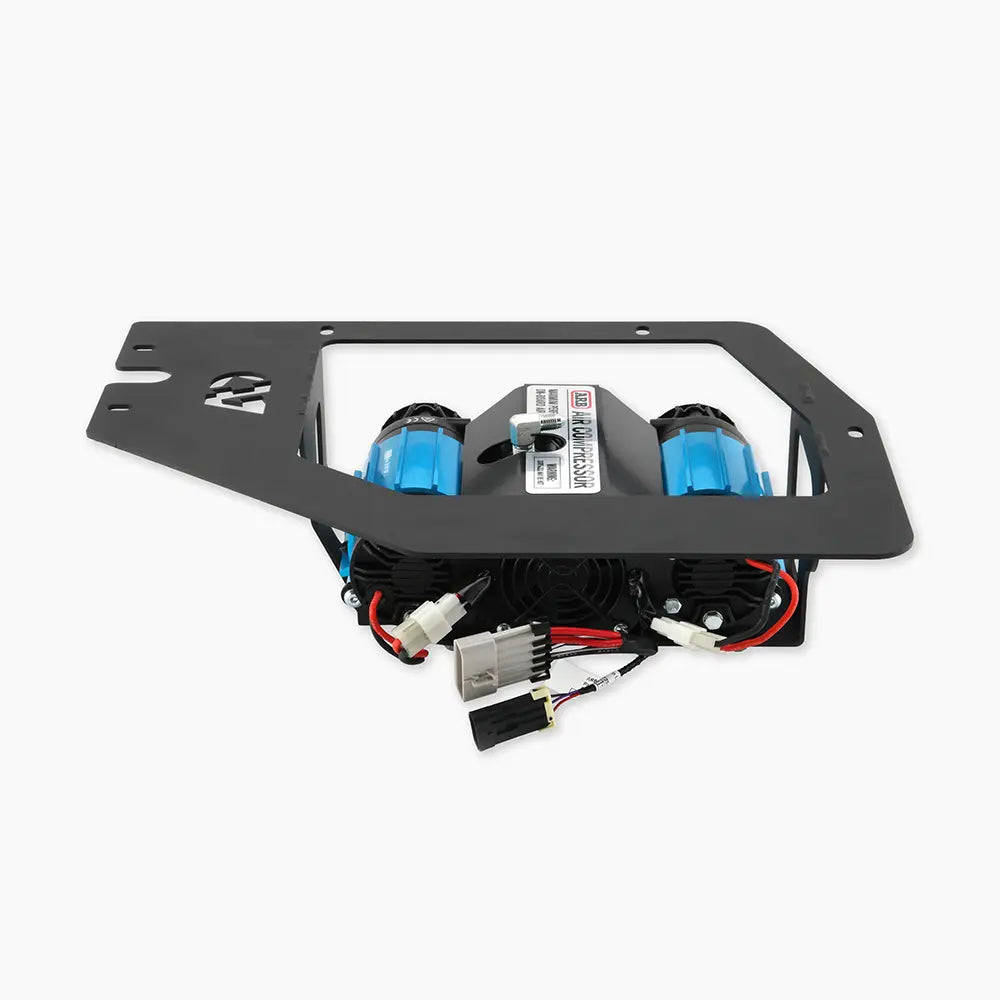

  • Rugged, powder-coated steel mounting bracket
  • Built for reliable performance and OEM fit & finish
Find a dealer

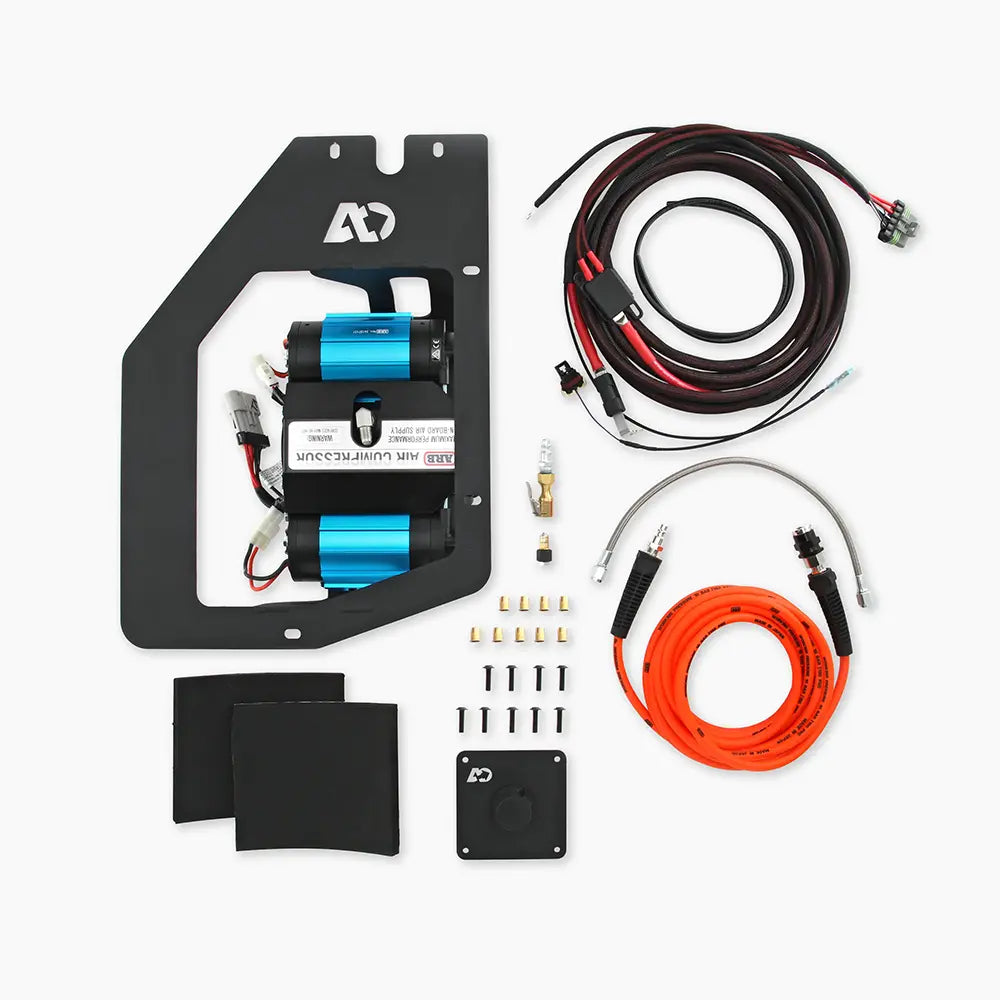

Agile Offroad’s On Board Air Kit for the 2024+ Ford Ranger combines ARB twin-compressor performance with a precision under-seat mounting system. Designed for durability and seamless integration, this setup includes a custom plug-and-play harness for a clean install.

Onboard Air Kit for Ford Ranger Raptor Instruction Manual (PDF)

Commercial Datasheet

Technical Datasheet
Product Weight
30.0 lb
Dimensions
21 x 15 x 9
Vehicle Make
Ford
Vehicle Model
Ranger Raptor
Vehicle Year
2026, 2025, 2024
Ac Fitment
Under Seat
Air Flow 29psi
4.68CFM
Air Flow Opsi
6.16CFM

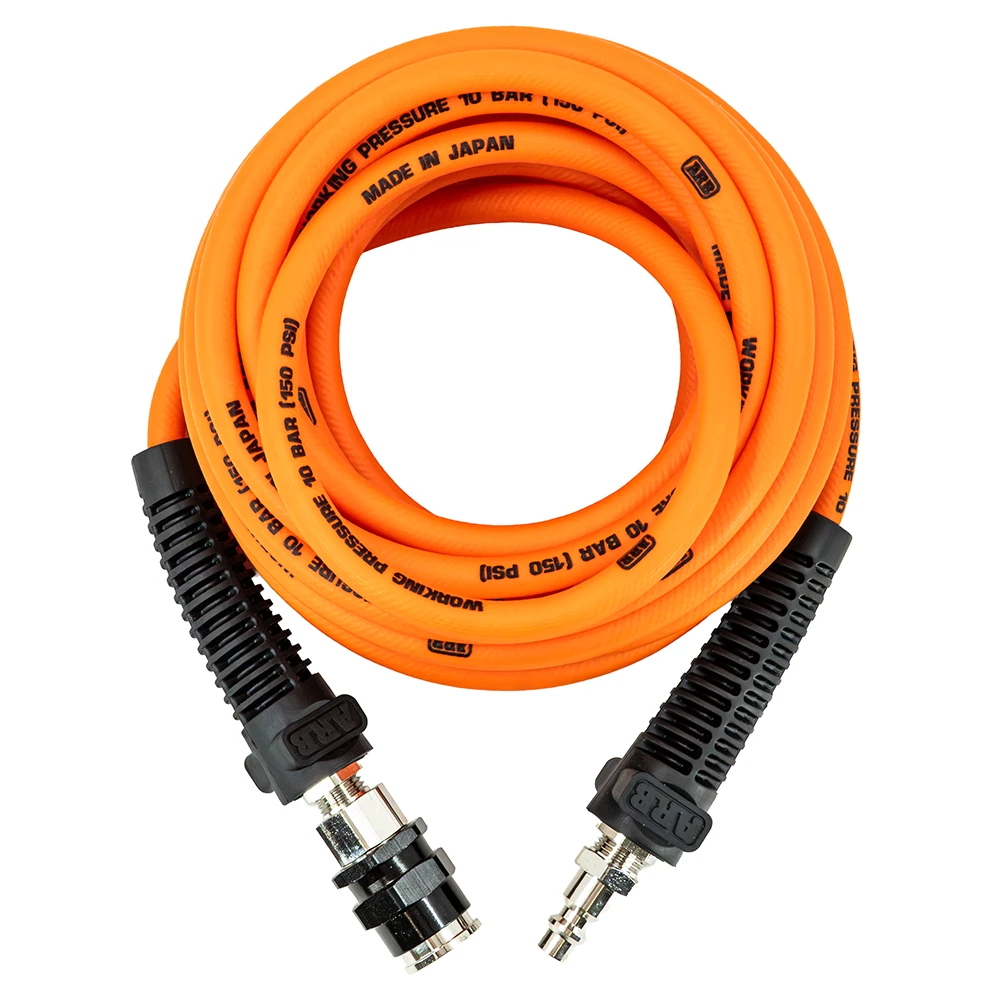

Airline
High Temp 23FT
Brand
Agile Offroad
Duty Cycle
100% 60/0
Ip Rating
55
Max Amps
68.6
Max Psi
150
Volts
12
Warranty
3YR

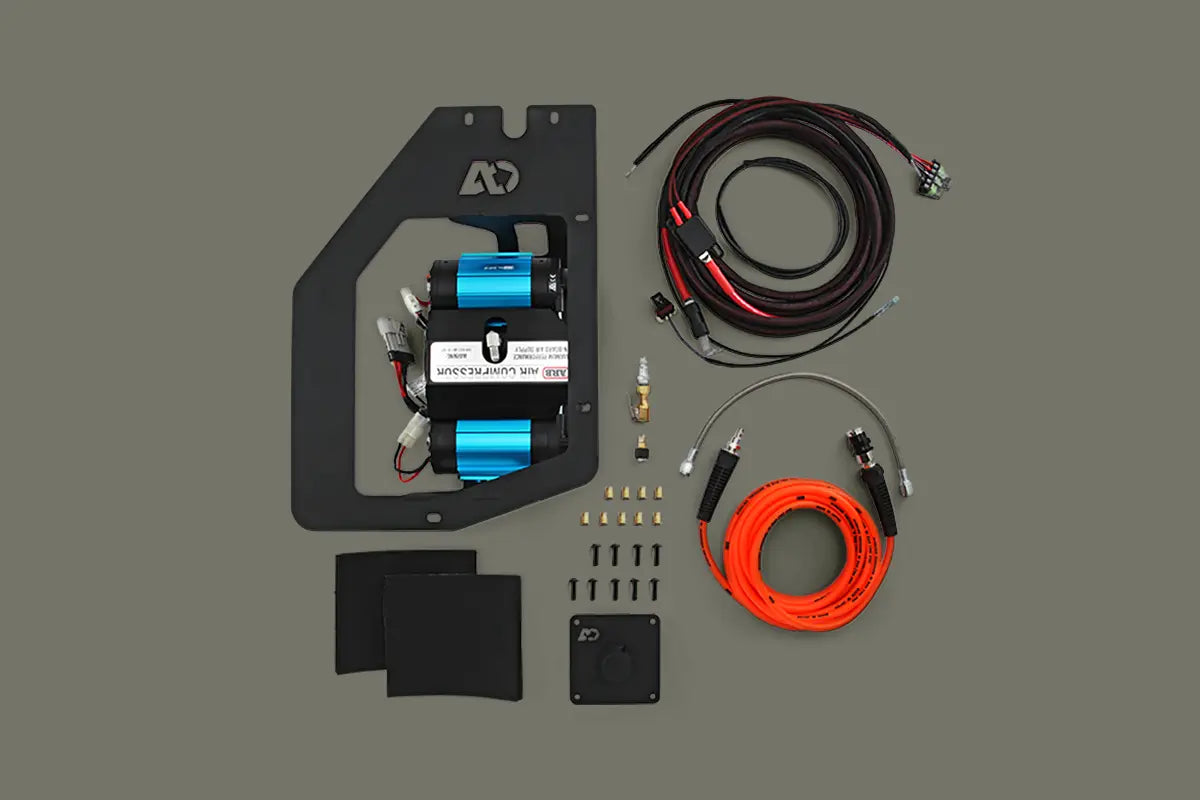

Ranger-Ready Air System for Demanding UseForma

On Board Air Kit for Ford Ranger by Agile Offroad
Ranger-Ready Air System for Demanding UseForma

Purpose-built for the 2024+ Ford Ranger, Agile Offroad’s On Board Air Kit delivers reliable compressed air wherever you need it. The ARB twin compressor is mounted beneath the rear seat on a rugged, powder-coated steel bracket for a clean, OEM-quality fit. A custom plug-and-play harness ensures simple electrical integration with minimal wiring effort. Perfect for inflating tires, or running accessories, this kit blends factory-level fitment with serious off-road capability.

PDP card small icon

Plug-and-play electrical integration

PDP card small icon

Discreet under-seat installation

PDP card small icon

Powerful ARB twin compressor system

PDP card small icon

Rugged, powder-coated steel bracket

PDP card small icon

Built for dependable off-road performance

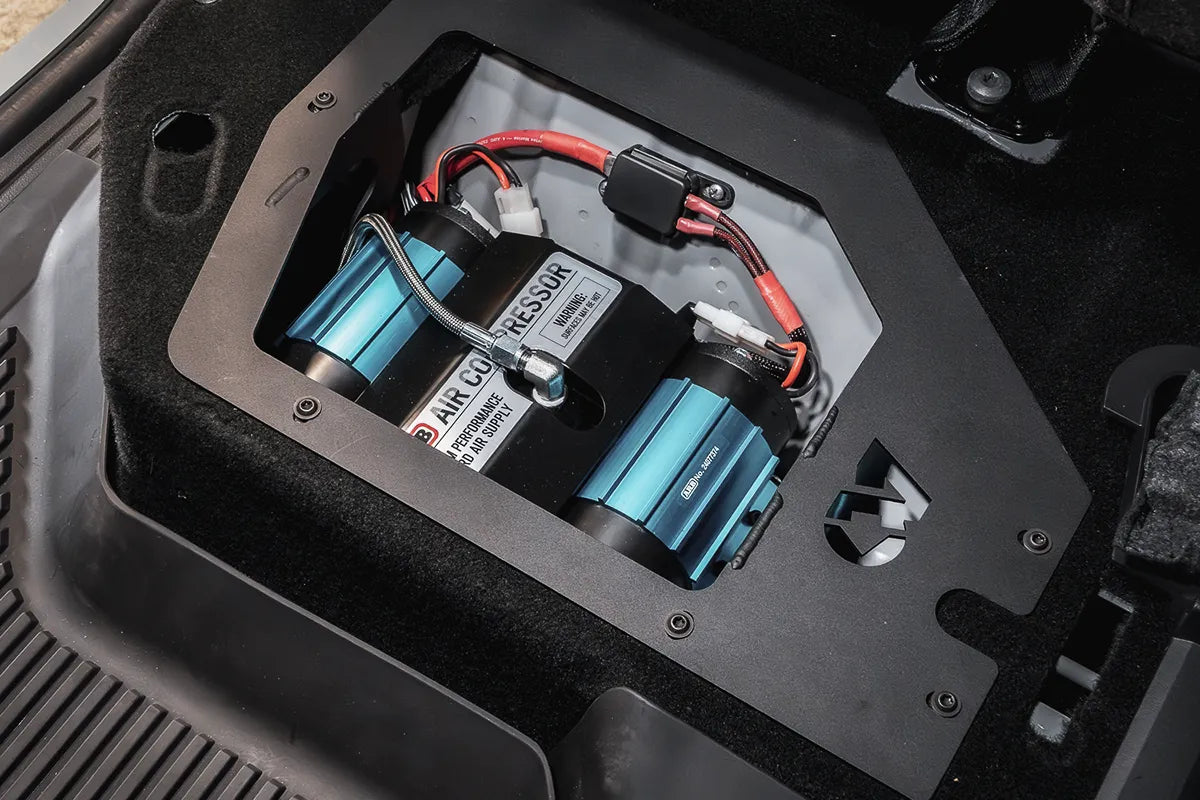

Factory Fit Meets Real-World Utility

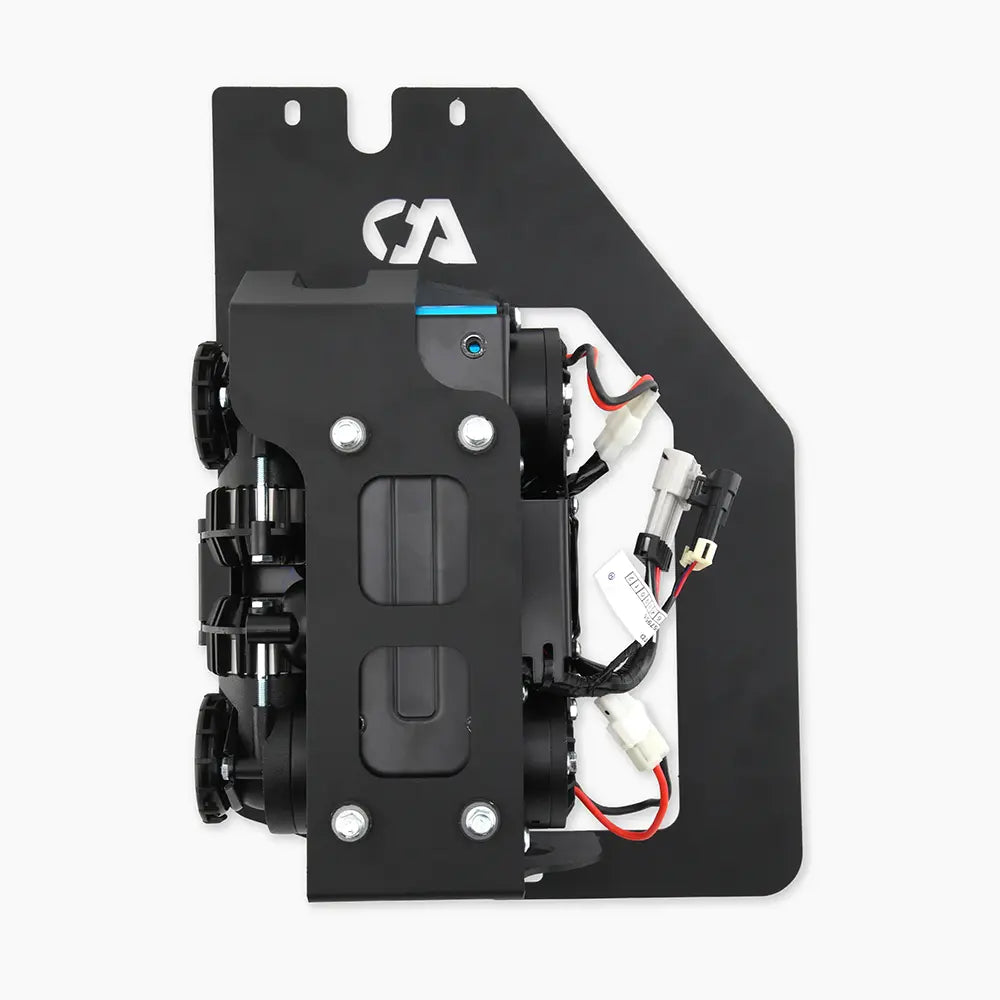

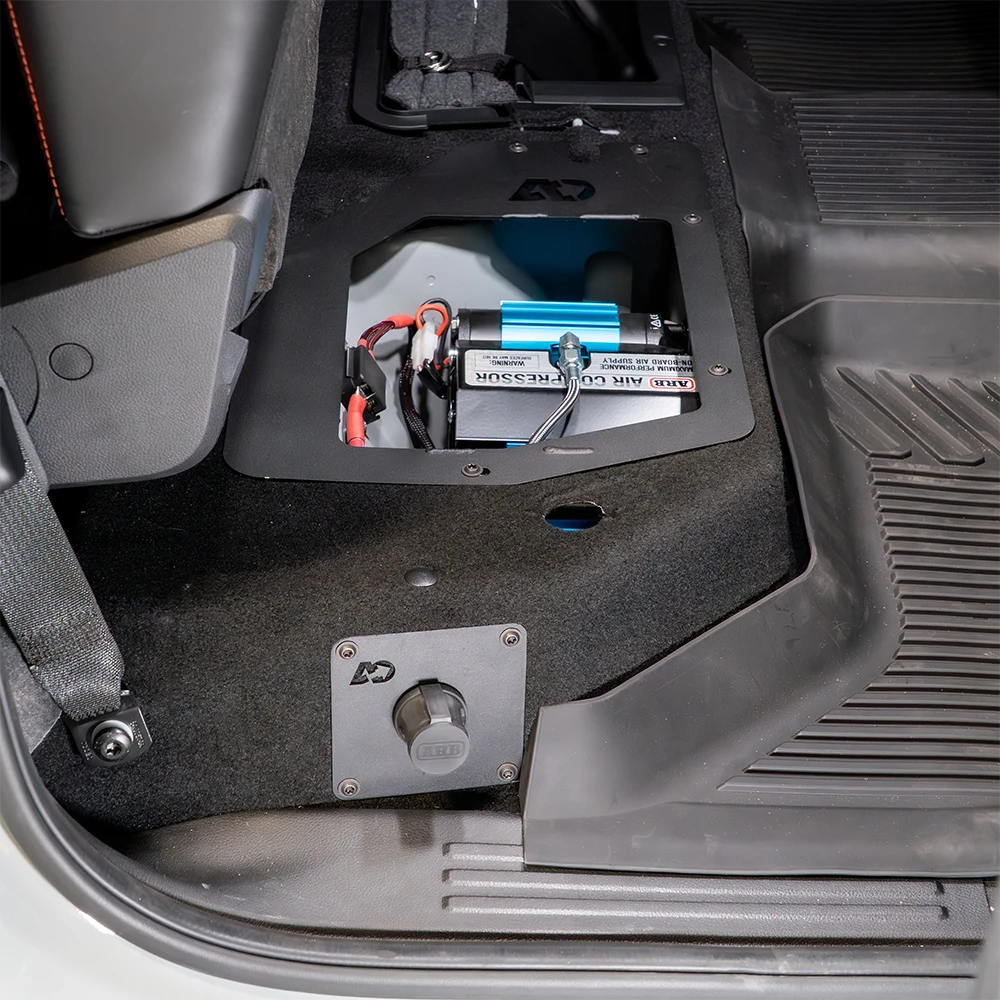

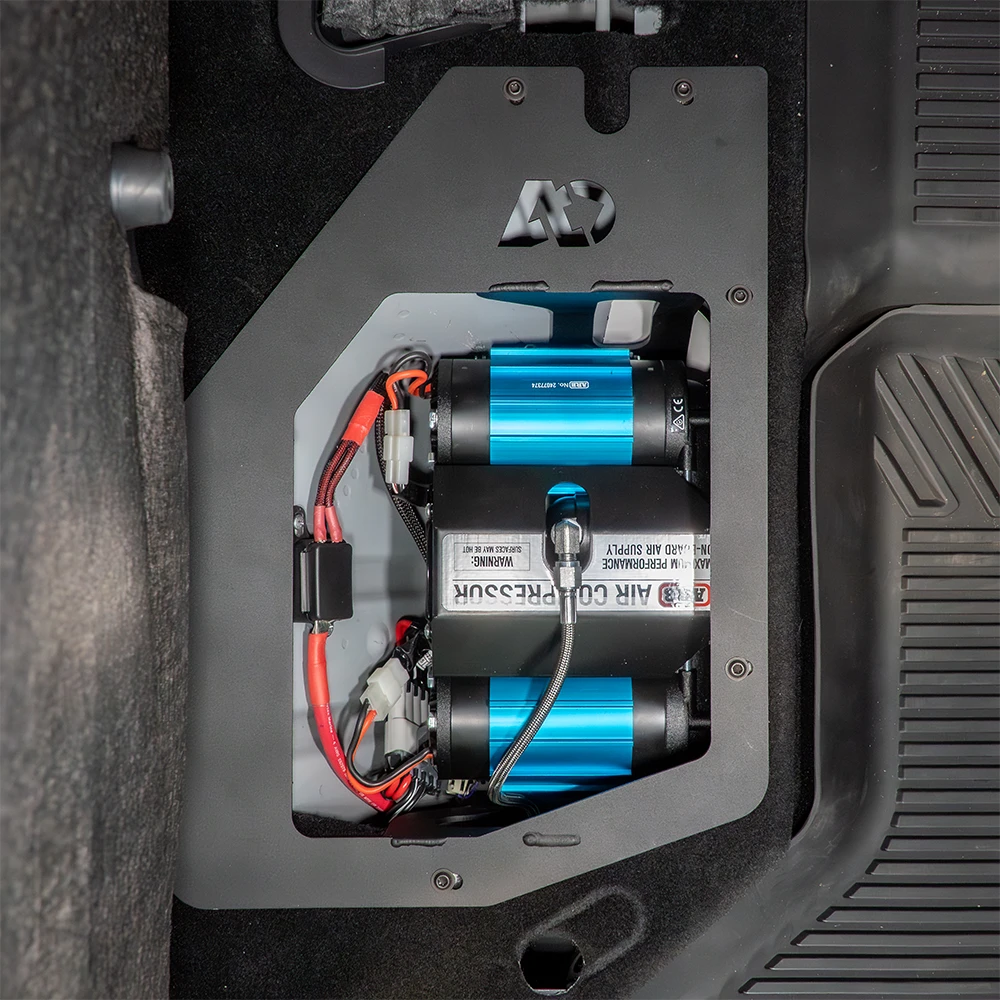

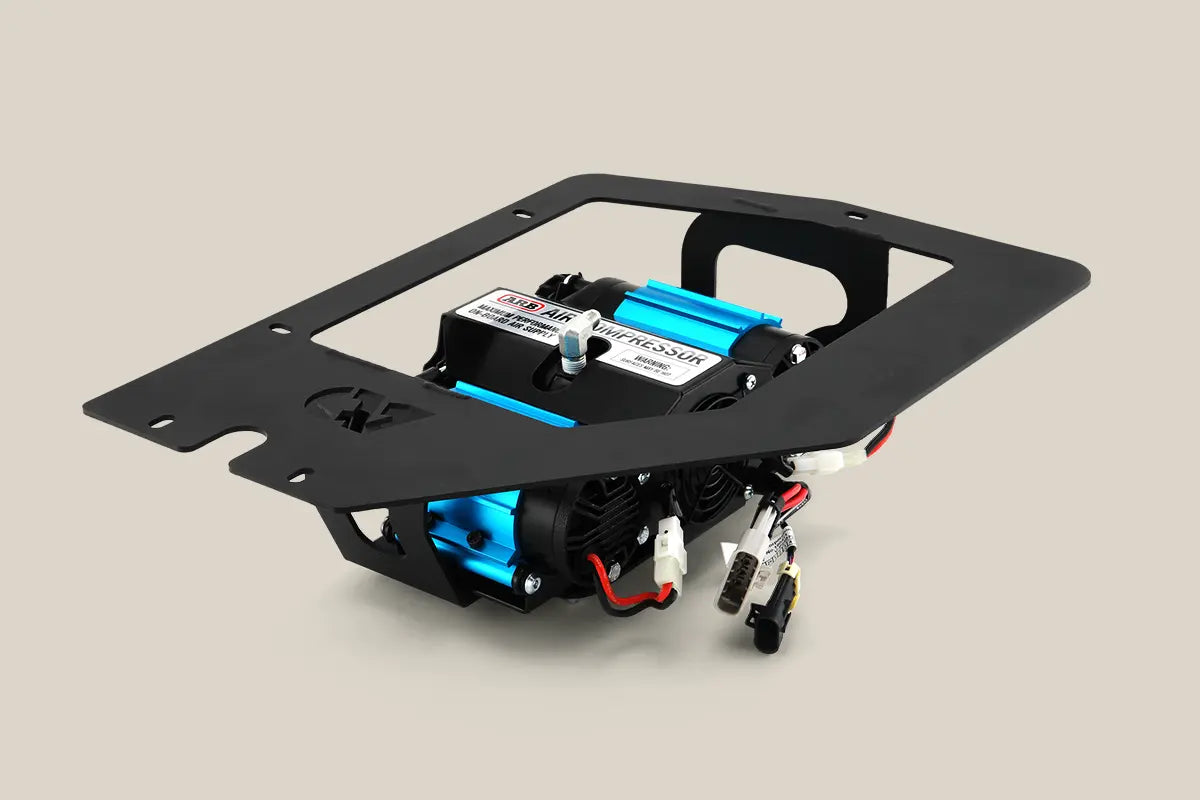

Under-seat compressor mount
Engineered to fit neatly beneath the rear seat, this mount keeps the ARB twin compressor protected and out of sight while maintaining easy access for service or use. Designed specifically for the 2024+ Ranger, it provides a stable, professional installation that looks and performs like factory equipment.
Factory Fit Meets Real-World Utility

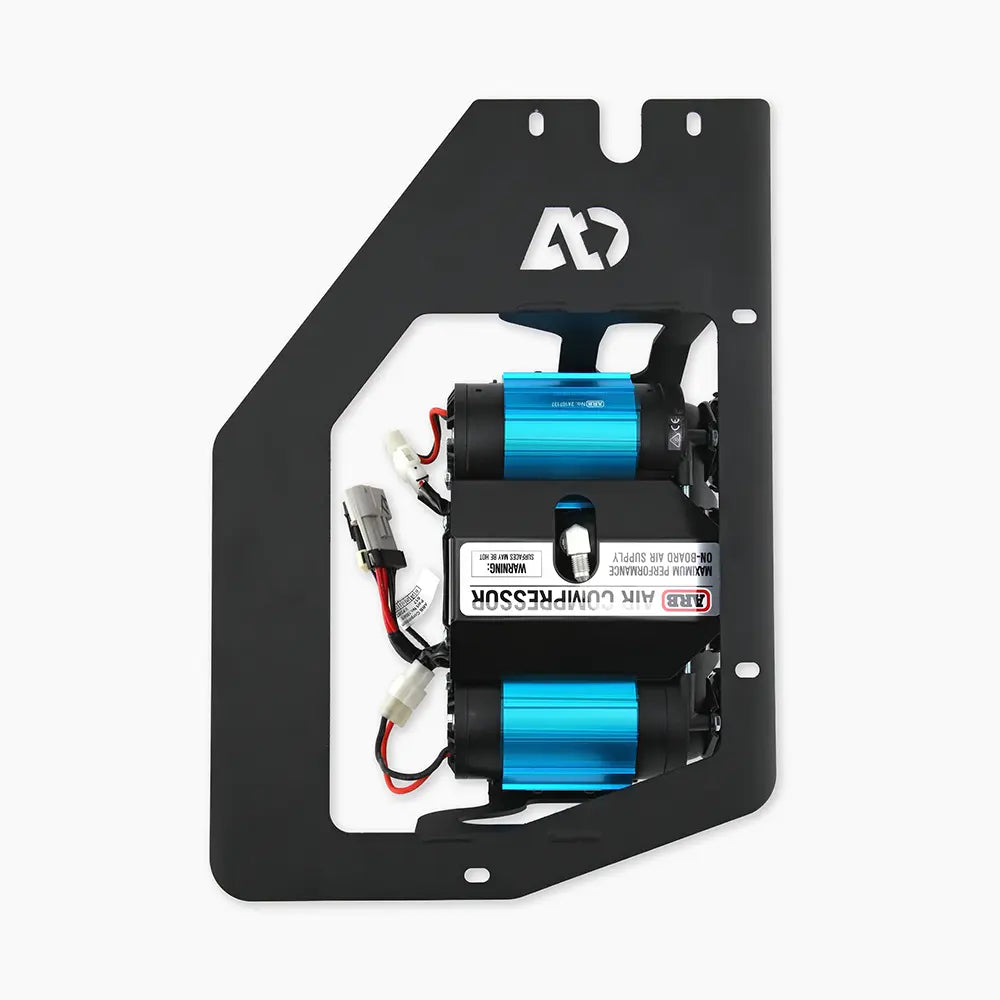

Proven ARB Twin Compressor Performance

Dual-motor high-output system
Built around ARB’s high-performance twin compressor, this kit delivers rapid inflation speeds and long-term reliability. Whether you’re adjusting tire pressures on the trail, this system ensures fast, consistent airflow when you need it most.
Proven ARB Twin Compressor Performance

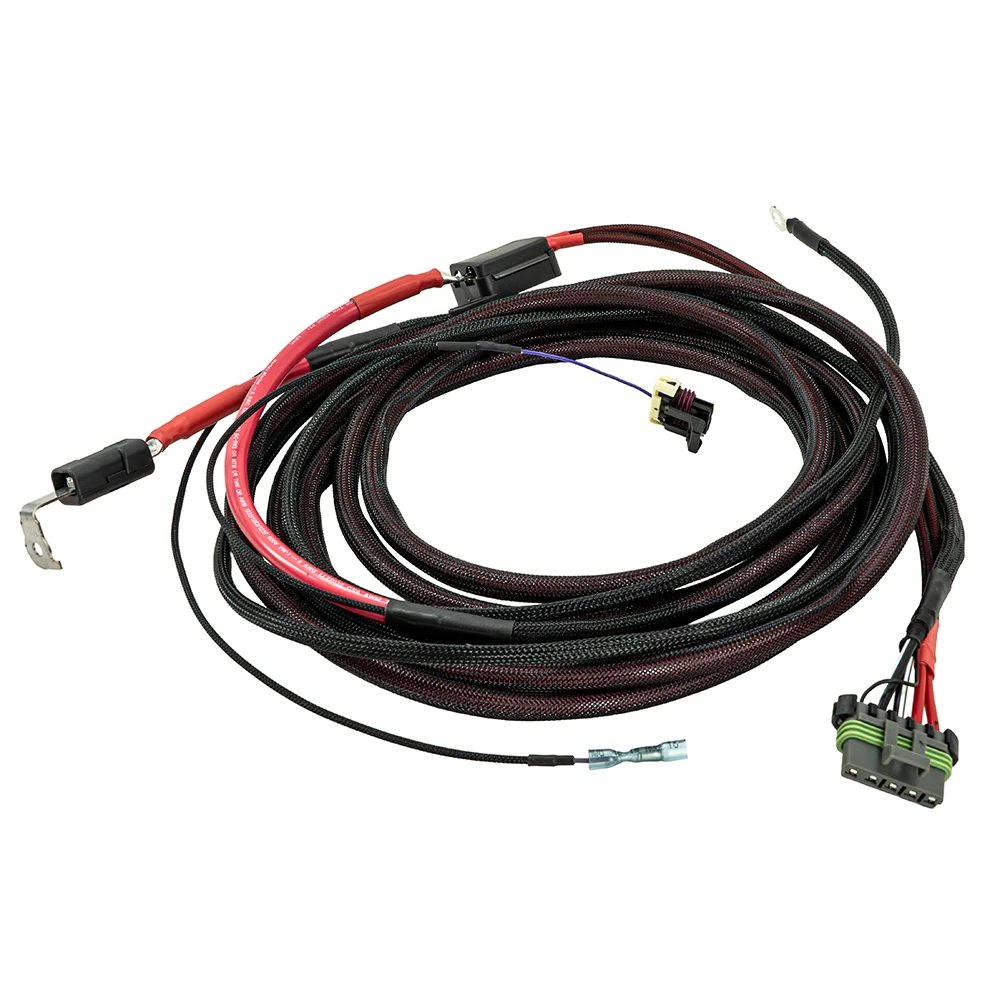

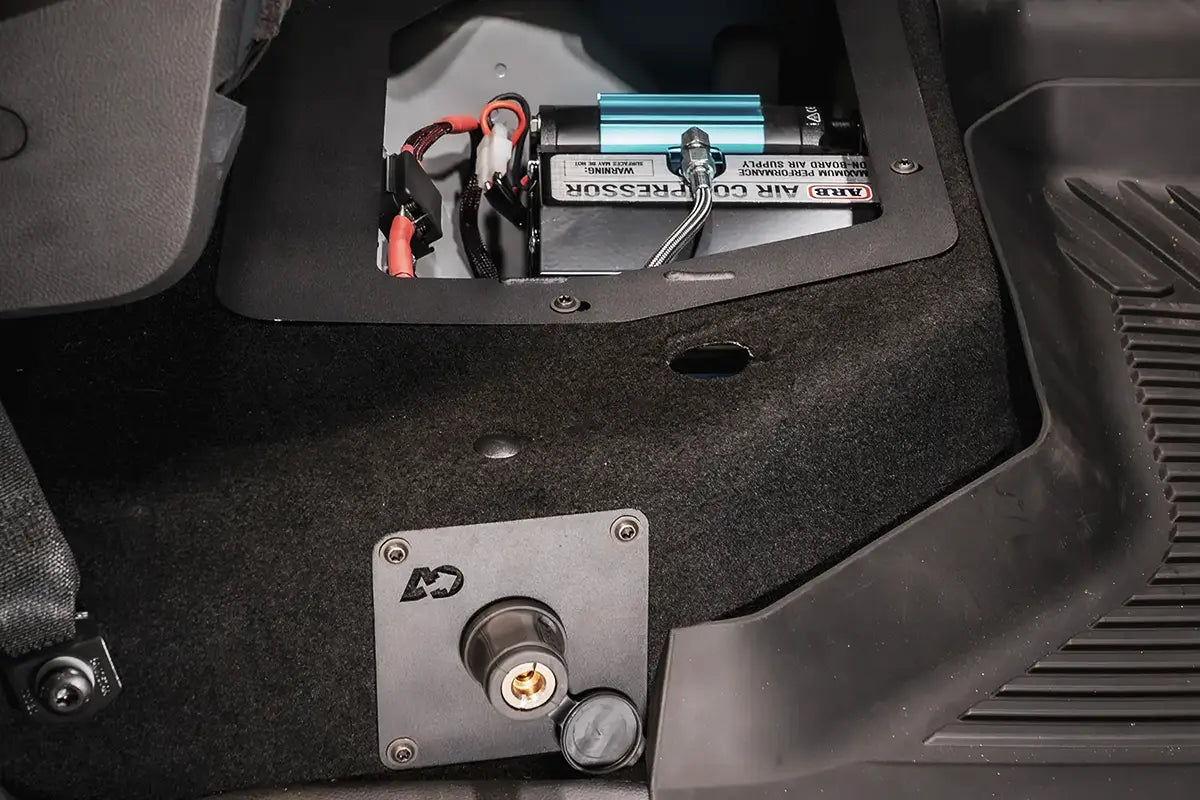

Plug-and-Play Electrical Integration

Custom harness for easy setup
Agile Offroad’s custom wiring harness simplifies installation with pre-terminated connectors and a clean, plug-and-play design. This allows for quick electrical integration without splicing or guesswork, ensuring reliable compressor operation that’s tailored to the 2024+ Ranger platform.
Plug-and-Play Electrical Integration

Specifications

  • Vehicle Fitment: 2024+ Ford Ranger
  • Compressor Type: ARB Twin Motor (CKMTA12)
  • Mount Location: Under rear seat
  • Electrical Integration: Custom plug-and-play harness
  • Bracket Material: Powder-coated steel
Specifications

Overall rating: 5.0 / 5 from 2 reviews.

AI Generated Review Summary

Summary topics

Review topics: [].

Review highlights

Reviews

Easy Install Air Compressor

"I recently installed the compressor in my Ranger Raptor. It's by far my favorite upgrade. Super convenient for airing up after hitting the dirt. It came with easy to follow instructions to wire it up right to my aux switch, and it fits perfectly under the back seat."

— Teralin P. (5/5)

"Love it"

— Darin (5/5)
