20 Gallon Undermount Water Tank for Ford Transit by Agile Offroad
Regular price
$299.00
20-Gallon Transit van water tank is designed to fit the undercarriage driver side next to fuel tank. It can be used to store fresh or gray water. (3) Stainless steel laser cut straps, 3/8" hardware and 3/8" rivnuts are included (Rivnut tool needed for installation not included). Tank fits Ford Transit van but may also fit other makes and models as well.

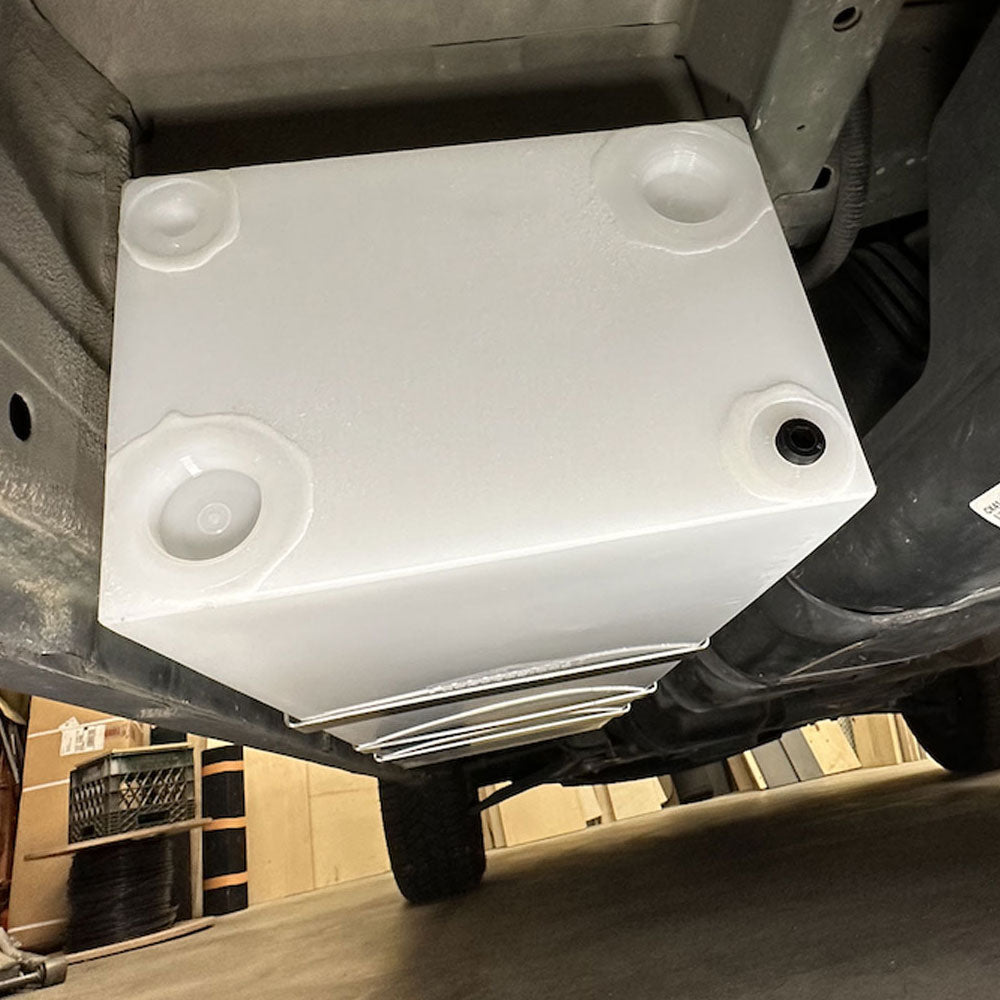

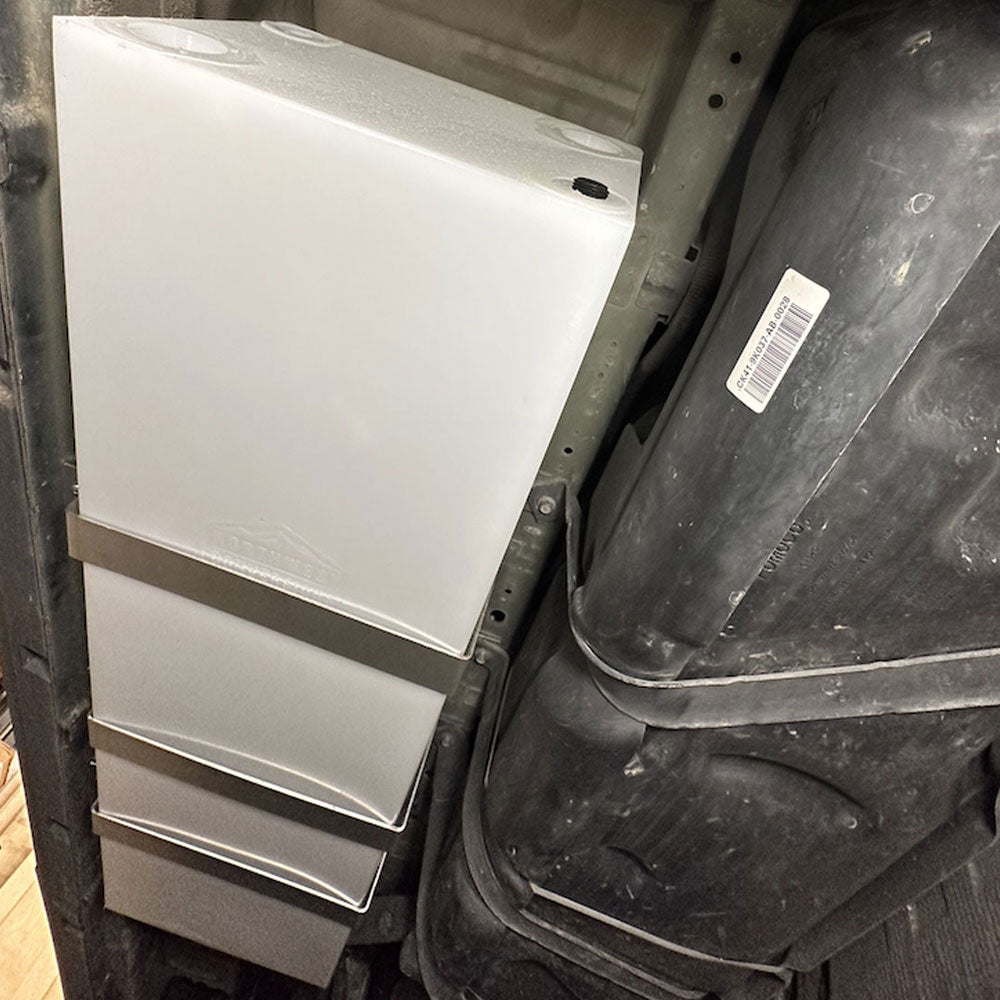

- Fits Transit Van undercarriage Driver side next to fuel tank.
- Tank can be used for fresh or grey water
- 20 Gallon Tank
- Tank is designed not to be pressurized (I.e. Needs to be vented).

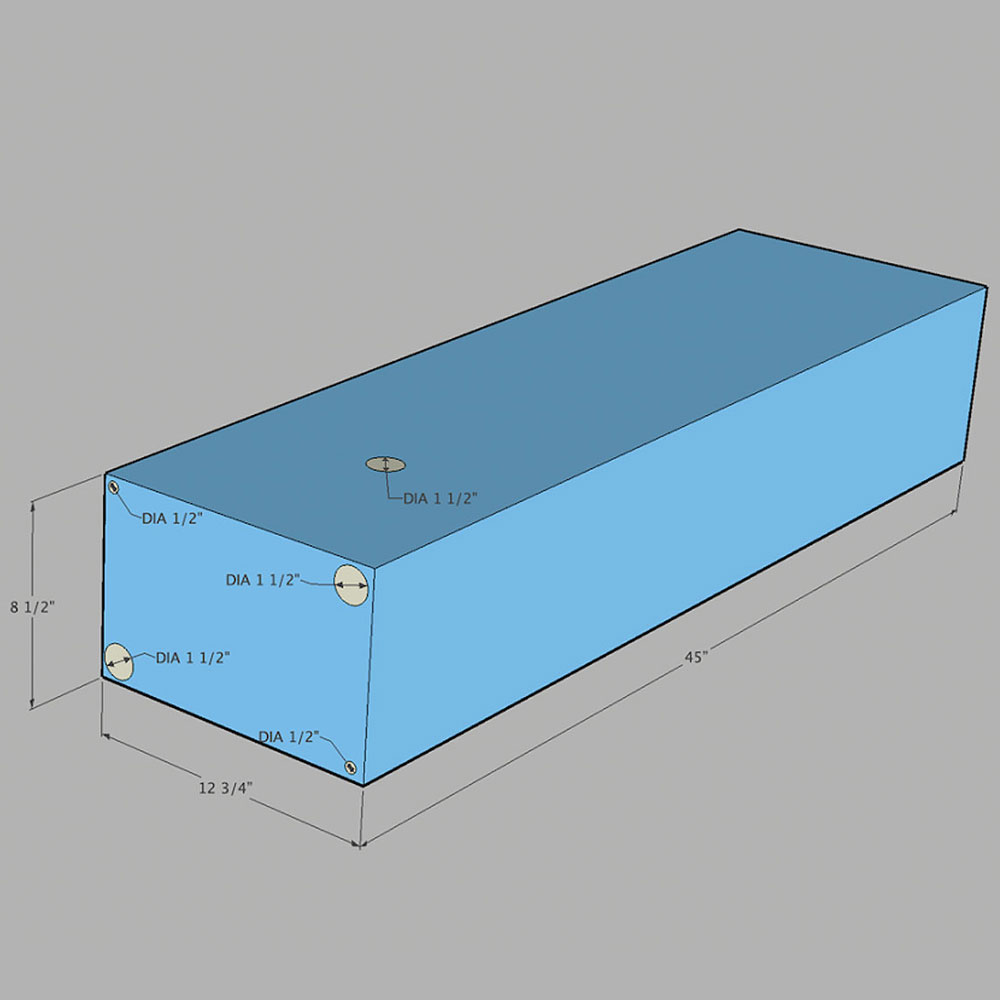

- Overall dimensions: 45″L x 8.5″H x 12.75″W.
- BPA Free, food grade polyethylene plastic.
- Tank has (2) 1.5″ NPT port and (2) 1/2″ NPT ports on end and (1) 1.5" NPT port on top.

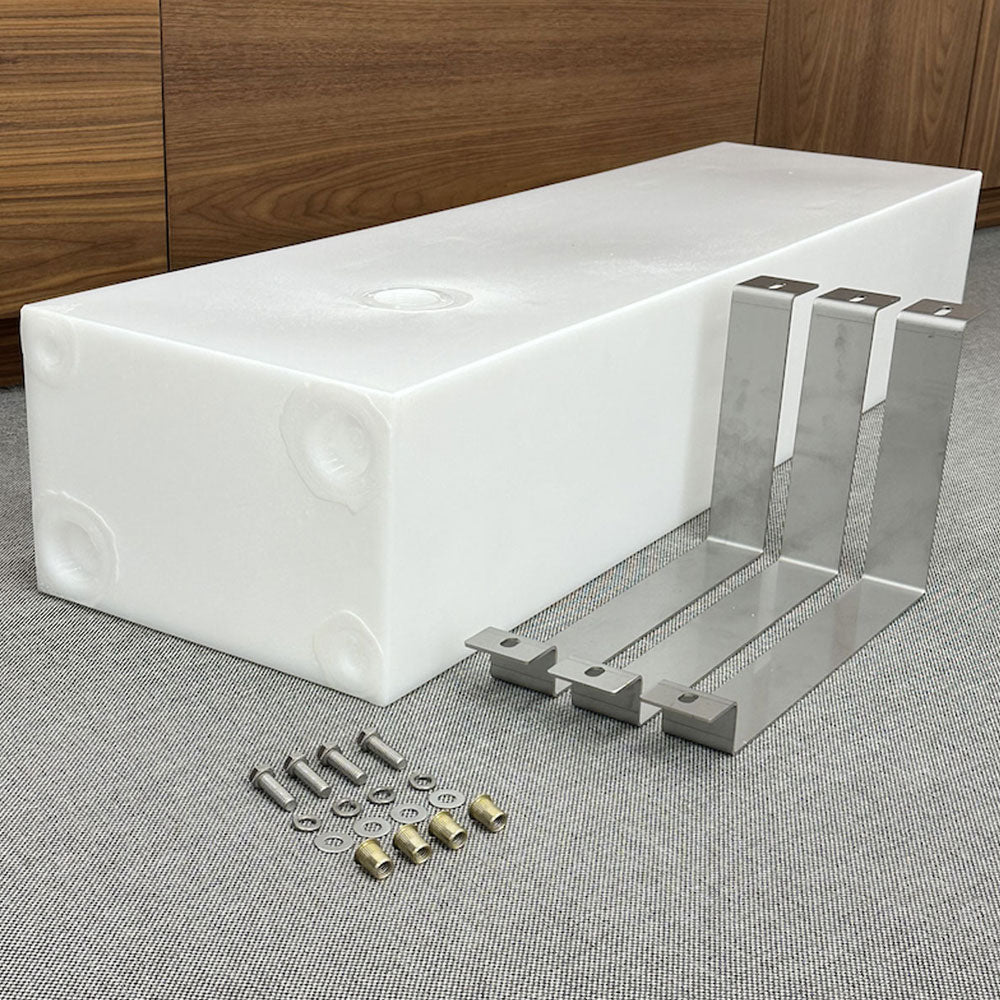

- *(3) Stainless steel Brackets, Stainless steel 3/8" hardware, and rivnuts included.
- Requires drilling of (3) new holes (17/32") for 3/8" rivnuts near pinch weld for one side of the strap and the other side of the strap will use the same bolt and location as the fuel tank straps.
- This will require a rivnut tool.
**** Does NOT Fit Transit 130 Wheel Base ****
*** Does NOT Fit Transit with Factory Running Boards***
