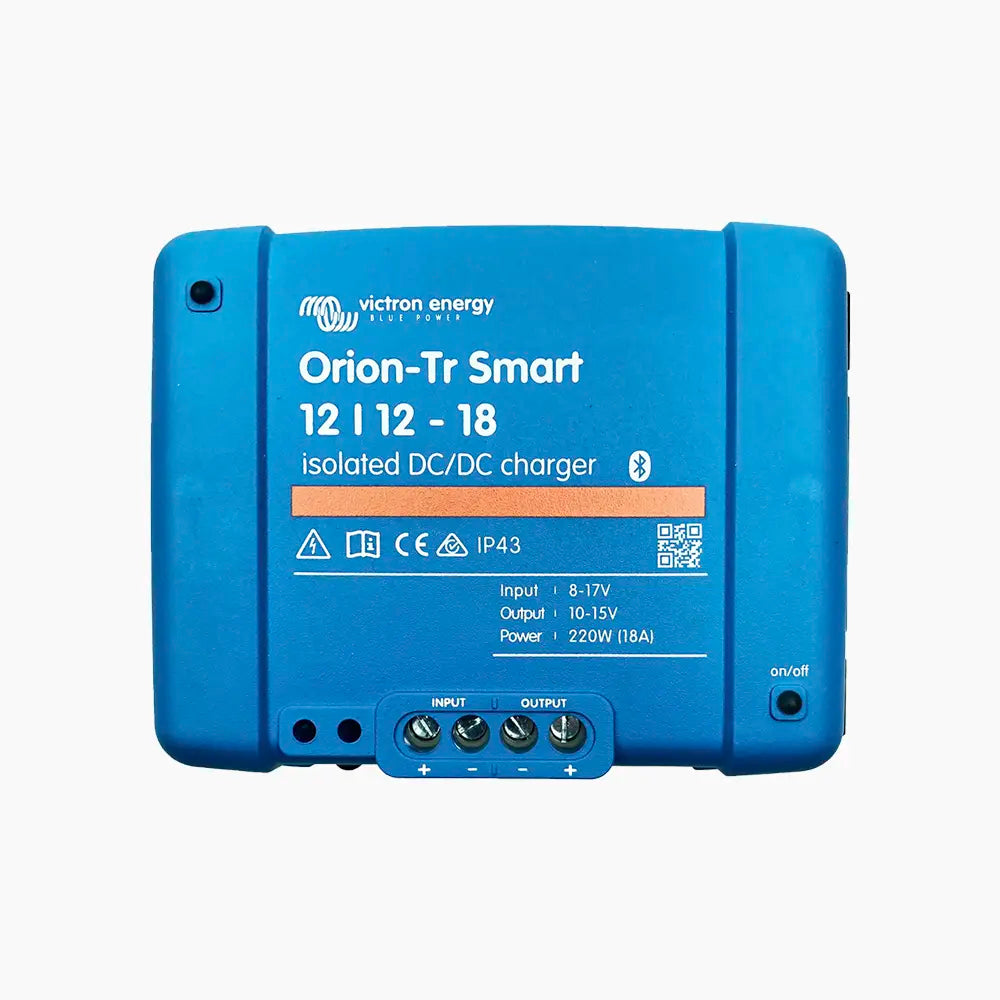

Victron Energy Orion-Tr Smart 12/12-18A Isolated DC-DC charger

Product Description

Reliable 12V Battery-to-Battery Charging

Victron Energy Orion-Tr Smart 12/12-18A Isolated DC-DC charger

The Victron Orion-Tr Smart 12/12-18A is an isolated DC-DC charger with Bluetooth and smart functionality. Designed for 12V systems, it delivers up to 18 amps of output current with customizable charging profiles.

This Orion-Tr Smart charger is ideal for battery-to-battery charging in 12V systems. It supports programmable charge algorithms, includes built-in Bluetooth for remote configuration, and operates with high efficiency. The unit delivers a three-stage charge profile and automatically adjusts to prevent over-discharge and optimize absorption time. Designed for secure and isolated performance, it's trusted in automotive and off-grid installations.

Specifications

• Input Voltage Range: 8–17V

• Nominal Output Voltage: 12.2V

• Output Voltage Range: 10–15V

• Max Output Current: 25A (10s)

• Continuous Output Current: 18A

• Continuous Output Power @ 40°C: 220W

• Efficiency: 87%

• Operating Temp: -20°C to +55°C

• Dimensions: 130 x 186 x 70 mm

• Weight: 1.3 kg

• Isolation: 200V DC

Specifications

Product Weight

5.0 lb

Dimensions

7 x 7 x 4

Brand

Victron

Vehicle Fit

RR Universal, Universal Fit
