Blue Sea ST Blade Fuse Block-12 Circuits by Agile Offroad
Regular price
$79.99

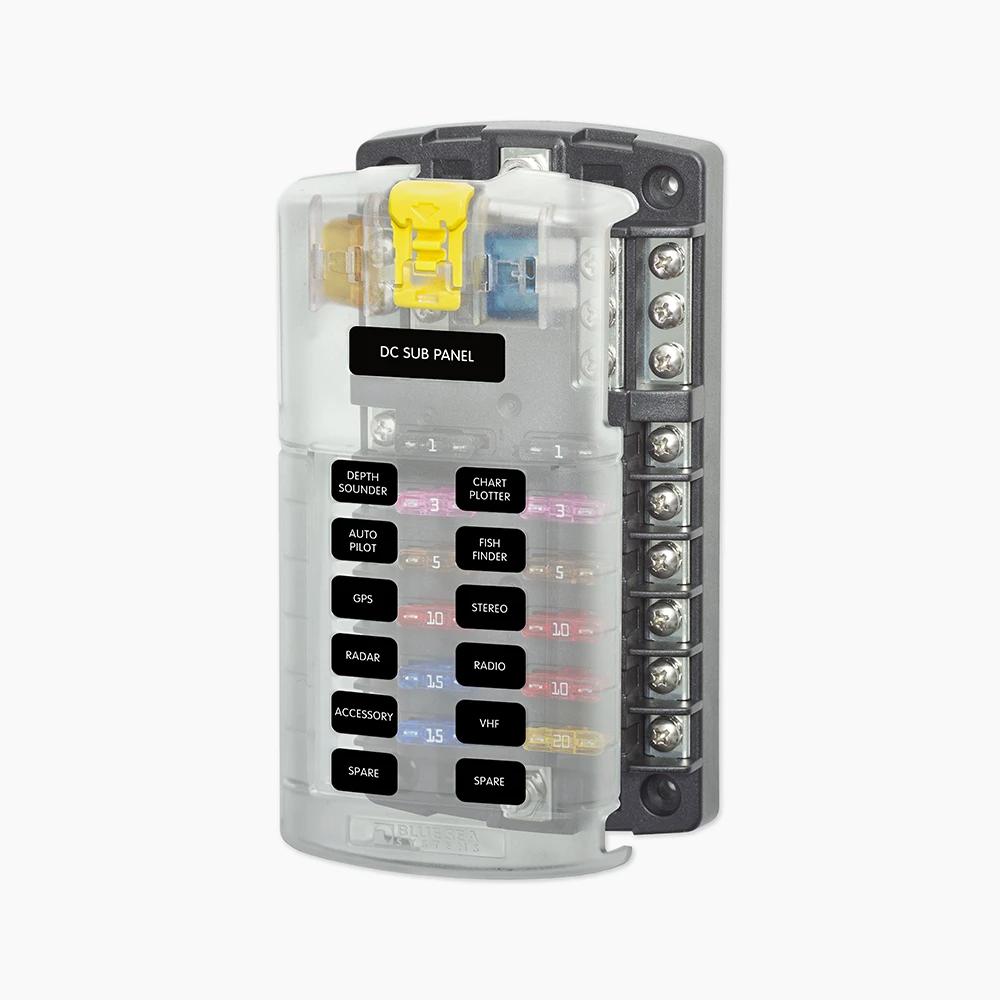

Compact 12 Circuit Fuse Block with Negative Bus and Cover
The Blue Sea 12 Circuit ATC Fuse Block delivers clean, organized power distribution for auxiliary electrical systems. Featuring a compact footprint with integrated positive and negative bus bars, it’s ideal for managing multiple accessories while maintaining reliable circuit protection.
Key Features
- 12-circuit ATC fuse block with bussed ground
- Integrated positive and negative bus bars
- Supports ATC and ATO blade fuses
- Push-button cover latch for easy access
- Label recesses for clear circuit identification
Specifications
- Circuits: 12
- Maximum Amperage: 100A per block, 30A per circuit
- Maximum Voltage: 32V DC
- Positive Bus: #10-32 stud
- Negative Bus: #10-32 stud
- Mounting: #8 screw (M4)
- Recommended Torque: 24 in-lb (2.71 Nm)
- Screw Terminal Torque: 18 in-lb (2.03 Nm)
- Screw Terminal Type: #8-32 screws with captive star lock washer
- Weight: 0.75 lb (0.34 kg)
Note: Fuses sold separately.
