Rear Shock Extension Brackets for 3500 Mercedes Sprinter by Agile Offroad

Proper Shock Travel for Heavy-Duty Leaf Spring Upgrades

Rear Shock Extension Brackets for 3500 Mercedes Sprinter

Designed for Mercedes Sprinter 3500 vans equipped with larger aftermarket rear leaf spring packs, these heavy-duty rear shock extension brackets restore proper shock geometry while relocating the factory brake line mounting position to maintain suspension travel and component clearance.

The Agile Offroad Rear Shock Extension Brackets are engineered for Mercedes Sprinter 3500 owners who have increased rear ride height through suspension modifications. As lift height increases, the factory lower shock mounting position can reduce available suspension travel by placing the shock closer to its maximum extension. These heavy-duty steel brackets relocate the lower shock mount to restore proper operating geometry and help ensure the shock absorber functions within its intended range throughout suspension travel. Whether your lift comes from upgraded leaf springs, lift blocks, or other rear suspension modifications, these brackets help maintain reliable suspension performance while reducing unnecessary stress on the shock absorber. The kit also includes brake line relocation brackets that provide additional slack and clearance without disconnecting the factory hydraulic brake system, eliminating the need for brake bleeding during installation. Finished in a durable powder coat for long-lasting corrosion resistance, this bolt-on solution is built for demanding on-road, off-road, and overland use.

Benefits

• Restores proper shock geometry after increasing rear ride height.
• Helps prevent shock overextension throughout suspension travel.
• Relocates factory brake lines without opening the hydraulic system.
• Eliminates the need for brake bleeding during installation.
• Maintains suspension performance with larger aftermarket leaf spring packs.

Key Features

• Heavy-duty steel bracket construction.
• Durable powder coated finish for corrosion resistance.
• Relocates the lower rear shock mounting position.
• Includes brake line relocation brackets.
• Bolt-on installation using factory mounting locations.
• Designed specifically for Mercedes Sprinter 3500 applications.

Designed for Lifted Sprinters

Maintain Proper Suspension Geometry

Increasing rear ride height changes suspension geometry and can limit available shock travel. These extension brackets reposition the lower shock mount to restore proper operating angles and maintain suspension performance after lifting the vehicle.

Protect Shock Travel

Reduce the Risk of Shock Overextension

By lowering the shock mounting position, the brackets help keep the shock absorber operating within its intended range of motion during compression and extension, supporting proper suspension function on and off the road.

Integrated Brake Line Relocation

Maintain Clearance Without Modifying the Brake System

Included brake line relocation brackets provide additional slack and clearance for suspension movement while retaining the factory brake line routing. No hydraulic components need to be disconnected during installation.

No Brake Bleeding Required

Simplify Installation and Reduce Downtime

Because the factory hydraulic brake system remains sealed, installation can be completed without extending brake lines or performing a brake bleeding procedure, helping reduce installation time and complexity.

Specifications

• Material: Heavy-Duty Steel
• Finish: Powder Coated
• Mounting Location: Rear Lower Shock Mount
• Includes: Brake Line Relocation Brackets
• Vehicle Compatibility: Mercedes Sprinter 3500

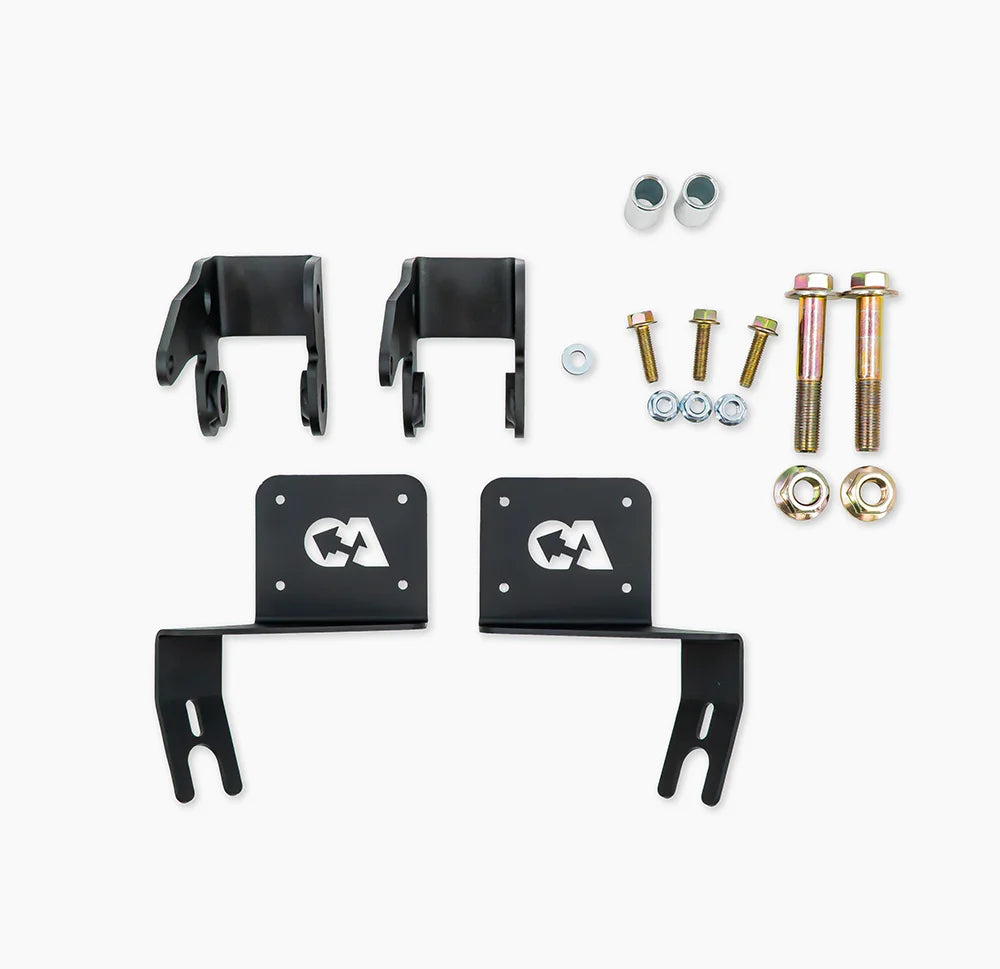

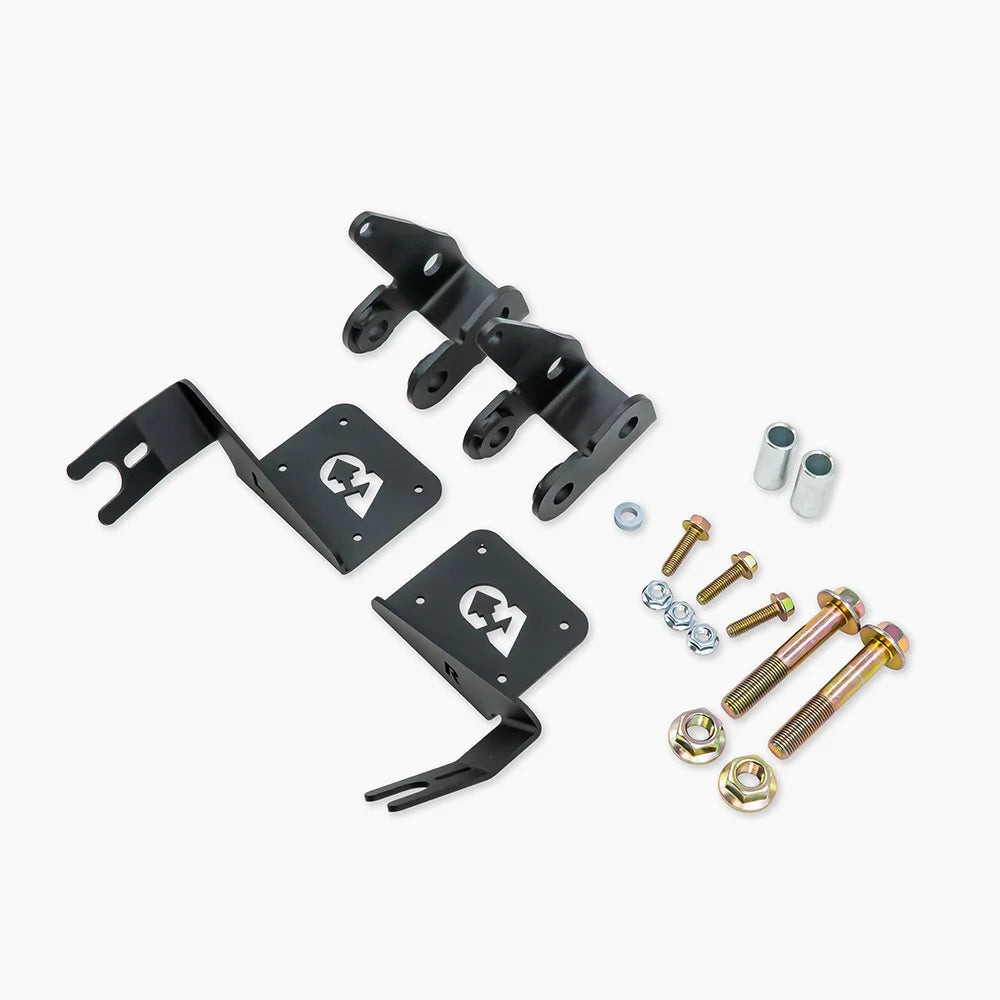

Package Includes

• (2) Rear Shock Extension Brackets
• (2) Brake Line Relocation Brackets
• Installation Hardware

Fitment

• Mercedes Sprinter 3500
• Compatible with larger aftermarket rear leaf spring packs.
• Designed for vehicles with increased rear ride height from suspension modifications.

Notes

• Intended for Mercedes Sprinter 3500 models equipped with larger aftermarket rear leaf spring packs or other rear suspension lift modifications.
• Verify suspension configuration prior to ordering to ensure proper compatibility.
