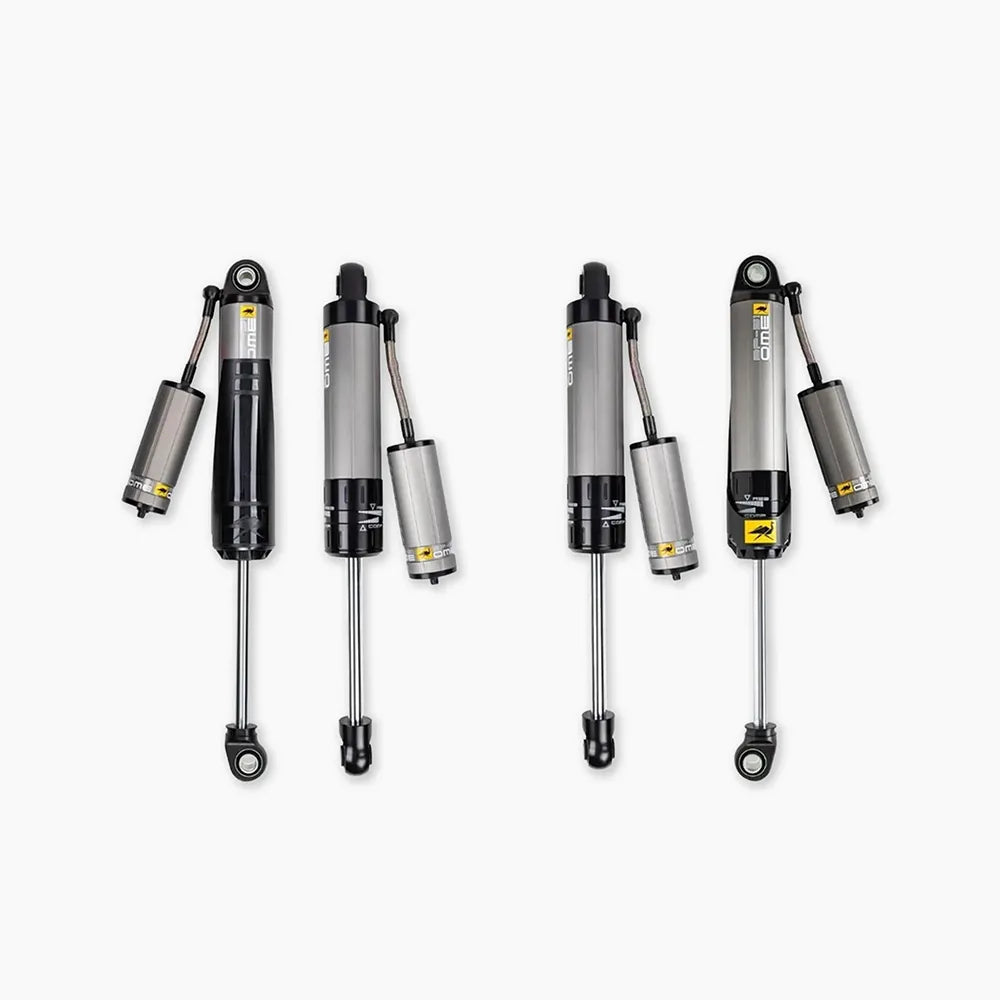

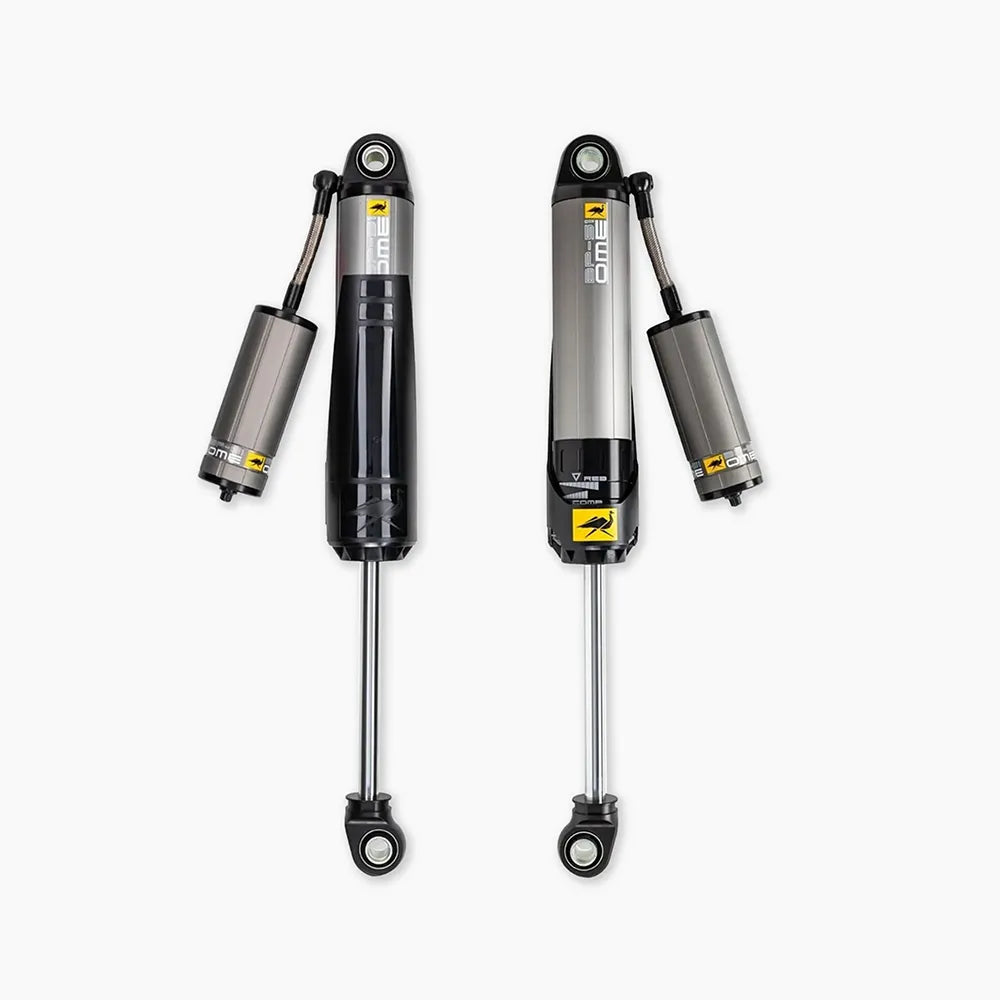

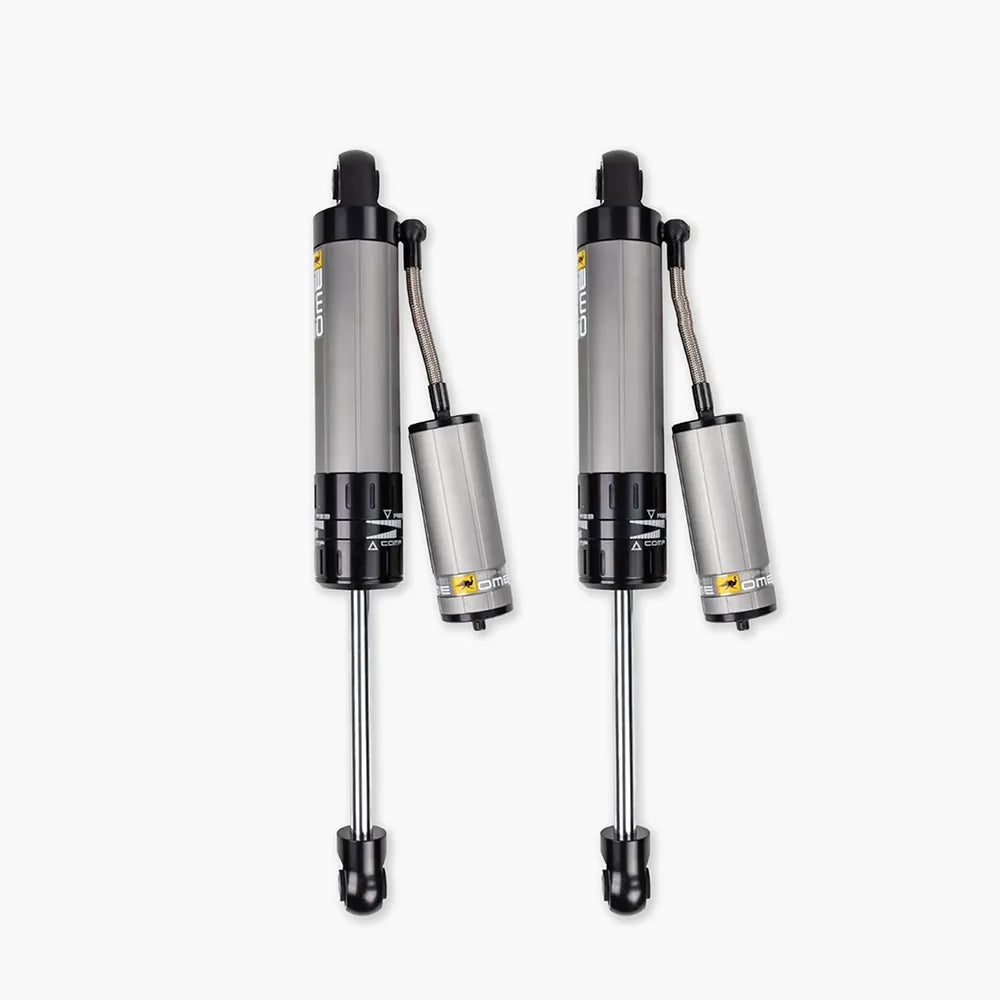

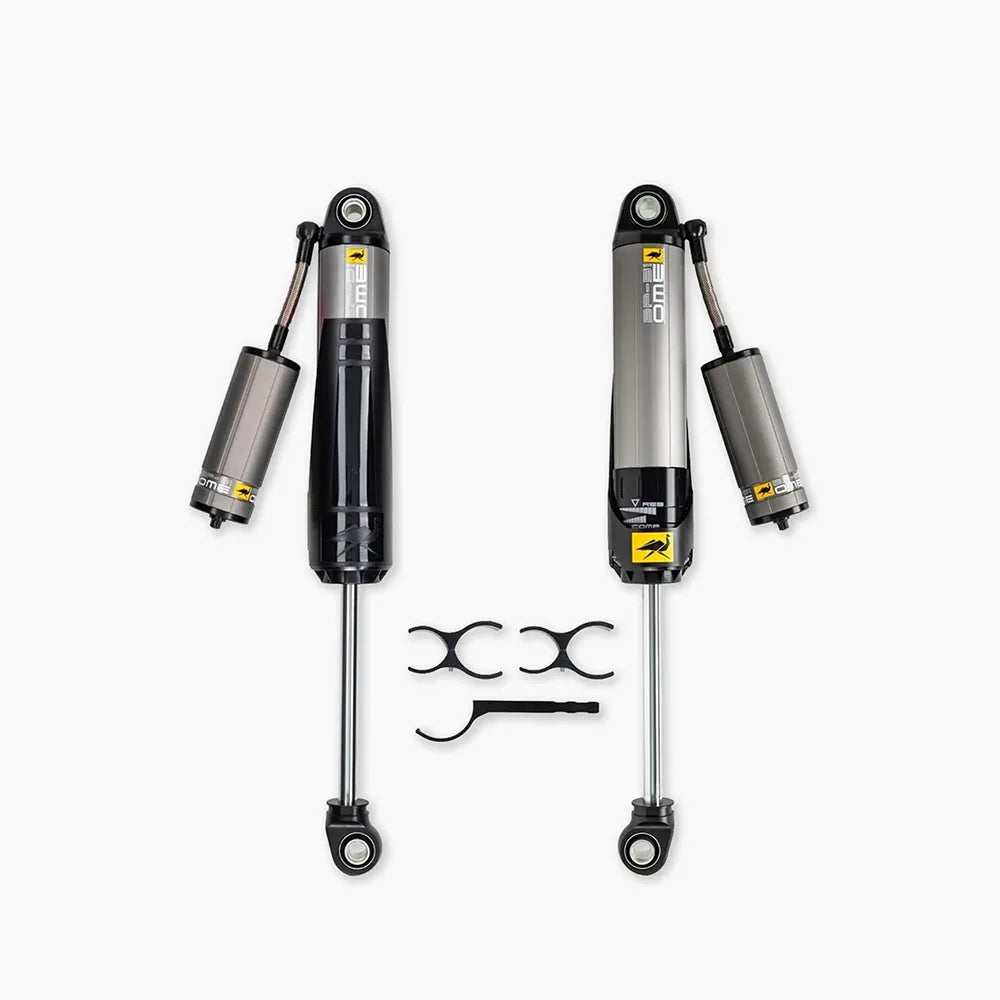

Old Man Emu BP-51 Shocks for INEOS Grenadier by Agile Offroad

Adjustable Internal Bypass Performance for the INEOS Grenadier

Vehicle-Specific BP-51 Shocks with Independent Compression & Rebound Adjustment

Upgrade your INEOS Grenadier with the Old Man Emu BP-51 suspension system from ARB. Designed, developed, and tested specifically for the Grenadier, these 51mm internal bypass shocks combine position-sensitive damping with independent compression and rebound adjustment for a highly tunable balance of comfort, control, and off-road performance.

The BP-51 system is a direct bolt-in solution using the vehicle’s existing mounting locations and features remote reservoirs, aircraft-grade 6061 aluminum shock bodies, and externally accessible adjusters for dialing in the suspension to suit changing loads, terrain, and driving conditions.

The Old Man Emu BP-51 is ARB’s premium adjustable bypass shock absorber, developed to deliver a high level of both on-road comfort and off-road control for the INEOS Grenadier.

Unlike conventional shock absorbers that primarily generate damping through fluid movement across the piston, the BP-51 incorporates internal bypass passages that allow shock fluid to move around the piston at specific points in its travel. This creates position-sensitive damping, allowing the shock to remain more compliant around normal ride height while progressively increasing damping as the suspension approaches full compression or extension.

The result is a suspension that can provide a comfortable, controlled ride during everyday driving while offering increased support as terrain becomes more demanding. Greater damping near the ends of the shock stroke helps control larger impacts and reduces harsh bottoming or topping out.

BP-51 shocks also feature 10 levels of independent compression adjustment and 10 levels of independent rebound adjustment, giving the driver the ability to fine-tune suspension behavior directly on the vehicle. Adjustments can be made to account for changes in vehicle weight, accessories, cargo, terrain, or individual ride preference.

Remote reservoirs increase the system’s oil capacity and assist with heat management during extended periods of demanding off-road use. The 51mm shock bodies are manufactured from aircraft-grade 6061 aluminum with a Type III hard-anodized finish for improved heat dissipation, durability, and corrosion resistance.

Designed and manufactured in-house by ARB, the BP-51 system is engineered as a vehicle-specific, bolt-in upgrade for the INEOS Grenadier.

Benefits

• Provides a balance of everyday ride comfort and increased control in demanding terrain
• Allows suspension tuning to match vehicle load, terrain, and driver preference
• Position-sensitive damping increases control as the suspension approaches the ends of its travel
• Remote reservoirs improve oil capacity and heat management during sustained off-road use
• Vehicle-specific design provides a direct replacement for OE and compatible aftermarket suspension systems

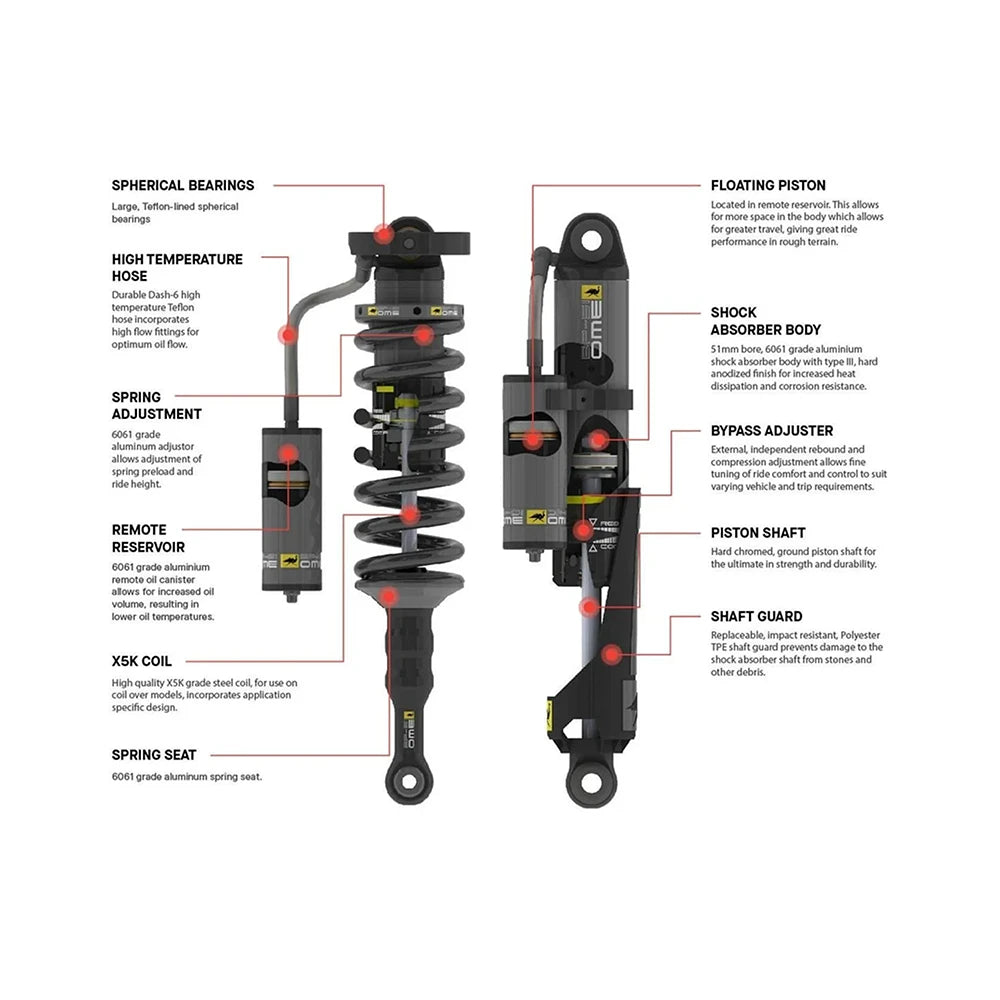

Key Features

• Internal Bypass Technology: Position-sensitive damping provides a compliant ride around normal ride height with increased control toward the ends of suspension travel
• Independent Compression & Rebound Adjustment: 10 adjustment levels for compression and 10 for rebound allow extensive on-vehicle tuning
• Remote Reservoir Design: Additional oil capacity helps improve cooling and maintain performance during extended off-road driving
• 51mm 6061 Aluminum Construction: Aircraft-grade aluminum bodies with a Type III hard-anodized finish improve heat dissipation and corrosion resistance
• Grenadier-Specific Bolt-In Fitment: Engineered around factory mounting locations without requiring additional vehicle modifications

Position-Sensitive Internal Bypass

Comfort in the middle. Control at the limits.

Internal bypass passages allow the BP-51 to vary damping based on the position of the piston within the shock body. The suspension remains compliant around normal ride height while damping progressively increases toward full compression and extension for greater control over larger impacts and rough terrain.

Tune Compression & Rebound Independently

20 levels of suspension tuning at your fingertips

With 10 levels of compression adjustment and 10 levels of rebound adjustment, BP-51 shocks can be tuned directly on the vehicle to suit different loads, road conditions, terrain, and driving preferences.

Compression adjustment changes how the shock responds as the suspension compresses over an impact, while rebound adjustment controls how quickly the suspension extends afterward.

Built to Manage Heat

51mm aluminum bodies and remote reservoirs

Remote reservoirs provide additional oil volume to help manage temperature during sustained off-road driving. Aircraft-grade 6061 aluminum shock bodies dissipate heat more efficiently than steel while providing excellent corrosion resistance for demanding travel environments.

Engineered Specifically for the Grenadier

A true vehicle-specific, bolt-in suspension upgrade

Every BP-51 application is engineered around the vehicle it is intended for. The Grenadier system utilizes existing suspension mounting locations for a clean installation without requiring additional chassis modifications.

Bypass Technology

Traditional velocity-sensitive shock absorbers increase damping as piston speed increases. The BP-51 combines this principle with position-sensitive damping through its internal bypass design.

During normal suspension movement, a portion of the shock fluid can travel through bypass passages around the piston, allowing a more compliant response. As the piston approaches either end of its travel, available bypass flow decreases and damping increases.

This progressive change in damping helps provide:

• Comfortable and compliant suspension behavior during normal driving
• Increased control through larger bumps and rough terrain
• Greater resistance to harsh bottoming during compression
• Improved control as the suspension approaches full extension

Development & Manufacturing

BP-51 shock absorbers are designed, developed, tested, and manufactured in-house by ARB.

The system uses aircraft-grade 6061 anodized aluminum shock bodies, selected for efficient heat dissipation and corrosion resistance. ARB utilizes dedicated machining and hard-anodizing processes to maintain control over manufacturing quality.

The BP-51 platform has undergone extensive laboratory, real-world, and destructive testing during development to validate performance, durability, reliability, and longevity.

Specifications

• Vehicle Application: INEOS Grenadier
• Shock Series: Old Man Emu BP-51
• Shock Type: Internal bypass, position-sensitive shock absorber
• Body Diameter: 51mm
• Body Material: Aircraft-grade 6061 aluminum
• Finish: Type III hard anodized
• Compression Adjustment: 10 levels
• Rebound Adjustment: 10 levels
• Adjustment Type: External, independent on-vehicle adjustment
• Reservoir Type: Remote oil reservoir
• Installation: Vehicle-specific direct bolt-in
• Mounting: Utilizes existing vehicle mounting locations

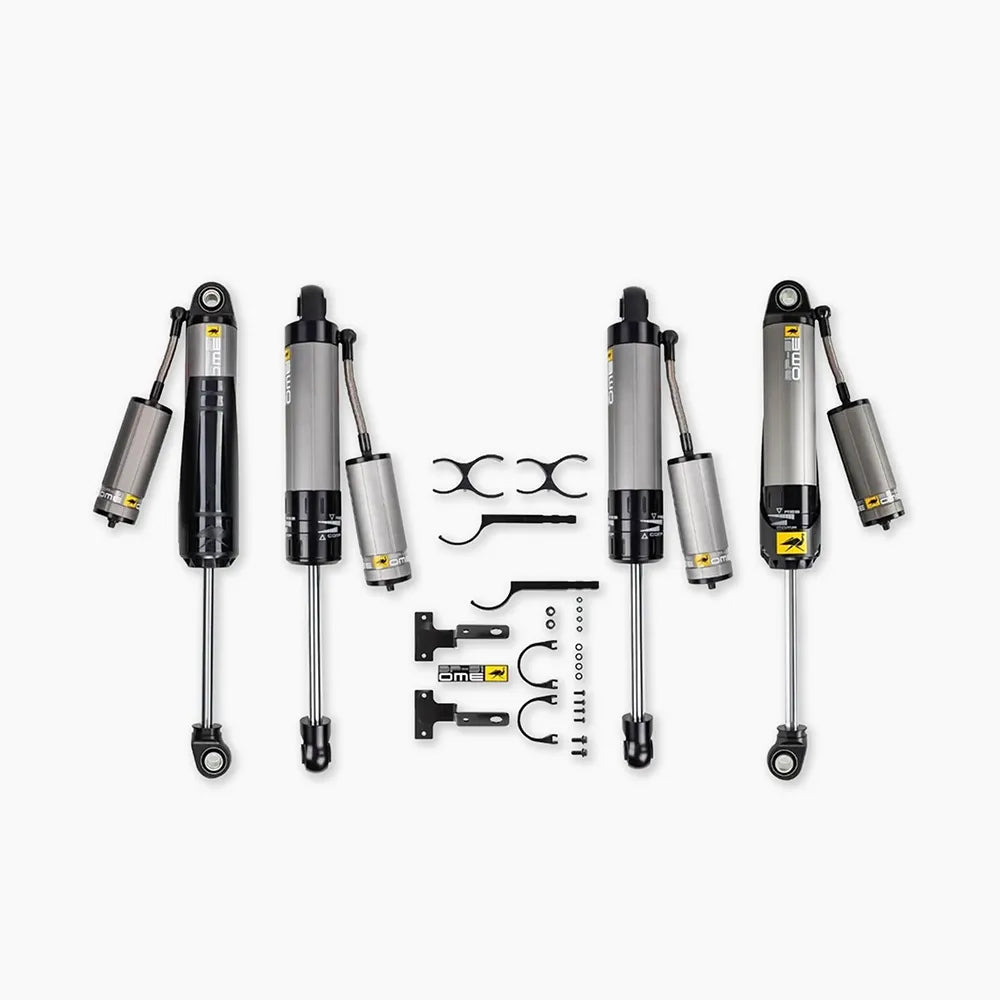

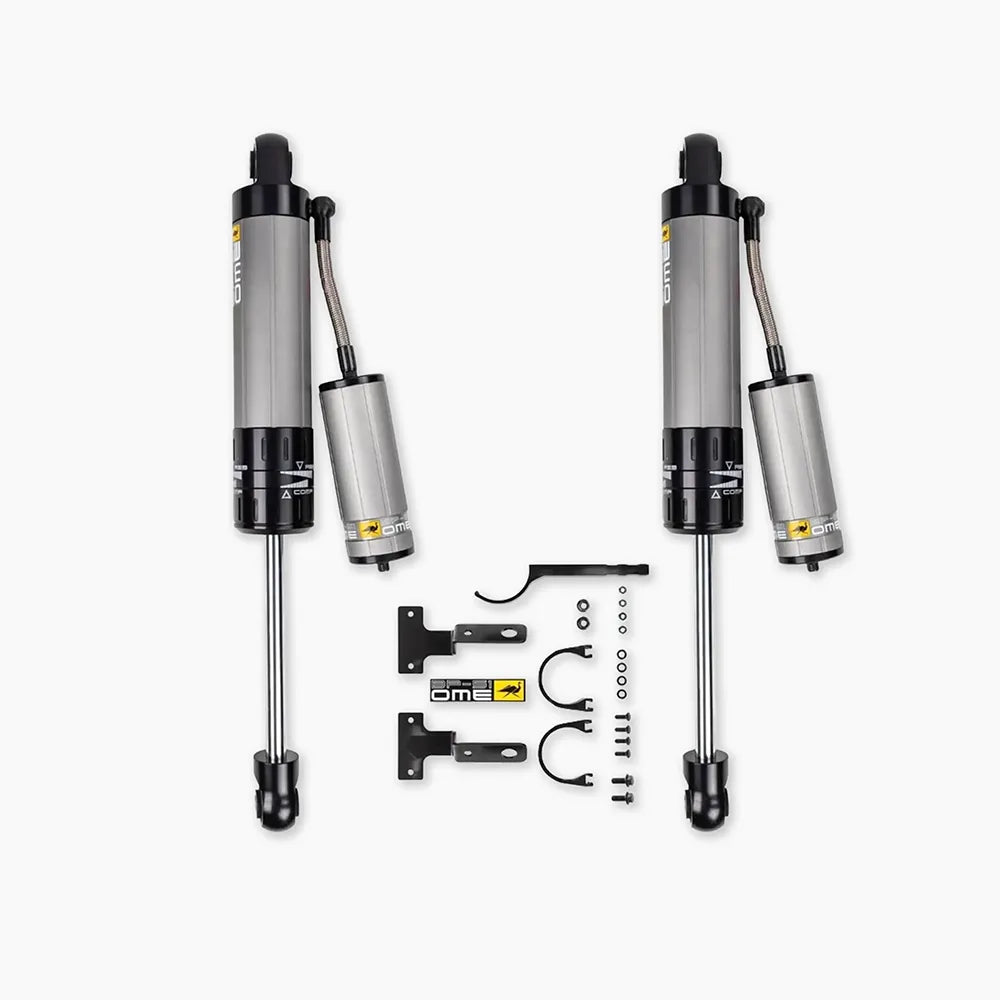

Kit Components

• Front BP-51 Shock Absorbers: 2
• Rear BP-51 Shock Absorbers: 2
• Front BP-51 Fitting Kit: 1
• Rear BP-51 Fitting Kit: 1
