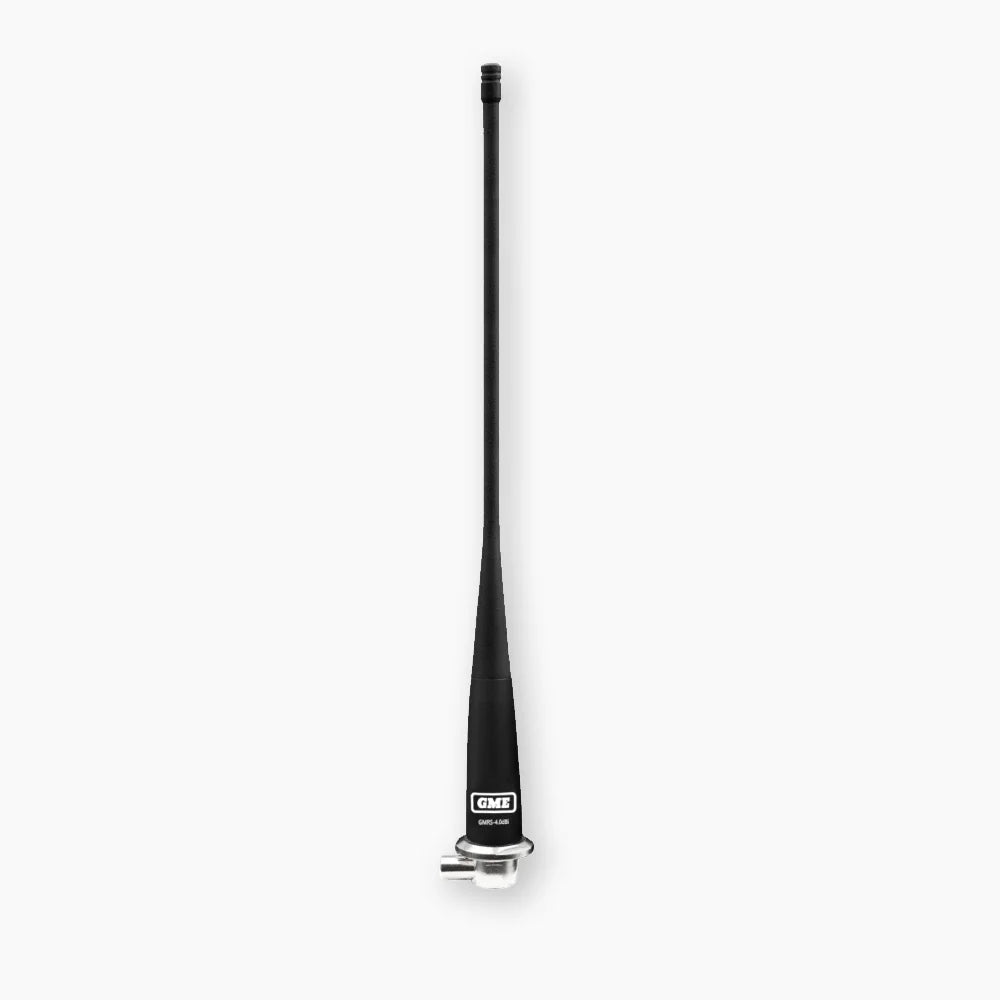

GME GMRS Lightweight Antenna Range (4dBi)
Regular price
$80.00
Extended GMRS Range in a Slim Profile
The GME AE4202-U GMRS antenna increases signal reach with 4dBi gain while maintaining a slim, lightweight design. Built with stainless steel and UV-resistant TPU, it’s ideal for vehicles needing improved communication range without bulky antenna hardware.
Key Features
- 4dBi gain for extended GMRS range
- Ground-independent, fixed-tuned design
- Low-loss RG58 cable with FME termination
- Stainless steel core with UV-resistant TPU
- Taller 12-inch antenna for improved signal coverage
Product Benefits
- Increased communication range over low-gain antennas
- Clean installation with bracket or bumper bar mounting
- Reliable performance without ground plane dependency
- Durable for harsh weather and trail vibration
Specifications
- Band: GMRS
- Frequency: 462–468 MHz
- Gain: 4dBi
- VSWR: <1.5:1
- Impedance: 50 Ohms
- Polarization: Vertical
- Cable Type: Low Loss RG58
- Cable Length: 16.5 ft (5.0 m)
- Cable Termination: FME
- Tuning: Fixed Tuned
- Grounding: Ground Independent
- Antenna Length: 305 mm (12 in)
- Mounting: SO239 Connector
- Base: Right Angle SO239 to FME Adapter
- Shipping Weight: 0.88 lb
