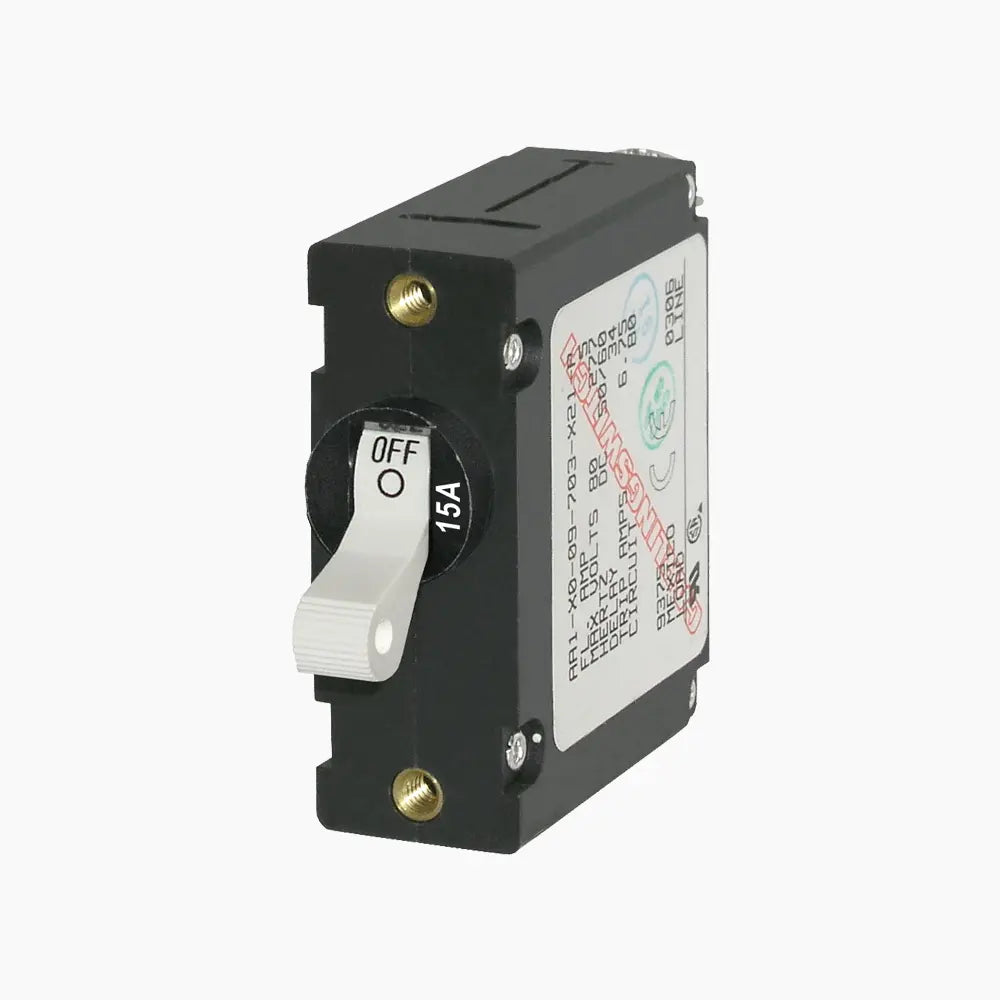

Blue Sea A-Series Black Toggle Circuit Breaker – Single Pole 15A by Agile Offroad

This 15A A-Series breaker combines circuit protection and switching in a single compact toggle unit. Suitable for AC or DC applications.

The Blue Sea A-Series 15A Circuit Breaker is a magnetic-hydraulic breaker designed for both AC and DC systems. Built to industry standard dimensions, it’s compatible with most panel cutouts using A-frame toggles. This breaker meets ABYC standards and is UL, TUV, CE, and CSA certified. The trip-free design ensures it cannot be held ON during a fault condition, providing safe, dependable protection.

Specifications

• Amperage: 15A AC / 15A DC

• Color: Black

• Actuator Style: Toggle

• Poles: 1

• Max Voltage: 240V AC / 65V DC

• Breaker Type: Magnetic Hydraulic (Trip-Free)

• Interrupt Capacity:

• 3000A @ 120V AC

• 1500A @ 240V AC

• 3000A @ 240V AC

• 7500A @ 65V DC

• Operating Temp: -40°C to 85°C

• Mounting Screw: #6-32 Stainless Steel

• Terminal Screws: #10-32 Stainless Steel

• Torque Specs:

• Mounting: 6 in-lb (0.68 Nm)

• Terminal: 14 in-lb (1.58 Nm)

• Switching Cycles: 10,000

• Weight: 0.17 lb (0.08 kg)
