Black Rhino Arsenal Wheels by Agile Offroad

Product Description

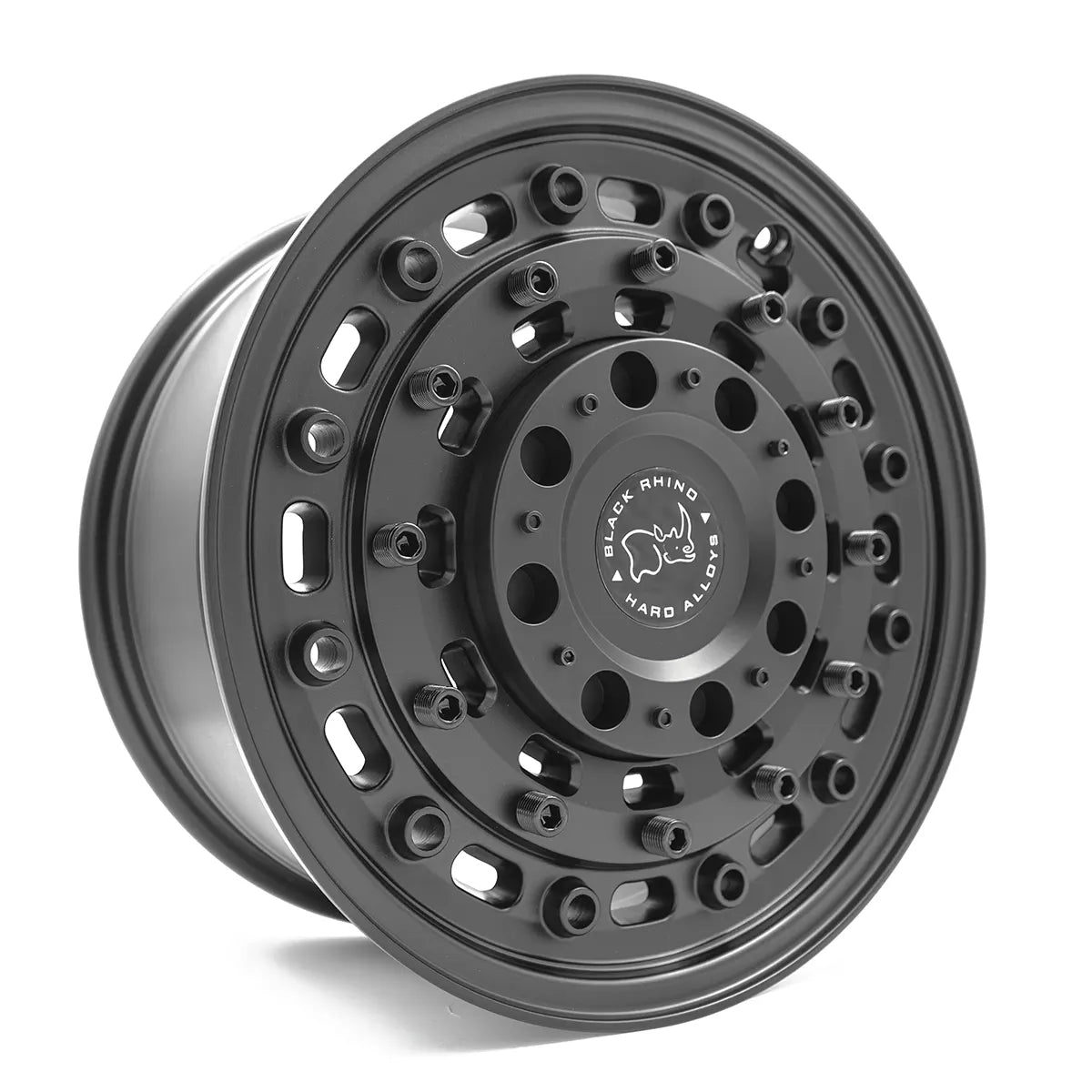

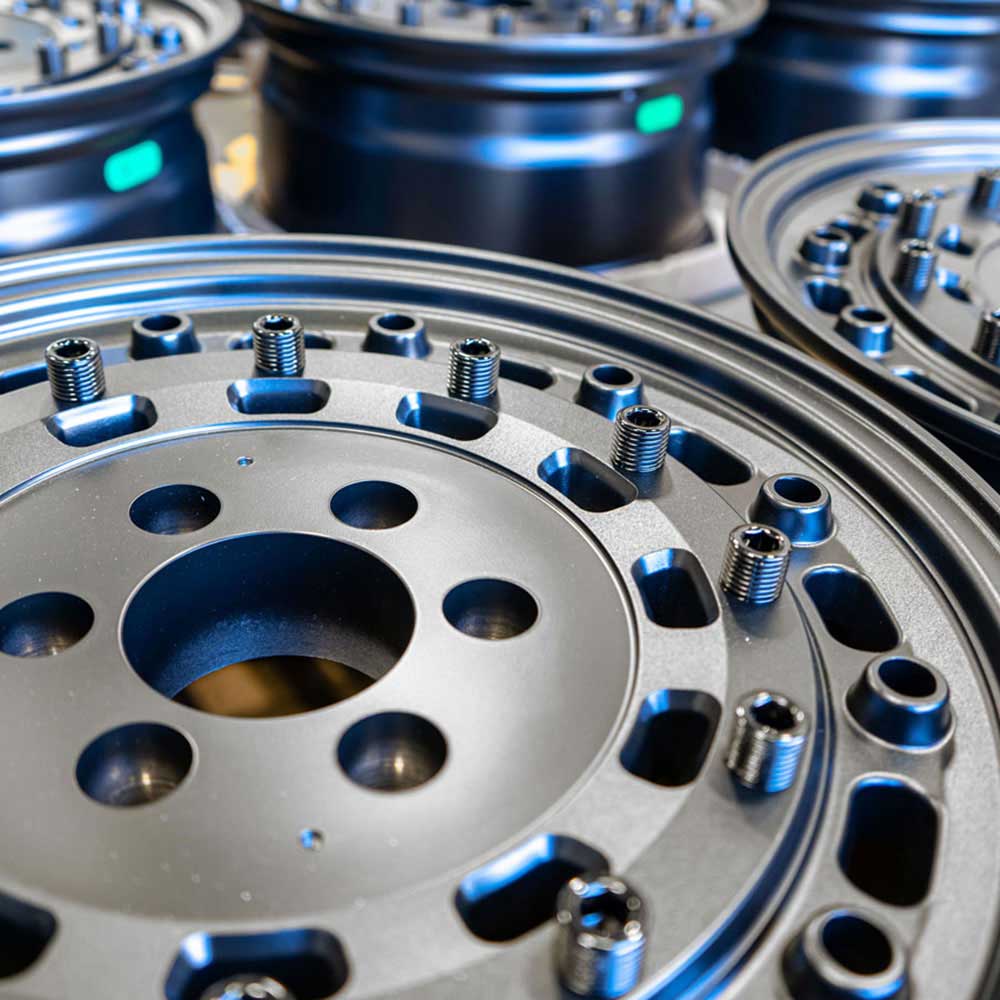

Arsenal is Black Rhino's latest military-inspired wheel. The modified tactical look brings its off-road character to the next level. The Arsenal features a bolted face and thickly chiseled windows - a powerful look that is perfect for the adventure-minded overland explorers. Arsenal is one of Black Rhino's most unique off-road wheels offerings down to its center cap.

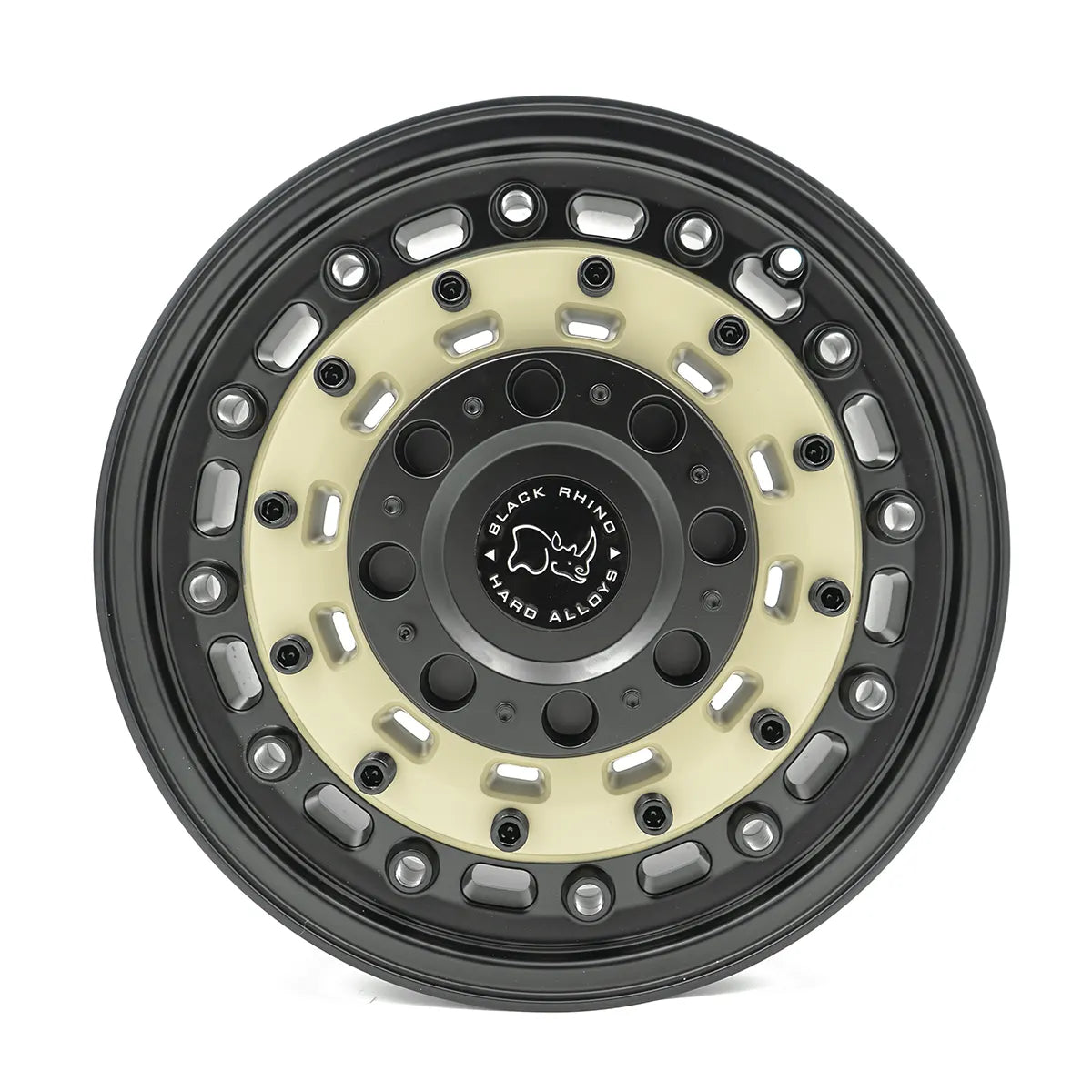

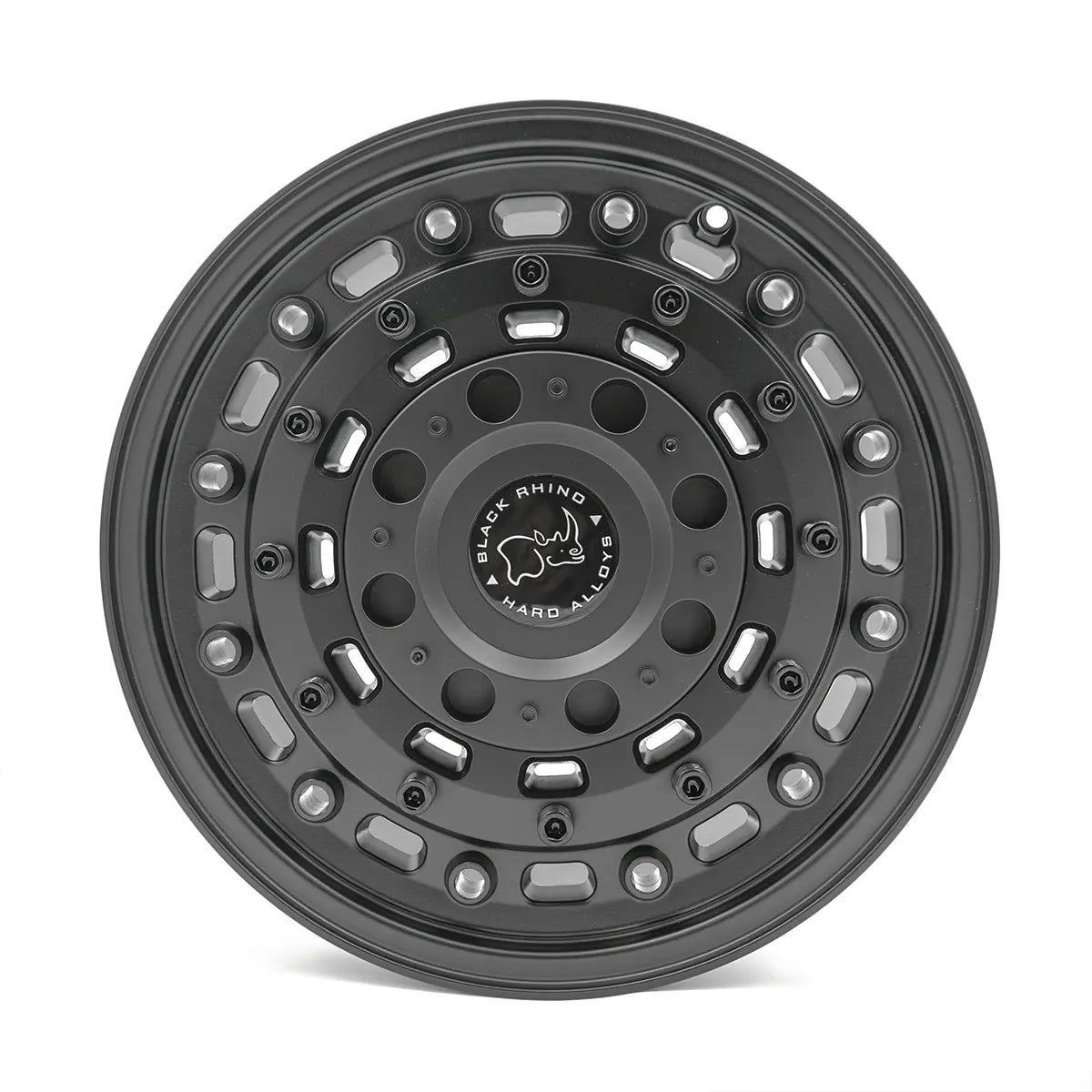

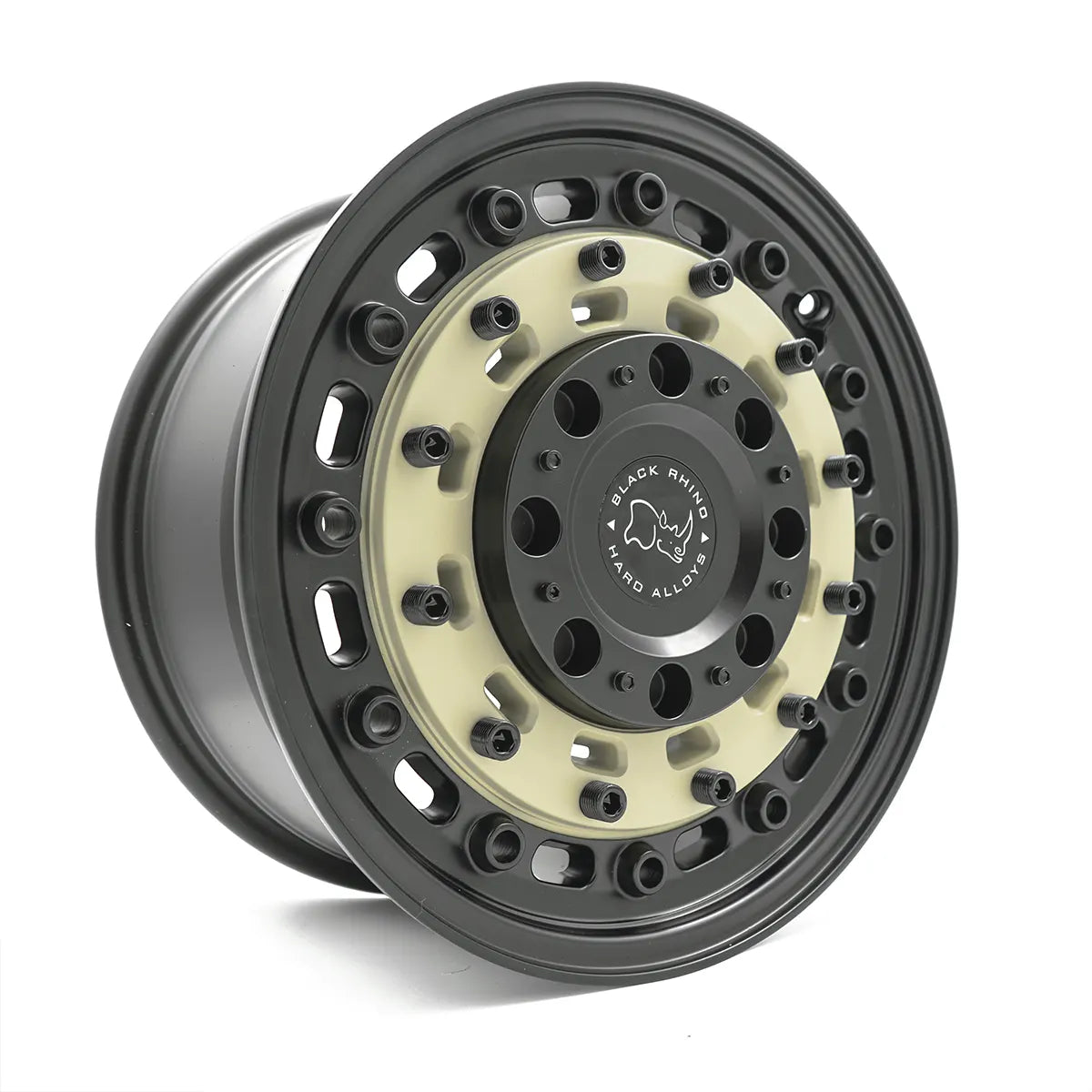

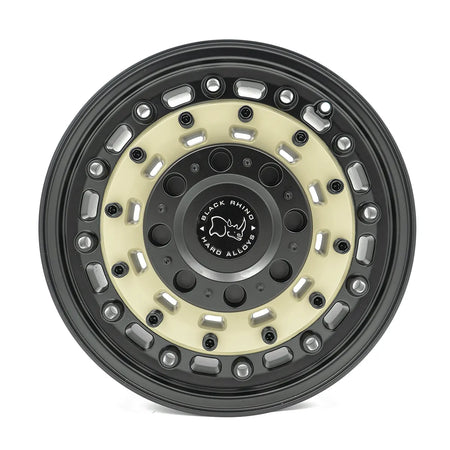

With a 3,300 lb. load capacity (per wheel) the Arsenal is plenty sturdy enough for the heaviest of van builds. These wheels are also unique because of their custom 38 mm offset. This offset (when compared to most aftermarket Sprinter wheels 52 mm) provides a considerably wider vehicle's track both improving handling & aesthetics. They’re also compatible with our hub-centric wheel spacers. The Arsenal measures 17x8 inches and is available in matte black & black/sand.

---

Fit Notes: Requires aftermarket (cone seat) lug bolts (not included).

Vehicle Fit

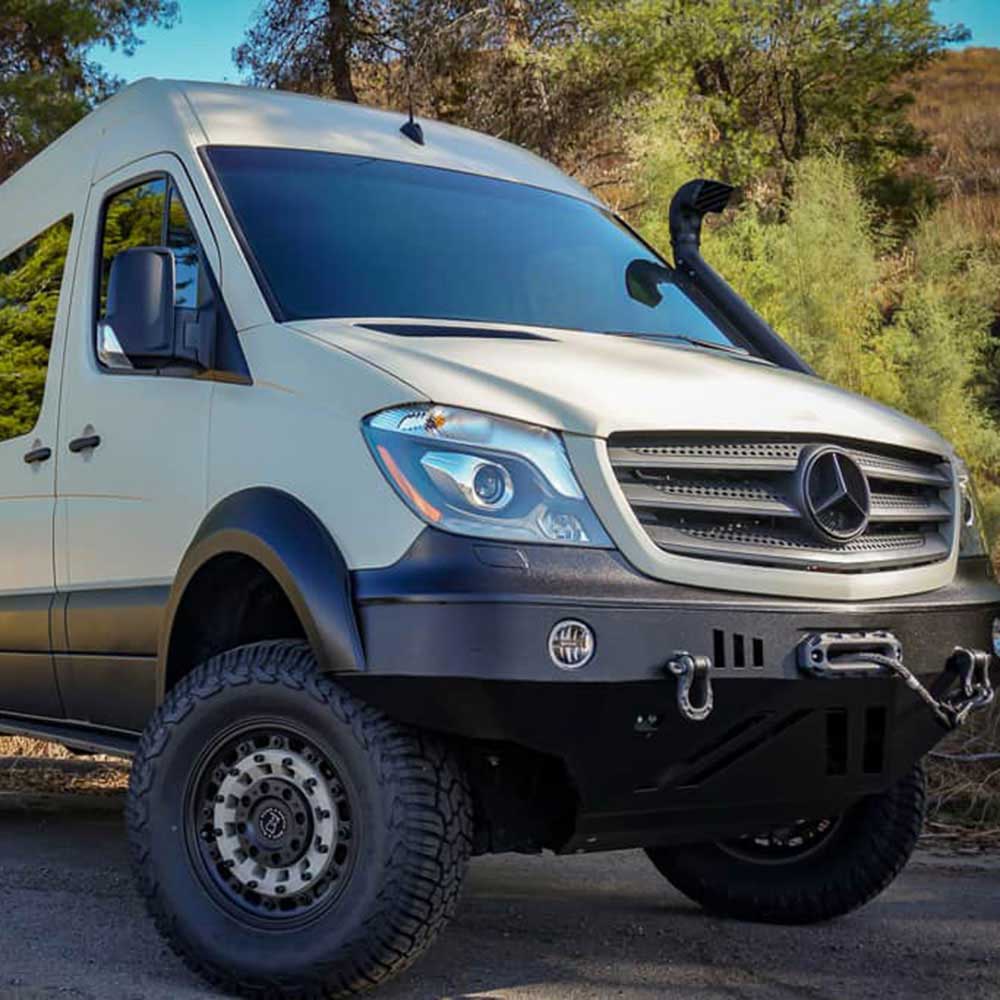

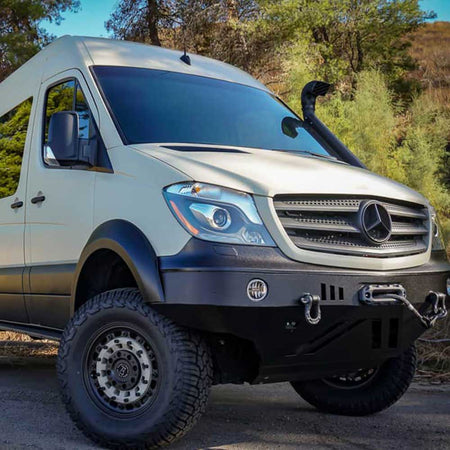

Mercedes Sprinter 2500 (2WD & 4x4)
Second Generation (NCV3) 2007 – 2018
Third Generation (VS30) 2019+

Fit Notes: Requiresaftermarket (cone seat) lug bolts (not included).

Specifications

Product Weight

32 lbs

Dimensions

20 x 21 x 10

Colors

Matte Black, Sand/Black

Back Spacing

6

Bolt Pattern

6x130

Bore

84.1

Brand

Black Rhino

Load Rating

3300 lbs

Size

17" x 8"

Vehicle Fit

NCV3 Sprinter 2500 2wd, NCV3 Sprinter 2500 4x4, VS30 Sprinter 2500 2wd, VS30 Sprinter 2500 4x4

Wheel Offset

38 mm
