ARB Air Locker for INEOS Grenadier by Agile Offroad
100% Selectable Traction. On Demand.
Front or Rear Air Locker for INEOS Grenadier
The ARB Air Locker gives INEOS Grenadier owners true driver-controlled differential locking with 100% traction on demand. Available for both front and rear axles, the locker allows the differential to operate normally during everyday driving and mechanically locks the axle when additional traction is needed.
Designed to fit all Grenadier model variants, including vehicles equipped with OE locking or non-locking differentials, the Air Locker adds proven off-road capability without compromising normal on-road drivability.
Long Product Intro

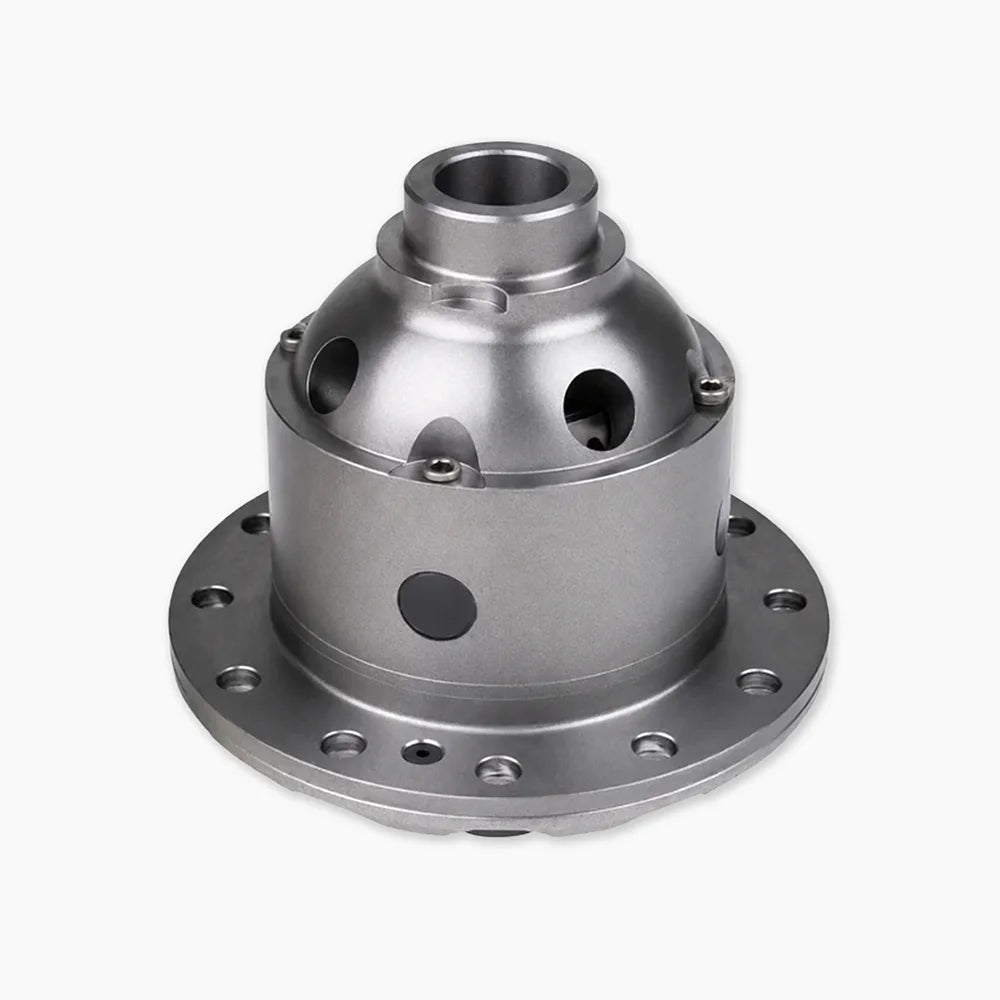

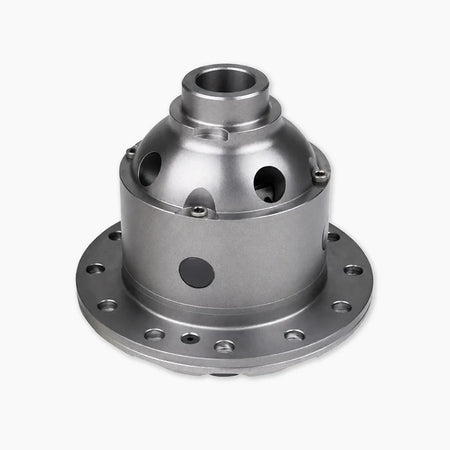

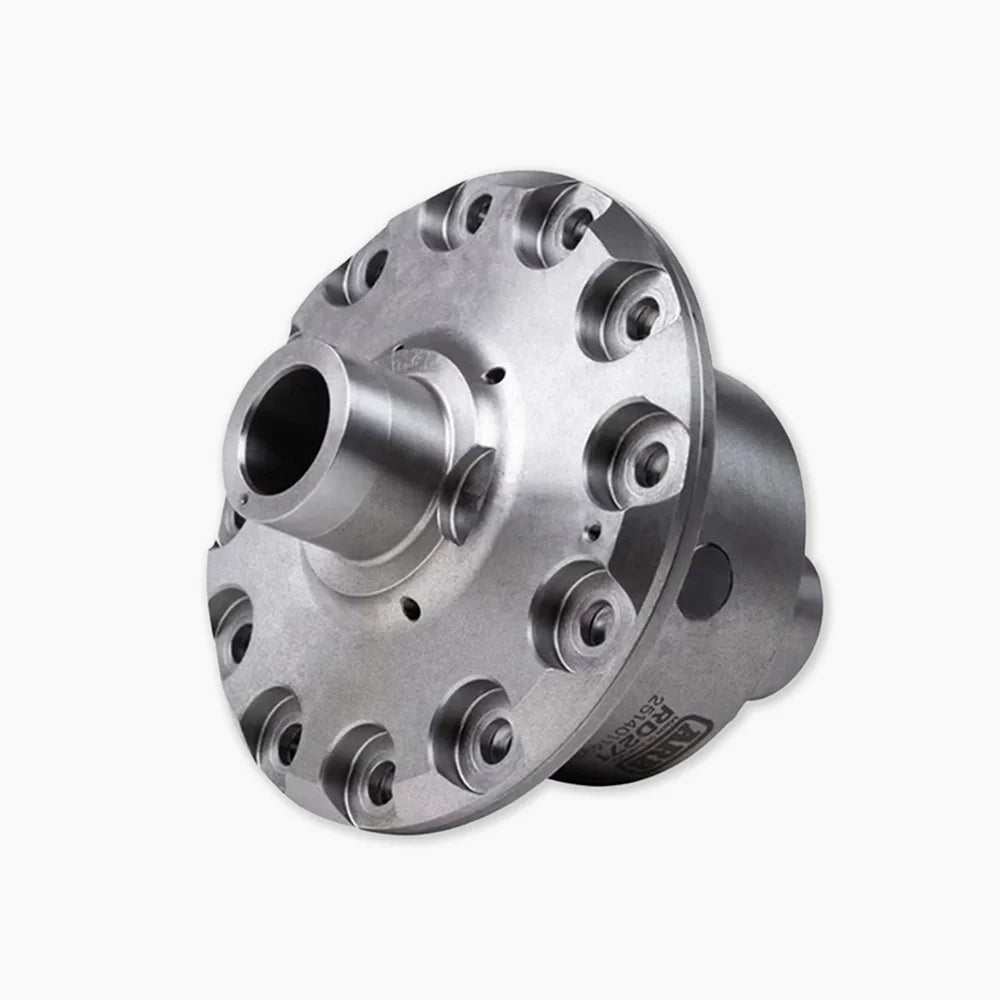

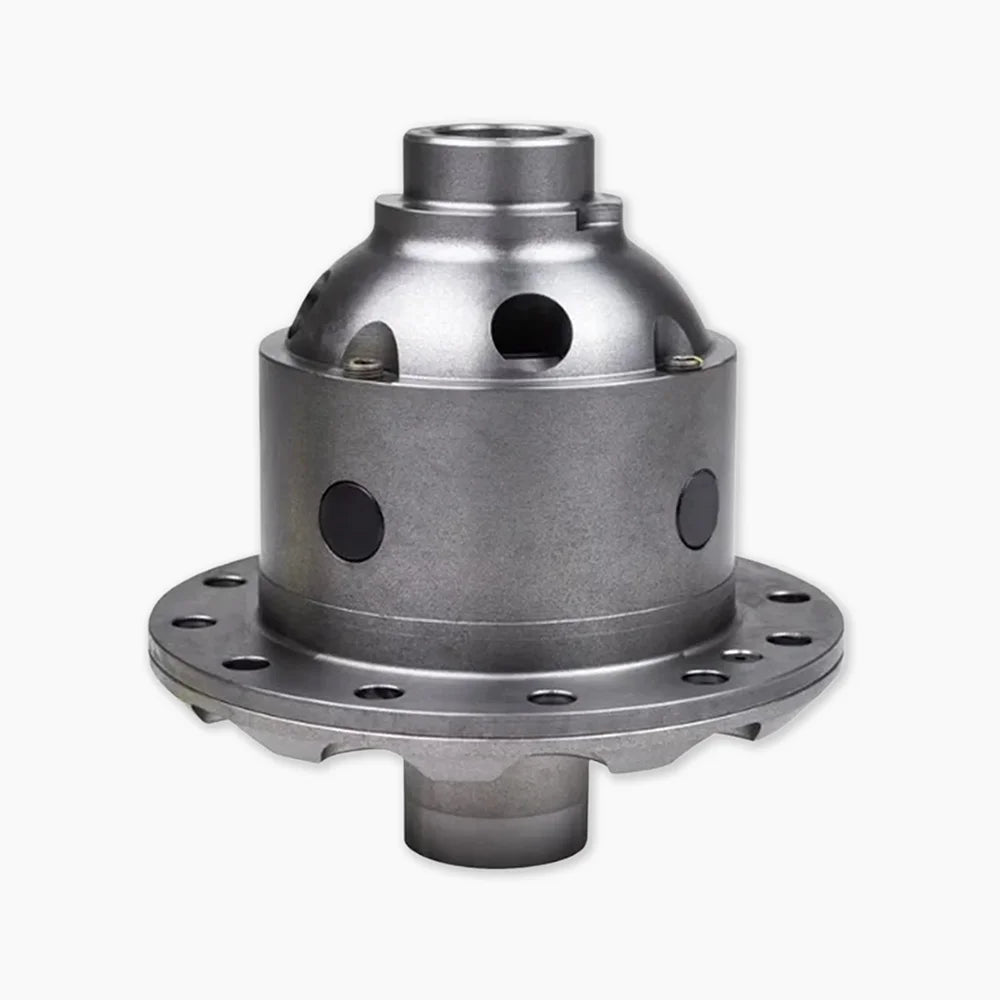

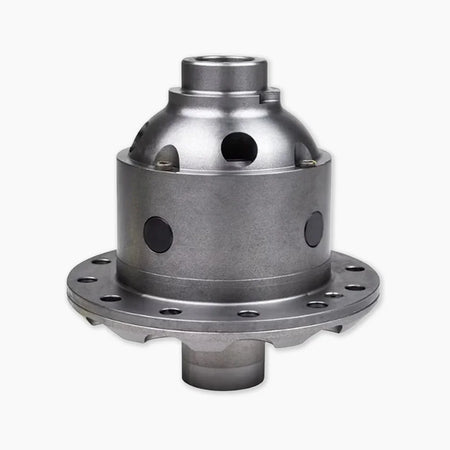

The ARB Air Locker is a proven selectable locking differential designed to give the driver complete control over when additional traction is needed.
At the push of a switch, compressed air engages the locking mechanism and mechanically locks the differential, allowing both wheels on the axle to work together. This reduces the need to rely on speed or momentum when crossing rocks, mud, sand, ruts, steep inclines, and other low-traction terrain.
By allowing difficult obstacles to be approached at slower, more controlled speeds, an Air Locker can help improve passenger comfort and control while reducing unnecessary drivetrain wear, vehicle damage, and trail impact. ARB also notes that Air Lockers can provide additional control when maneuvering heavy loads such as trailers, caravans, or boats on inclines and declines.
ARB Air Lockers have been tested and used in more than 100 countries and feature a simple, durable design with minimal moving parts for long-term reliability.
ARB currently lists October 2026 as the expected availability date for the INEOS Grenadier Air Locker.
Benefits
- Provides 100% traction on demand when additional grip is needed
- Maintains normal differential operation and on-road drivability when disengaged
- Allows difficult terrain to be approached with less reliance on speed and momentum
- Helps improve control when climbing, descending, or maneuvering heavy loads
- Available for front, rear, or dual-locker Grenadier setups
Key Features
- 100% Selectable Locking: Mechanically locks the differential when engaged while remaining open during normal driving
- Front & Rear Compatibility: RD278 fits both front and rear Grenadier differentials
- All-Model Fitment: Compatible with OE locked and non-locked INEOS Grenadier variants
- Fast, Proven Engagement: Patented timed locking mechanism provides rapid locking and unlocking
- Factory-Style Switch Integration: Can be configured to operate through the Grenadier’s existing roof-console auxiliary switches
100% Traction When You Need It
Lock it when conditions demand it
The Air Locker remains disengaged during normal driving and can be activated when additional traction is required, providing full locking capability without permanently changing everyday differential behavior.
More Control. Less Momentum.
Take difficult terrain at a slower, more controlled pace
Improved traction reduces the need to attack obstacles with speed, helping minimize vehicle impact, drivetrain stress, trail damage, and unnecessary wheelspin.
Front, Rear, or Both
Configure your Grenadier around the terrain you drive
The same RD278 Air Locker is designed for both front and rear applications and fits Grenadiers equipped with either factory locking or non-locking differentials. Choose a single locker or equip both axles for maximum selectable traction.
Integrated Factory-Style Control
Use the Grenadier’s existing auxiliary switches
The Grenadier’s factory roof console includes auxiliary switches that can be integrated with the ARB compressor and Air Locker solenoids. ARB specifies EXT 1 for compressor control, with INT 1 and INT 2 available to independently trigger the front and rear lockers, providing a clean, factory-style installation.
Durability & Reliability
The ARB Air Locker uses a simple mechanical design with minimal moving parts to maximize reliability. A patented timed locking mechanism provides fast engagement and disengagement, while a steel-reinforced, elastomer-bonded annular seal is designed to perform across extreme temperature conditions.
Specifications
- Product Type: Selectable air-operated locking differential
- Part Number: RD278
- Vehicle Application: INEOS Grenadier
- Axle Application: Front or Rear
- Vehicle Compatibility: All model variants, including OE locked and non-locked differentials
- Operation: Driver activated
- Activation Method: Compressed air
- Locking Capability: 100% axle lock when engaged
- Air Compressor Required: Yes
- Estimated Installation Time: Approximately 6 hours per locker, plus compressor installation
- Expected Availability: October 2026
Factory Auxiliary Switch Integration
All INEOS Grenadier models include four auxiliary switches in the roof console. Unterminated wiring located in the lower driver and passenger footwells can be extended to operate relays for the compressor and Air Locker solenoids.
ARB recommends the following configuration:
- EXT 1: ARB Air Compressor on/off
- INT 1: Front Air Locker
- INT 2: Rear Air Locker
This allows the Air Locker system to integrate cleanly into the Grenadier interior while keeping locker controls within easy reach of the driver.
Notes
- ARB currently lists availability for October 2026
- Air compressor is required for operation and sold separately unless otherwise specified
- Professional installation is recommended
- Estimated fitting time is approximately 6 hours per locker, plus compressor installation
- Front and rear applications use ARB part number RD278
