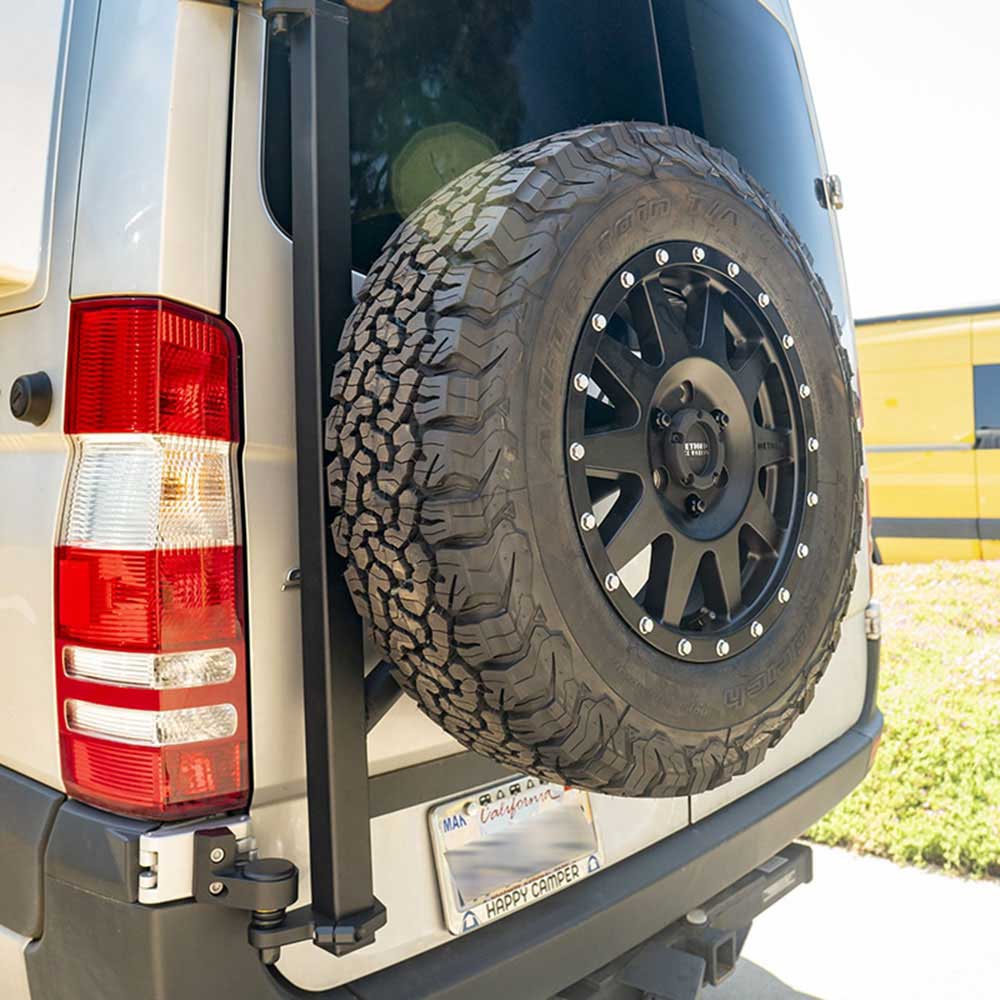

Without a doubt, the best place to store the spare tire for your Mercedes Sprinter is to mount it on your rear door. Moving the spare tire from underneath the van keeps the wheel clean & out of harm's way, provides easier access, and allows you to store a larger-than-stock tire. Best of all it frees up valuable real estate underneath the van which can be better utilized for something like our 28-gallon auxiliary fuel tank or 21-gallon freshwater tank.

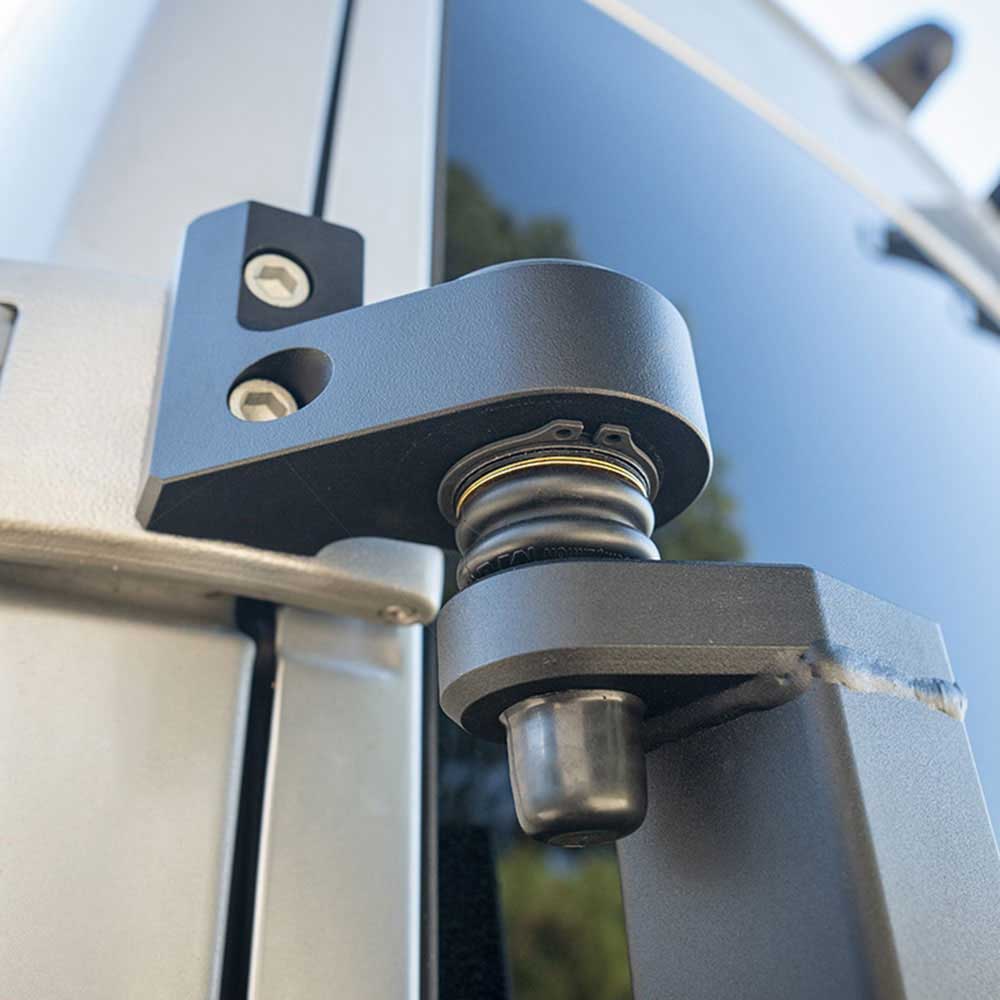

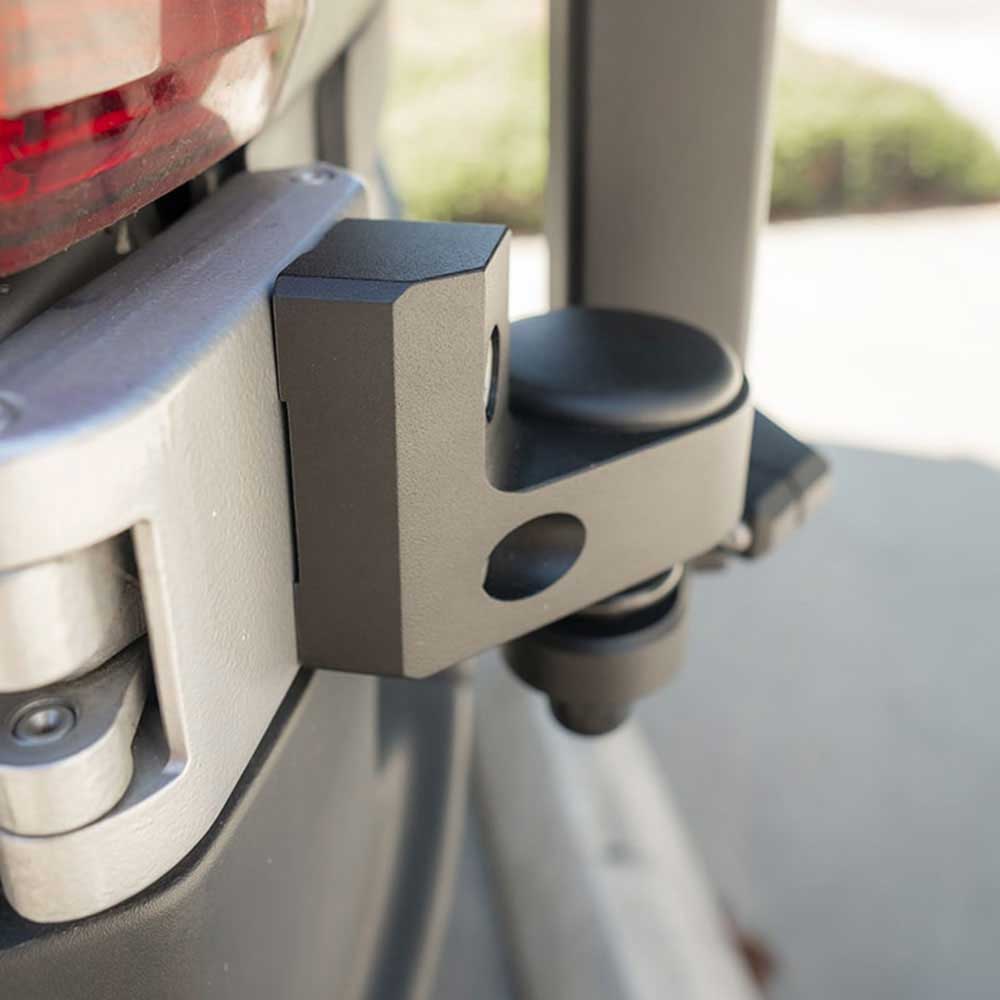

The NCV3 (2007-2018) Sprinter Rear Door Tire Carrier quickly installs with simple tools & requires no modifications to the body, door, or door hinges of the van. Prior to developing this solution, the best option was for a rear-mounted spare tire was to add an aftermarket rear bumper. Taking what learned from years of installing swingarms, we designed our tire carrier with smooth operation & articulation in mind. We paid special attention to the design of the hinges and mounting hardware. The result is a rear tire carrier that perfectly tracks with the swing of the rear driver-side door without any binding or impingement. We even added a locating lug pin to make it easier to mount the tire on the carrier.
The billet hardware & steel construction makes our spare tire carrier lightweight & corrosion resistant. And the black powder-coated finish ensures it will last & look good for years to come.
- Fits 275+ Tires
- 100 lb. Weight Capacity
- Weights 20 lbs.
- Easy Installation! Everything bolts on! Installs with hand tools & a drill

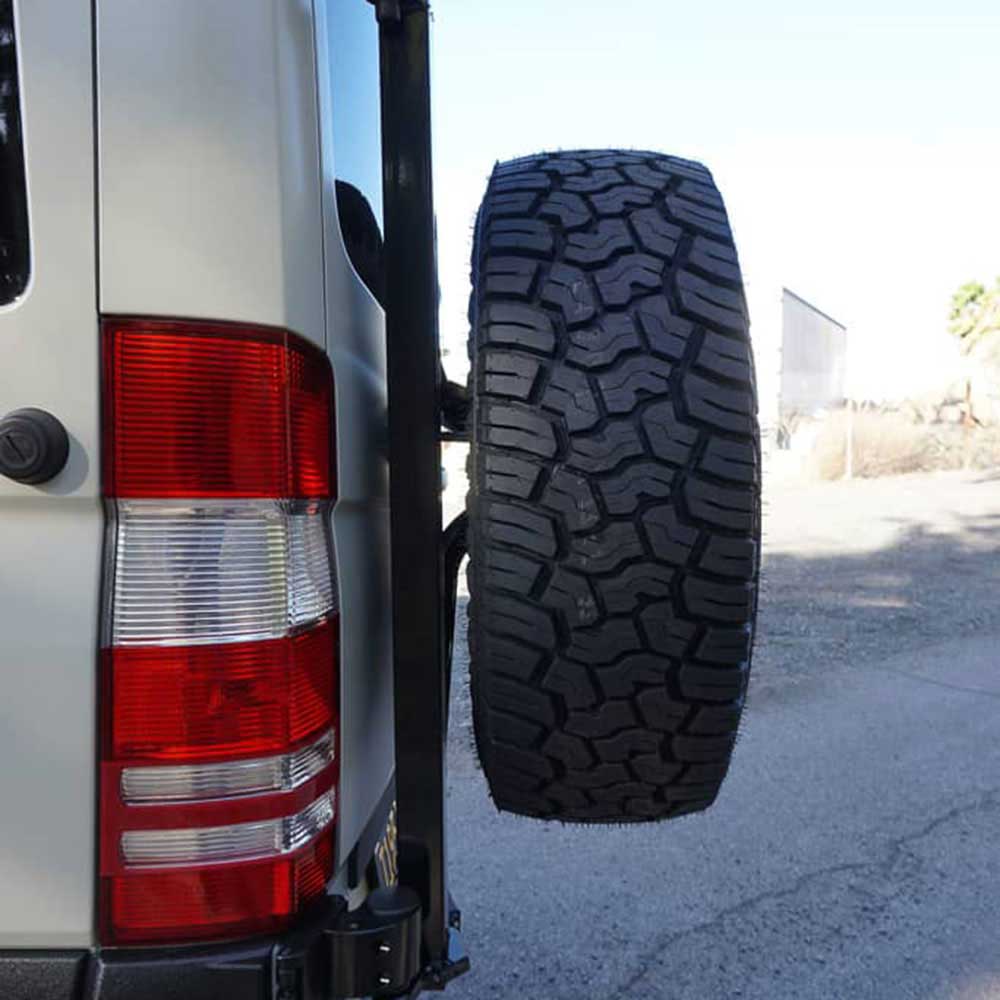

- Rear door retains full range of motion (180˚) with factory wheel & tire
- Billet hardware & steel construction means a lightweight & corrosion resistant tire carrier
- Locating lug-pin to makes it easier to mount your tire on the carrier.
- Extremely durable textured black powder coat finish

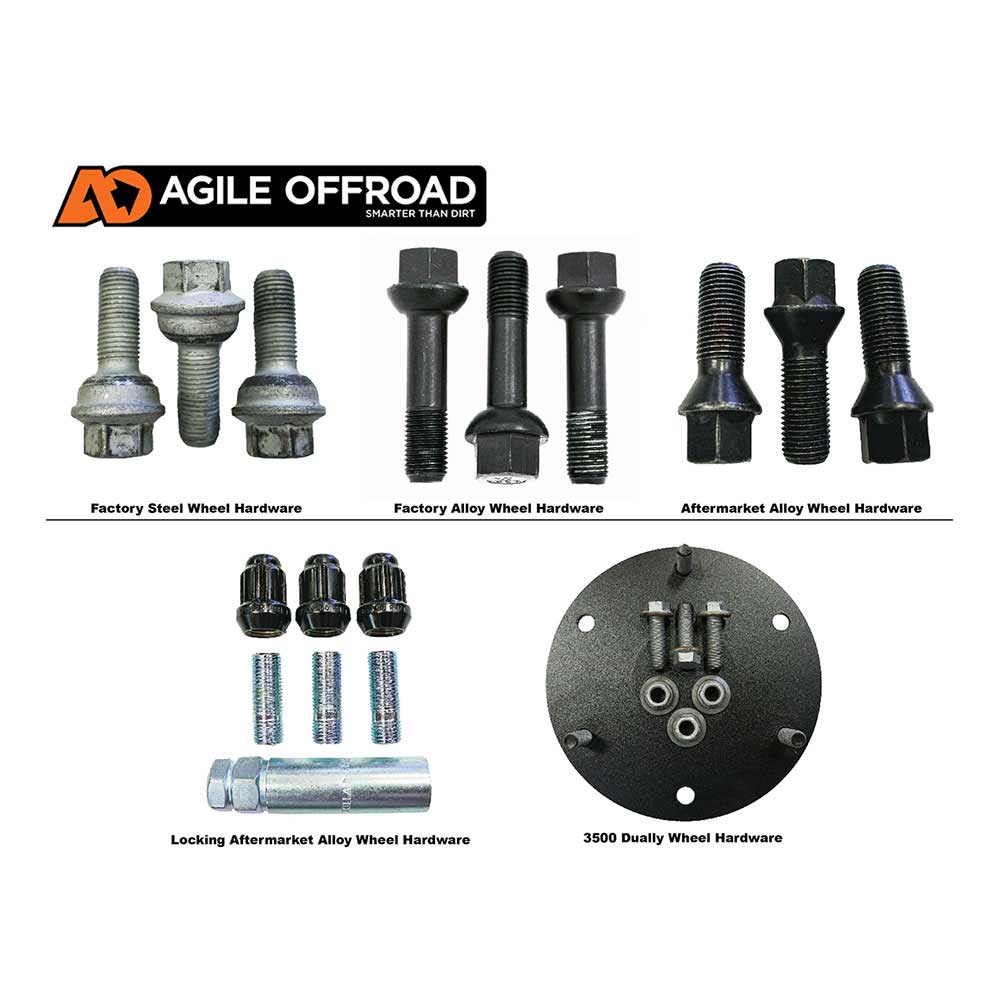

Tire Carrier Only (No Spare Tire Hardware)
- Sprinter Rear Door Tire Carrier
- Mounting Hardware

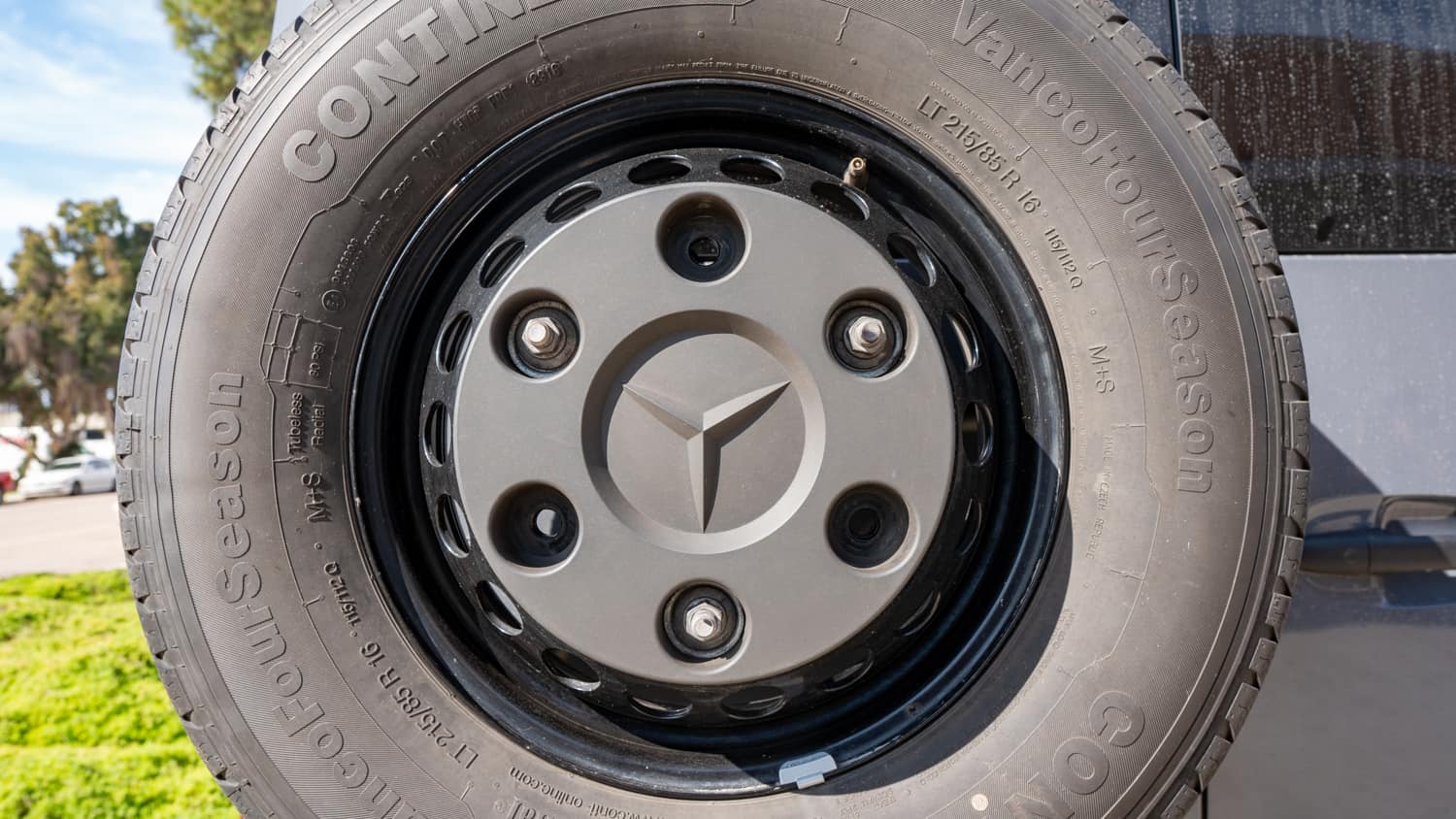

Tire Carrier w/ Factory Steel Wheel Hardware
- Sprinter Rear Door Tire Carrier
- Mounting Hardware
- (3) Factory Steel Wheel Lug Bolts
Tire Carrier w/ Factory Alloy Wheel Hardware
- Sprinter Rear Door Tire Carrier
- Mounting Hardware
- (3) Factory Alloy Wheel Lug Bolts
Tire Carrier w/ Aftermarket Alloy Wheel Hardware
- Sprinter Rear Door Tire Carrier
- Mounting Hardware
- (3) 17mm Cone-Seat Aftermarket Alloy Wheel Lug Bolts
Tire Carrier w/ LOCKING Aftermarket Alloy Wheel Hardware
- Sprinter Rear Door Tire Carrier
- Mounting Hardware
- (3) “Shorty” 38mm Wheel Studs
- (3) Splined Lug Nuts
- (1) Wheel Lug Nut Key

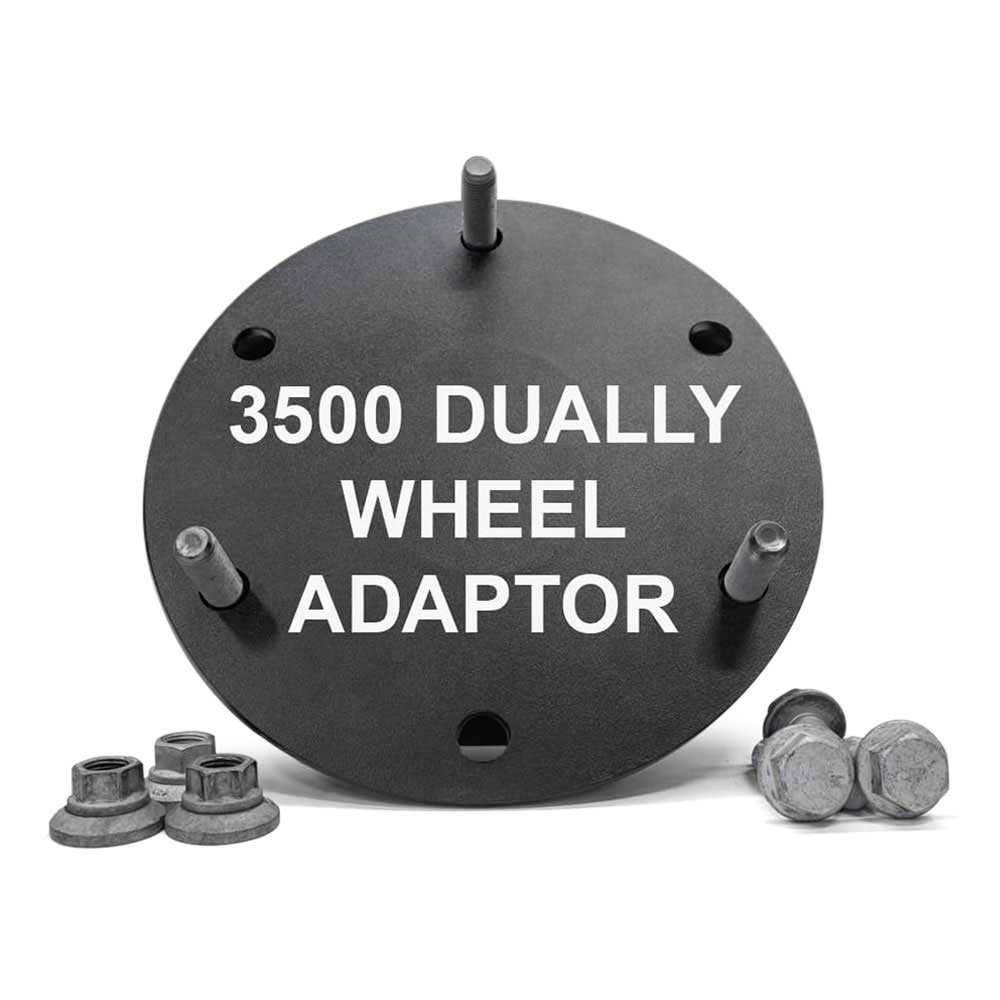

Tire Carrier w/ 3500 Dually Wheel Adaptor Factory Wheel Hardware
- Sprinter Rear Door Tire Carrier
- Mounting Hardware
- Sprinter 3500 Dually Wheel Adaptor & Hardware
- Genuine Mercedes Ball Seat Lug Nuts
Fit notes: The weight limit for the tire carrier is 100 lbs.
*Important Fitment Disclaimer
This tire carrier must NOT be installed on any vehicle that lacks a retaining arm or similar stop mechanism to limit the rear door swing to approximately 90 degrees (factory angle).
If the door is allowed to open beyond this point, the carrier may contact the rear window or body panel, causing serious damage.
Agile Offroad is not responsible for any damage resulting from improper installation or use without a properly functioning stop mechanism.
