33 Gallon Left/Right Wheel Well Water Tank by Agile Offroad

Product Description

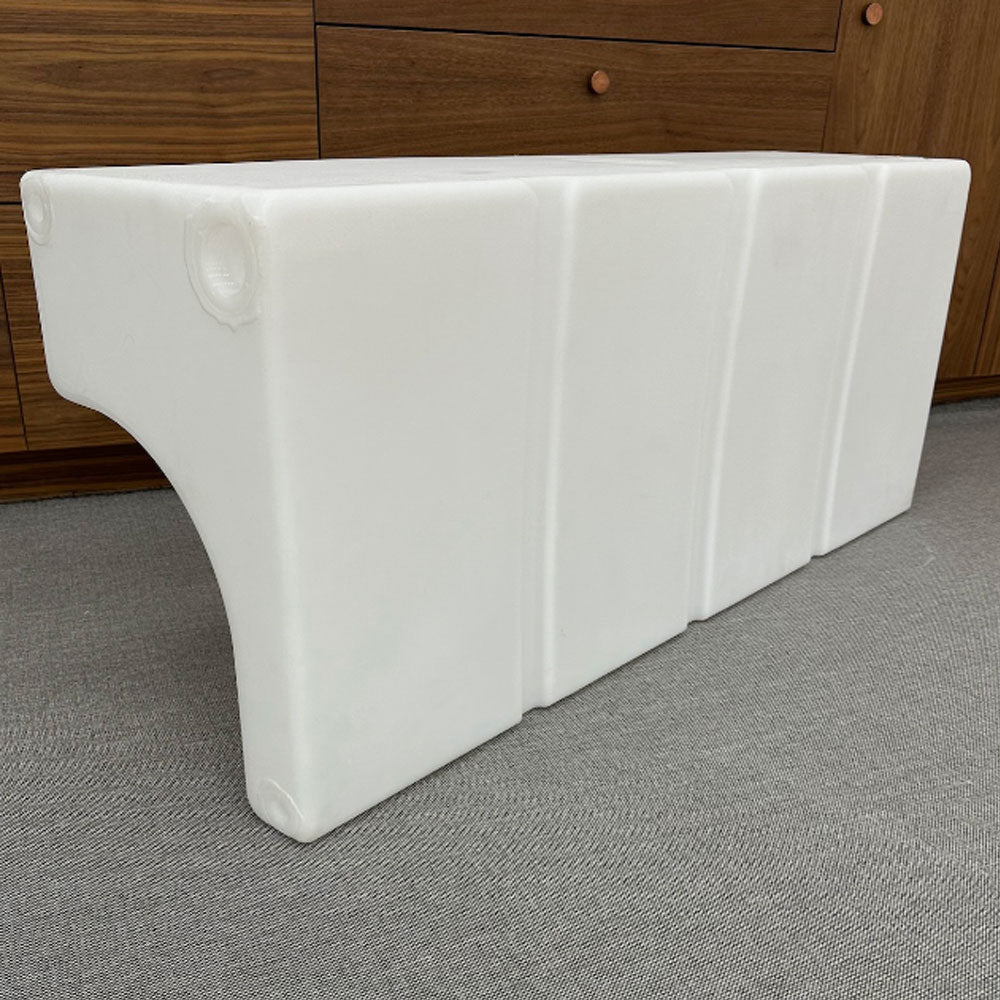

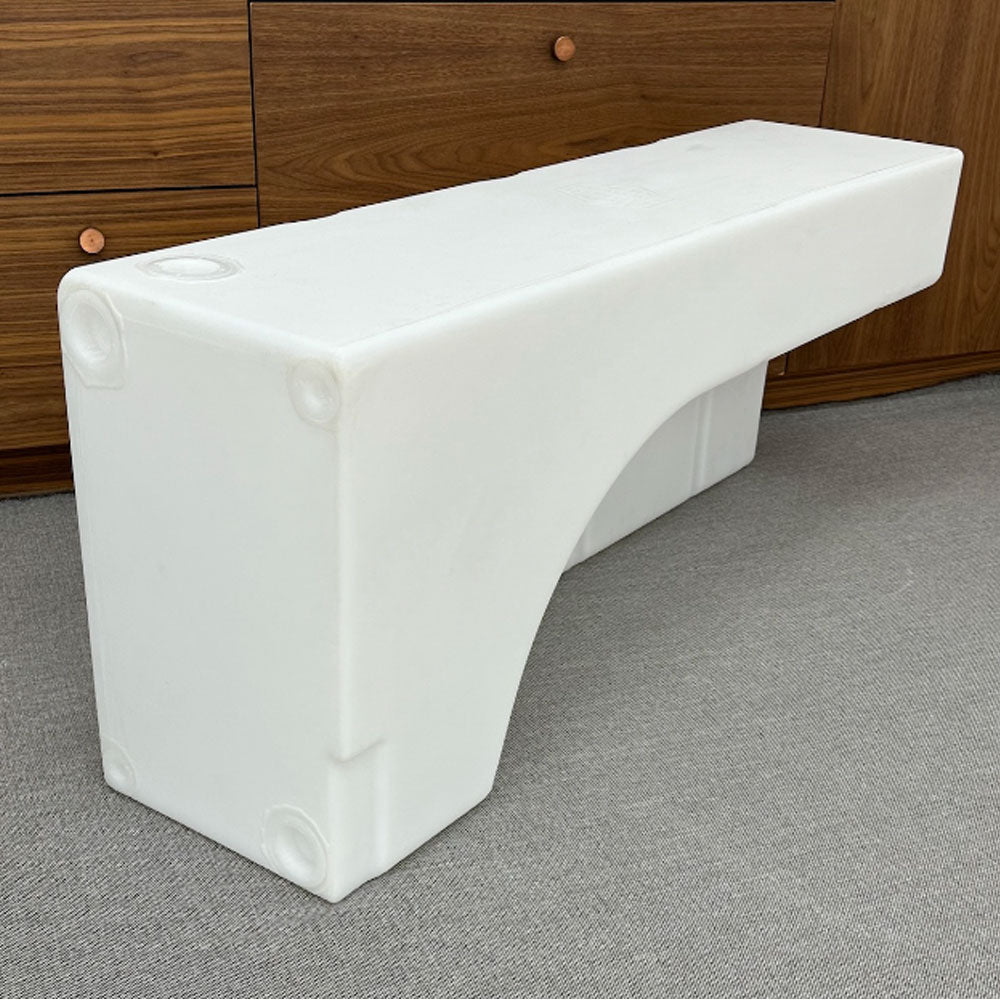

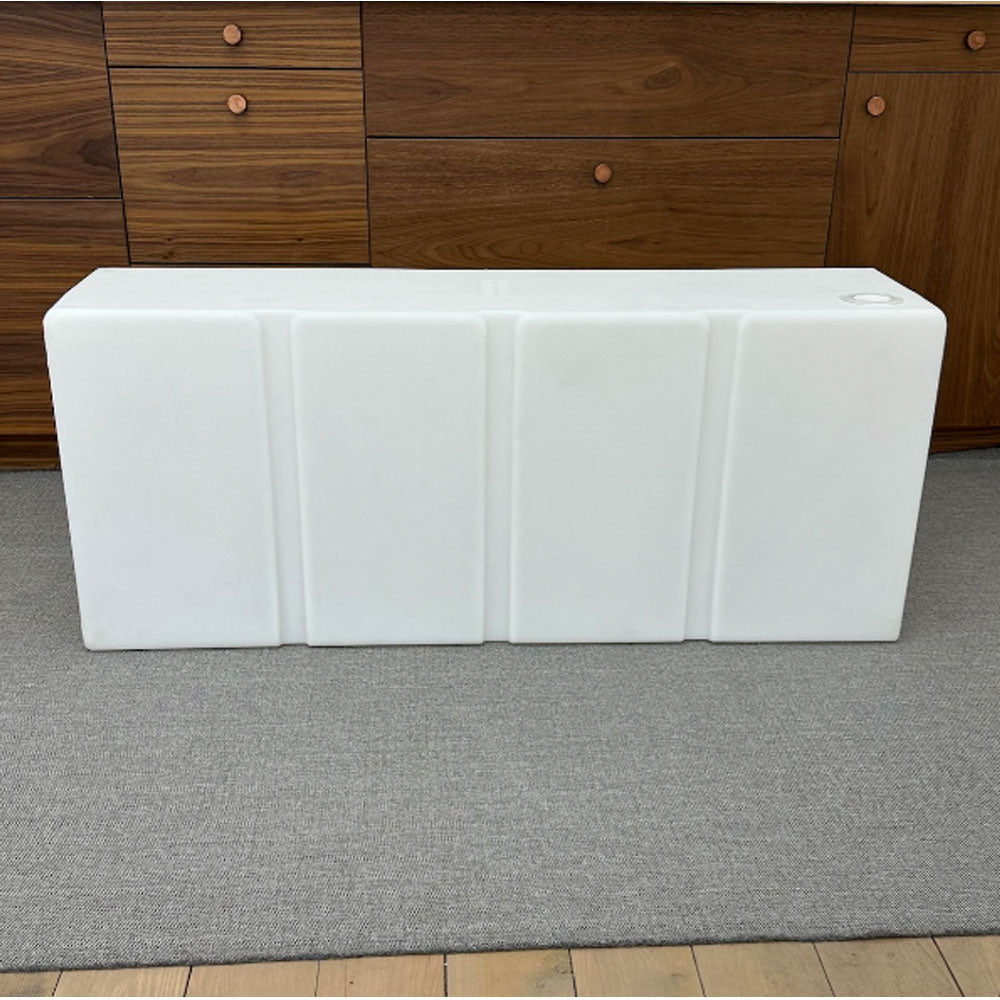

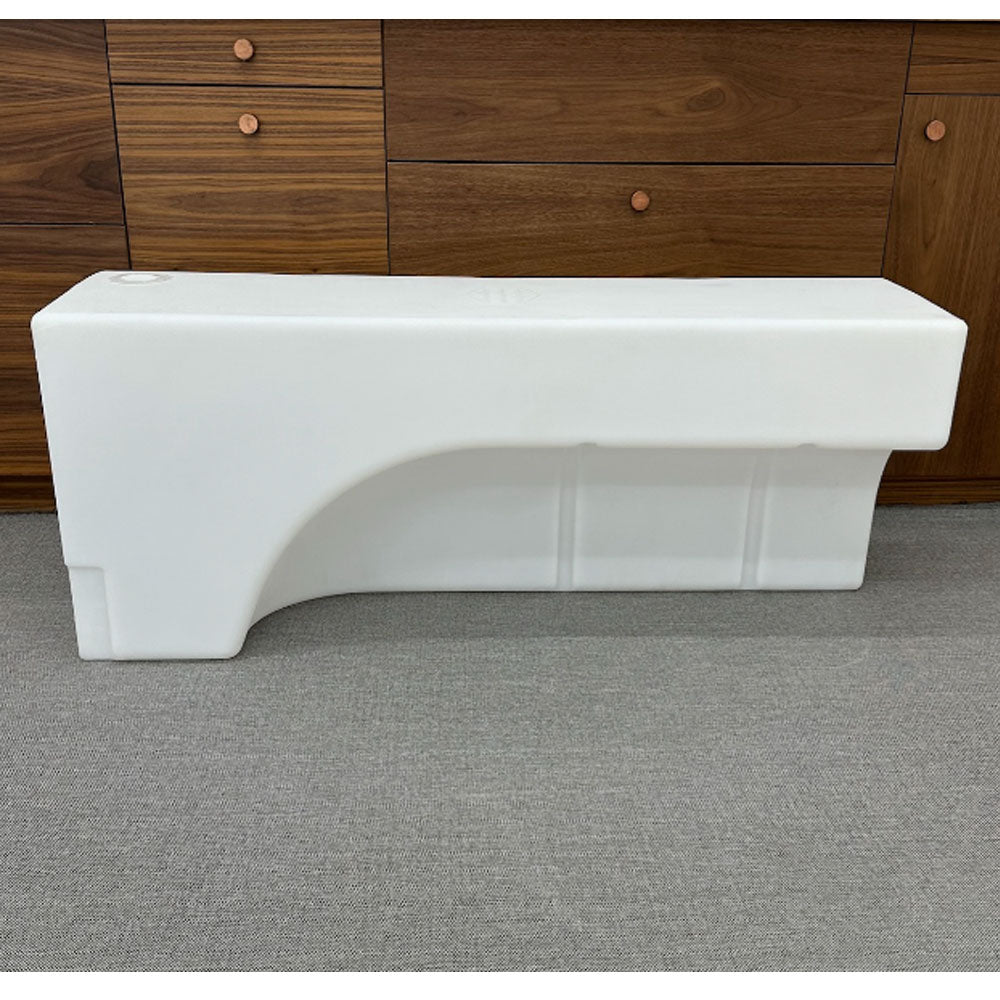

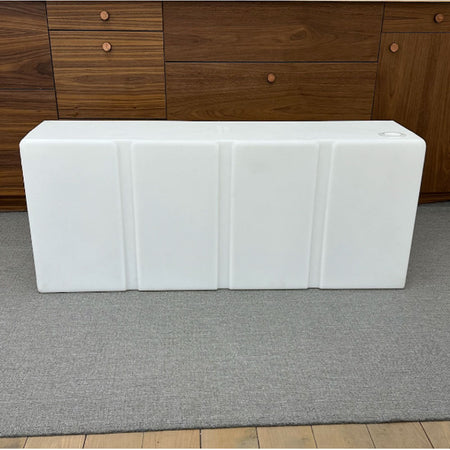

The 33 gallon potable wheel well water tank is designed to fit the Mercedes Sprinter 2500, Sprinter T1N, Ford Transit and RAM Promaster vans fitting snugly against the wall and around the rear wheel tubs. These tanks can be oriented in any direction to fit your build requirements.

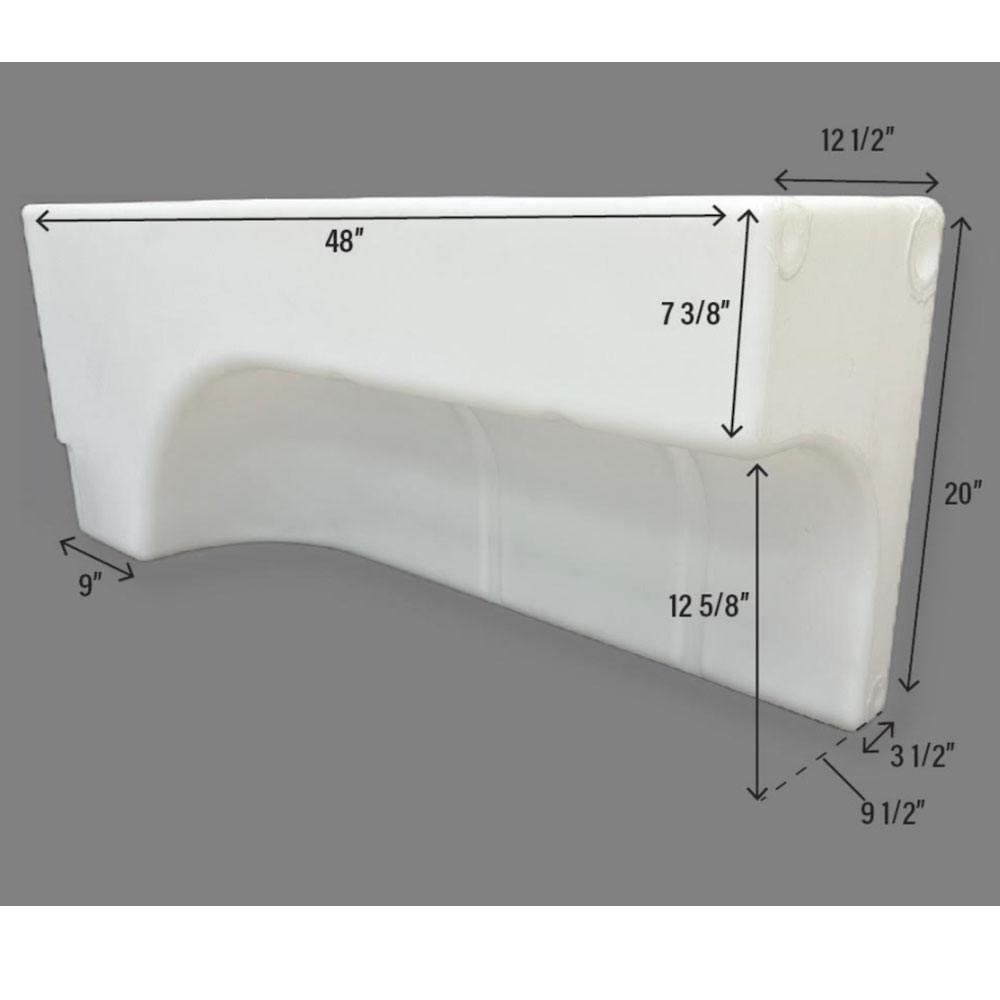

For clarity when ordering, we identify the tank with the offset towards the rear on the passenger side as the "Right" tank (pictured) and the driver side as the "Left" tank. These tanks accept 1/2" (black plugs) and 1-1/2" (need to be drilled) NPT fittings. The tanks measures 48" long x 20" tall x 12.5" wide.

• Accepts variety of universal fittings
• 33-gallon capacity
• Driver & passenger side offset configurations
• Works on either side of vehicle
• External Dimensions: 46.5" long x 20" tall x 13.5" deep

Made in the USA

Vehicle Fit

Mercedes Sprinter*Designed to fit Sprinter 2500 Single Tire (Not Dually)
Third Generation (VS30): 2019+
Second Generation (NCV3): 2008-2018

Ford Transit*Transit wheel wells are slightly smaller than the Sprinter so there is a bit more room for insulation around wheel well
Fifth Generation: 2015+

Promaster*The tank needs to be elevated 3.5" to fit the large wheel wells

Instructions

VAN BUILD WATER TANK INSTALLATION

Specifications

Product Weight

25.0 lb

Dimensions

48 x 20 x 20

Vehicle Make

Mercedes-Benz

Vehicle Model

Sprinter 2500, Sprinter 3500

Vehicle Year

2026, 2025, 2024, 2023, 2022, 2021, 2020, 2019, 2018, 2017, 2016, 2015, 2014, 2013, 2012, 2011, 2010, 2009, 2008

Brand

Northwest Conversions

Capacity

33-gallon

Fitment

Left, Right

Vehicle Fit

Ford E350, Ford Transit AWD, Ford Transit RWD, NCV3 Sprinter 2500 2wd, NCV3 Sprinter 2500 4x4, NCV3 Sprinter 3500 2wd, NCV3 Sprinter 3500 4x4, Ram ProMaster, VS30 Sprinter 2500 2wd, VS30 Sprinter 2500 4x4, VS30 Sprinter 3500 2wd, VS30 Sprinter 3500 4x4
