Pro RIP Kit for 2500 2WD Sprinter by Agile Offroad
Price range: $4,581.24 through $4,661.25
- FOX 2.5 Rear Shocks
- Upper and lower rear shear brackets
- Bilstein B6 Front Struts
- Coil-over Lift – Adds ~2″ ride height
- Spring rate tailored to your van’s rear weight
ADDONS
Pro-Level Ride Package with Rear Shock Reinforcement
PRO Rip Kit Package by Agile Offroad
The Pro version of our 2WD Sprinter 2500 RIP Kit adds upper and lower rear shear brackets for enhanced durability, along with upgraded FOX 2.5 shocks, Bilstein struts, and custom-tuned suspension components.
Agile Offroad’s 2WD RIP Kit Pro Package represents the top tier of ride improvement solutions for Mercedes-Benz Sprinter 2500 2WD vans. This comprehensive system delivers upgraded ride control, improved handling, and unmatched rear suspension durability. In addition to FOX 2.5 Commercial Series rear shocks, Bilstein B6 front struts, Agile’s proprietary coil assist kit, and custom-rated rear leaf springs, this Pro package includes our upper and lower rear shear brackets. These brackets reinforce the mounting points for the rear shocks—ideal for heavy loads, aggressive driving, or extended overland travel. Each component is bolt-on and engineered for easy integration. The rear spring rate is selected based on your van’s actual axle weight, ensuring properly matched performance regardless of your loadout.
Reinforces rear shock structure under load
Improves ride quality on pavement and trail
Reduces body roll and suspension sag
Handles overland setups and full interior builds
Bolt-on system — no welding or cutting required
Engineered for the Load. Built for the Long Haul.
The Pro Kit includes upper and lower shear brackets that reinforce your rear shock mounts—one of the Sprinter’s most failure-prone points. Designed to handle heavy use, they add long-term durability and prevent fatigue from off-road or overland strain.
Rear Shear Bracket System
Rear suspension mounts are a known weak spot on Sprinters. Our shear bracket system improves chassis rigidity and reinforces these stress zones, extending the life of your suspension under demanding conditions like towing or trail use.
FOX 2.5 Rear Shocks
These large-body FOX dampers are purpose-built to handle the loads, heat, and movement of overland travel. With more oil volume and better cooling, they resist fade and deliver confident control over washboards, whoops, and loaded highway hauls.
Bilstein B6 Front Struts
Bilstein’s B6 struts bring OE-level ride quality with boosted damping for stability and improved handling. A great match for lifted setups, they retain factory geometry and absorb road impacts more effectively—especially under added vehicle weight.
Agile Coil Assist Kit
The coil assist kit adds ~2" of front lift and progressive spring support to reduce bottom-outs and nose dive. Tuned for comfort and control, it improves off-road clearance while maintaining a composed ride on pavement and uneven terrain alike.
Rear Leaf Spring Packs
No one-size-fits-all approach here—Agile rear leaf springs are offered in 4200, 4700, and 5400 lb rates to match your build weight. This ensures the ideal ride height, balance, and spring response whether you’re running light or loaded full-time.

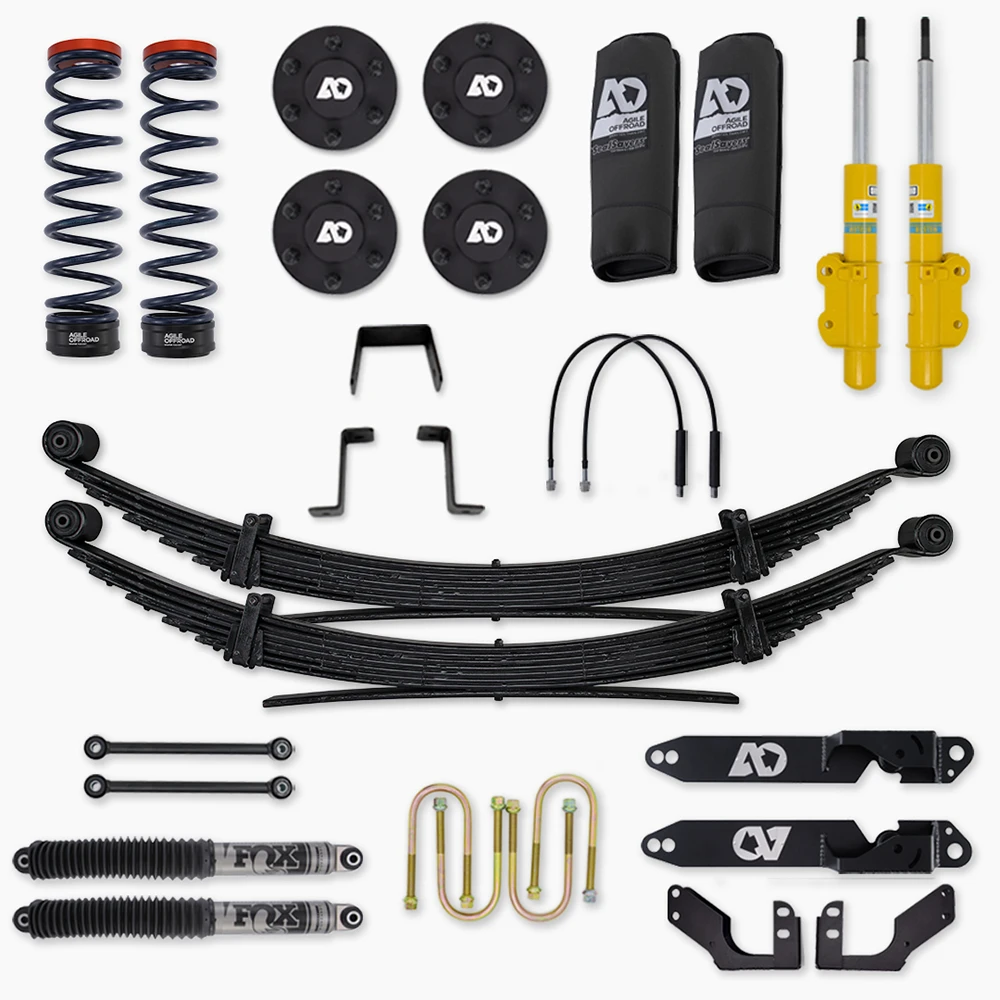

What’s Included
- 1x FOX 2.5 Rear Shocks (AOR129)
- 1x Bilstein B6 Front Struts (AOR161)
- 1x Rear Upper Shear Brackets (AOR2220-1)
- 1x Rear Lower Shear Brackets (AOR3330)
- 1x Coil Assist Kit (AOR70X)
- 1x Coil Covers (SSCOIL2.5PS)
- 1x E-Brake Relocation Bracket (AOR284)
- 1x Extended Brake Lines (2626TBA)
- 2x Sway Bar Links (9063201289 / AOR277)
- 1x Leaf Spring U-Bolts (AOR274)
- 1x Leaf Springs (AO-S6S-X)
- 1x Wheel Spacer Kit (AOR000X)
*This kit contains heavy, oversized components and ships via freight.
| Weight | 400 lbs |
|---|---|
| Dimensions | 60 × 48 × 24 in |
