Spare Tire Carrier Relocation Bracket for INEOS Grenadier by Agile Offroad

Installation Manual PDF Download Video Additional Information

Installation Manual

Designed for Grenadier owners running larger wheel and tire packages, this billet aluminum relocation bracket improves rear door access, accommodates larger spare tires, and allows the spare wheel to be mounted facing outward for improved appearance and functionality.

SKU: AO-E6G-1

PARTS INCLUDED

  • 1 x AO Billet Spare Tire Adapter
  • 1 x Foam Gasket
  • 3 x Splined Lug Nut
  • 3 x M14 Flange Nut
  • 1 x Splined Lug Key

TOOL NEEDED

  • 19mm Socket

INSTALLATION TIME: 20 Minutes

Installation Steps

1

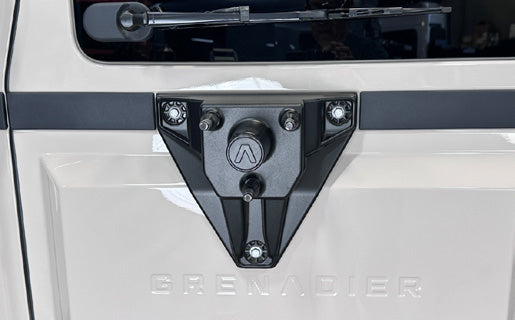

Remove the factory spare tire. Refer to the Owner’s Manual if necessary.

2

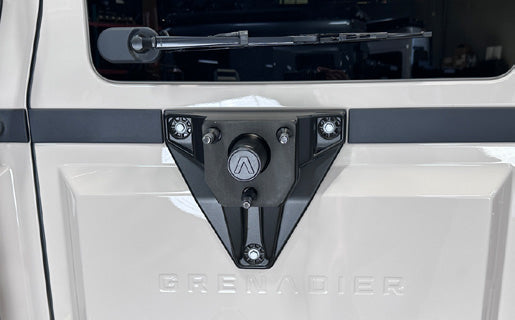

Install the supplied foam gasket.

3

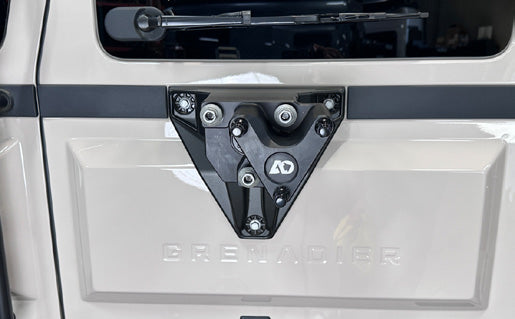

Install the AO billet adapter using the supplied M14 flanged nuts.

4

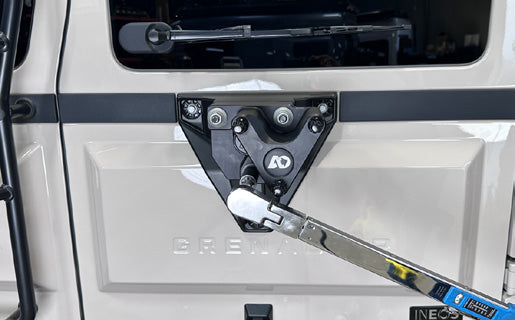

Use a 19mm socket to fully tighten the flanged nuts. Torque to 80 ft/lbs.

5

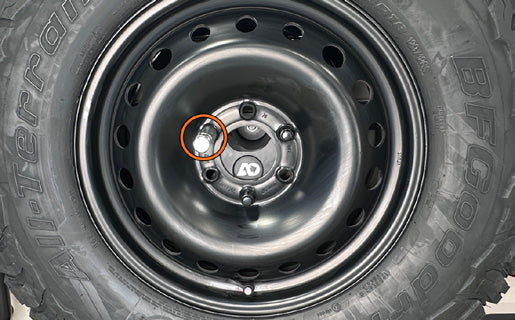

Use the supplied splined lug nuts and splined lug key to install the spare tire/wheel show face out. Torque to 80ft/lbs.
