INEOS Grenadier Driver and Passenger Side A-Pillar Grab Handle Mount by Agile Offroad

Installation Manual

INEOS Grenadier Driver and Passenger Side A-Pillar Grab Handle Mount by Agile Offroad is a precision multi-purpose grab handle designed with an integrated front slot which enables you to use RAM style mounts to mount your favorite device in an ideal location. Add a driver side a-pillar grab handle! The Grenadier does not come factory with a driver side grab handle but the bolt holes are included just below the a-pillar panel making for a easy installation and a great upgrade. These grab handles will fit either side, are constructed from 6061 T6 billet aluminum and include a color & texture matched powder coat finish for a OEM factory look and feel.

SKU: AO-I6G-1-1

PARTS INCLUDED:

  • 1 x AO A-Pillar Grab Handle
  • 2 x M6-1.0 x 40mm Bolts
  • 1 x Template

TOOLS NEEDED:

  • T20 Torx Bit
  • T30 Torx Bit
  • ½” Drill Bit
  • Reciprocating Saw
  • Panel Removal Tool
  • File
  • Masking Tape
  • Marker

INSTALLATION TIME: 1 Hour

Installation Steps

1

The AO Dash Ball Mount can be installed on either the driver or passenger side Seat Heating switch which is held on with four socket head bolts.


2

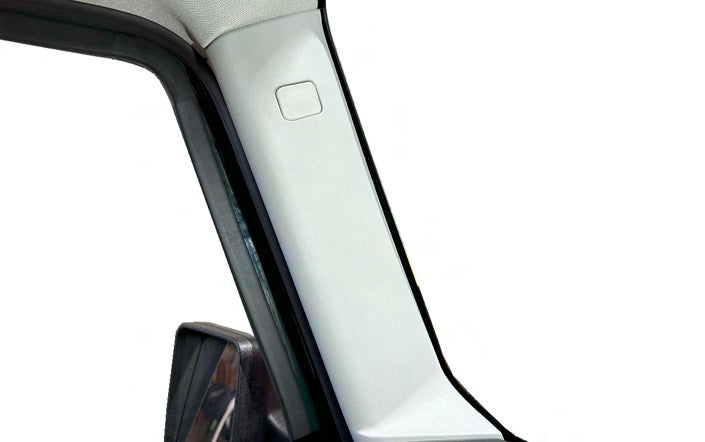

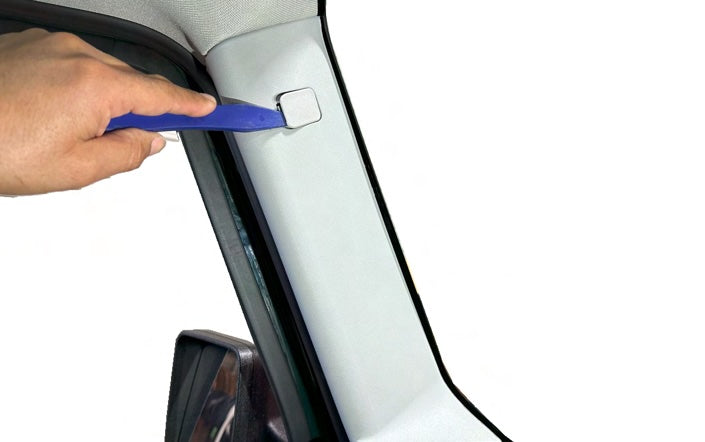

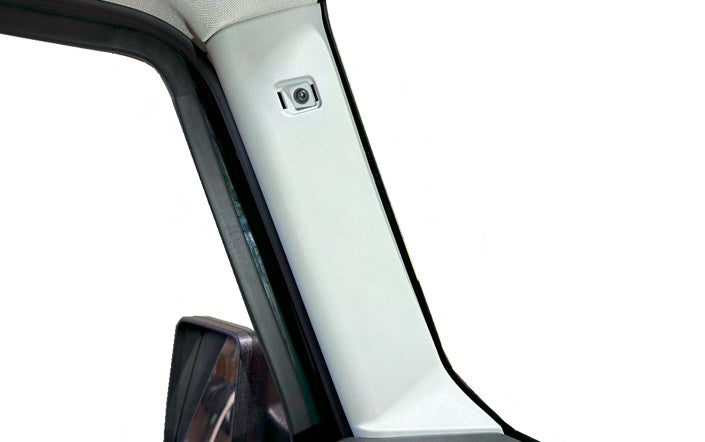

Use a panel removal tool to remove the a-pillar screw cover.


3

Use a T30 Torx bit to remove the panel screw.


4

Remove the panel by pulling straight back.

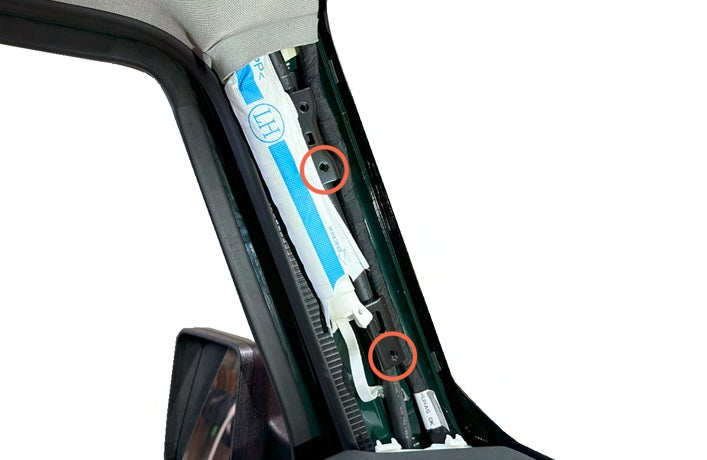

Note: The a-pillar comes from the factory with existing thread bosses.


5

Use a T20 Torx bit to remove the rear panel support bracket off the a-pillar panel.


6

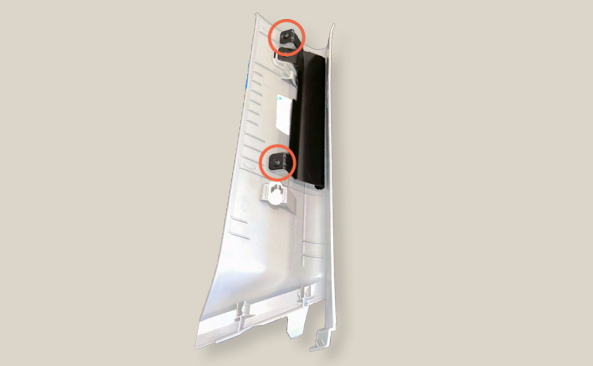

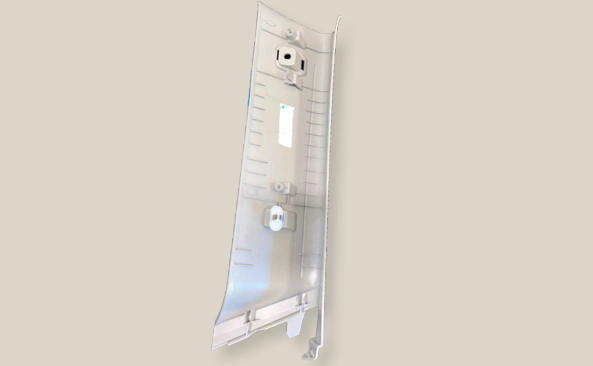

Panel shown with support bracket removed.


7

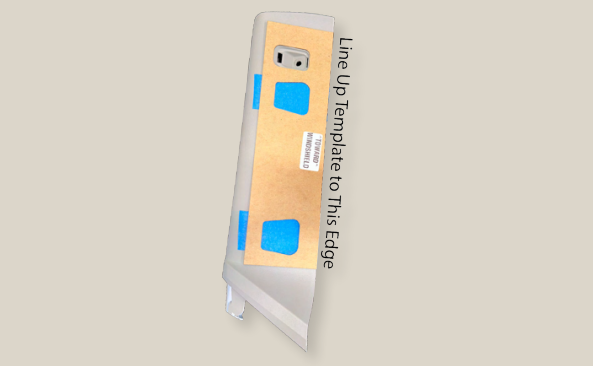

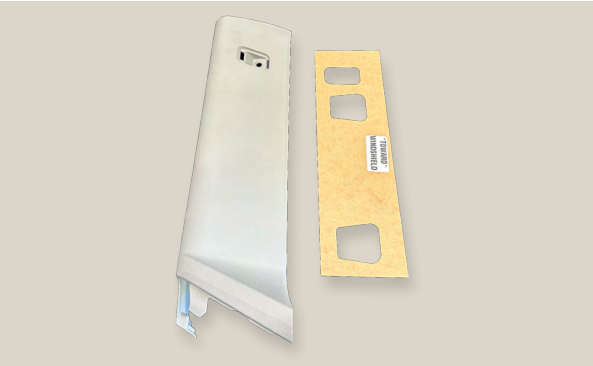

Position the supplied template.

Note: The template is labeled “Toward Windshield”. Toward Windshield side must be lined up on the a-pillar panel windshield edge.


8

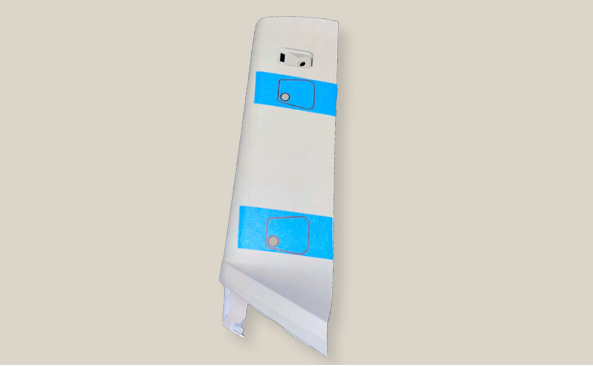

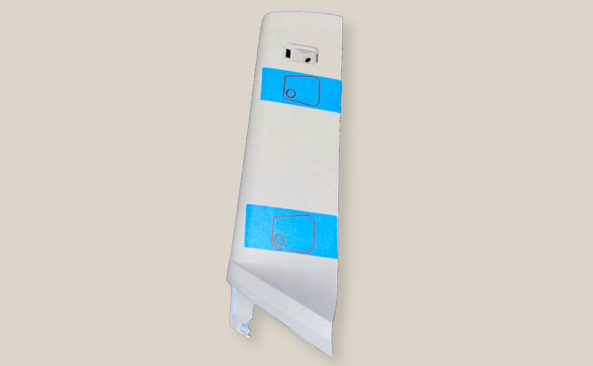

Place a couple of pieces of masking tape on a-pillar panel. Line up template to the a-pillar panel windshield edge and the screw hole opening. Use a marker pen to mark the cut locations.


9

Remove the template then draw a ½” circle as shown.


10

Drill two ½” holes as shown at the previously drawn circles.


11

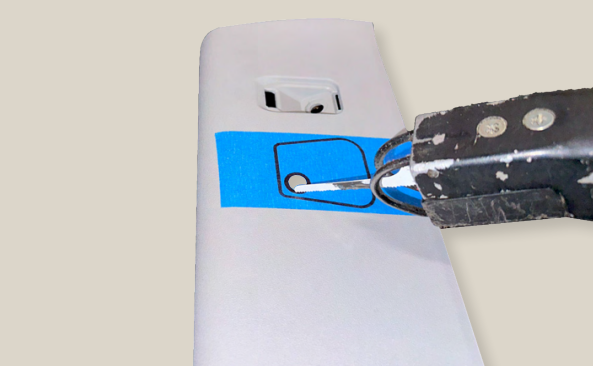

Use a reciprocating saw (or other suitable tool) to cut out the marked hole locations. Start the cutting at the ½” holes.

Note: Cut at the inside of the marker line.


12

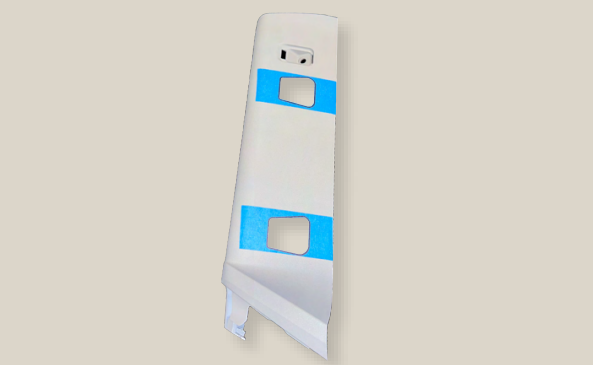

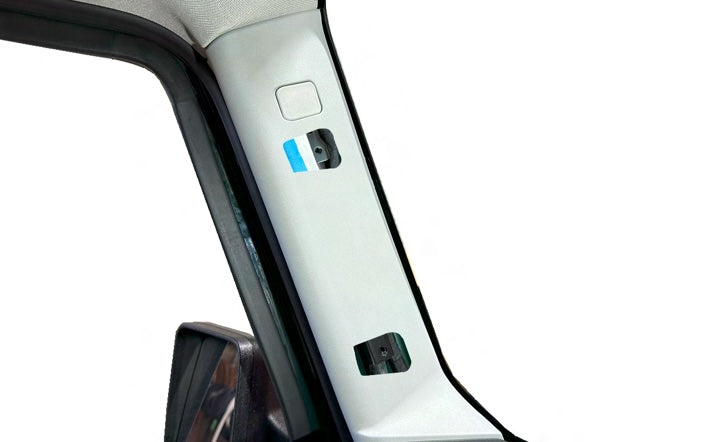

Use a file to clean the holes then remove masking tape. Re-install the rear support bracket removed in Step 5.


13

Re-install the a-pillar panel using the factory screw. Re-install the screw cover.


14

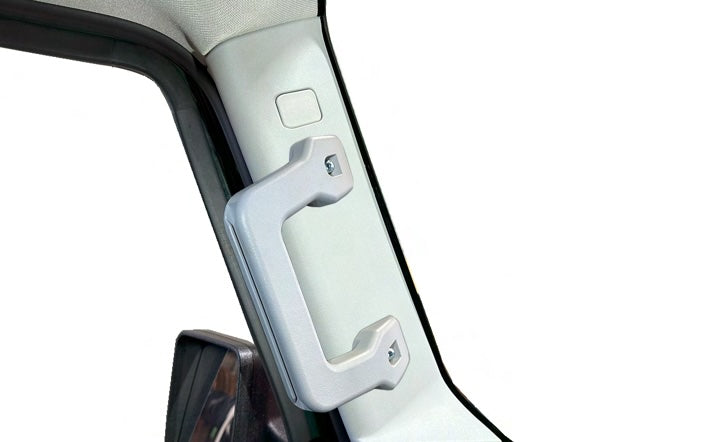

Install the AO A-Pillar Grab Handle using the supplied 6mm bolts. Torque to 4 ft/lbs.
