Horn Upgrade for 2019+ Sprinter by Agile Offroad

Installation Manual PDF Download Video Additional Information

Installation Manual

Installation Steps

1

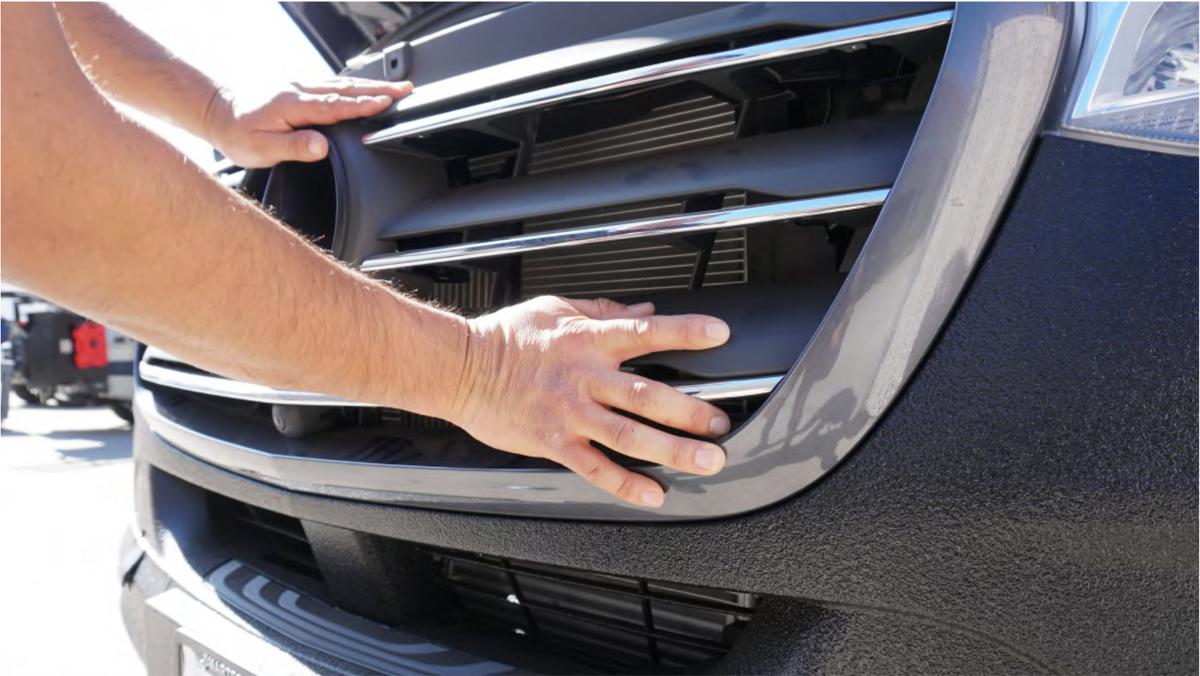

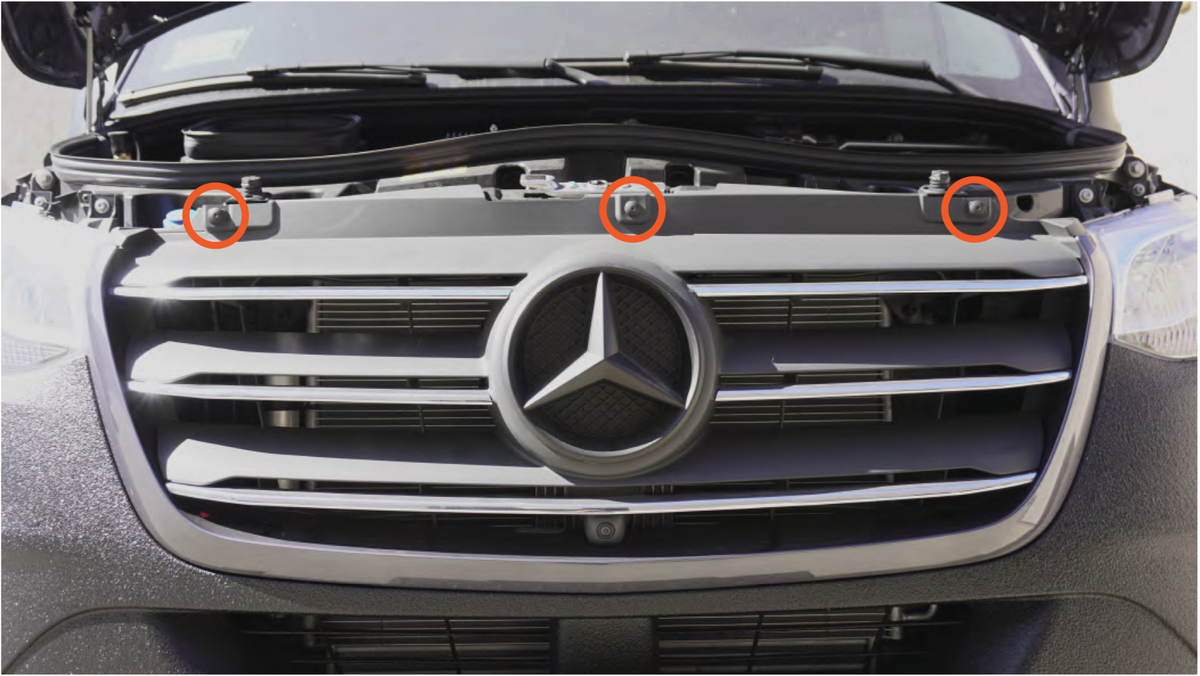

Remove 3 T-25 Torx screws at the top of the grill and pull firmly along the lower portion of the grill to remove it.

2

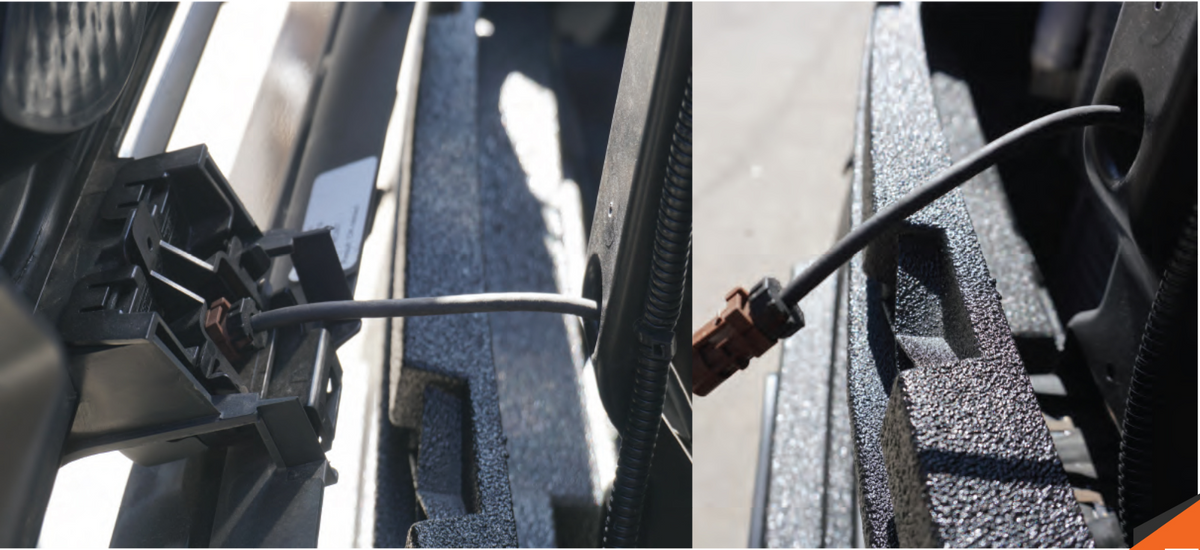

Unplug the front camera. Push in on the clip and gently pull the cable from the back of the camera.

3

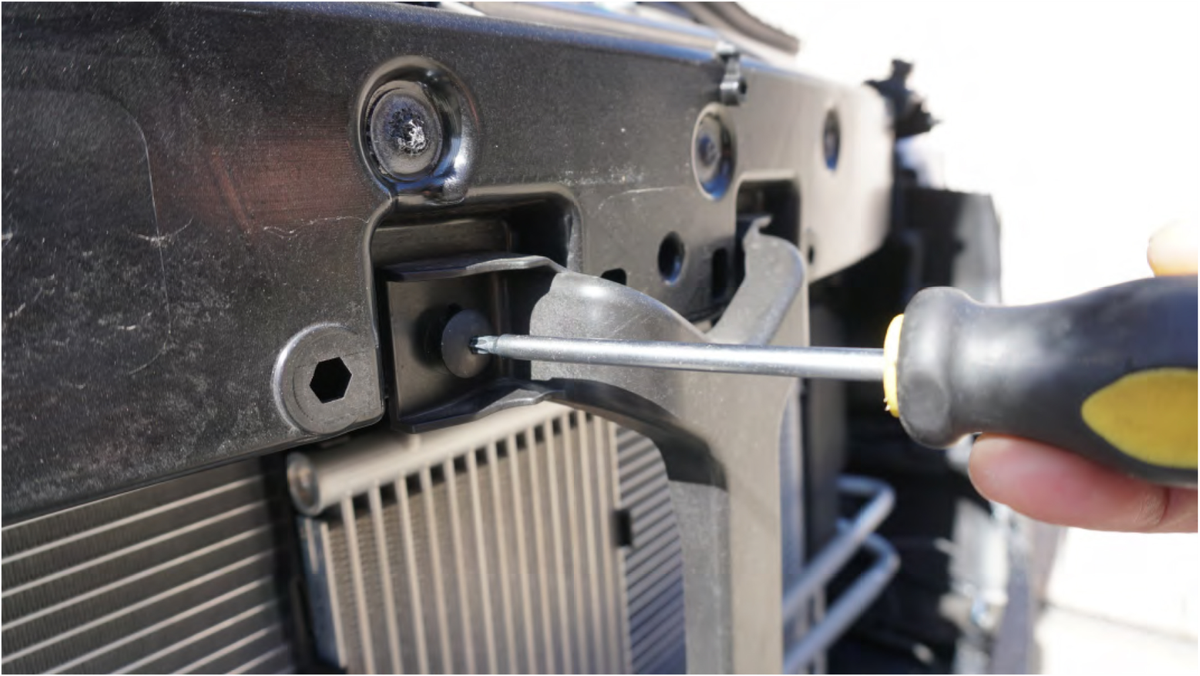

Remove the 2 T-25 Torx screws holding the "t-shaped" cruise control distance sensor brackets.

4

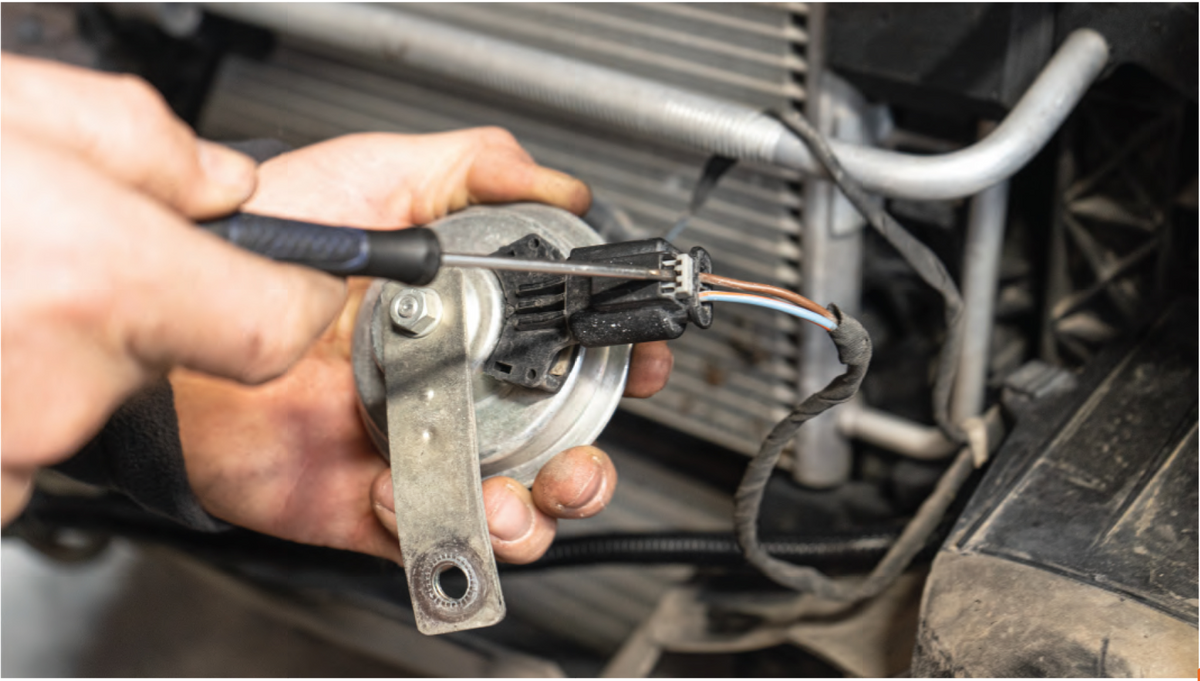

Unbolt the factory horn using a 13mm socket. Then, using a screwdriver, slide the white tab away from the horn. Next, depress the tab to disconnect the horn from the factory harness.

5

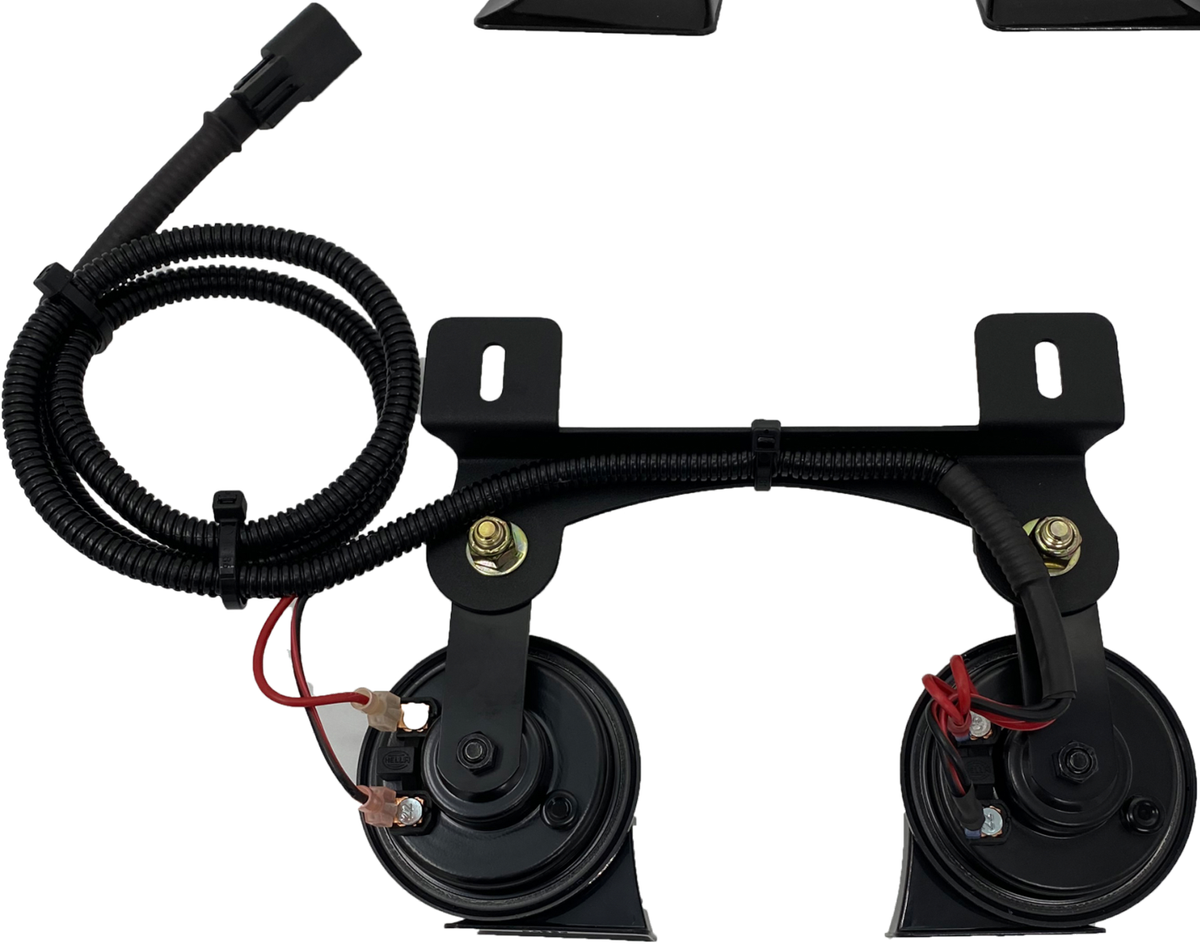

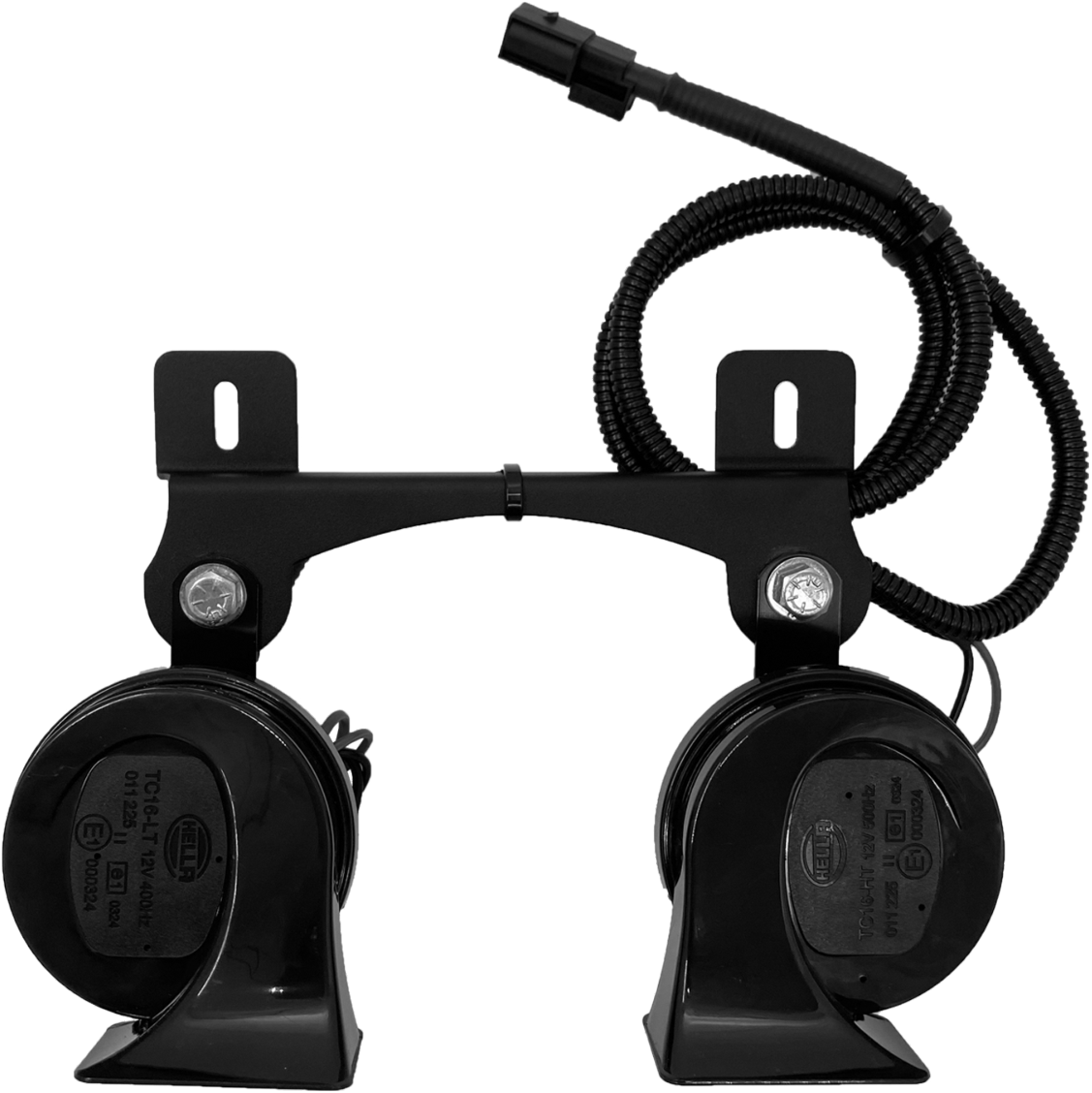

Mount the horns to the bracket using included hardware and attach the pre-assembled wiring harness to the horns.

6

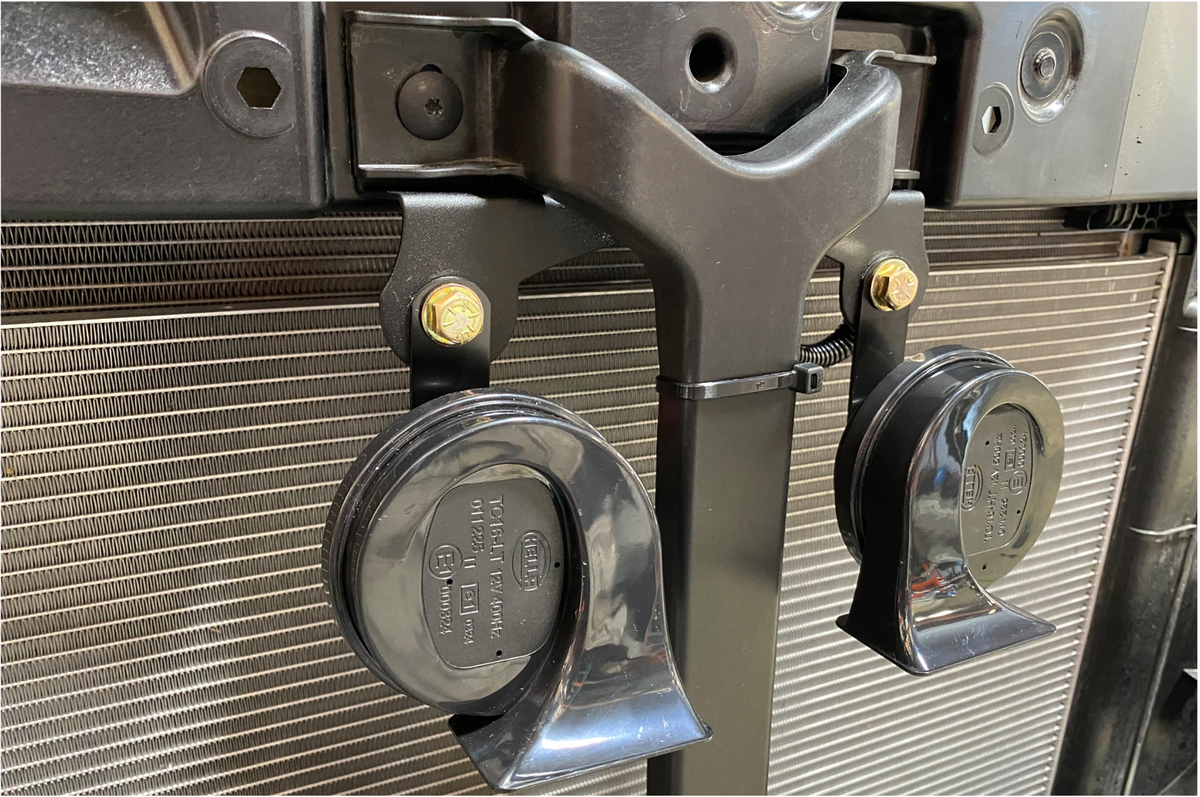

Mount horn bracket behind cruise control distance sensor bracket and re-assemble with previously removed T-25 Torx screws.

7

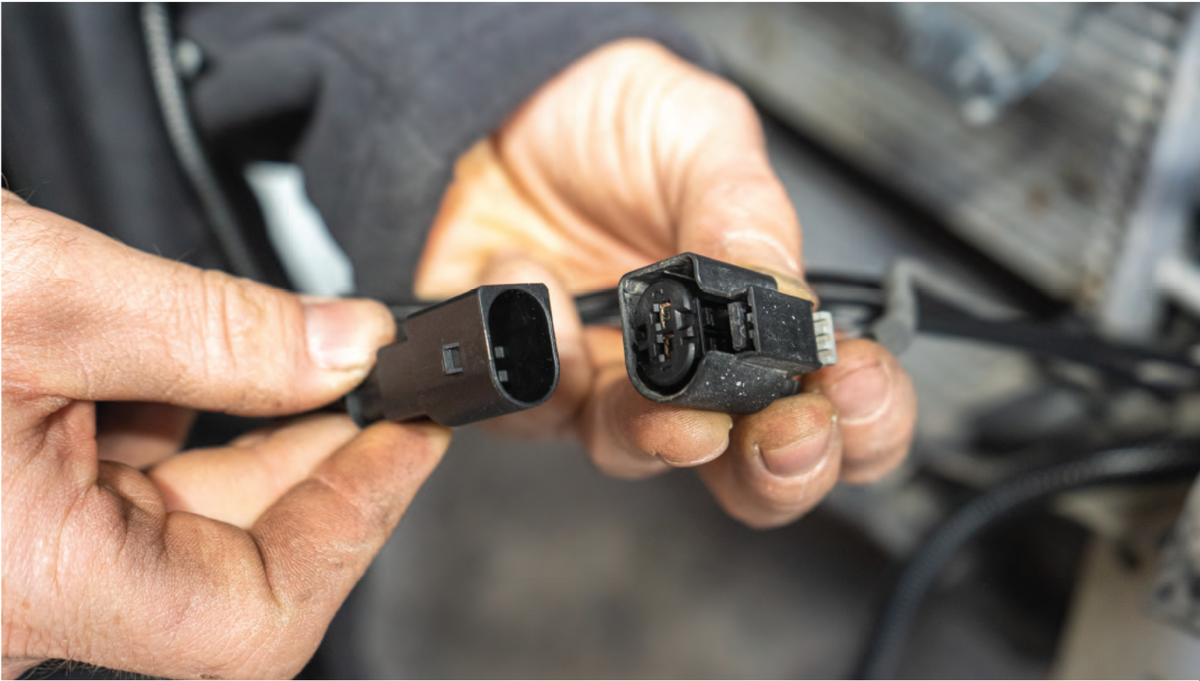

Plug the AO Horn Upgrade Harness into the factory horn wiring.

8

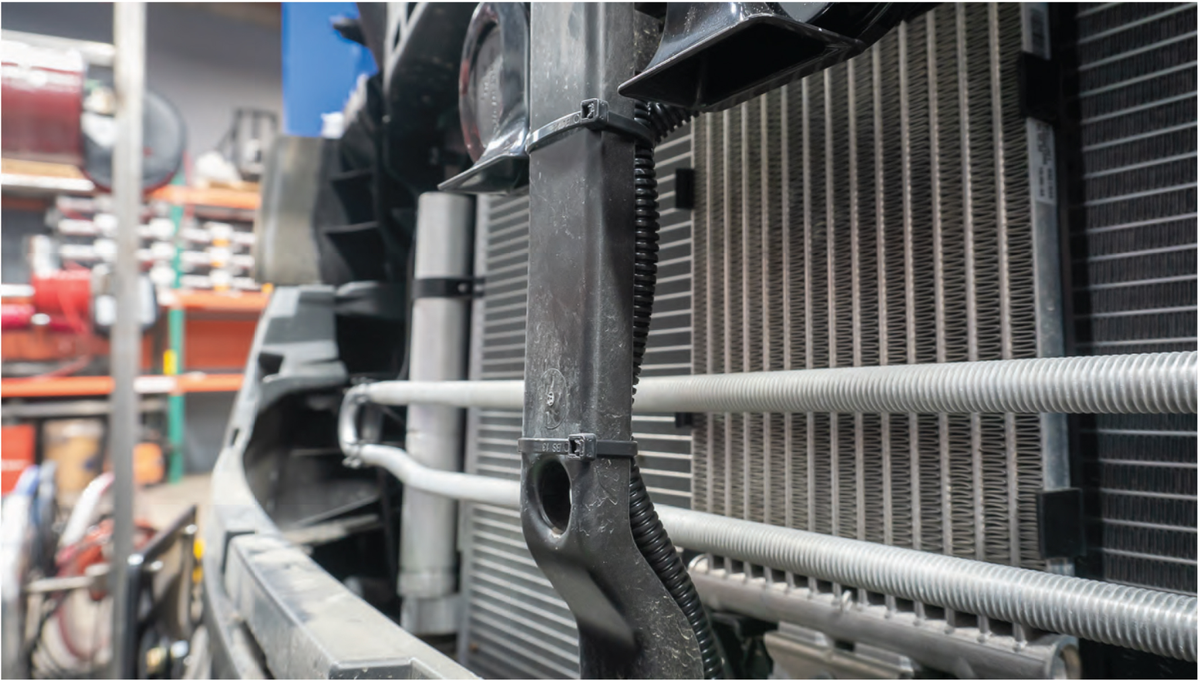

Secure the remaining horn wiring to the cruise sensor bracket using zip-ties, as shown.

9

Re-install the front grill. Congratulations! Your installation is now complete!
