Grab Handle Roof Accessory Mount for Grenadier by Agile Offroad

Installation Manual PDF Download Video Additional Information

Installation Manual

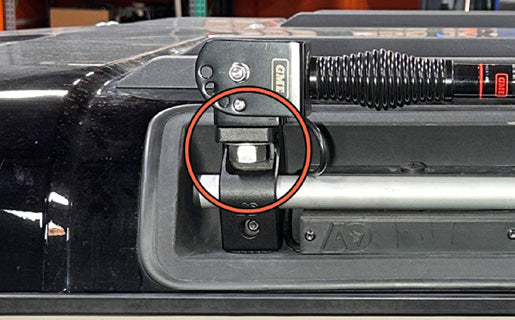

A billet aluminum integration for the factory roof grab handle that adds a versatile roof-mounted accessory point. Designed primarily for antennas, but adaptable for a wide range of accessories.

SKU: G31-1000

PARTS INCLUDED:

  • 1 x AO Grab Handle Antenna Mount (Antenna Sold Separately)

TOOL NEEDED:

  • T30 Torx Bit

INSTALLATION TIME: 20 Minutes

Installation Steps

1

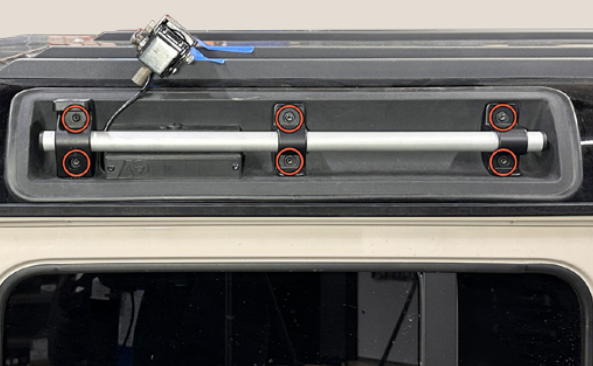

Use a T30 Torx bit to remove the three grab bar bracket screws. Remove the complete grab handle assembly.

2

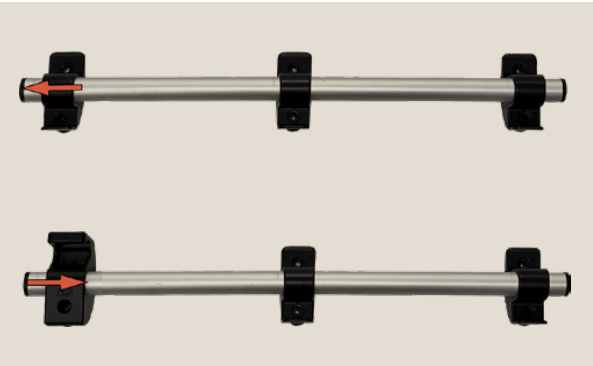

Slide out the desired grab handle bracket and replace it with the new AO Antenna Mount.

3

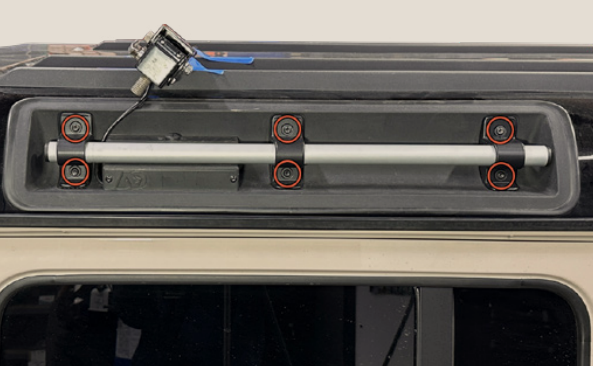

Install the grab handle assembly using the factory screws. Torque to 8 ft/lbs.

4

Install the antenna using the antenna’s supplied hardware.
