Installation Guide

Home / Suspension / Shocks / FOX Factory Race Series Rear Reservoir Bypass Shocks for Sprinter by Agile Offroad Installation Guide

FOX Factory Race Series Front and Rear Auxiliary Reservoir Bypass Shocks for Sprinter by Agile Offroad

Installation Manual PDF Download Additional Information

Installation Manual

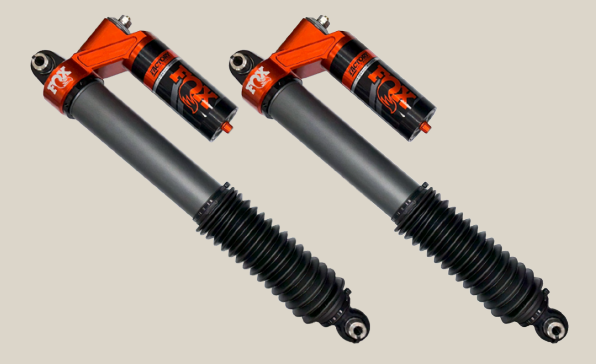

We are thrilled to announce the latest innovation in off-road suspension: the Agile x FOX Factory Race Series Shocks, designed and developed in a unique collaboration between Agile Offroad and the FOX Motorsports Team. Specifically engineered for 2500 4×4/ AWD Sprinter Vans, rear shocks feature cutting-edge technology developed from race-proven components, ensuring unparalleled performance and durability. Whether you’re pushing the limits off-road or navigating rugged terrain, these shocks are built to deliver superior handling, consistency, and longevity in the most demanding conditions.

SKU: AO-S1S-1-X (This instruction is for Rear only)

IMPORTANT INFORMATION

The Fox Factory Race Series Shocks must be installed using the AO Upper and Lower Shock Brackets. Please refer to the Double Shear Bracket instructions before attempting to install the Fox Race Series

INSTALLATION TIME: 3 Hours with Upper and Lower Shear Bracket

Installation Steps

1

Unbox the shocks.

2

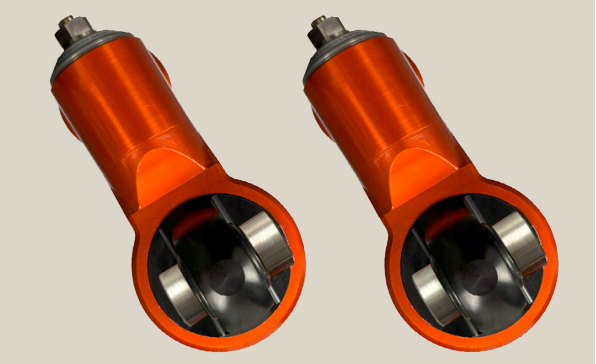

Remove the upper and lower zip ties holding the shock spacers.

3

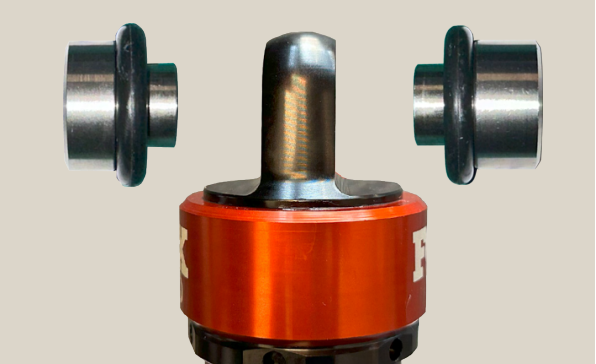

The shocks must be installed with the reservoir towards the front of the vehicle. Install the top spacers so that the thicker spacer (.935”) is installed towards the chassis. The lower spacers are of equal thickness.

4

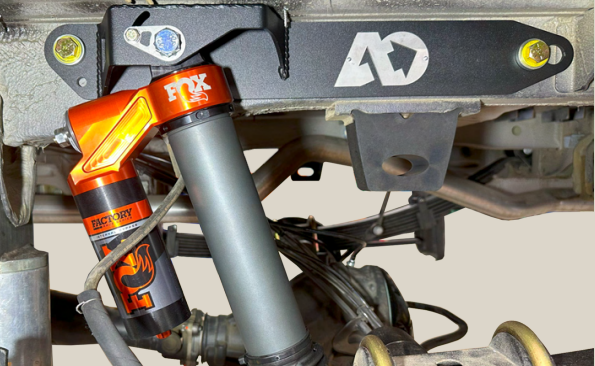

Install the shock onto the upper AO Double Shear Bracket as shown. Refer to the AO Double Shear Bracket instructions for torque specs.

5

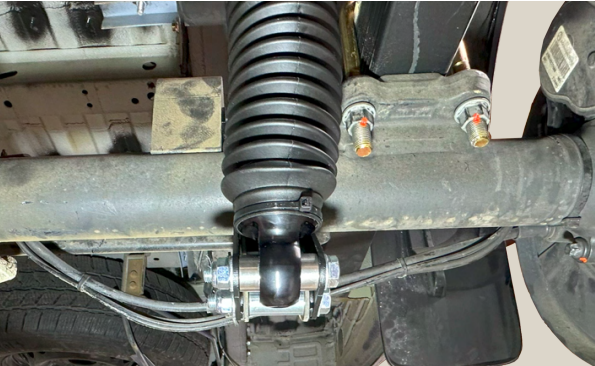

Install the shock onto the lower AO Double Shear Bracket as shown. Refer to the AO Double Shear Bracket instructions for torque specs.
