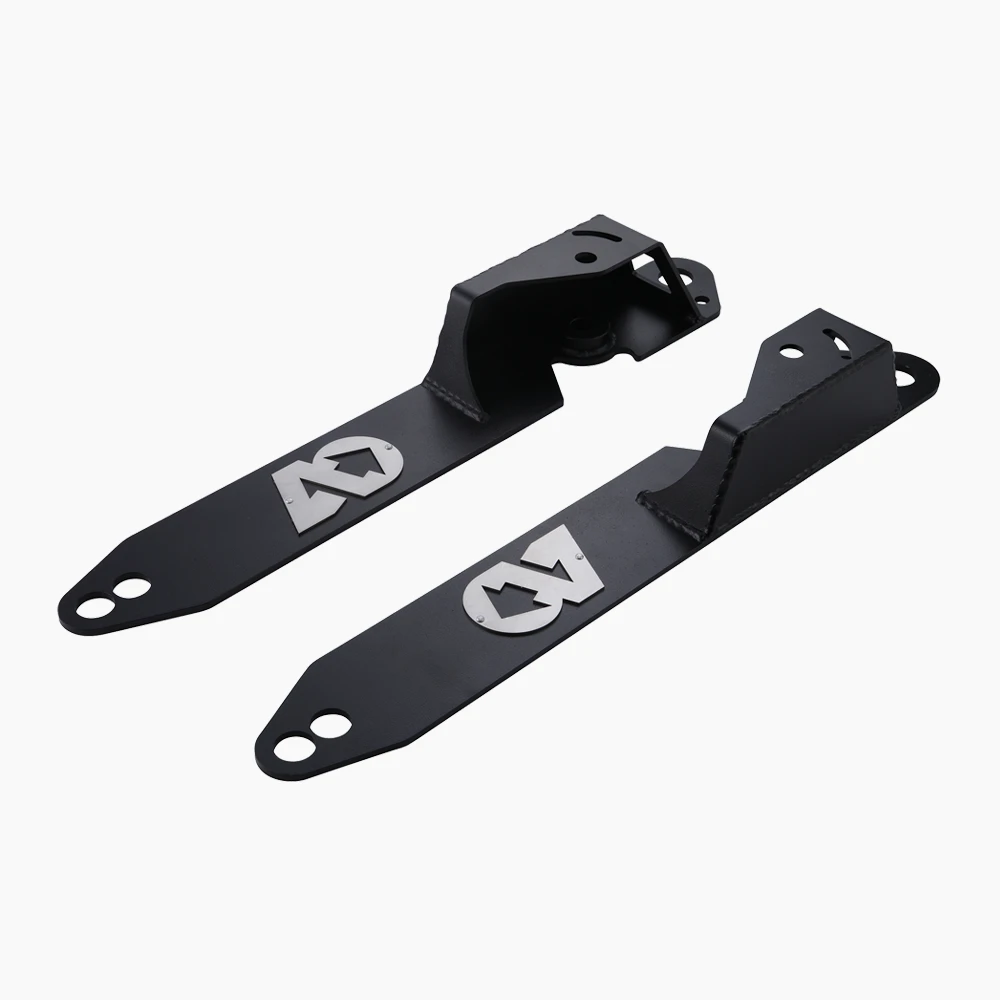

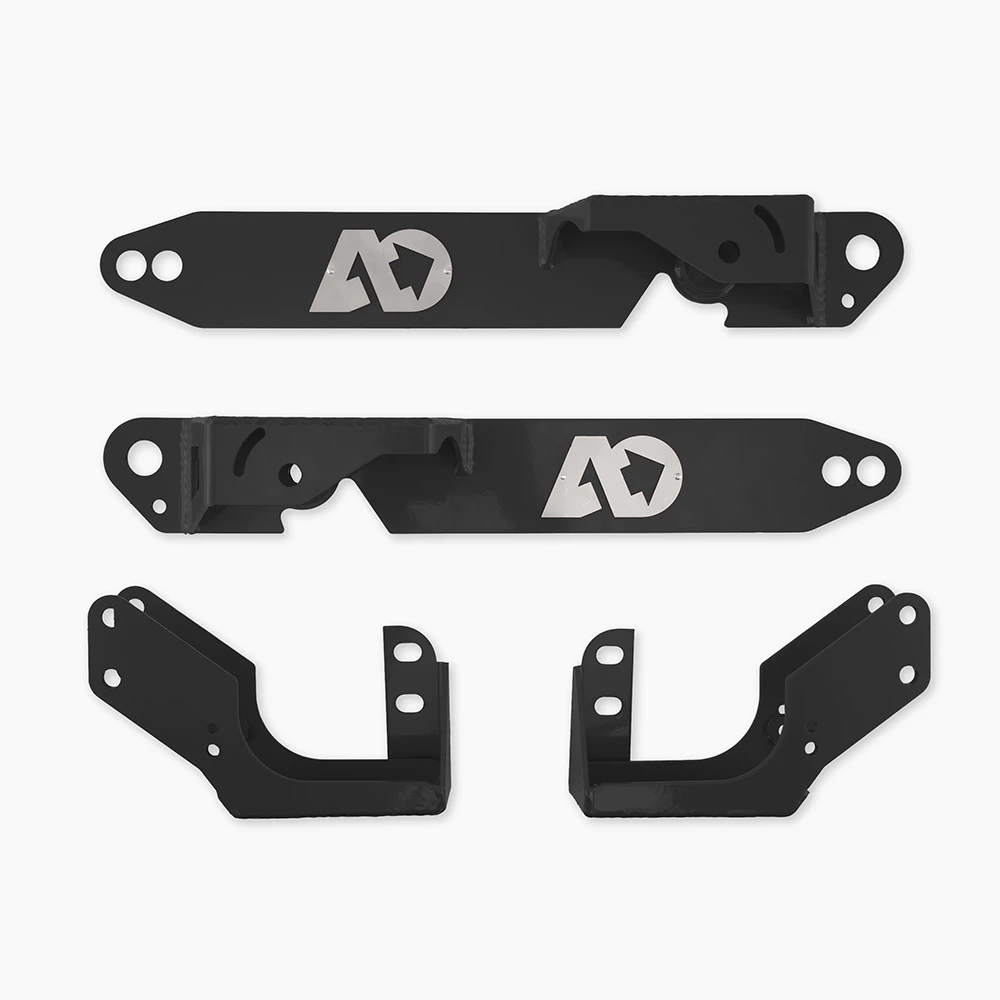

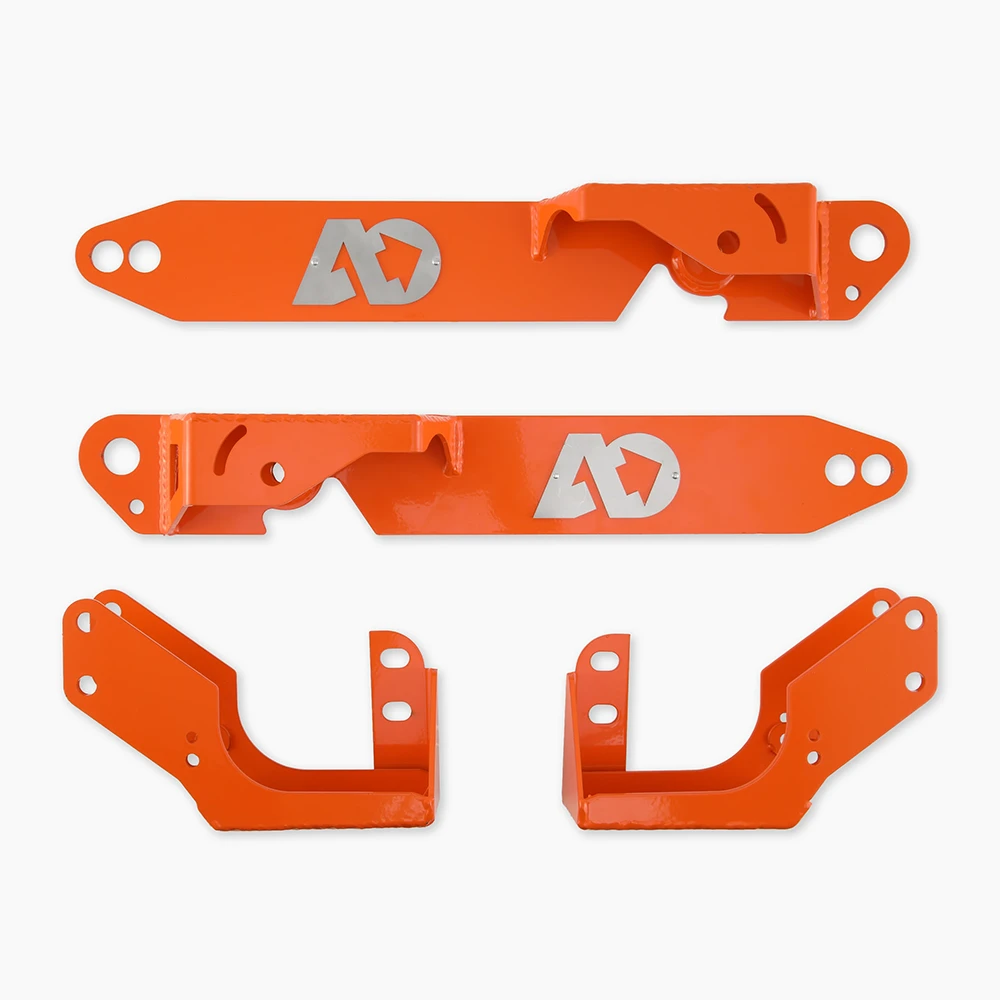

Agile Double Shear Bracket

$399.99$799.98

Mercedes Sprinter rear shock mount upgrade.

  • Doubles the strength of the rear mounting shock bolts
  • Works with factory or Agile tuned Fox shocks
  • Works on stock or lifted vans
  • Easy installation

*Upper bracket will not work with certain aftermarket shocks(Lower bracket only). Example: Falcon piggy back reservoir shocks

PRE-ORDER NOW FOR ONLINE ORDERS *Shipping in 3 weeks
AVAILABLE FOR INSTALLATION NOW – Call to schedule installation

-

Agile Offroad now offers another industry-best performance upgrade for the Sprinter rear suspension. The Agile Double Shear Bracket, doubles the strength of the rear upper & lower mounting shock bolts and works with factory or Agile tuned Fox Shocks. This Sprinter rear shock bracket is the answer to the glaring weakness of the factory rear shock mount discovered by Sprinter owners who frequently travel off-road. The factory shock bolt as well as the factory lower axle bump stop mount are two well known points of failure caused by the extreme stress of off-roading in a built-out and loaded for adventure Sprinter van. The Agile Double Shear Bracket shock brace resolves these issues, will work on stock or lifted Sprinters, and should be strongly considered if you are upgrading your Sprinter suspension. We offer the Agile Double Shear Bracket in Upper Mount only, Lower Bracket only or complete kit(upper & lower).

*Available in Black only

Sold as Upper Mount only, Lower Bracket only or Complete Kit(upper & lower)

*Does not fit 3500 models
*Upper bracket will not work with certain aftermarket shocks(Lower only). Example: Falcon piggy back reservoir shocks

Upper Mount

  • Doubles the strength of the rear upper mounting shock bolts
  • Added outer shear plane
  • Stainless Steel Lock tab for upper shock bolt
  • Added frame reinforcement in upper bump stop location
  • Works with factory or Agile tuned Fox Shocks
  • Easy installation with basic automotive tools and equipment
  • Black Powder coated brackets
  • Zinc coated hardware
  • Works on stock or lifted vans

Lower Bracket

  • Doubles the strength of the lower shock mount
  • Improves the motion ratio of rear shock
  • Improves and strengthens the factory lower axle bump stop
  • Works with factory or Agile tuned Fox Shocks
  • Easy installation with basic automotive tools and equipment
  • Black powder coated brackets
  • Zinc coated hardware
  • Works on stock or lifted vans

Vehicle Fit

Mercedes Sprinter 2500 *Does not fit 3500
Second Generation (NCV3): 2006-2018
Third Generation (VS30): 2019-22
144 / 170 Wheelbase
2WD / 4WD

Weight 21 lbs
Dimensions 24 × 8 × 7 in
Bracket Choice

Upper, Lower, Upper & Lower

Specifications

Sold as Upper Mount only, Lower Bracket only or Complete Kit(upper & lower)

Upper Mount

  • Doubles the strength of the rear upper mounting shock bolts
  • Added outer shear plane
  • Stainless Steel Lock tab for upper shock bolt
  • Added frame reinforcement in upper bump stop location
  • Works with factory or Agile tuned Fox Shocks
  • Easy installation with basic automotive tools and equipment
  • Black Powder coated brackets
  • Zinc coated hardware
  • Works on stock or lifted vans

Lower Bracket

  • Doubles the strength of the lower shock mount
  • Improves the motion ratio of rear shock
  • Improves and strengthens the factory lower axle bump stop
  • Works with factory or Agile tuned Fox Shocks
  • Easy installation with basic automotive tools and equipment
  • Black powder coated brackets
  • Zinc coated hardware
  • Works on stock or lifted vans
