AO RIP Front Coilover (Bilstein) – Sprinter 4×4

AO RIP Front Coilover (Bilstein) – Sprinter 4×4


Item On Backorder


  • 30 days easy returns
  • Be Smarter than dirt.
Guaranteed Safe Checkout

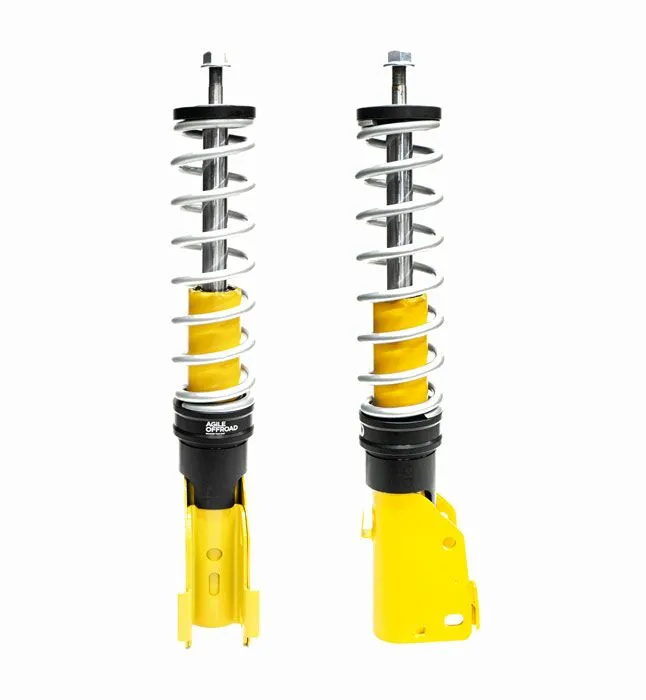

Our front coil-over conversion kit provides two benefits to Sprinter van owners. It increases spring force in the front suspension while simultaneously adding 1-1.5” of lift. Shocks & struts only control the rate of motion in your suspension. The spring is what holds your van up & keeps your wheels on the ground.  On a heavily built vehicle, the additional spring force will help your van maintain its composure and center of gravity. You’ll mostly notice the handling improvement our coil-over provides during cornering. However, this kit will also benefit overlanders in a myriad of off-road situations.

Whether you’re looking to replace your worn existing front struts or upgrade to a better performing pair we have you covered. This kit includes (2) Bilstein B6 struts, which are an upgrade over the originally equipped factory strut.

Bilstein B6 struts are the ideal choice for improving the performance of any vehicle. These struts feature a monotube design which provides consistent fade-free performance. Bilstein B6 struts utilize a unique, velocity-sensitive, digressive piston that reacts to changing road conditions to provide consistent fade-free performance. All B6 struts are tuned for each specific application to assure optimal performance is achieved. Bilstein B6 struts offer a significant improvement in ride quality, handling, and comfort.

Vehicle Fit

Mercedes Sprinter 2500 & 3500 (4x4)
Second Generation (NCV3) 2007 - 2018
Third Generation (VS30) 2019+

Fit Notes: Agile wheel spacers are required for the tire to safely clear the coil spring.

Additional information

Weight 40 lbs
Dimensions 21 × 9 × 5 in

Package Includes

  • (2) Agile upper spring seats
  • (2) Agile lower spring perches
  • (2) Hyperco coil springs
  • (2) Bilstein B6 front struts
