24 Gallon Wheel Well Water Tank by Agile Offroad

Product Description

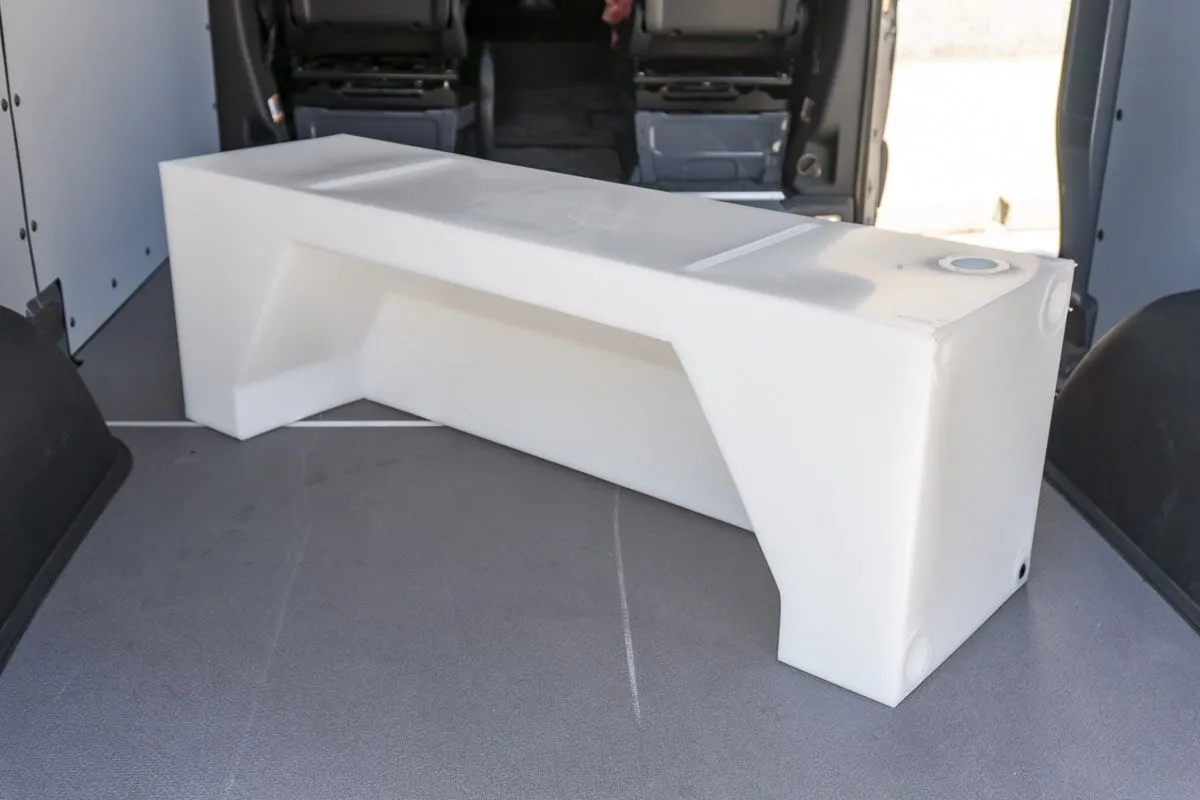

Utilize the wasted space around the rear wheel wells! Add potable water storage to the interior of your rig with a universal 24-gallon water holding tank. This tank is designed to fit Sprinter 2500 & Transit (single rear wheel) vans, snugly fitting against the wall and around the wheel tubs. However, this solution can easily be adapted to fit dual-rear wheel Sprinter 3500s, Transits, and other vans (by leaving space between the tank & the vehicle's interior wall). This tank fits on either side of the vehicle and accepts 1/2" (black plugs) and 1-1/2" (need to be drilled) NPT fittings. The tank measures 48" long x 16" tall x 14" wide and are made from BPA Free Food Grade Plastic.

• Accepts a variety of universal fittings
• 24-gallon capacity
• Works on either side of the vehicle
• External Dimensions: 46" long x 16" tall x 14" wide

Vehicle Fit

Mercedes Sprinter
Third Generation (VS30) 2019+
Second Generation (NCV3) 2008-2018

Ford Transit
Fifth Generation: 2015+
*Transit Van wheel wells are slightly smaller than the Sprinter so there is a bit more room for insulation around wheel well.

Ram Promaster
*Needs to be elevated 3.5″ to fit the large wheel wells

Instructions

VAN BUILD WATER TANK INSTALLATION

Specifications

Product Weight

25.0 lb

Dimensions

49 x 17 x 17

Brand

Northwest Conversions

Capacity

24-Gallon

Vehicle Fit

Ford E350, Ford Transit AWD, Ford Transit RWD, NCV3 Sprinter 2500 2wd, NCV3 Sprinter 2500 4x4, NCV3 Sprinter 3500 2wd, NCV3 Sprinter 3500 4x4, Ram ProMaster, VS30 Sprinter 2500 2wd, VS30 Sprinter 2500 4x4, VS30 Sprinter 3500 2wd, VS30 Sprinter 3500 4x4
