Limited-Travel Rear Door Stops for VS30 2019+ Sprinter by Agile Offroad

Installation Manual PDF Download Additional Information

Installation Manual

Designed to Work with the Agile Tire Carrier and RDO Plate

Parts Included

Part # 900698777

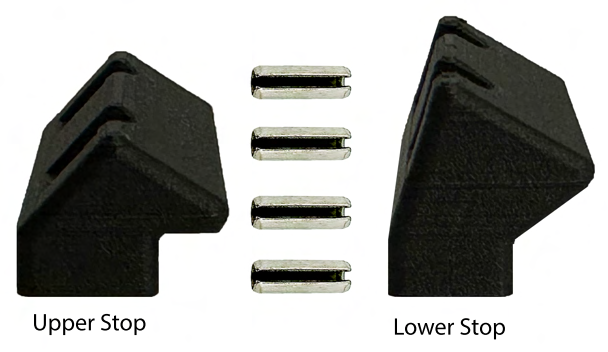

  • (1) Upper Door Stop
  • (1) Lower Door Stop
  • (4) Roll Pins

Tools Needed

  • Small Screwdriver
  • Needle Nose Pliers
  • Hammer

Installation Steps

1

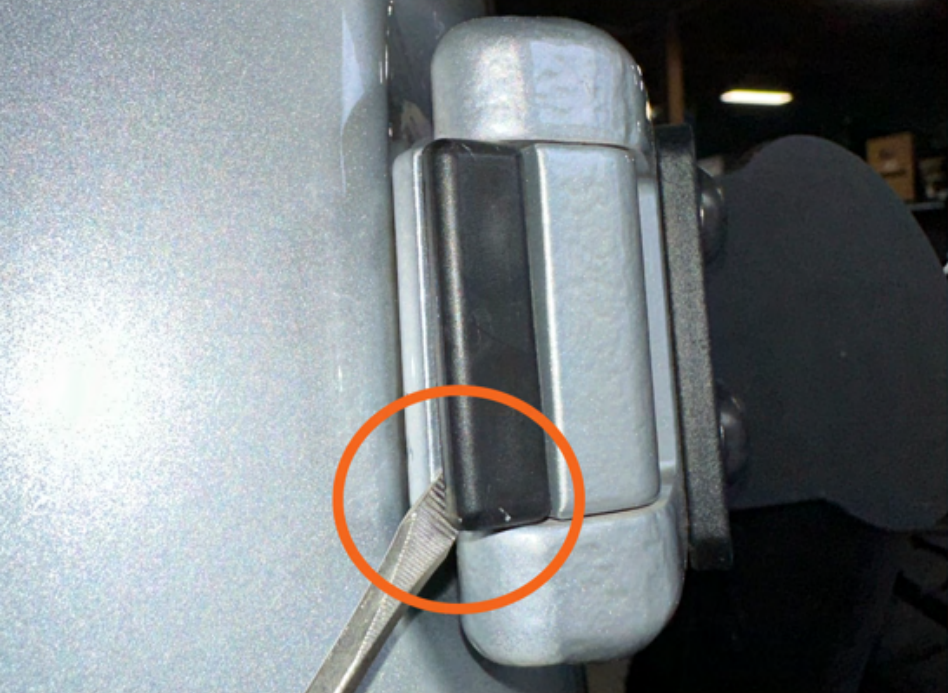

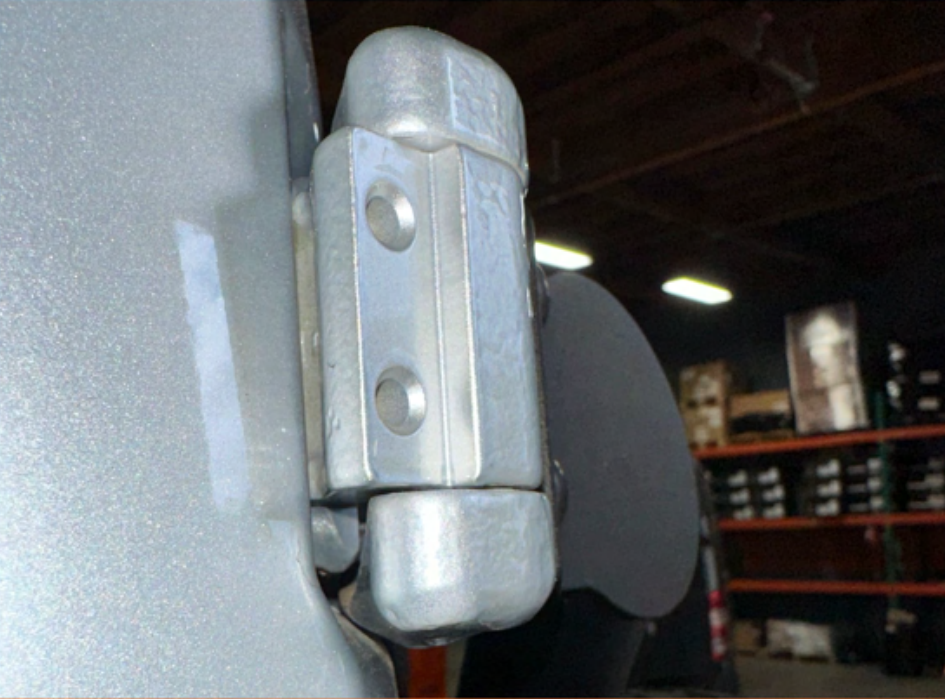

Use a small screwdriver to remove the factory door stops from both upper and lower hinges.

2

Clean surface as neccessary.

3

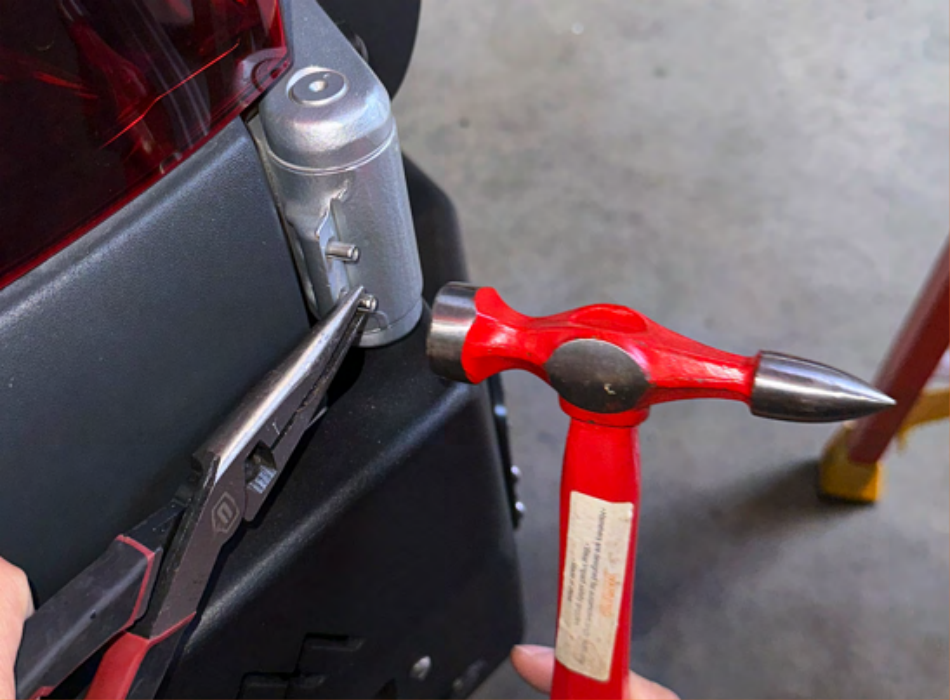

Upper Hinge: Hold supplied roll pin with needle nose pliers at hinge holes. Use a hammer to drive pin into holes.

4

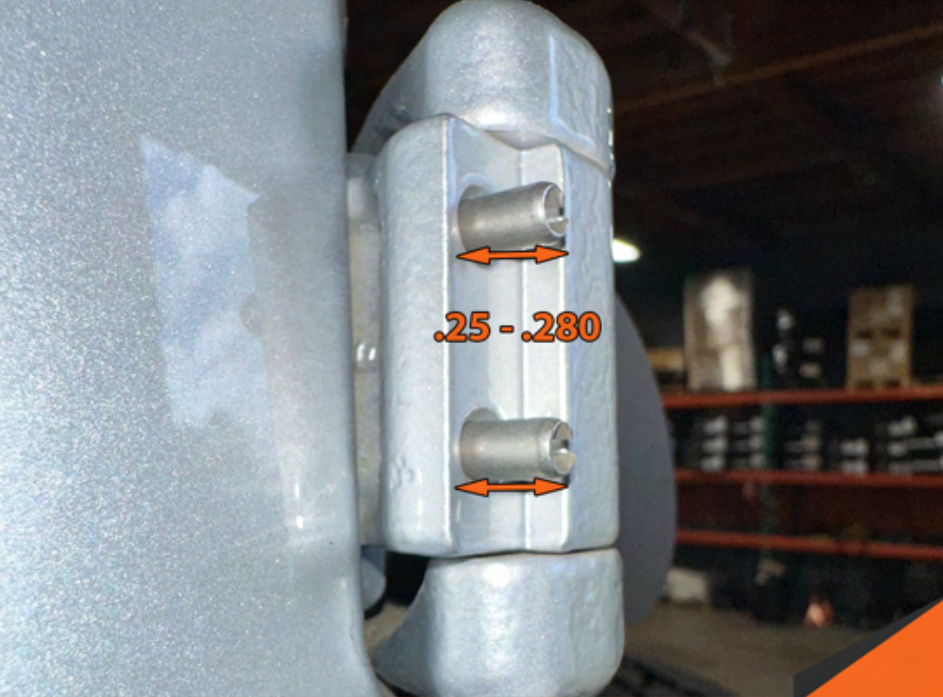

Upper Hinge: Roll pins should protrude .25 to .280 inches.

5

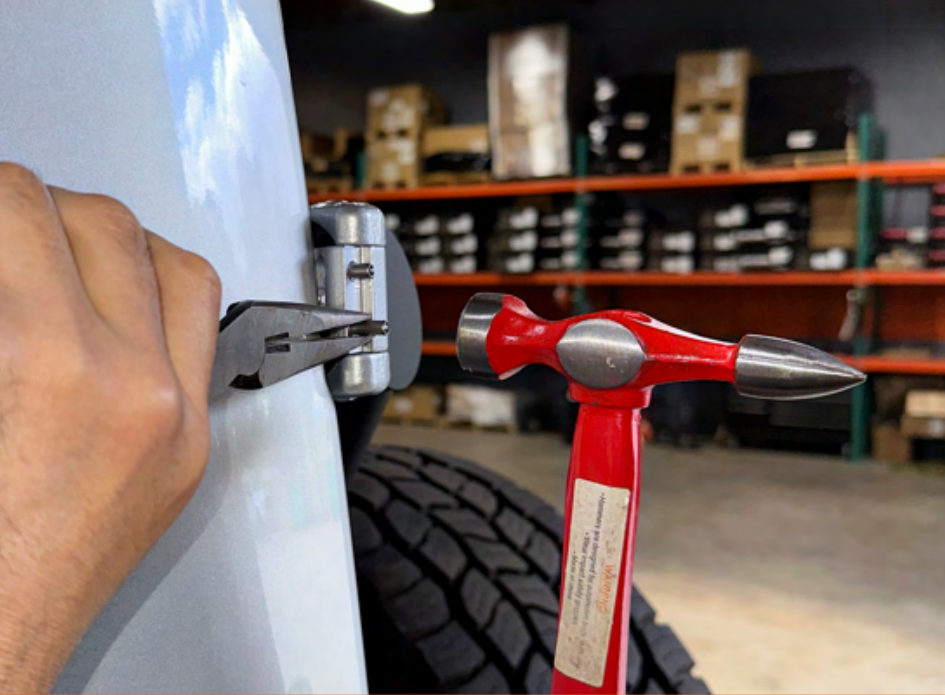

Lower Hinge: Hold roll pins with needle nose pliers at hinge holes then drive pins into holes using a hammer.

6

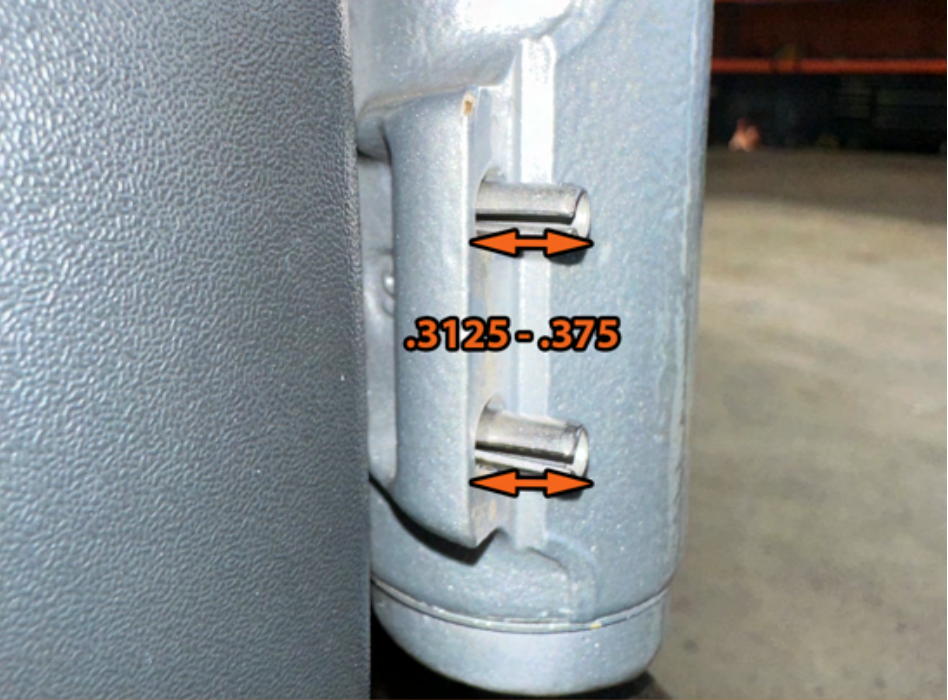

Lower Hinge: Roll pins should protrude .3125 to .375 inches.

7

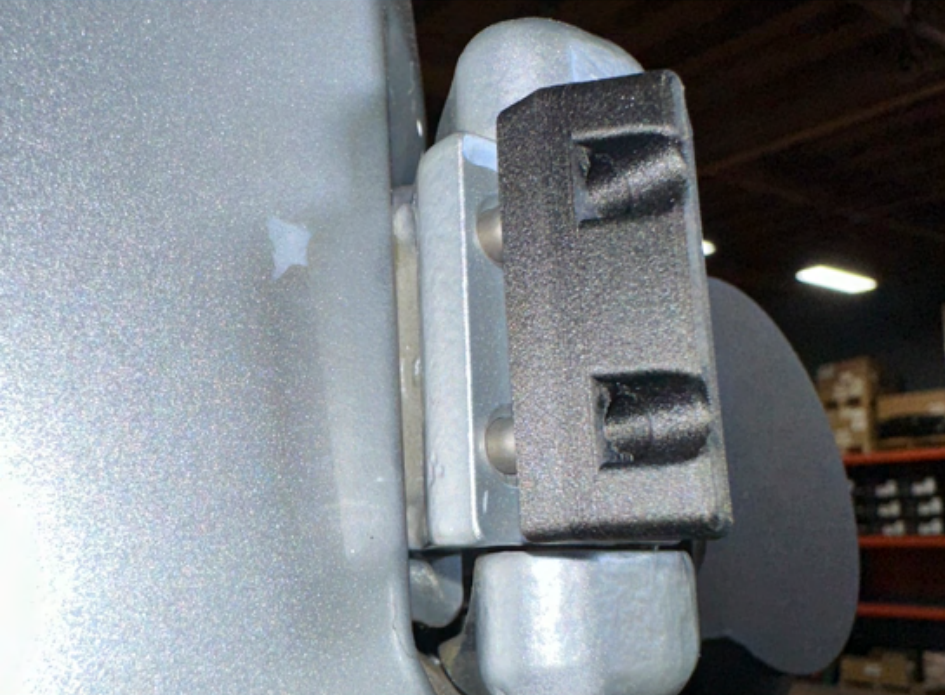

Line up new door stops over roll pins.

8

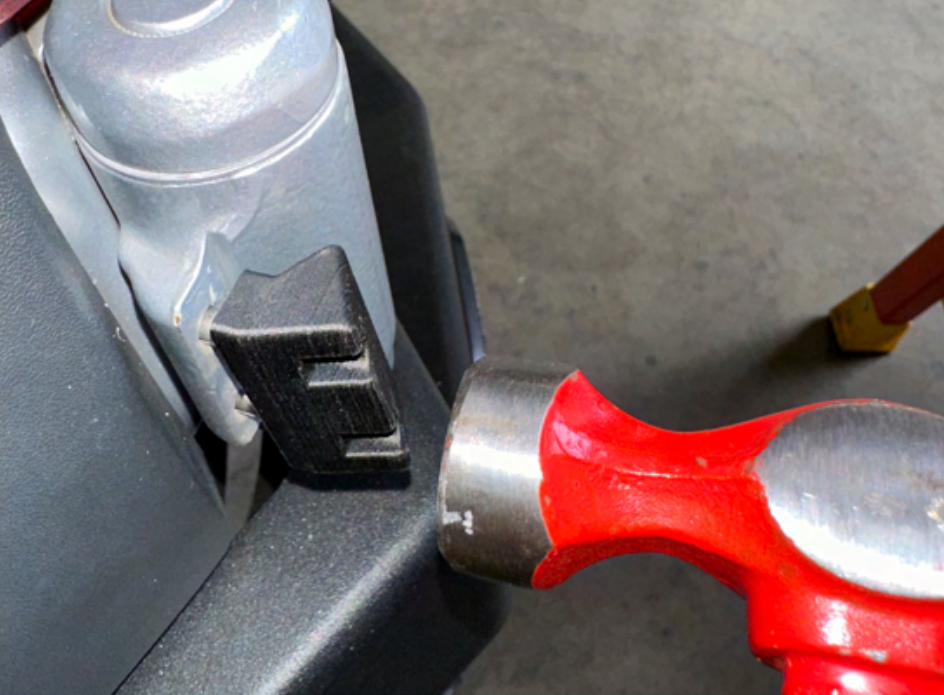

Use a hammer and evenly tap the new door stop until flush with hinge. Repeat the same process on both upper and lower hinges.

9

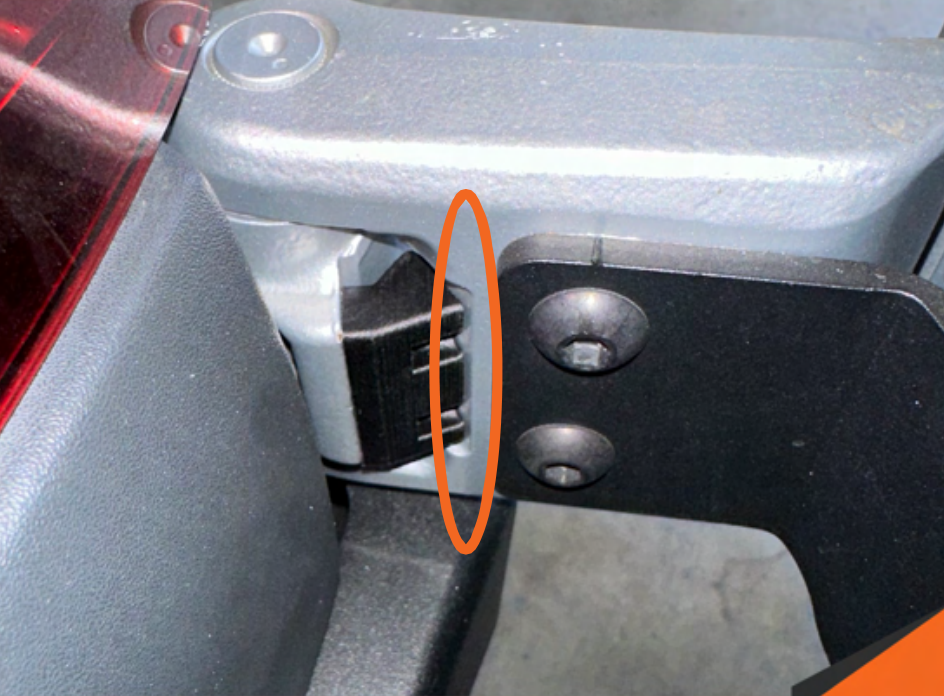

Completely open rear door and check the upper door stop.

10

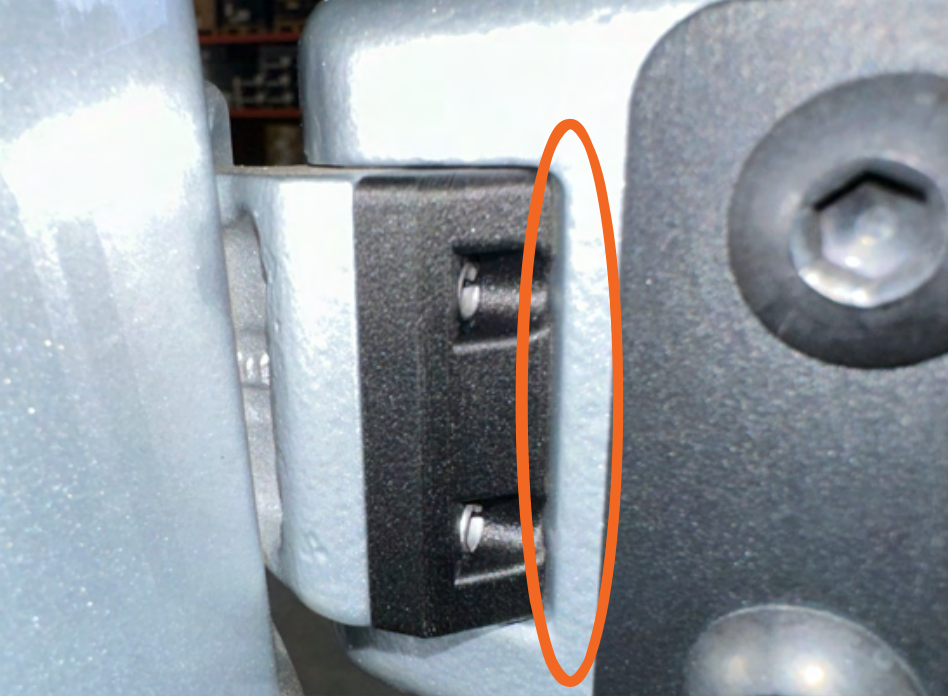

Check lower door stop. Door hinges will make contact with new door stops as shown.
