Under Rear Seat Universal Plate for INEOS Grenadier by Agile Offroad

Installation Manual PDF Download Additional Information

Installation Manual

The Agile Offroad Under Rear Seat Universal Plate is a strong, lightweight mounting solution for electrical accessories and battery systems in the Ineos Grenadier. Made from 1/8” 5052 aluminum, it bolts directly to factory mounting points, requiring no drilling to install, while allowing custom configurations for accessory mounting.

SKU: AO-E5G-03

PARTS INCLUDED

  • 1 x Under Rear Seat Accessory Plate
  • 4 x M4 x .07 Bolts

TOOL NEEDED

  • T15 Torx Bit
  • T50 Torx Bit
  • 3mm Allen Wrench

INSTALLATION TIME: 30 minutes

Installation Steps

1

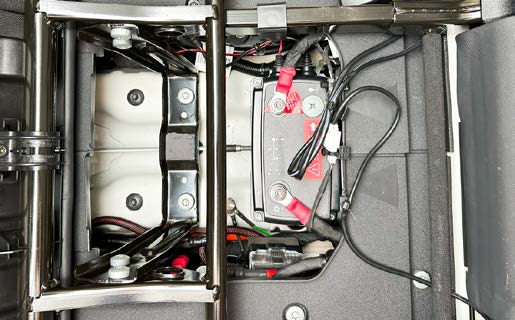

Pivot the lower rear seat cushion forward. The AO Accessory Plate is designed to be installed at the center of the floor.

2

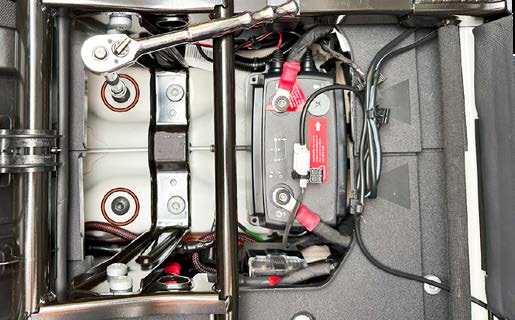

Use a T50 Torx bit to remove the two black button head bolts as shown.

3

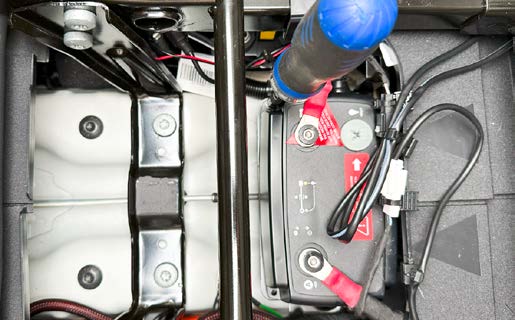

Use a T15 Torx bit to remove the four battery charger bolts.

4

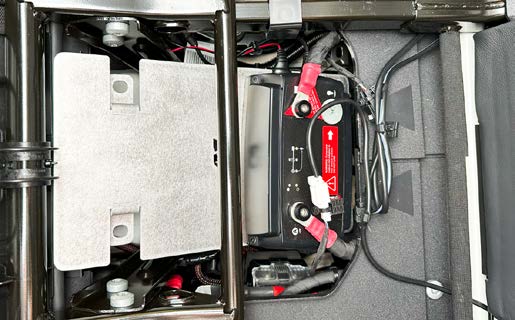

Install the AO accessory plate starting from the front of the seat base. Slide the accessory plate under the CTEK battery charger as shown.

5

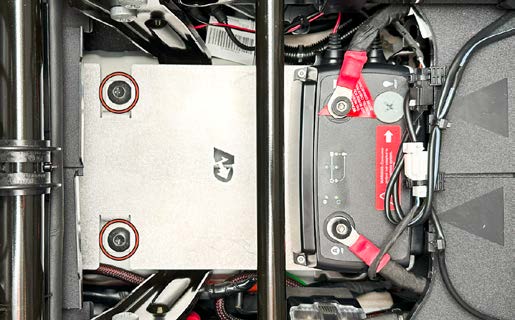

Install the two factory button head bolts at the front of the accessory plate. Hand tighten only. Use the four supplied M4 bolts to bolt down the CTEK battery charger. Fully tighten all hardware. Torque the two front button head bolts to 30 ft lbs and the M4 bolts to 23 in lbs.
