Starlink Mounting Kit For Winnebago Revel by Agile Offroad

Installation Manual PDF Download Additional Information

Installation Manual

The Agile Offroad Starlink Mounting Kit is designed to seamlessly integrate with your Winnebago Revel roof rack or any universal mounting solution, providing a secure and low-profile solution for mounting your Starlink system. This kit includes everything you need to install either a Star-Mount Flat Mount or Quick Release Mount, ensuring your Starlink remains stable and functional during all your adventures.

KEY FEATURES

  • Minimal Modifications Required: Easy installation process tailored for the Winnebago Revel roof rack.
  • High Durability: Constructed with corrosion-resistant aluminum and stainless-steel hardware for long-lasting use.
  • Universal Utility: Compatible with either Star-Mount Ensures a sleek and unobtrusive mount or boxes oil accessories. on your vehicle.
  • Low-Profile Design: Ensures a sleek and unobtrusive mount on your vehicle.

BENEFITS

  • Extremely secure and resilient mounting solution.
  • Designed to withstand harsh outdoor conditions while maintaining a low-profile aesthetic.
  • Ensures your Starlink system stays firmly in place, enhancing your connectivity and convenience on every journey.
  • Can be used as a universal mounting solution.
  • Minimal modifications may be required for other installations like Star-Mount Flat Mount only.

SKU

  • AOR228-SL: Starlink Mounting Kit For Winnebago Revel

TECHNICAL SPECIFICATIONS

  • Product Fit: Factory Winnebago Revel Roof Rack
  • Material: (2) Aluminium
  • Finish: (2) Black Powder Coated
  • Hardware: (2) Stainless Steel
  • Product Dimmensions: 1st part 31 1/2inL x 4inW x 2inH, 2nd part 31 1/4inL X 1 1/2inW X 1 1/2inH
  • Packging Dimensions: 32in × 3in × 3in
  • Weight: 3.05 lbs (all pieces together)

PARTS INCLUDED

  • 1 Inside Rail
  • 1 Outside Rail
  • 1 Stainless Hardware Kit

RELATED PRODUCTS

  • AOR143: Starlink On-Off Switch Kit
  • NEX05: Backup Camera Lifter for 2019+ Sprinter
  • Call to Order: Star-Mount Explorer Pro Bundle For Gen 3 Starlink
  • Call to Order: Star-Mount Voyager Pro Bundle For Gen 3 Starlink

The Agile Offroad Starlink Mounting Kit is designed to seamlessly integrate with your Winnebago Revel roof rack or any universal mounting solution, providing a secure and low-profile solution for mounting your Starlink system. This kit includes everything you need to install either a Star-Mount Flat Mount or Quick Release Mount, ensuring your Starlink remains stable and functional during all your adventures.

SKU: AOR228-SL

PARTS INCLUDED:

  • 1 x Inside Rail
  • 1 x Outside Rail
  • 1 x Stainless Hardware Kit

TOOL NEEDED:

  • 1/2” Wrench or Socket w/Ratchet
  • Anti-Seize
  • 5⁄16” Drill Bit and Drill
  • Phillips Screwdriver
  • Ladder X 2
  • Zip Tie Cutter
  • Marker

Use anti-seize on all stainless hardware

Installation Steps

1

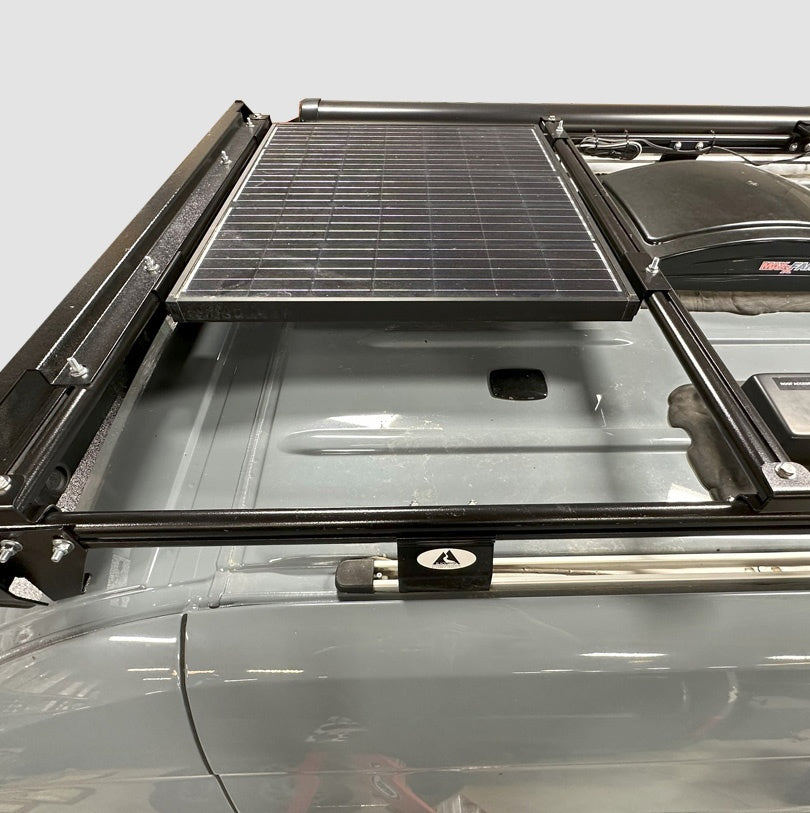

Set up a ladder using proper safety protocol. Familiarize yourself with the Revel roof rack and the Agile mounting brackets.

2

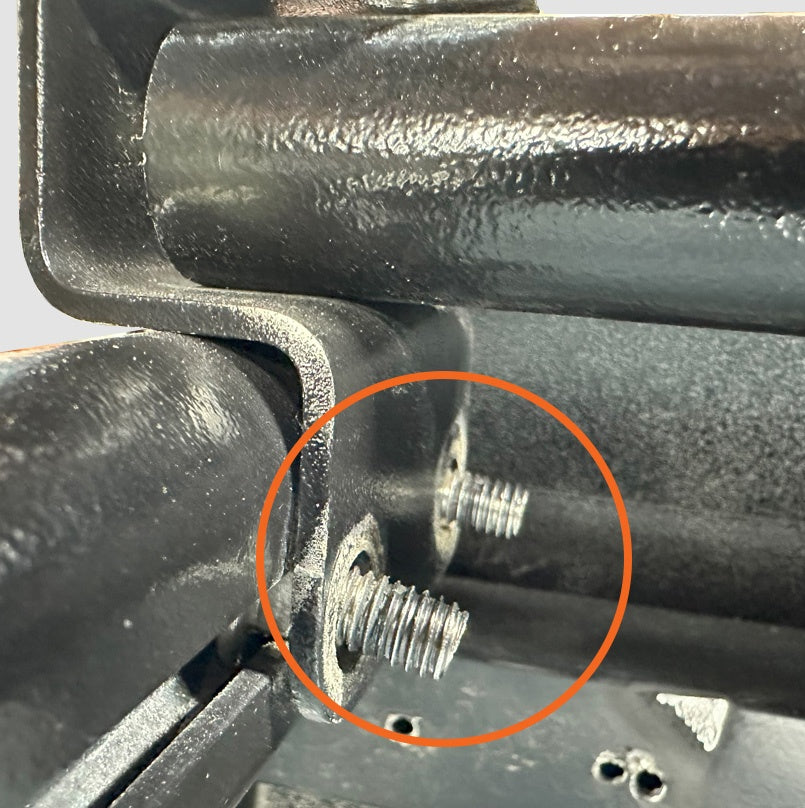

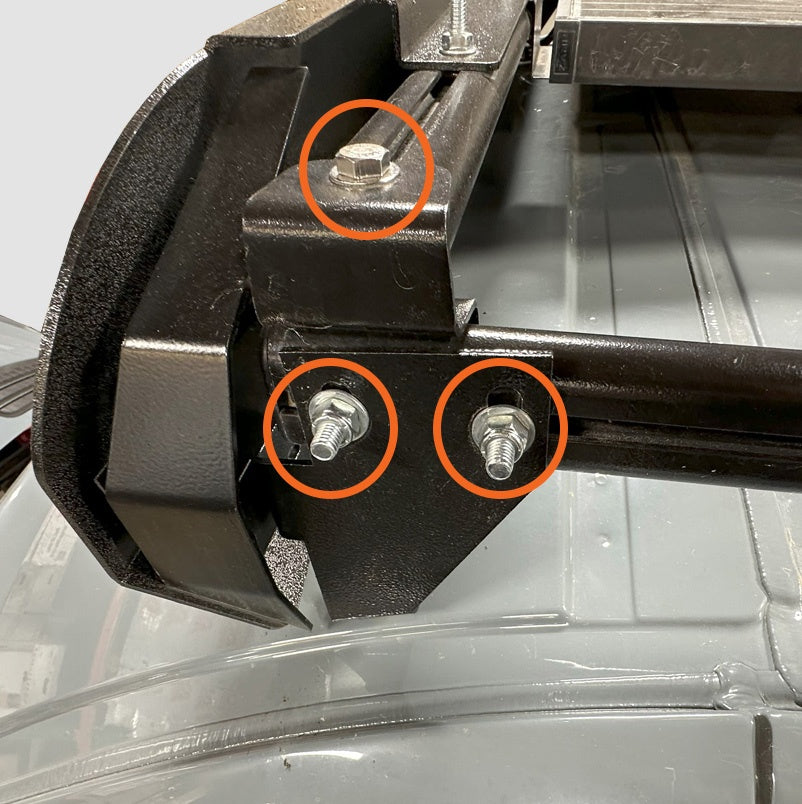

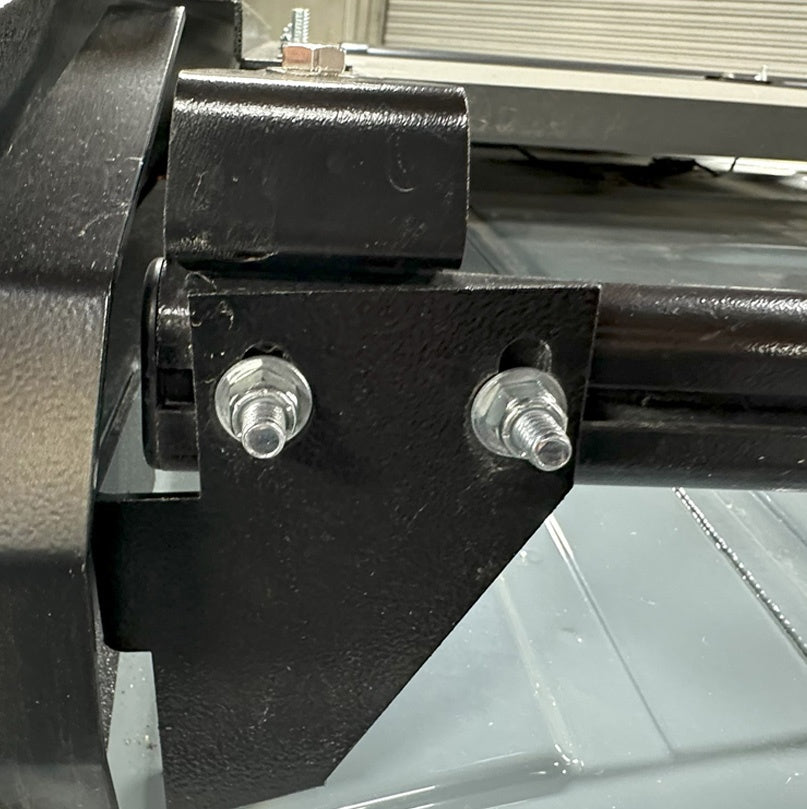

Use a 1/2” wrench/socket to remove the 2 side rail bracket nuts and a Phillips screwdriver to remove inner Phillips screws. Then remove the single cross-rail bracket bolt.

3

Completely remove the side bracket.

4

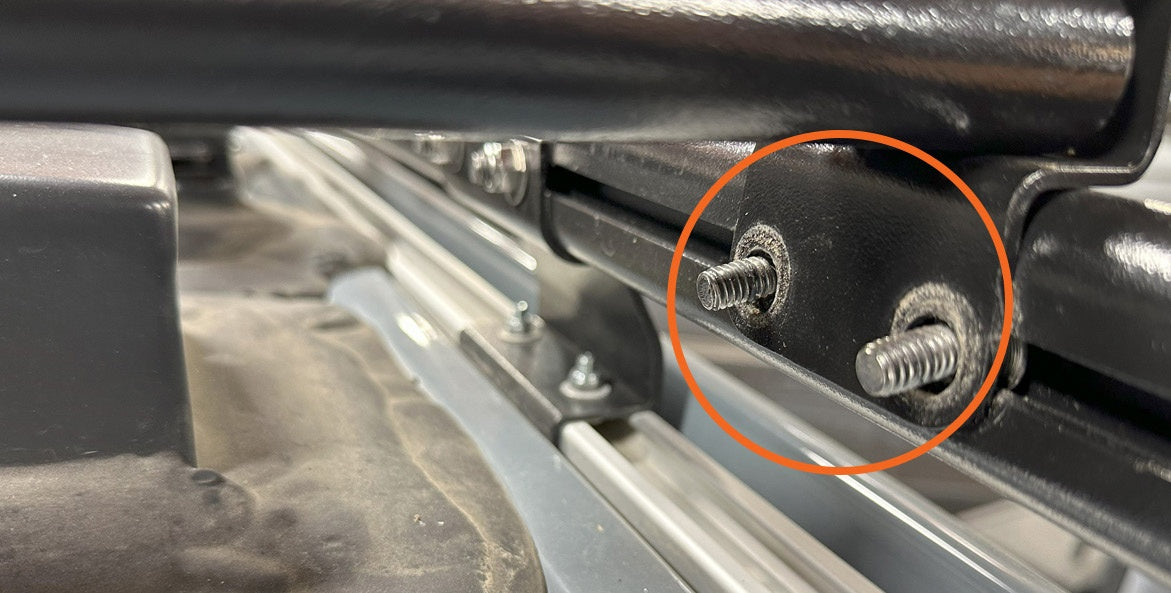

Use a 1/2” wrench/socket to remove the 2 inner cross rail bracket bolts.

5

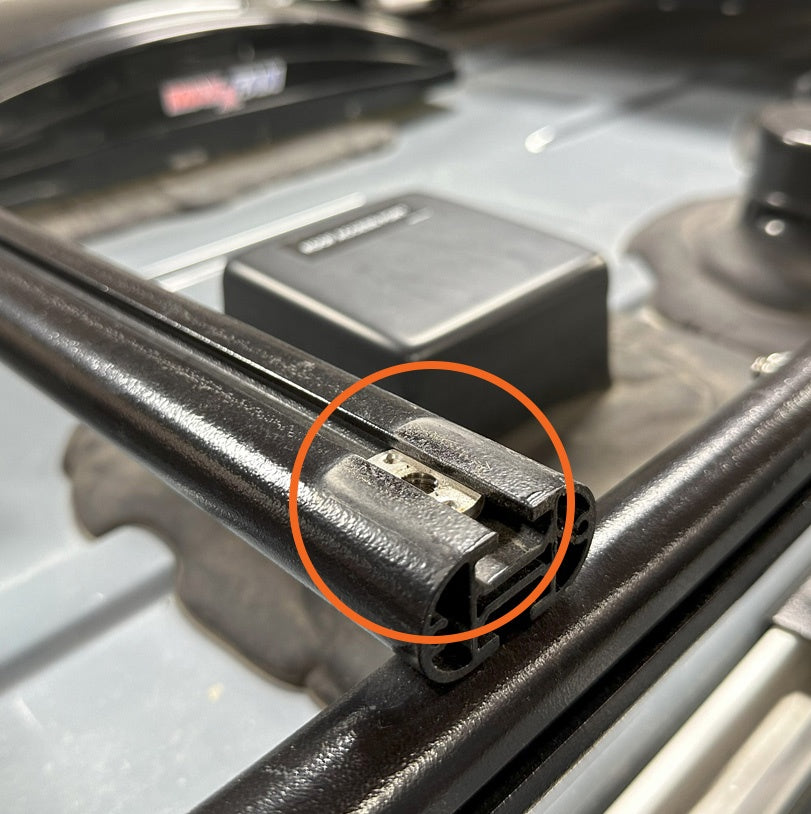

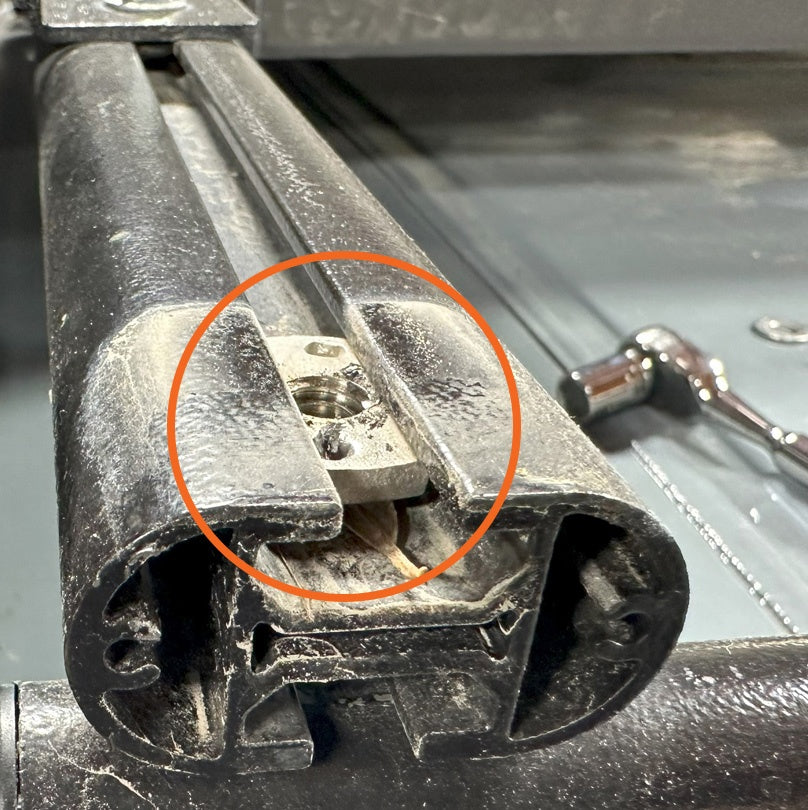

Completely remove the cross-rail bracket then slide out the t-nut.

6

Use a 1/2” wrench/socket to remove the 2nd cross-rail bracket bolt and 2 nuts.

7

Completely remove the bracket and slide out the t-nut.

8

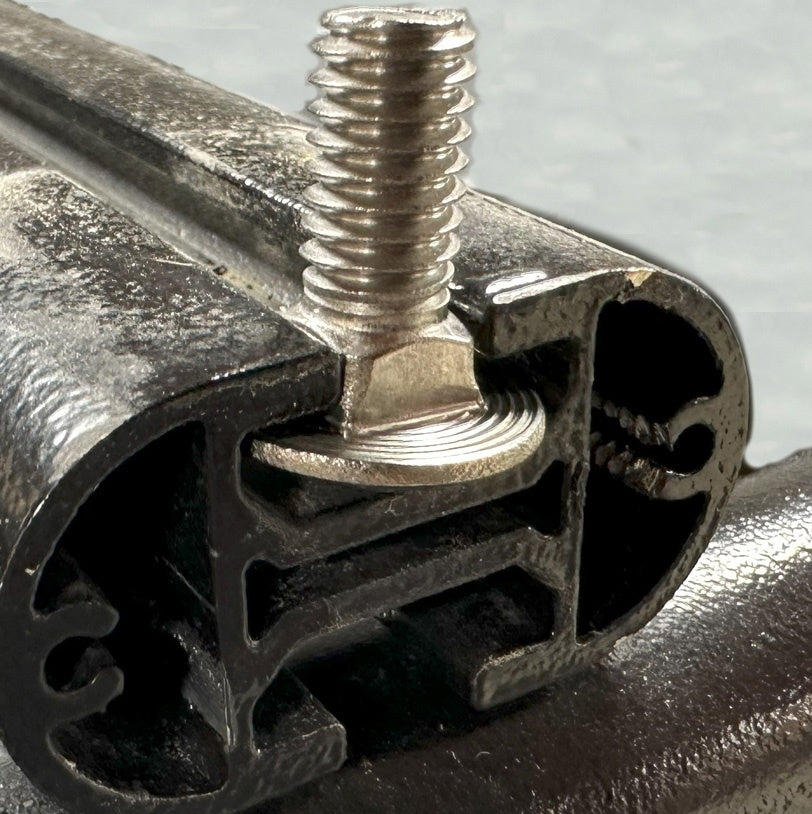

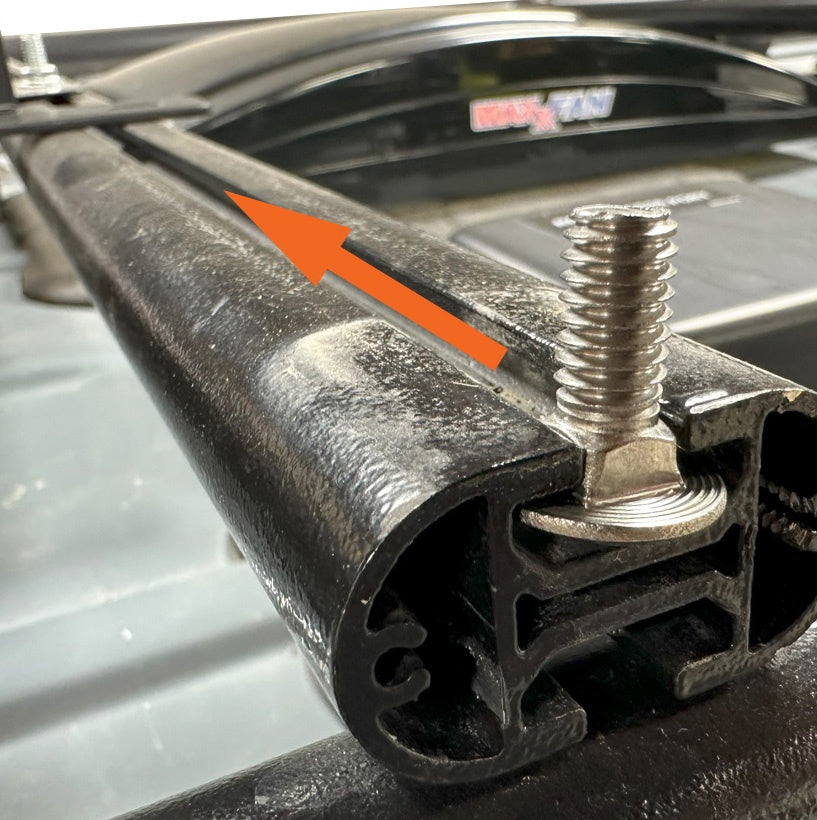

Install one of the supplied 5/16”-18x1” carriage bolts into the cross-rail. Slide carriage bolt in towards solar panel.

9

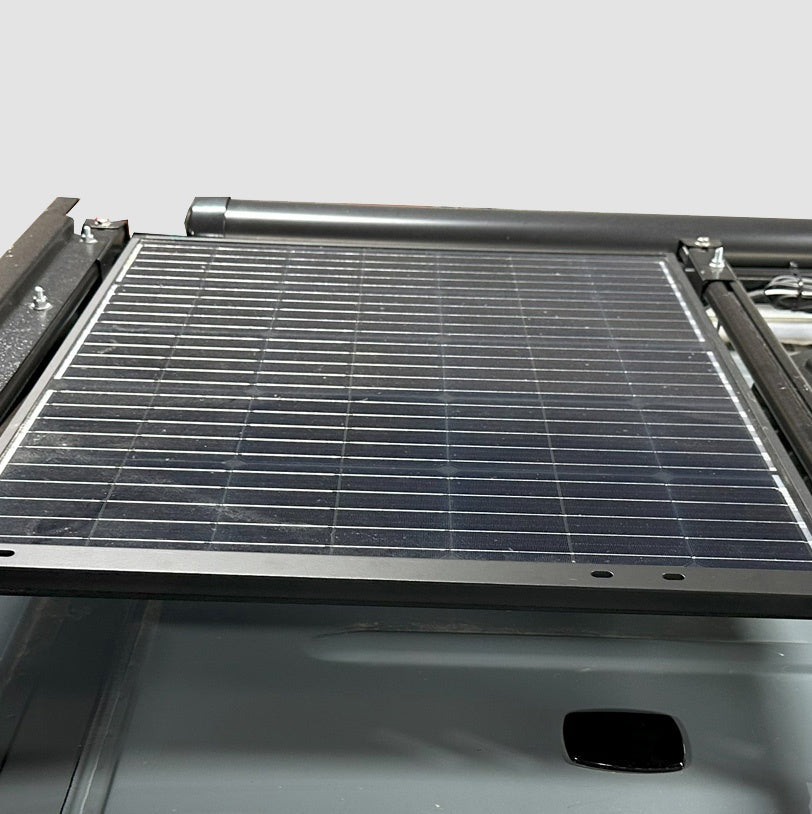

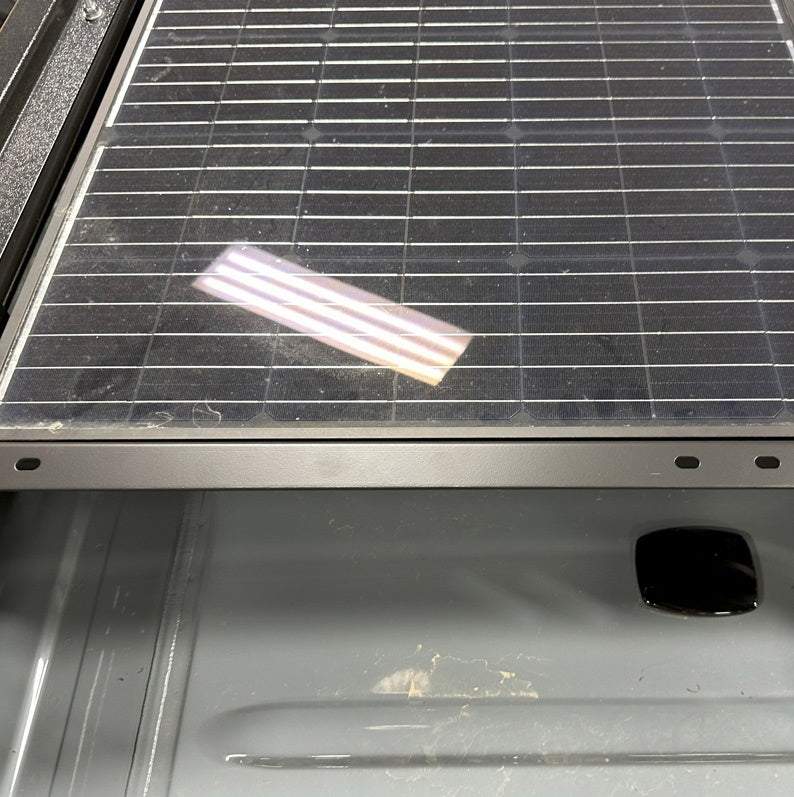

Place the Agile inside rail between the front and rear crossrails 1/4” from solar panel. Use the previously installed carriage bolt at the rear of rail.

10

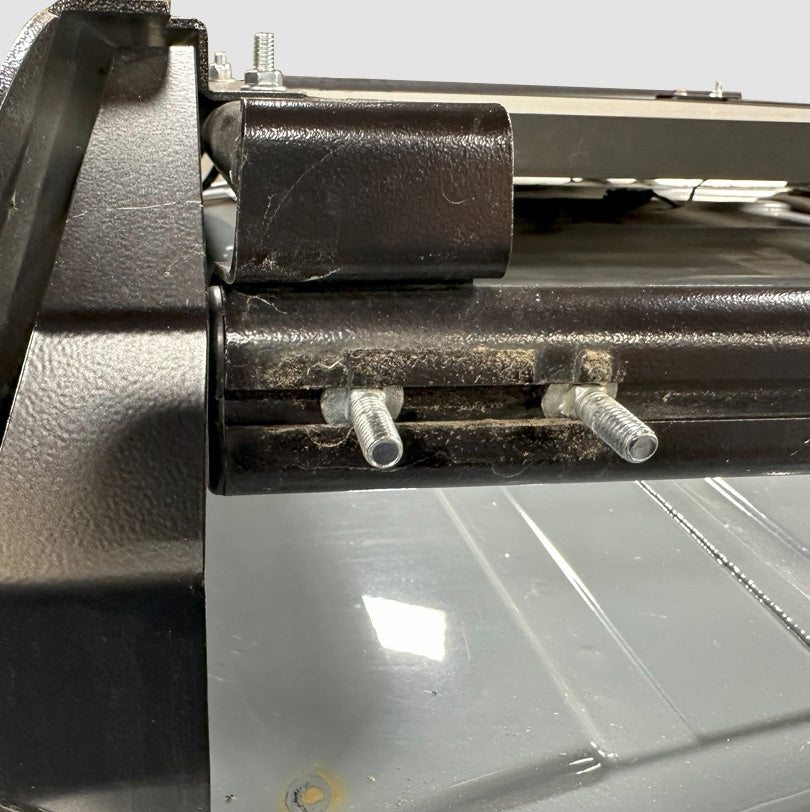

The inner rail will sit above the front faring and front crossrail as shown.

11

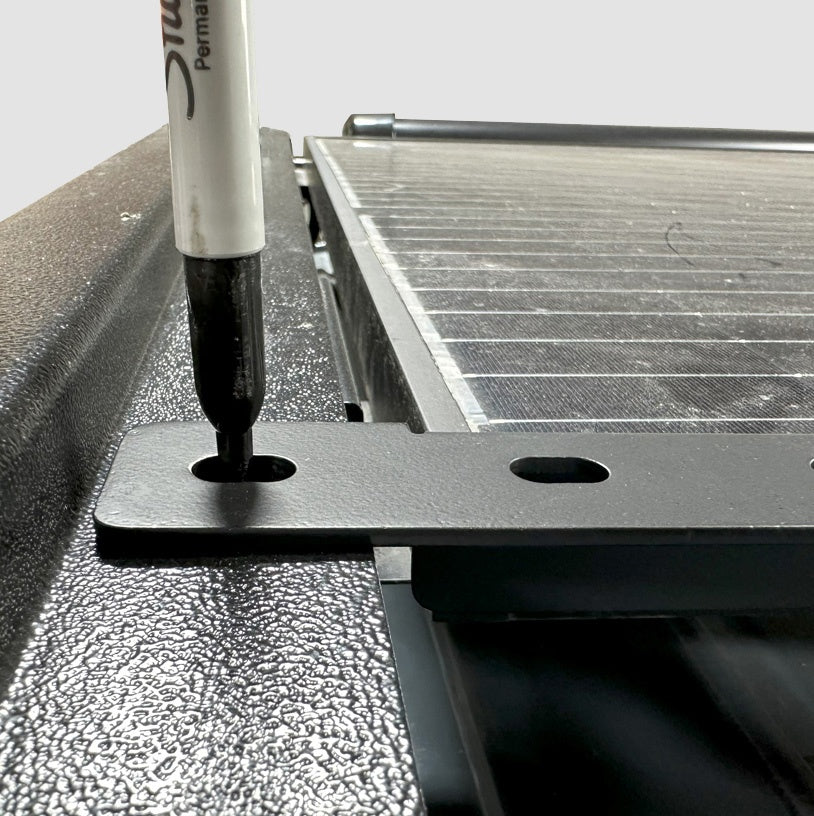

Use a marker to trace the front rail hole onto the front fairing.

12

Use a 1/2” wrench/socket to remove the 4 front fairing nuts. Do Not Completely remove the 4 nuts until you are ready to remove the fairing.

13

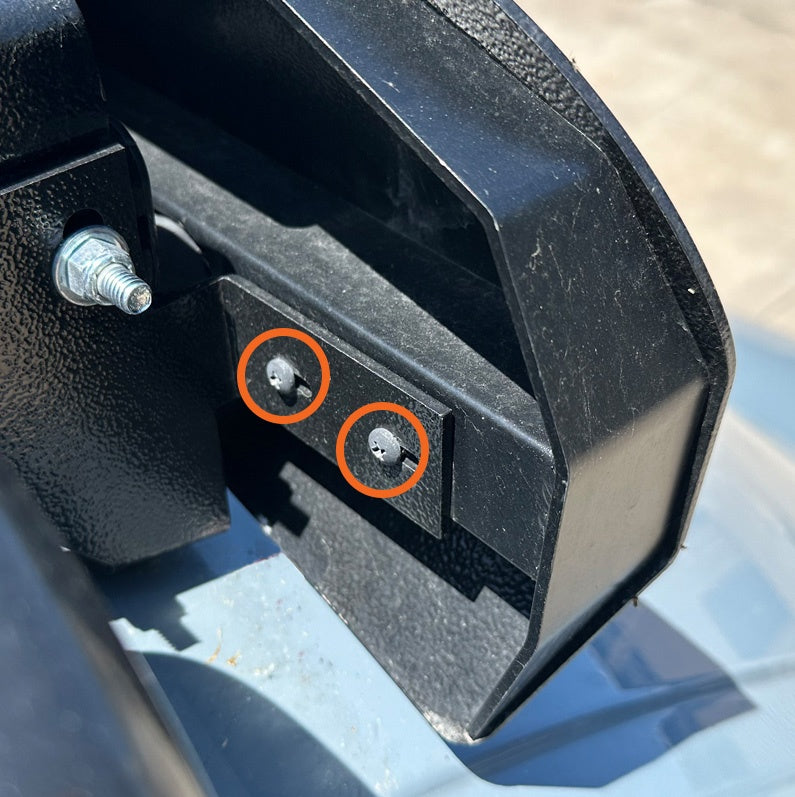

Use a Phillips screwdriver to remove the 2 passenger side fairing screws.

14

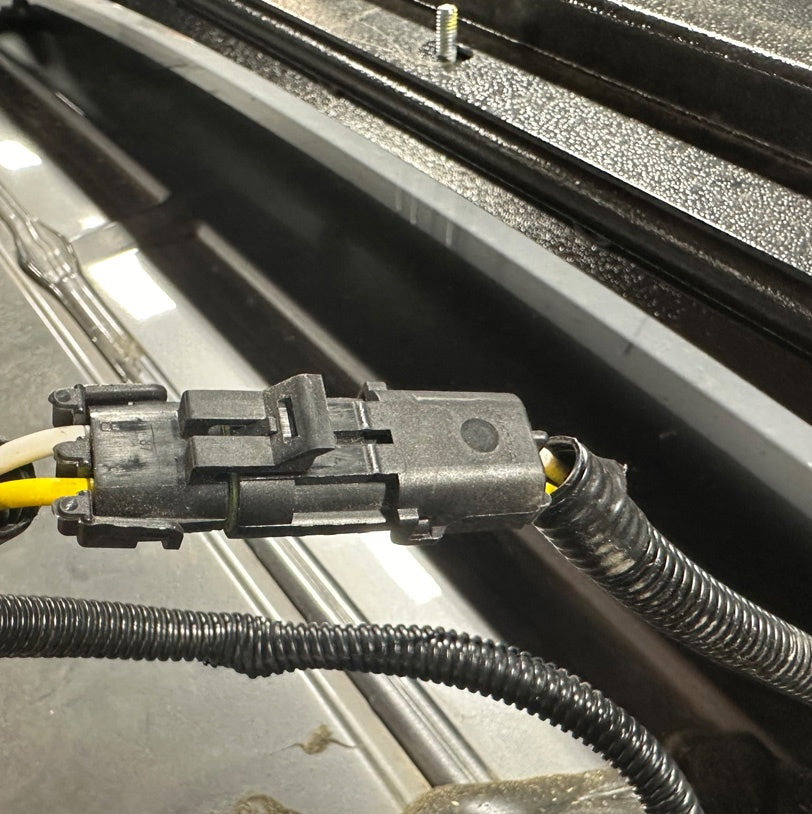

Locate the fairing light harness. Cut off zip ties and unplug at connector. With the help of an assistant, lift fairing from cross-rail and remove fairing completely.

15

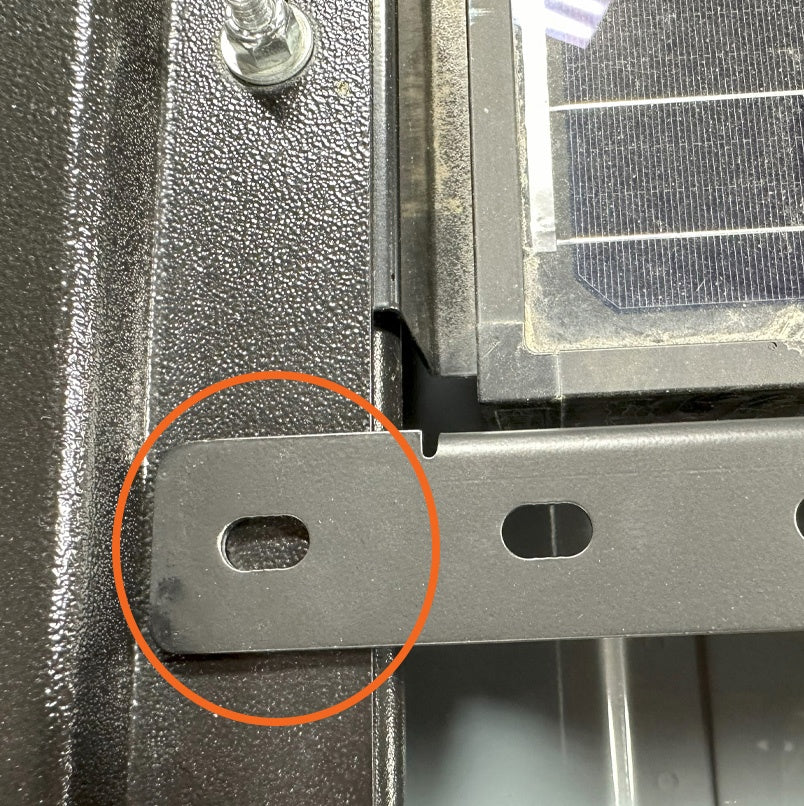

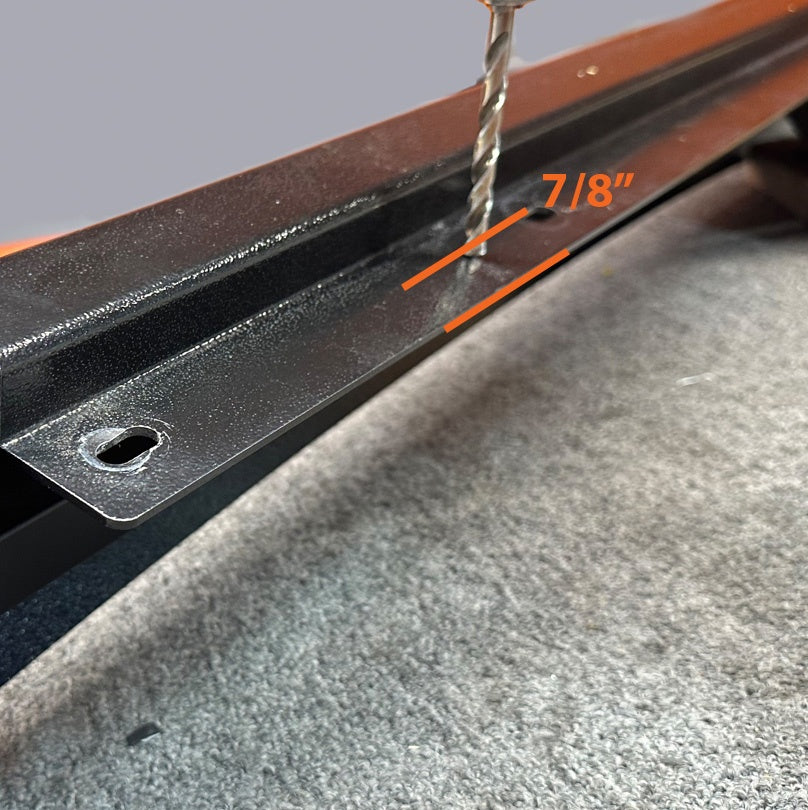

Locate the trace mark from step 11. Use an 11/32” drill bit and drilled at the center of the trace mark 7/8” from the inner edge of fairing.

16

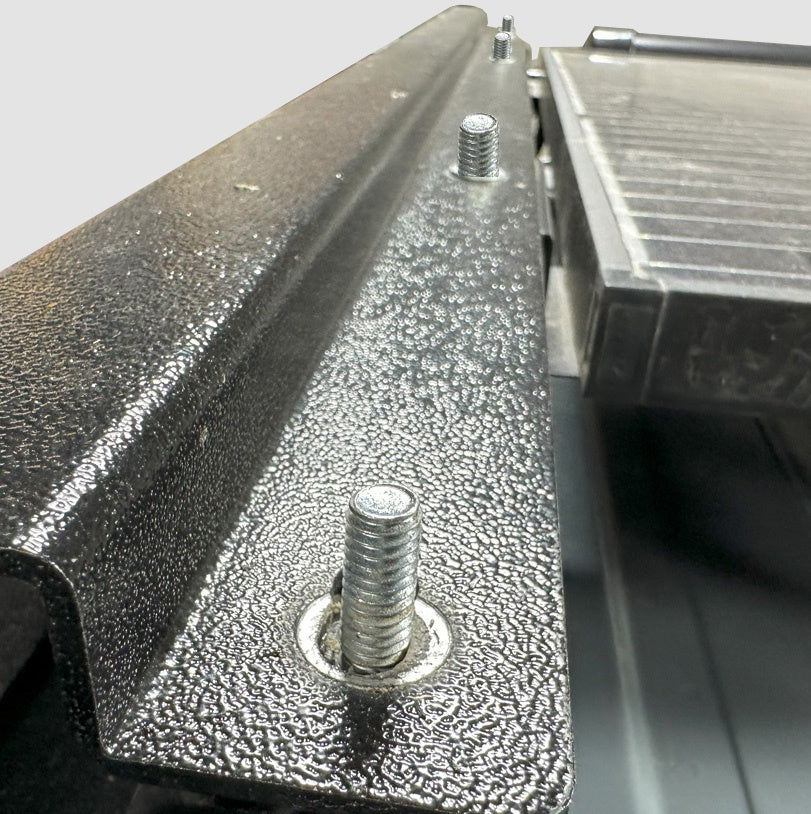

Install one of the supplied 5/16”-18x1” carriage bolts into the front cross-rail between the two existing driver side carriage bolts. This carriage bolt will go through the newly drilled fairing hole and the Agile inner rail.

17

Re-install front fairing using the factory hardware and the new 5⁄16”-18x1” carriage bolt. Install Agile inner rail onto 5⁄16”-18x1” 1st and 2nd rail carriage bolts. Use the supplied 5⁄16” washers and 5⁄16”-18 nyloc nuts. Do not completely tighten nuts.

18

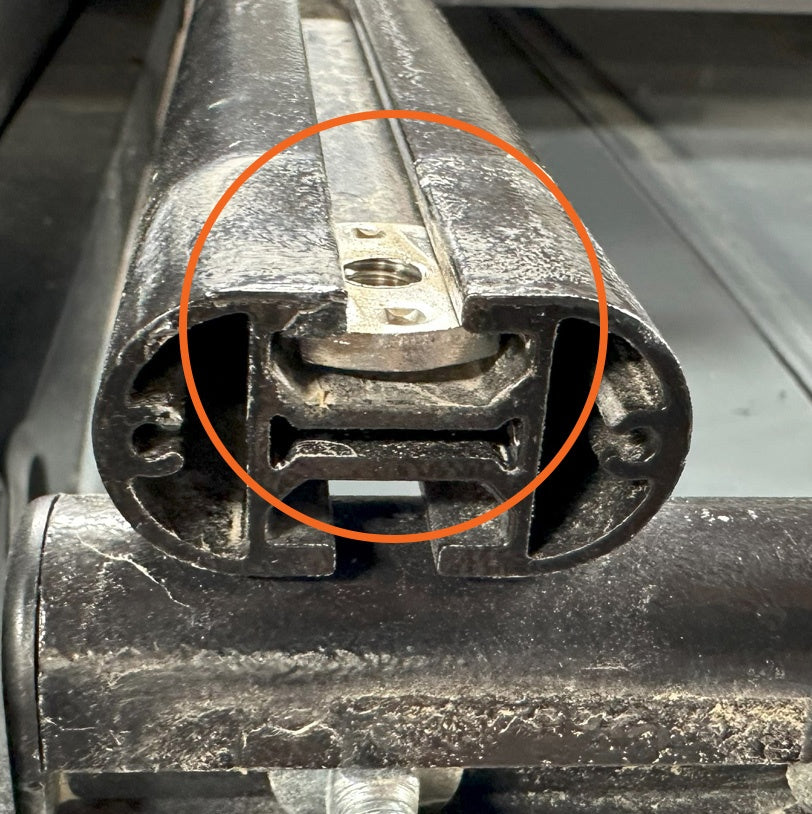

Re-install factory t-nut.

19

Re-install factory front side rail bracket and 1st and 2nd rail crossbar brackets.

20

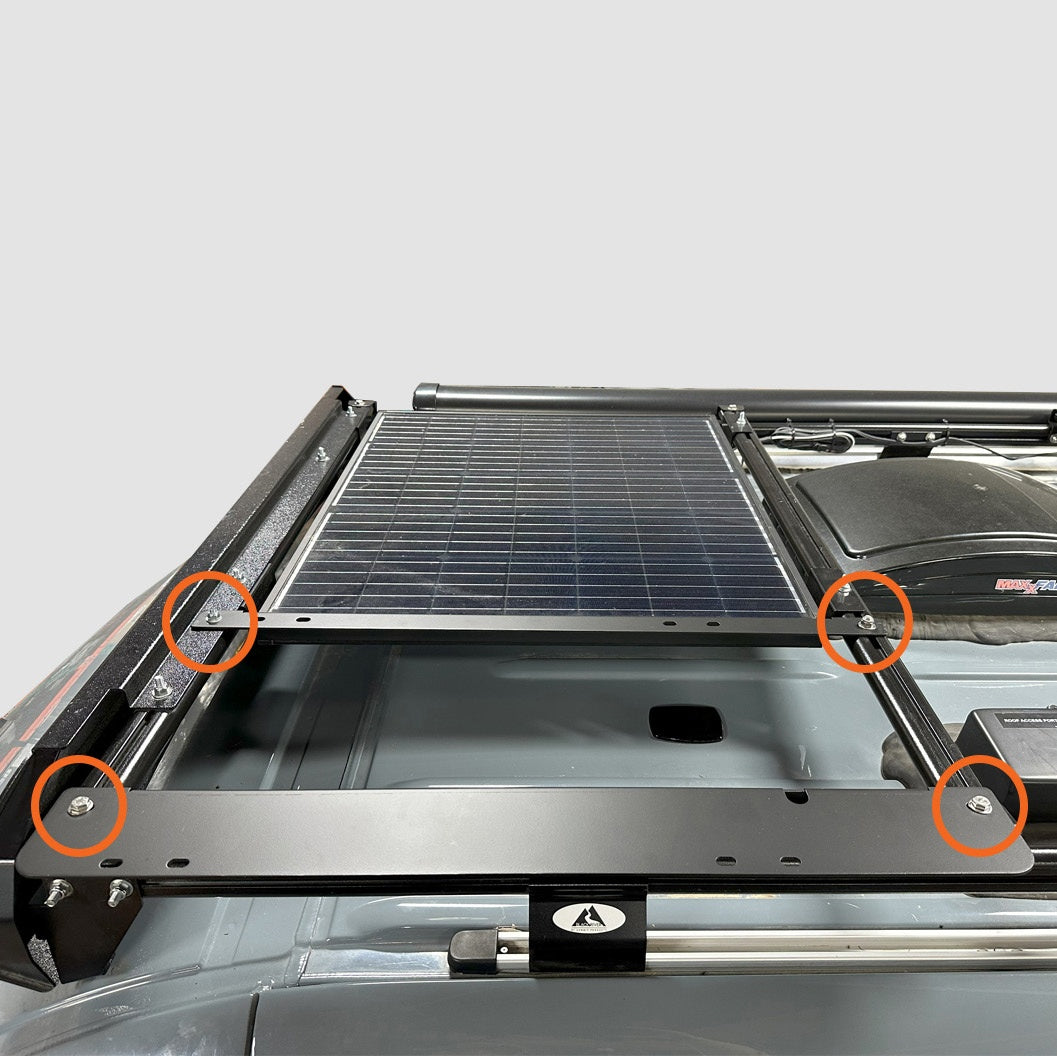

Use the supplied 5⁄16”-18x.625” bolts and 5⁄16” washers to install the Agile outer rail onto the 1st and 2nd crossbar brackets. The bolts will go through the crossbar brackets into the t-nuts. Align the Agile inner and outer brackets then fully tighten all nuts and bolts. Torque to 12 ft lbs. Re-connect fairing light connector and zip tie harness to crossbar.
