Installation Guide

Home / Suspension / Shocks / Sprinter 3500 Rear Shock Installation Guide

Fox 2.5 Rear Shocks for Sprinter 3500 4x4 & 2WD RV (Pair) by Agile Offroad

Installation Manual PDF Download Additional Information

Installation Manual

Required Tools:

  • Jack stands
  • Floor jack
  • 21 mm socket & wrench
  • Torque wrench
  • Thread-locker (red)

Installation Steps

1

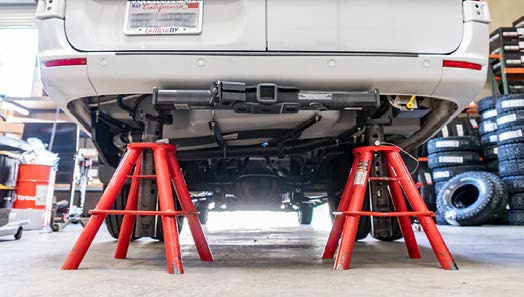

Lift vehicle and support vehicle with jack stands using factory jack points. Remove the rear wheels.

2

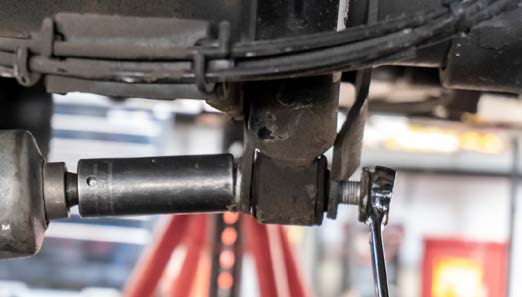

Remove old shocks starting with the lower bolt. Discard the shocks. Save factory hardware, you’ll reuse it.

3

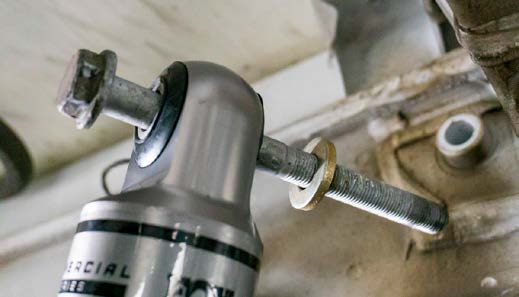

Clean the factory hardware. The included washers are to be installed between the shock body & the frame rail.

4

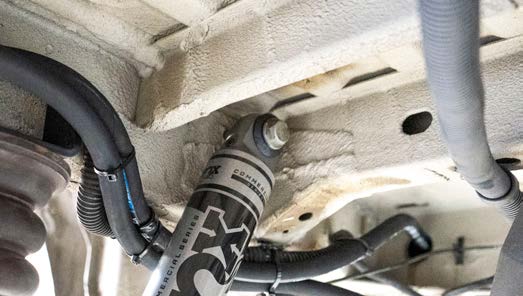

Install new shocks (boot-side down) and shock bolts on the inside of the frame rail.

5

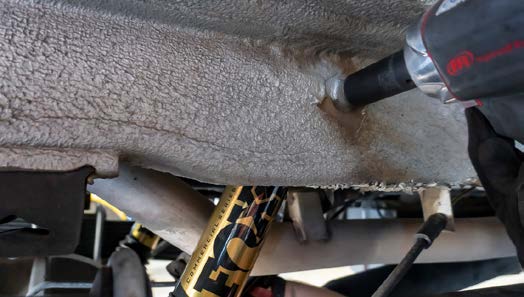

Apply thread-locker and install the upper shock hardware.

6

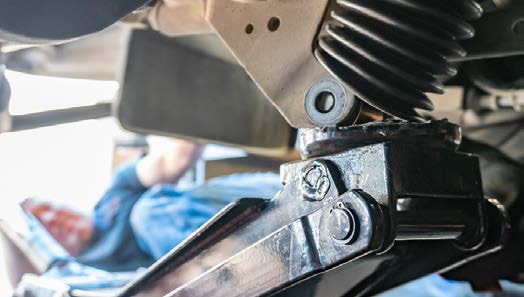

Use a jack to compress the shock. Line up the lower shock mount holes on the axle with the shock and install the shock bolt.

7

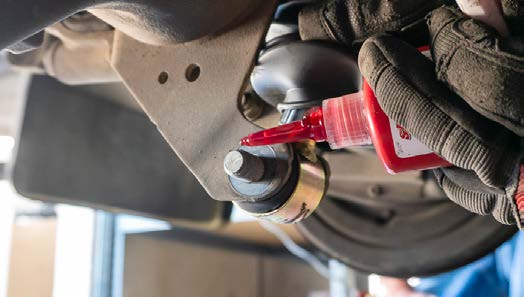

Apply thread-locker and install the lower shock hardware.

8

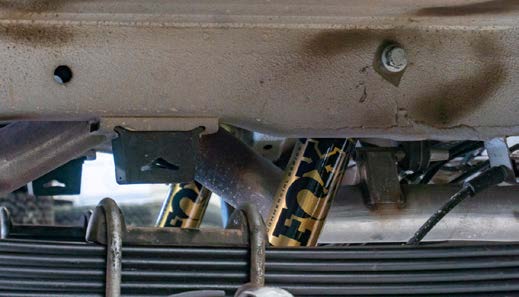

Torque upper shock bolt to 110 ft-Lbs.

Torque lower shock bolt to 110 ft-Lbs.

Reinstall wheels & torque lugs.

Steel wheels 140 ft-Lbs.

Alloy wheels 125 ft-Lbs.
