Low Range Shift Cable Support Bracket Kit for INEOS Grenadier by Agile Offroad

Installation Manual Video Additional Information

Installation Manual

SKU: AO-A1G-1

PARTS INCLUDED

  • AO Cable Retention Bracket
  • M10 x 1.50 x 20mm Flange Bolt
  • Heavy Duty Zip Tie

INSTALLATION TIME: 20 minutes

Installation Steps

1

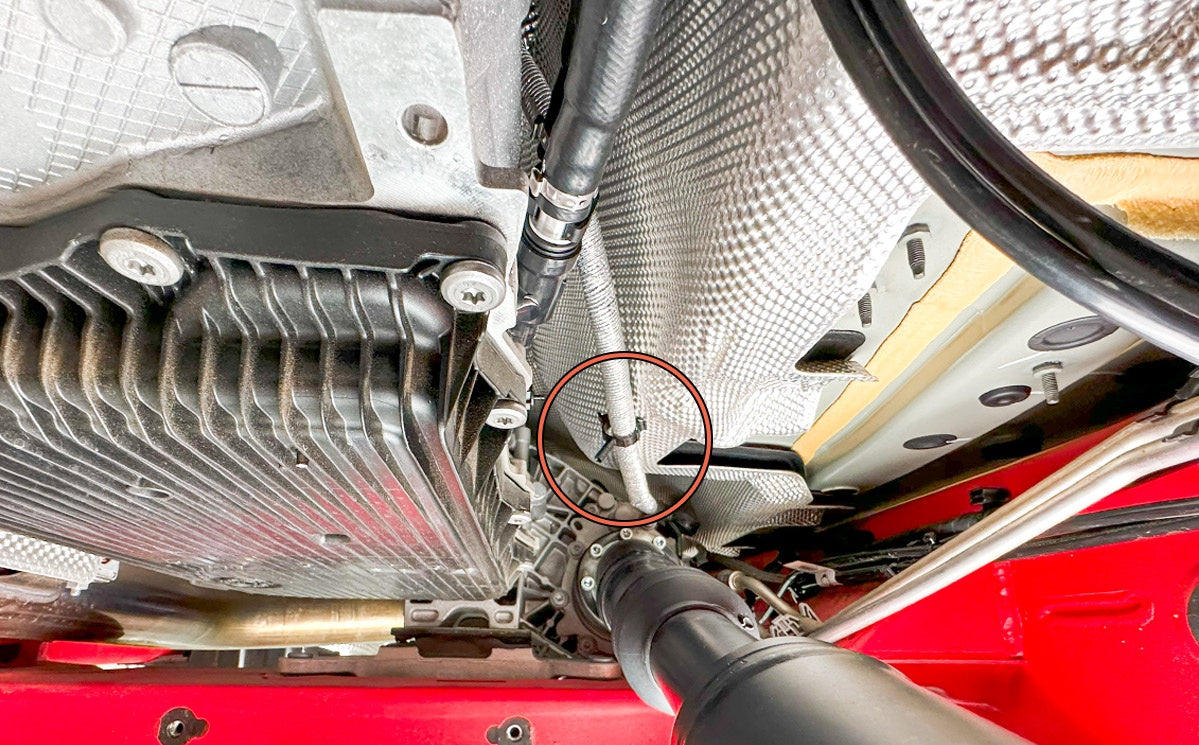

Above the transmission crossmember, locate the transfer case shift cable and cable clip.

2

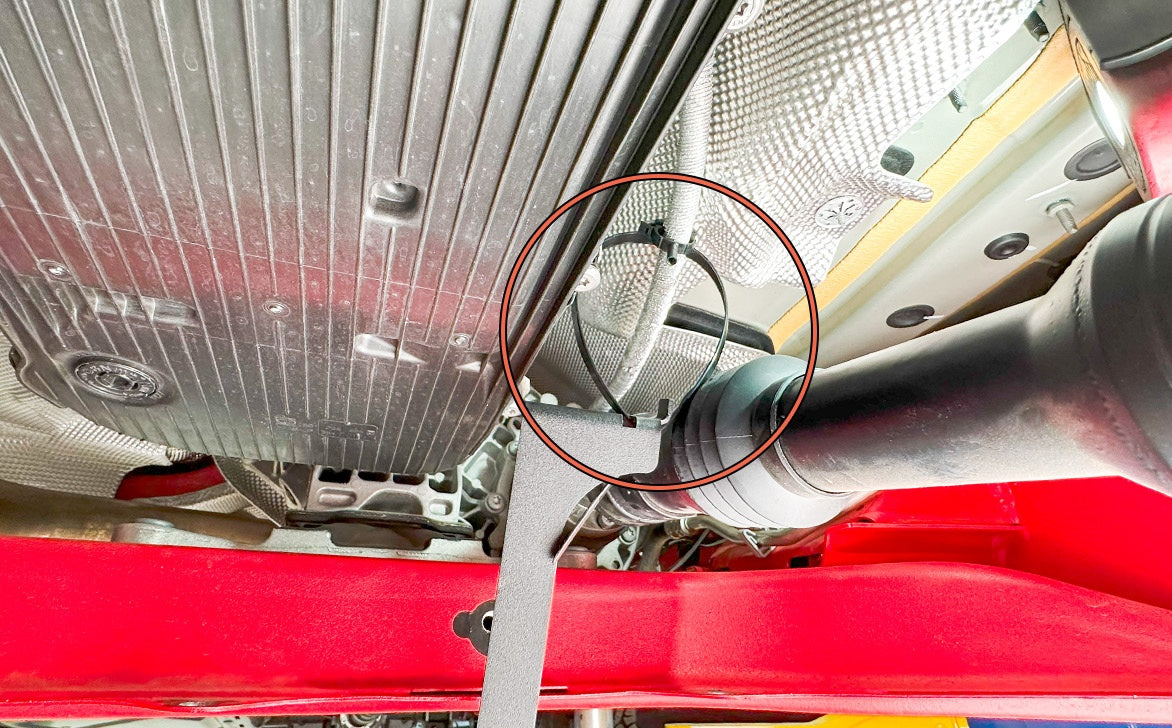

Insert the supplied zip tie into the AO Cable Retention Bracket slot and then wrap the zip tie around the transfer case shift cable. Do not fully tighten the zip tie.

3

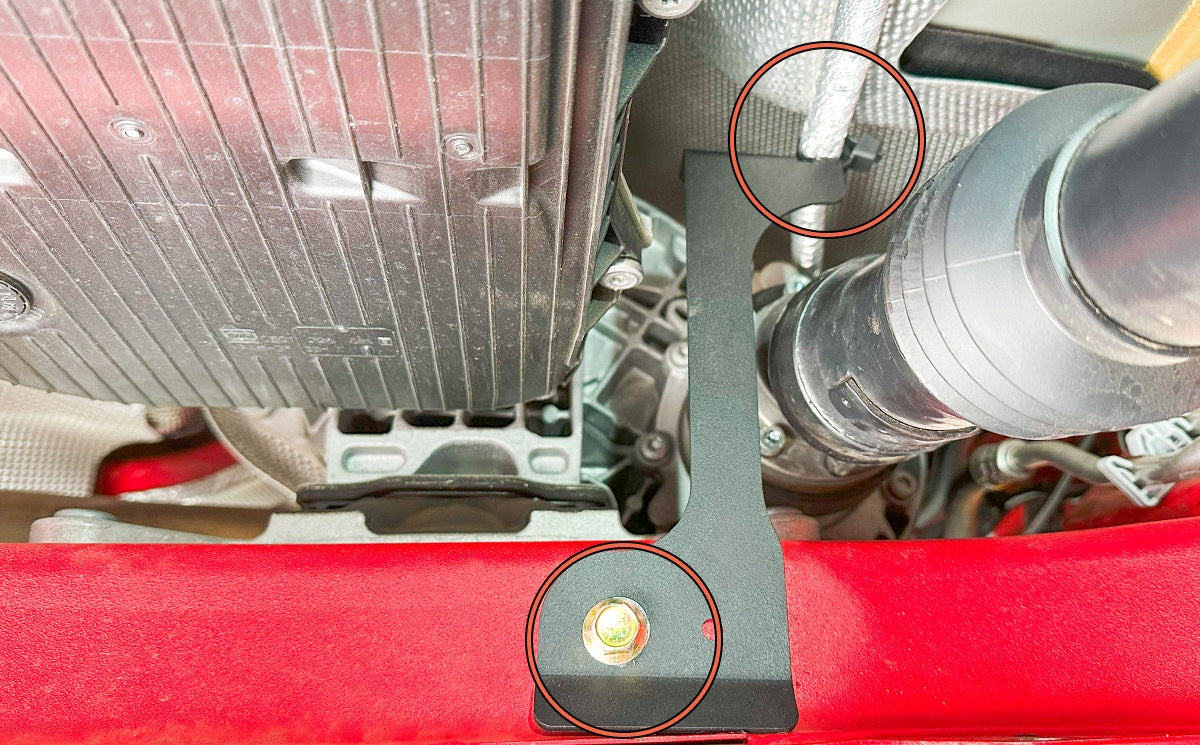

Bolt the AO Cable Retention Bracket to the factory threaded hole located at the transmission crossmember. Torque bolt to 35 ft lbs. Position cable so that it sits between the zip tie slot and the 90-degree tab. Fully tighten zip tie. Out off factory cable clip.
