Installation Guide

Home / Exterior / Rear Door Accessories / Rear Door Reinforcement Kit VS30 Sprinter

Rear Door Reinforcement Kit for VS30 2019+ Sprinter by Agile Offroad

Installation Manual

General Information

The AO Rear Door Reinforcement Kit is designed to fit the driver’s side door on the VS30 2019+ Sprinter platform. The installation process will require drilling 8 holes through the inside of the door panel. The kit is not compatible with the passenger side door.

Parts Included

1 x Rear Door Reinforcement Plate (Driver side)
1 x Nut Plate
12 x Flat Washers
4 x Lock Washers
4 x 1/4 in. Nylon Lock Nuts
8 x 1/4 in. -20 x 3/4 in. Bolts

Tools Needed

Drill and 5/16 in. Drill Bit
Marker
Center punch
Door Panel Removal Tool or Plastic Pry Tool

Installation Steps

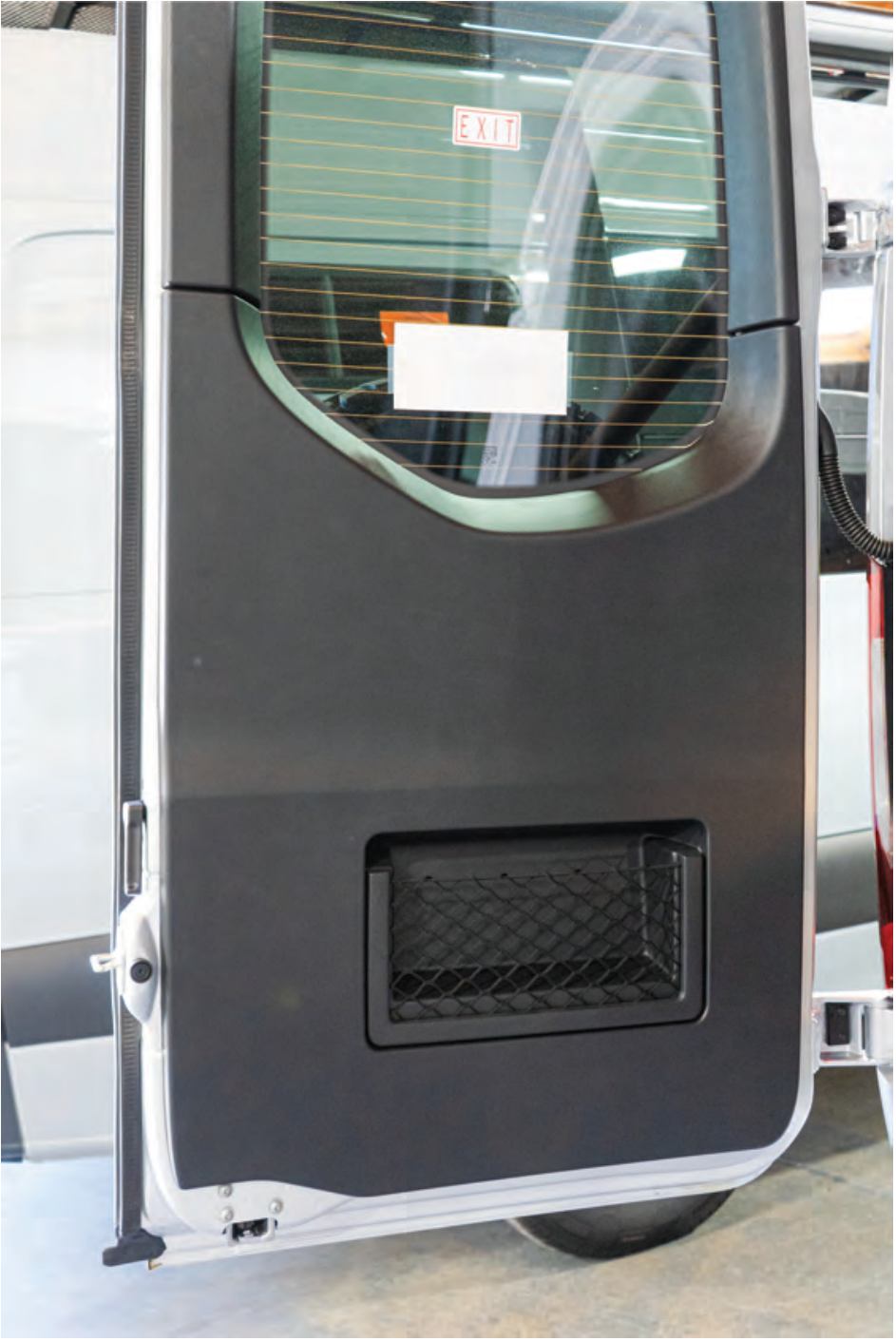

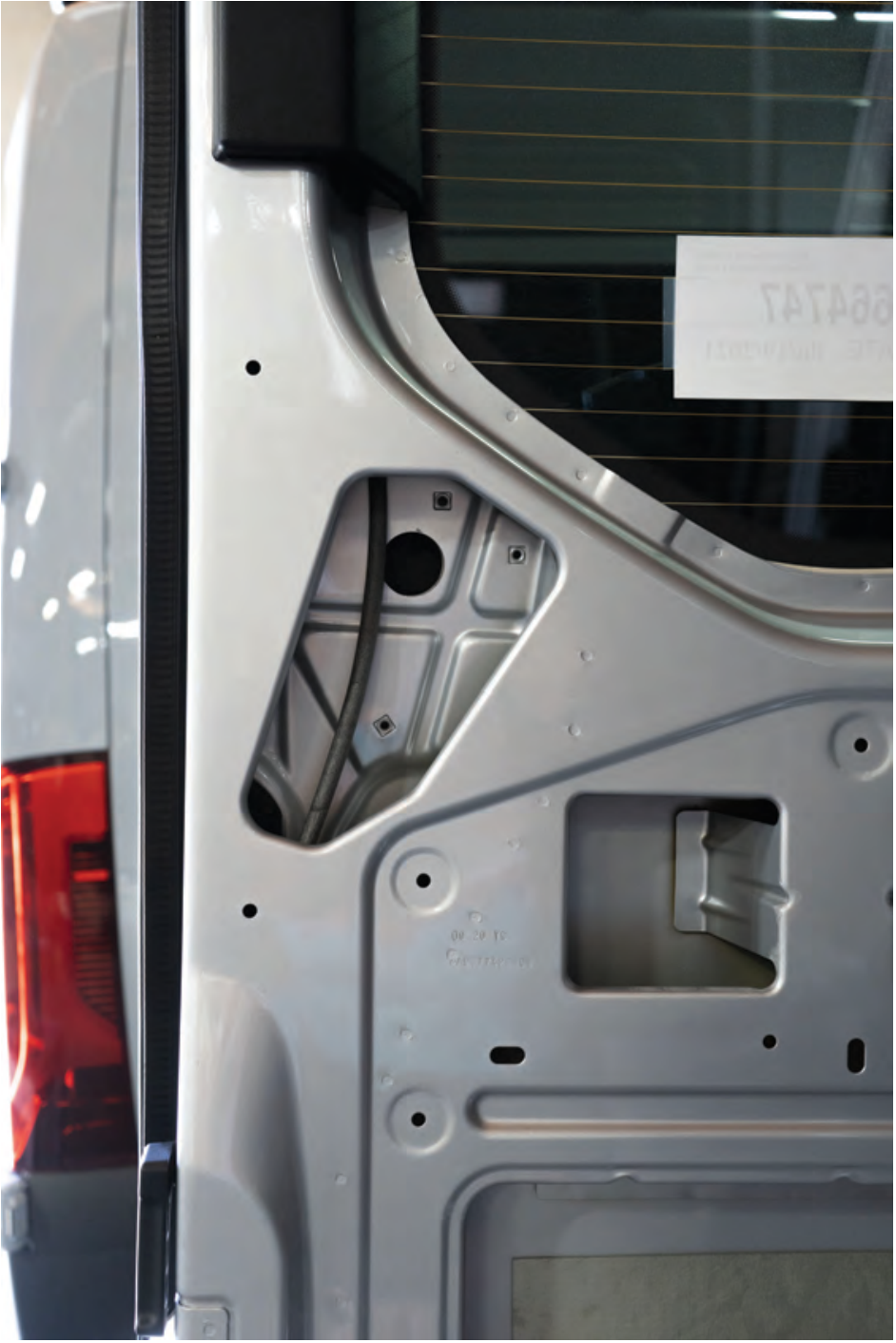

Remove the driver’s side rear door panel (if equipped), use a panel removal tool/plastic pry tool. Start at the bottom corner of the door to pry the panel off enough to get your hands between the panel and the door. Work the clips out going up the door panel with easy but equal outward force.

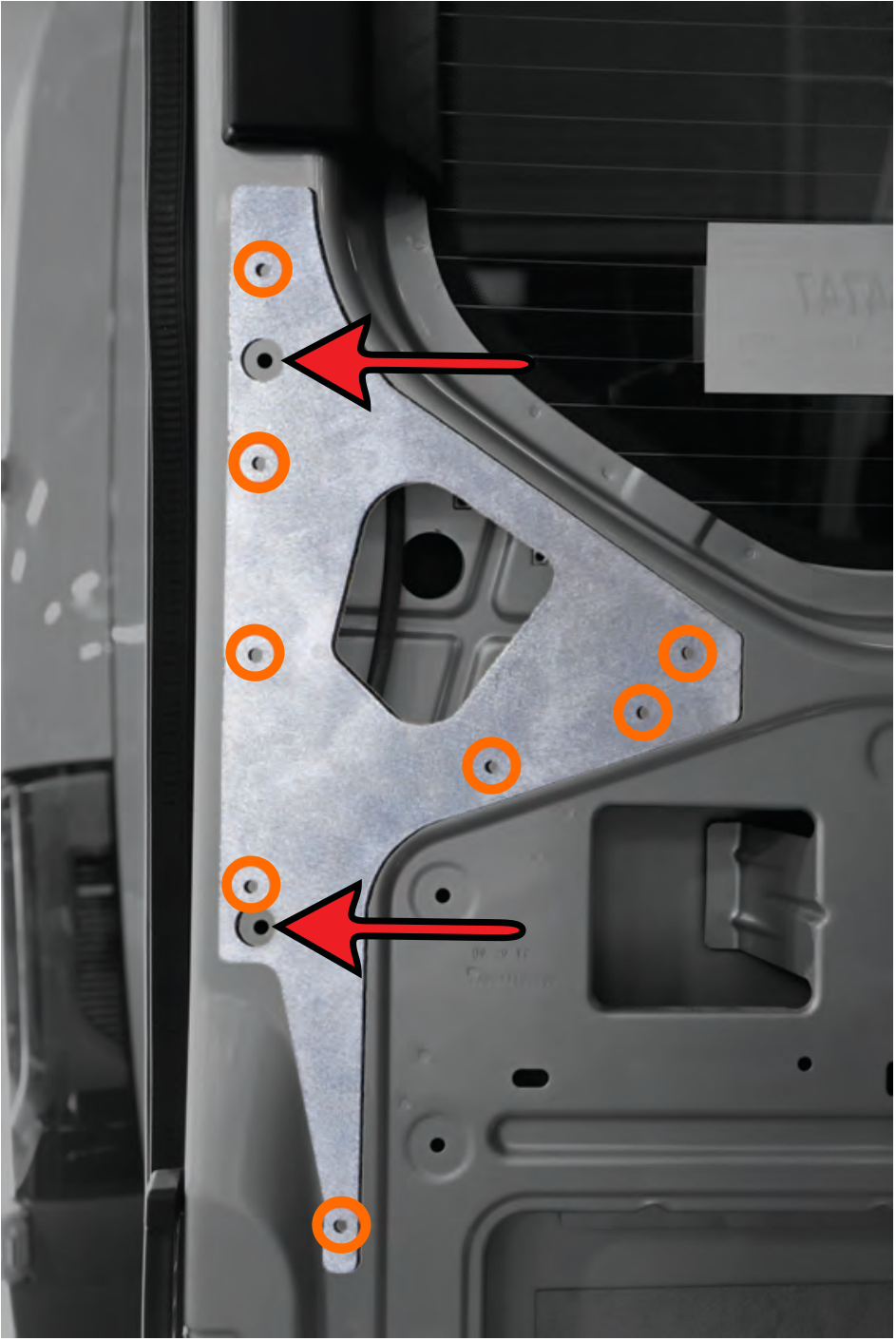

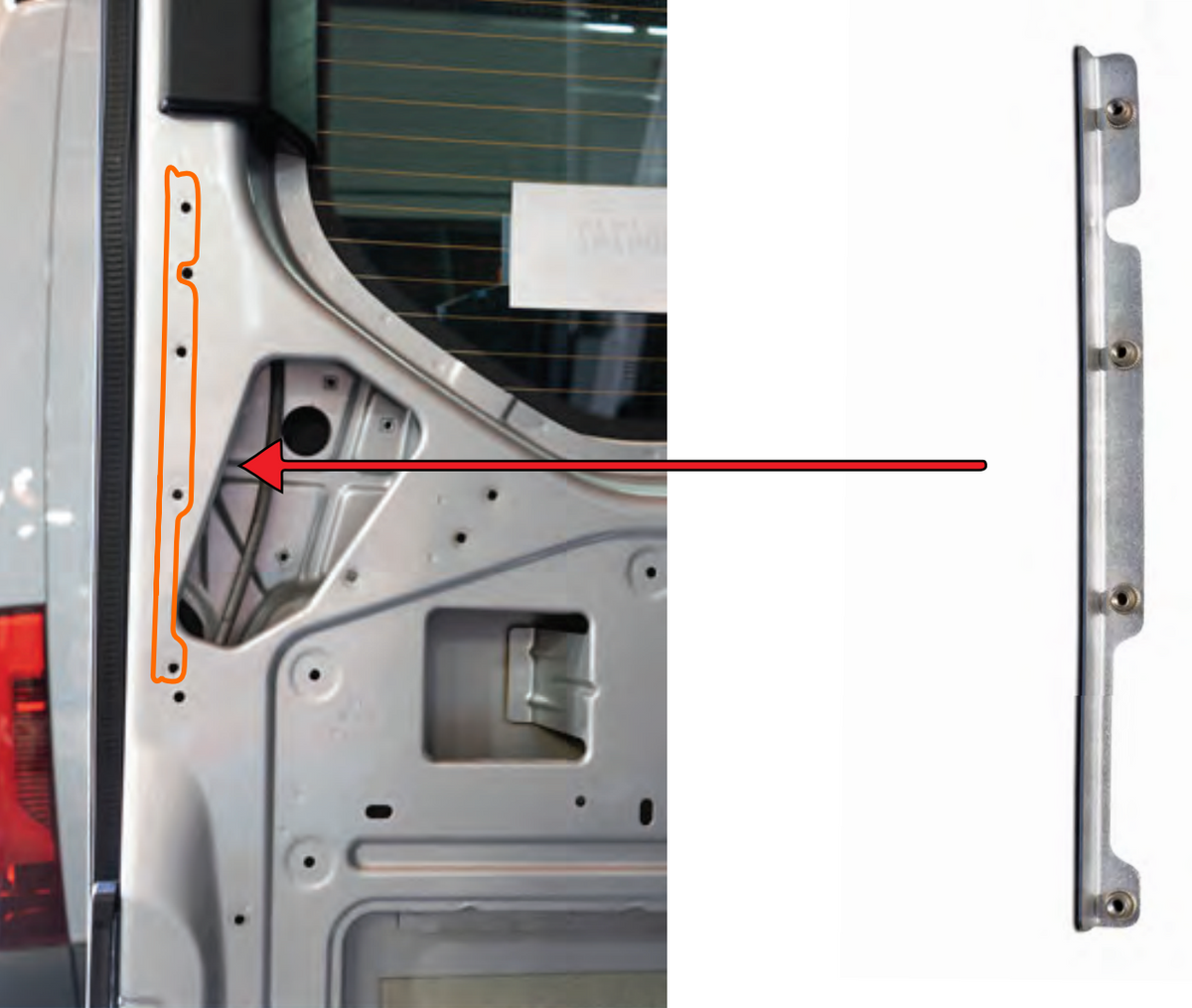

Mock the Rear Door Reinforcement Plate on the door, making sure that the preexisting door panel holes are not covered by the Plate. Use a marker and trace the Reinforcement Plate’s (8) mounting points.

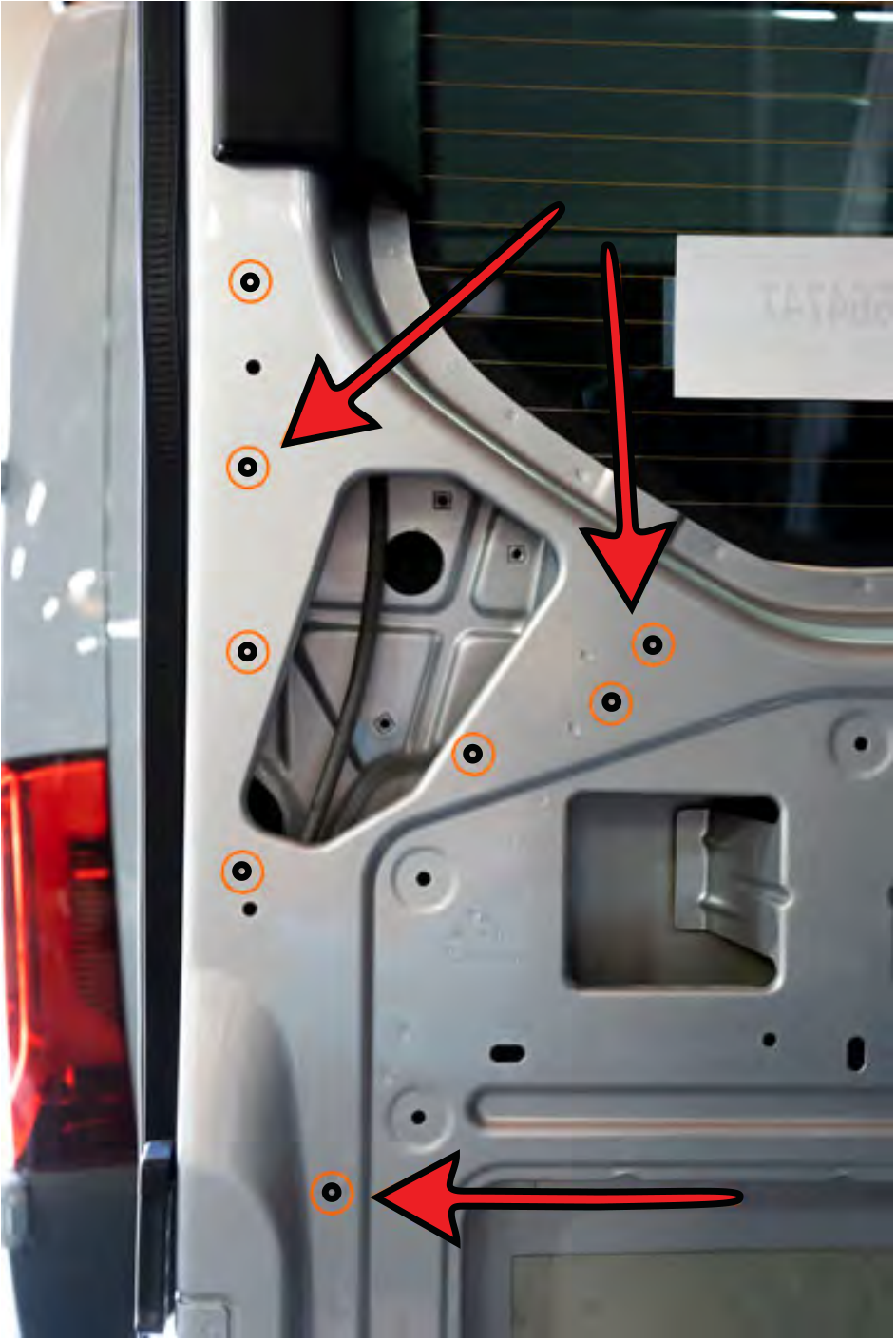

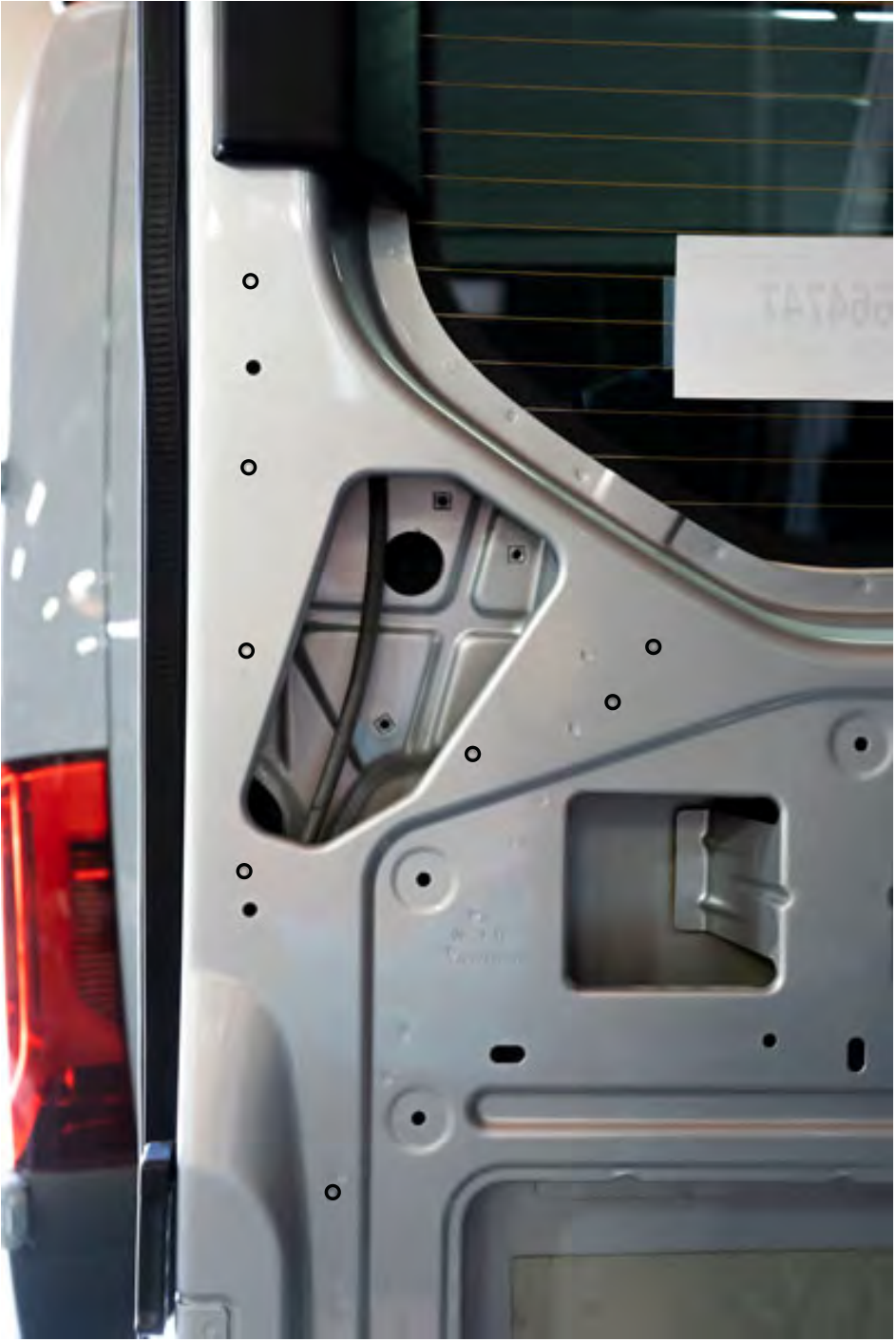

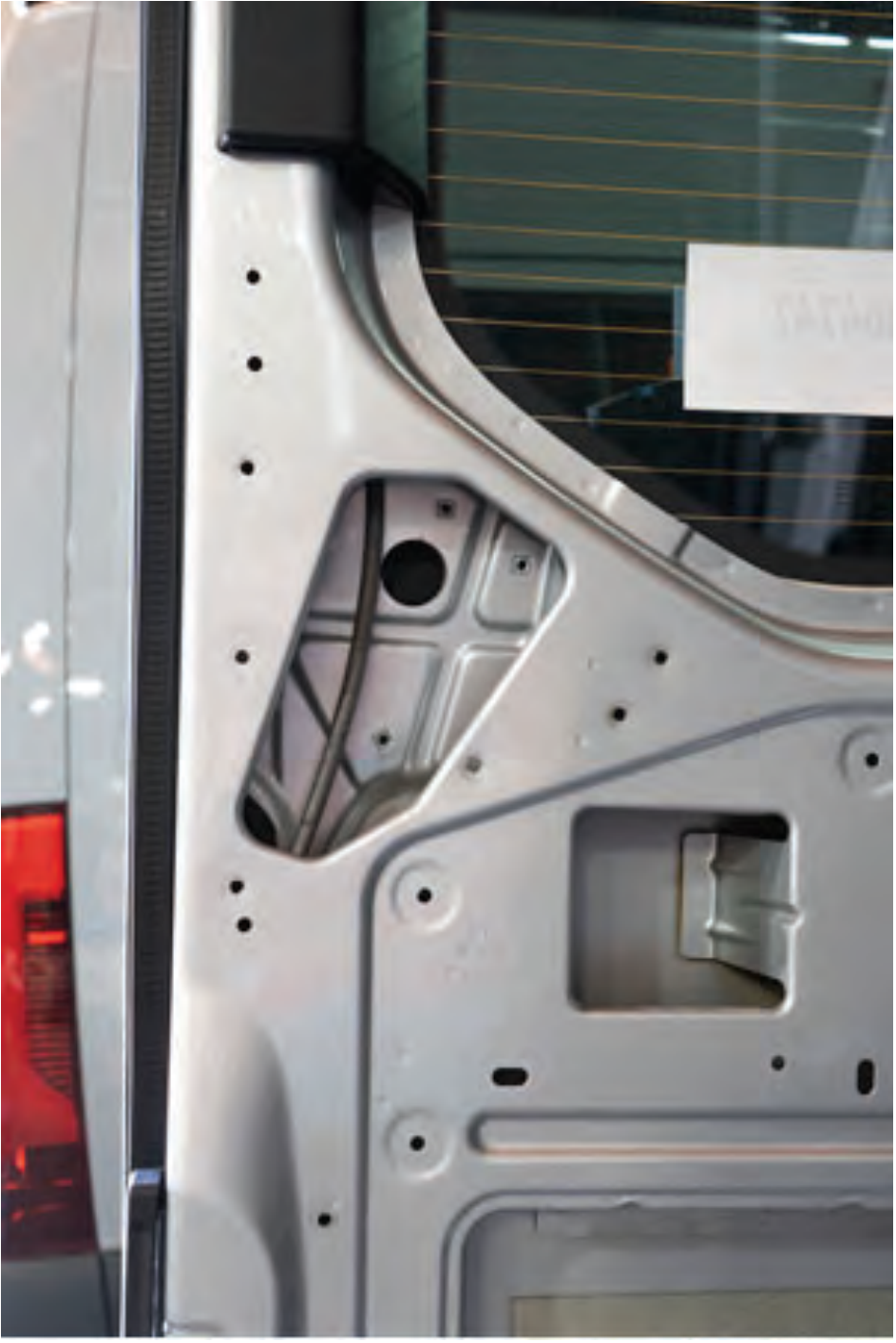

Drill through the marked points with 5/16 in. drill bit.

Note: Use a center punch to dimple the holes before drilling, to prevent the drill bit from wandering.

Note: It is recommended to use a drill bit stop collar to prevent the drill bit from hitting to outer door skin.

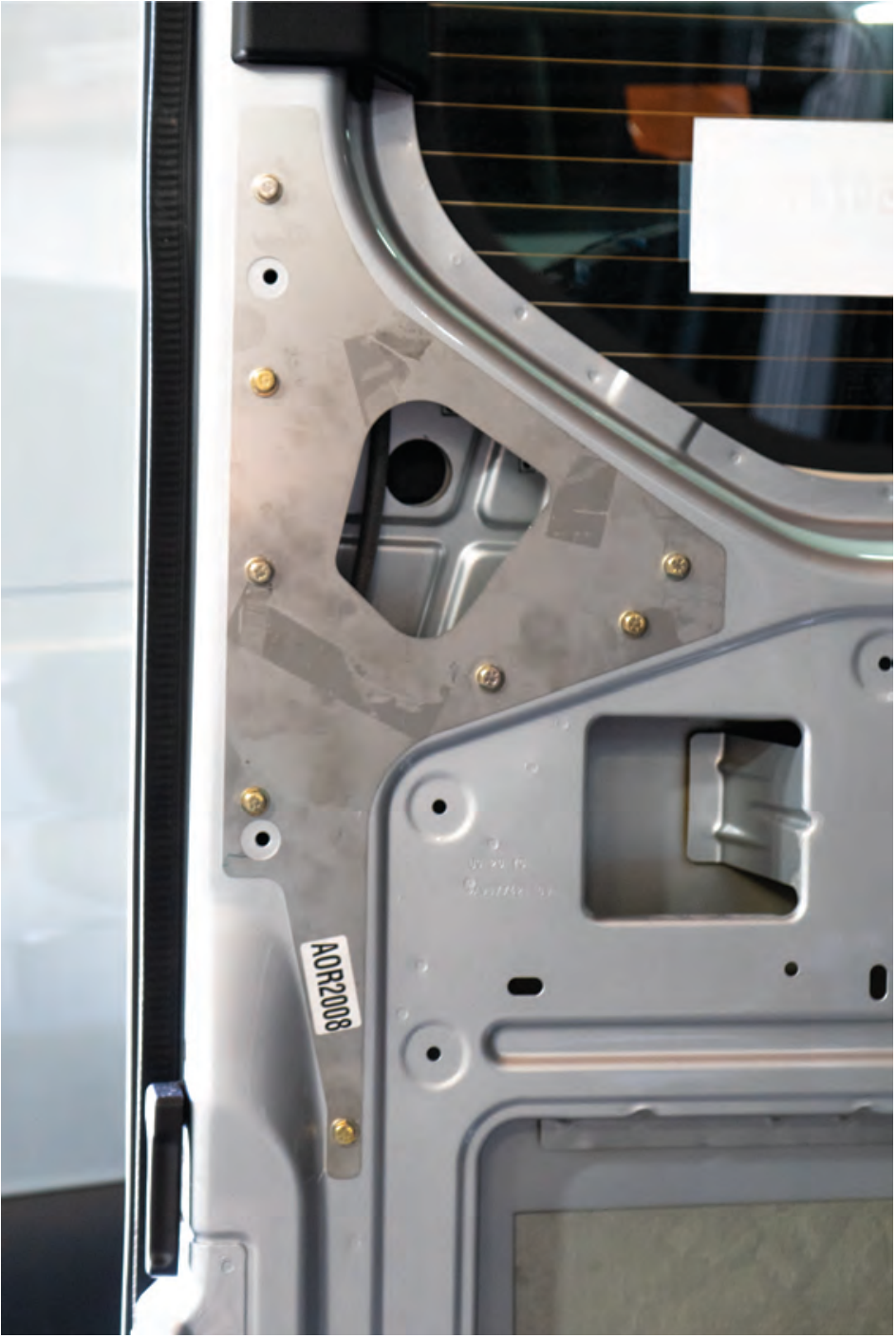

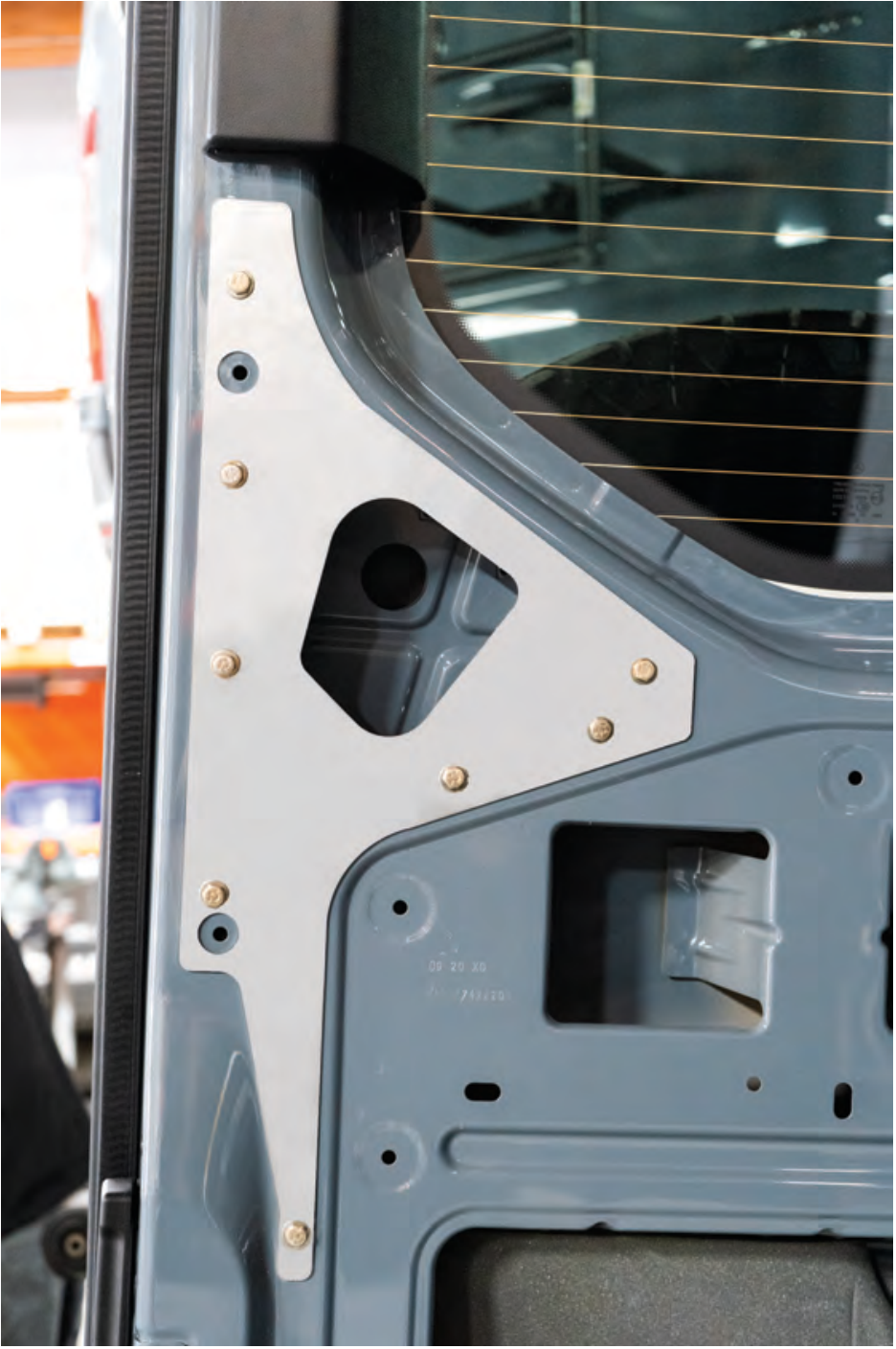

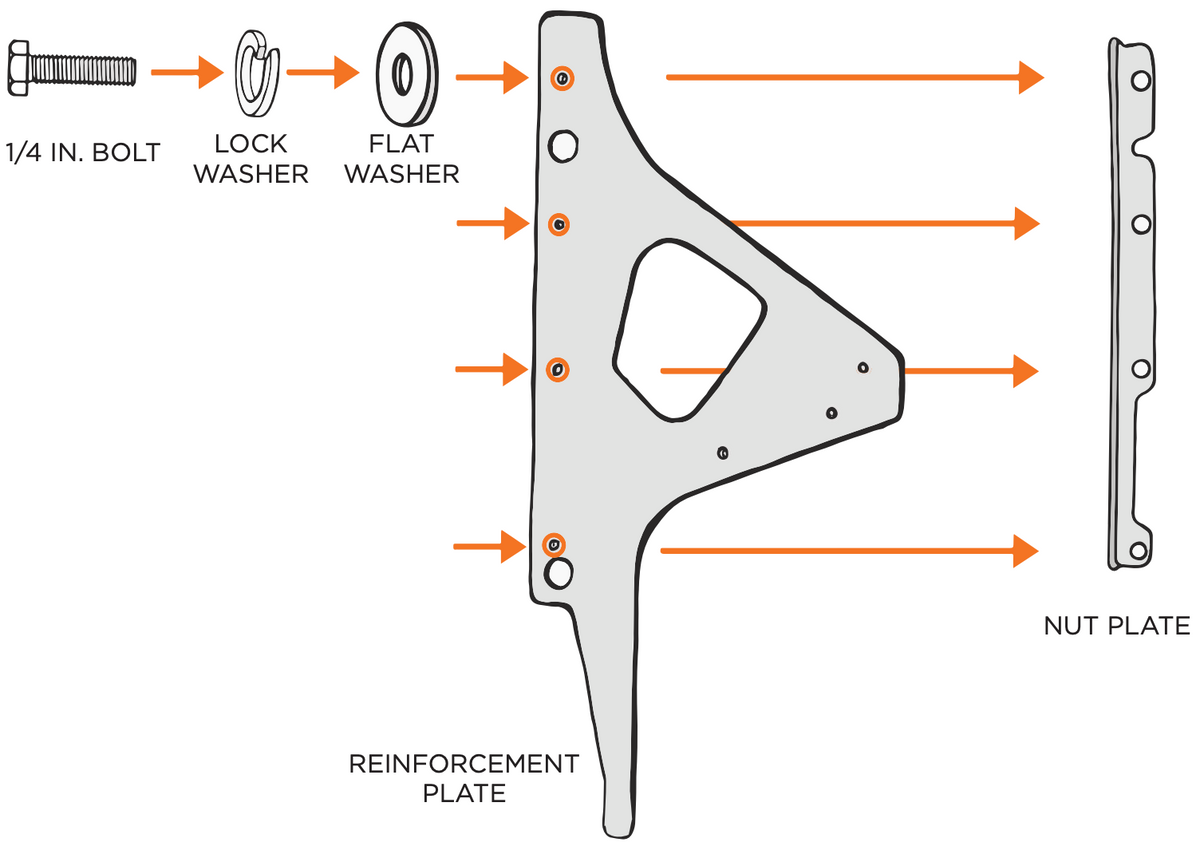

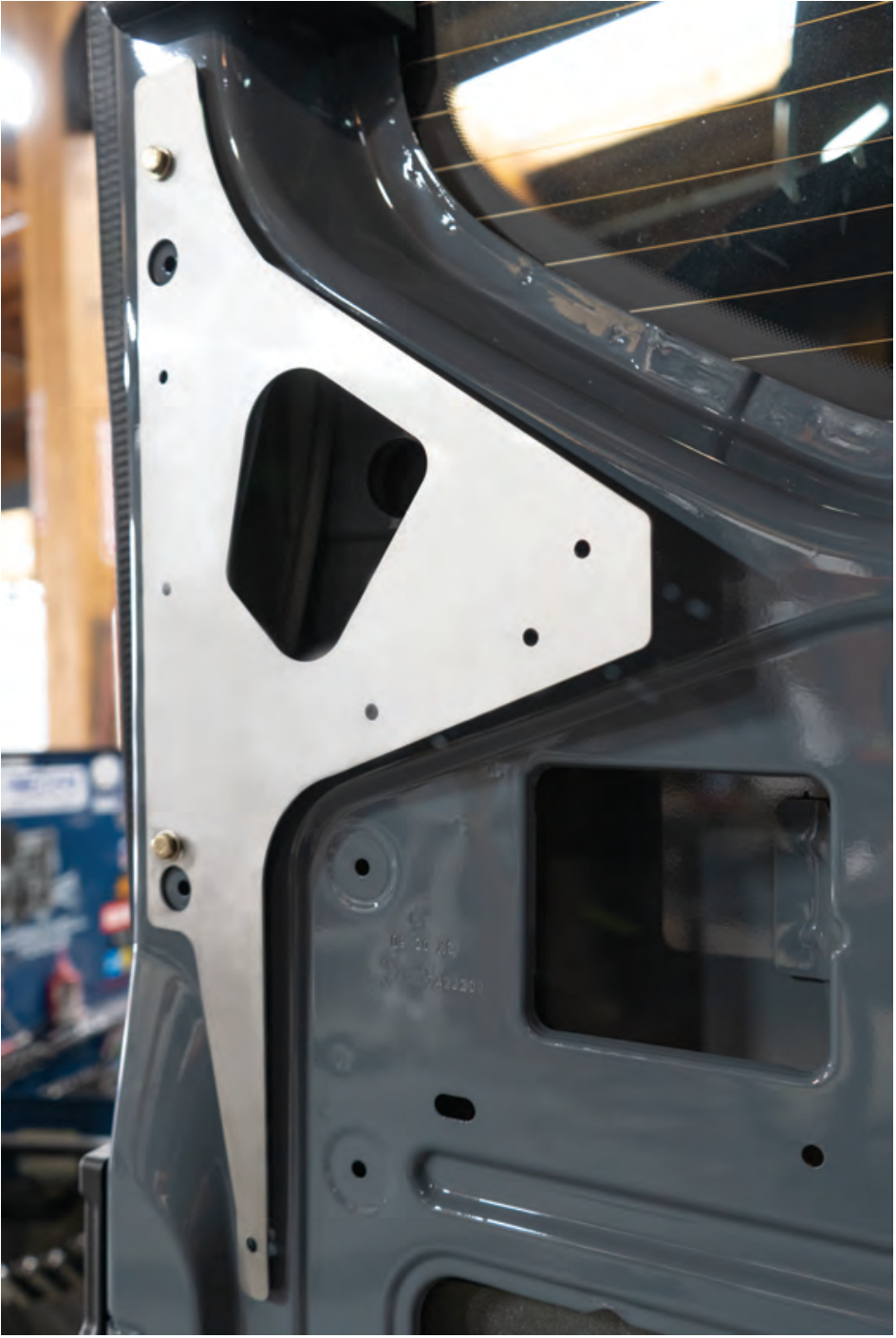

Hold the Nut Plate inside the door, then secure the door Reinforcement Plate using provided hardware (1/4 in. Bolts, Lock Washers, Flat Washers). Do not fully tighten the hardware until the next step is complete.

MOUNTING THE REINFORCEMENT PLATE TO THE NUT PLATE

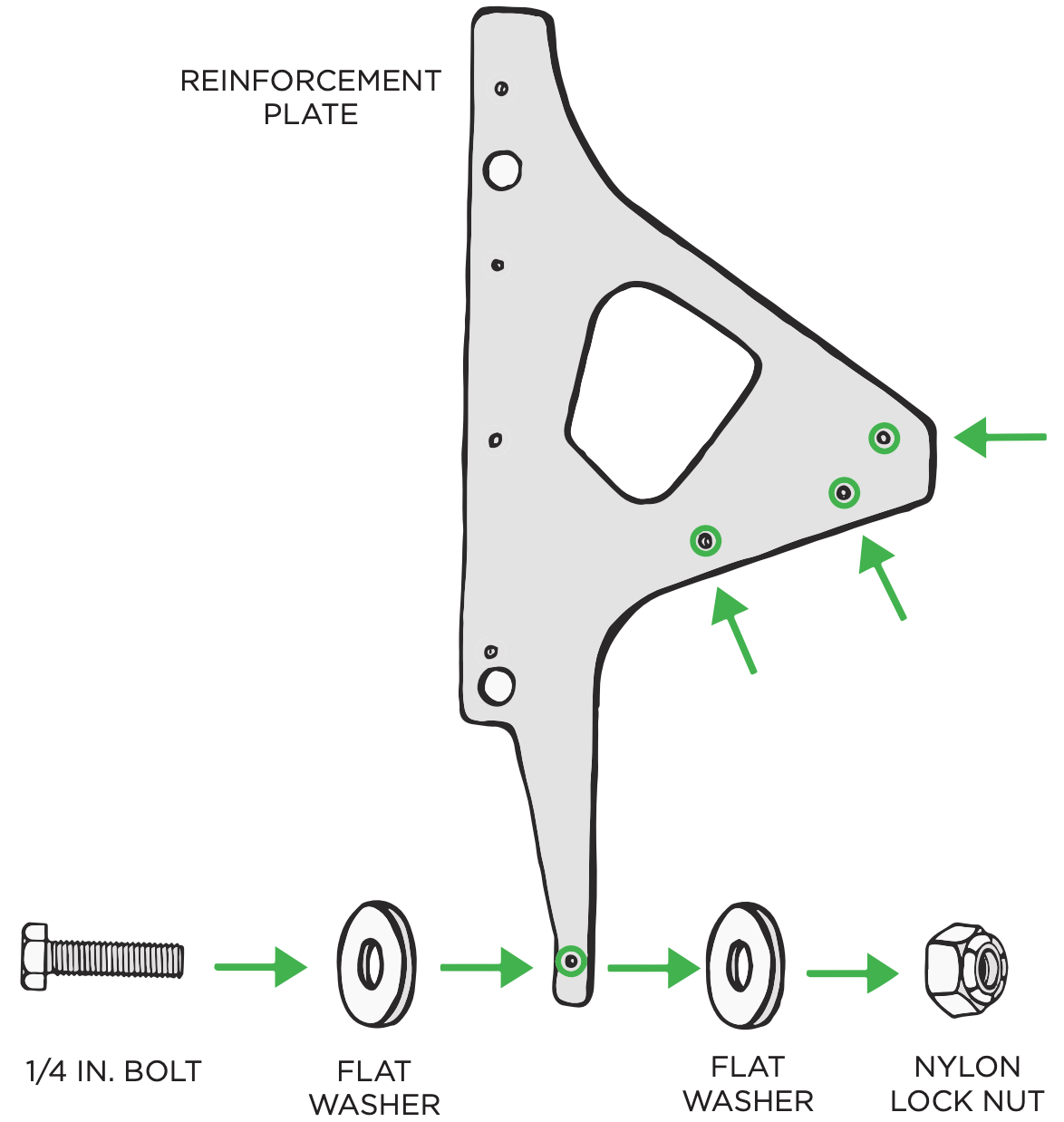

Attach the rest of the hardware - 1/4 in. Bolts, Flat Washers and Nylon Lock Nuts- to the Reinforcement Plate and tighten all bolts. Use the diagram on the next page for guidance.
