INTRODUCTION

Thank you for choosing FOX direct-replacement products for your vehicle. FOX products are designed, tested, and manufactured by the finest professionals in the industry.

FOX recommends that you become completely familiar with the handling characteristics of your modified vehicle before operating it under rigorous conditions, helping to avoid potential rollover situations and other loss of control events. FOX further recommends that you use appropriate protective equipment at all times when operating your vehicle.

To achieve the best performance and product longevity, periodic service and maintenance is required. Please refer to the Service and Upgrades section for more information.

IN THE BOX

  • Stabilizers
  • Installation Guide

WARNING - SAFETY INSTRUCTIONS

  • FOX direct-replacement shocks and stabilizers are designed to fit and allow proper clearance with the stock suspension. If aftermarket suspension components are installed it is the customer’s responsibility to ensure that interference between the FOX shocks and other vehicle components does not occur at any point in the shock stroke.
  • FOX direct-replacement shocks and stabilizers should always be installed as a set for maximum performance.
  • Proper installation and service procedures are essential for the safe and reliable operation of the suspension components and stabilizers, requiring the experience and tools specially designed for this purpose. Installation and maintenance procedures for this product must be performed by a qualified service technician, to avoid potentially unsafe vehicle handling characteristics, which may result in SERIOUS INJURY or DEATH.
  • Modifying your vehicle’s suspension and/or steering will change the handling characteristics of your vehicle. Under certain conditions, your modified vehicle may be more susceptible to loss of control or rollover, which can result in SERIOUS INJURY or DEATH. Thoroughly familiarize yourself with the modified vehicle handling characteristics before any rigorous vehicle operation. Wear protective body gear and a helmet when appropriate. Installation of vehicle roll bars or cage is highly recommended.
  • FOX direct-replacement shocks and steering dampers are gas-charged and are highly pressurized. Placing FOX products in a vise or clamp, applying heat, or attempting to open or service the shock without the proper tools and training can result in SERIOUS INJURY or DEATH. Do not attempt to modify, puncture or incinerate a FOX direct-replacement shock absorber or steering stabilizer.
  • Any attempt to misuse, misapply, modify, or tamper with any FOX product voids any warranty and may result in SERIOUS INJURY or DEATH.

WARNING - INSTALLATION GUIDELINES

  • Always use a chassis lift for the installation of shocks or stabilizers, and make certain that the raised vehicle is securely attached to the lift to prevent the vehicle from slipping, falling, or moving during the installation process.
  • DO NOT install any FOX product without the necessary special tools, expertise and chassis lift or you will subject yourself to the risk of SERIOUS INJURY or DEATH. If you elect to not use a chassis lift (which may result in SERIOUS INJURY or DEATH), ensure that the vehicle is: (1) on level ground, (2) that all tires on the ground during installation are blocked to prevent vehicle movement, (3) that at least two tires are on the ground at all times, and (4) that adequately secured jack stands are used to support the vehicle. NEVER get under the vehicle until you have checked to ensure that the vehicle will be stable during installation.
  • FOX direct-replacement shocks and steering stabilizers are designed to fit your vehicle’s stock mounts without modification except the reservoir placement on specific models and applications.

Installation Steps

1 STABILIZER INSTALLATION

NOTICE: Medium-strength thread-lock is recommended on all bolts.

Please read the installation guidelines on page 3 for instructions on how to properly lift and secure the vehicle.

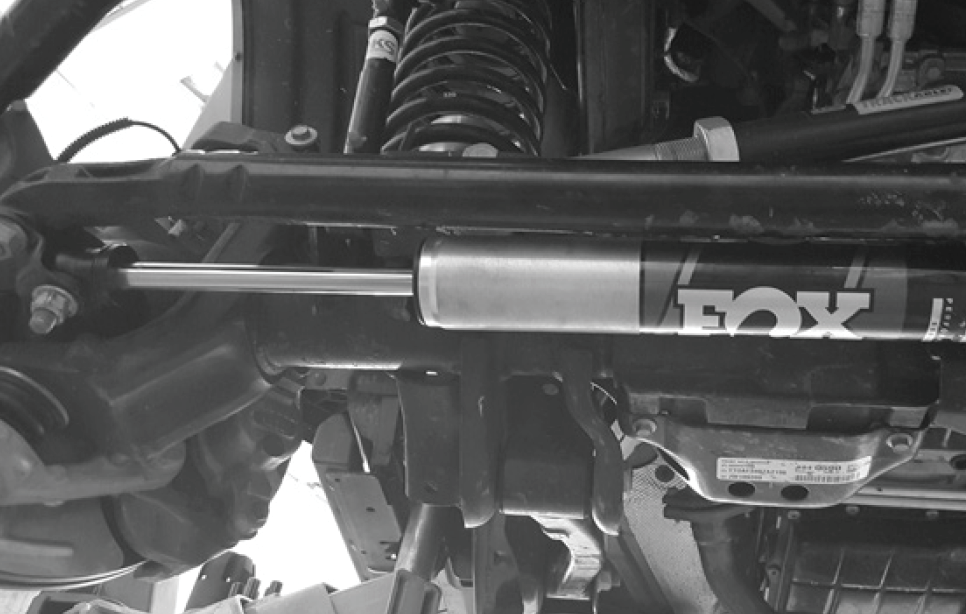

Fig. 1: Install the Performance Series stabilizer.

2

Remove the stock steering stabilizers. Retain the stock hardware for reuse.

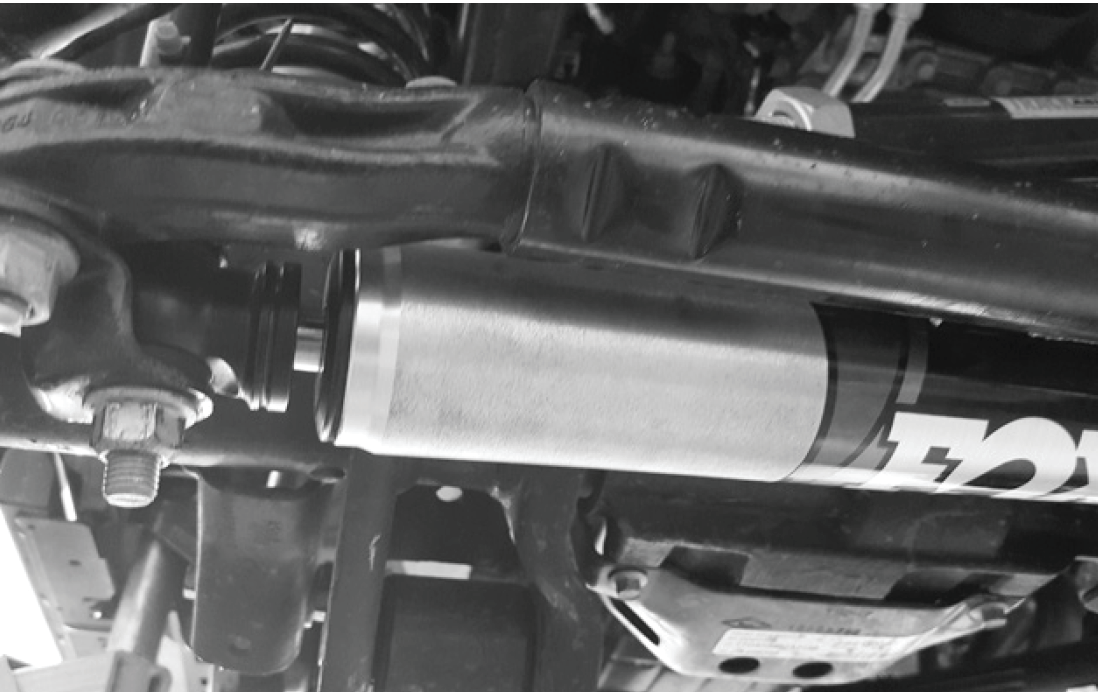

Fig. 2: Install the ATS stabilizer.

3

Install the steering stabilizer to the tie rod as shown (Fig. 1 and Fig. 2). Reuse the stock hardware and torque to OEM specification.

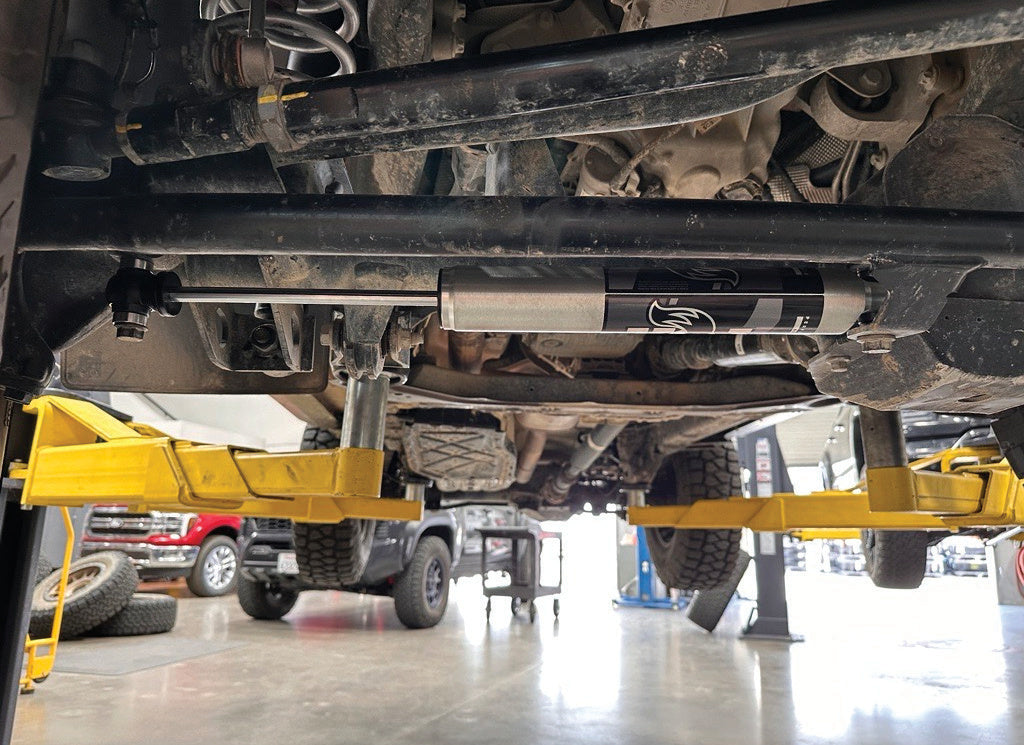

Fig. 3: Adjuster screw on eyelet.

4

Install the eyelet end of the stabilizer in the stock axle location. Reuse the stock hardware and torque to OEM specification. Turn the wheels to compress/extend the stabilizer shaft, if needed, to assist with alignment.

ATS only: The adjuster can be positioned towards the front or rear of the vehicle; however, the thicker spacer must be on the top of the eyelet (between the eyelet and axle) in either configuration.

TIP: It is recommended to position the adjuster towards the rear of the vehicle to help ensure debris does not build up and impair adjuster function.

TIP: Turning the adjuster screw on the eyelet fully counter-clockwise will make compressing/ extending the stabilizer easier (Fig. 3).

5

Turn the vehicle’s wheels full lock in each direction, checking for adequate clearance at both ends and that the steering is limited by the stock steering stops, not the stabilizer (Fig. 4 and Fig. 5).

Fig. 4: Sufficient shaft clearance.

6

Verify the stabilizer does not interfere with any vehicle functions or components (suspension, driveline, engine, etc.) through the entire range of steering and suspension travel.

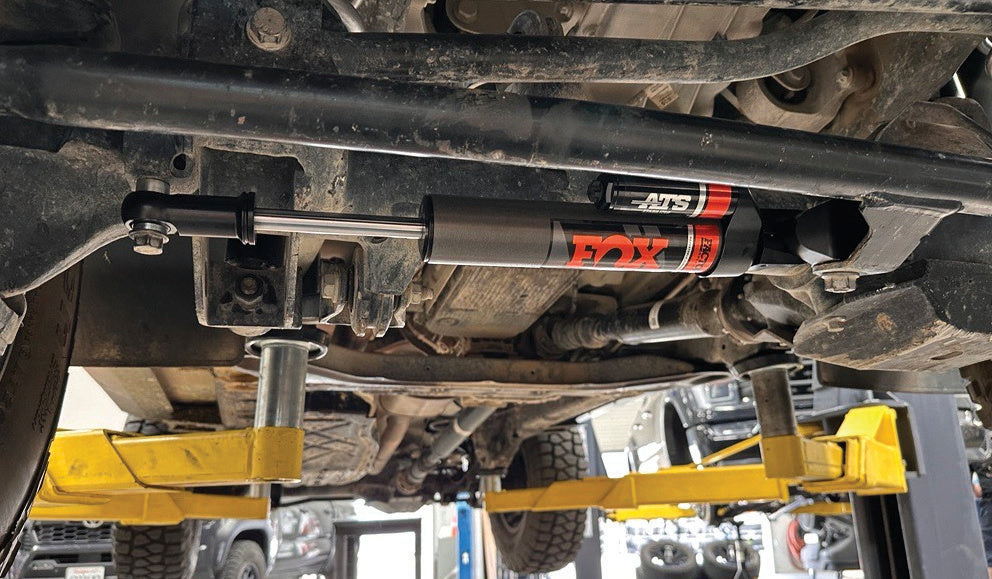

Fig. 5: Sufficient shaft clearance.

7

Place the vehicle on the ground and recheck that the stabilizer does not interfere with any vehicle functions or components (suspension, driveline, engine, etc.) through the entire range of steering and suspension travel.

ATS only: If stabilizer reservoir interference exists, the reservoir can be rotated for adequate clearance. To rotate, loosen the pinch bolt on the L-bracket between the stabilizer and stabilizer mounting adapter, then rotate reservoir as needed. Torque pinch bolt to 12 ft-lb. One drop of medium strength (blue) threadlocker is highly recommended on pinch bolt threads (Fig. 6).

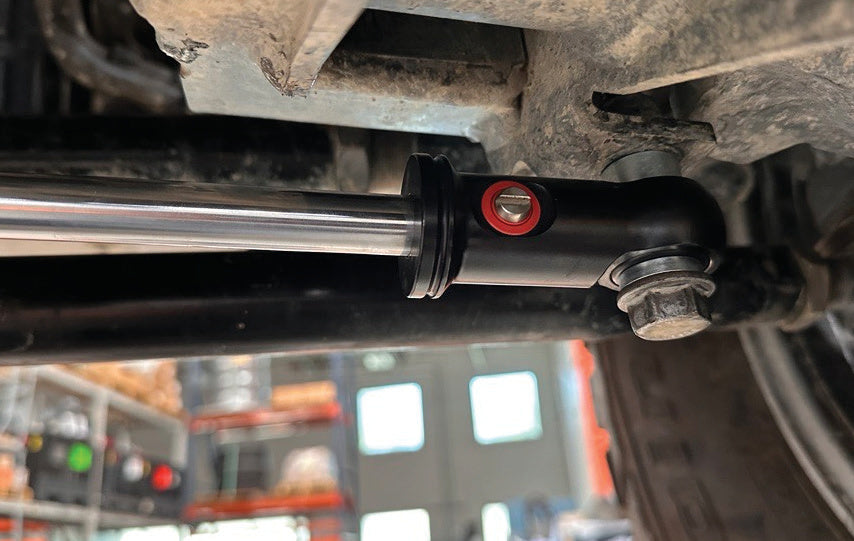

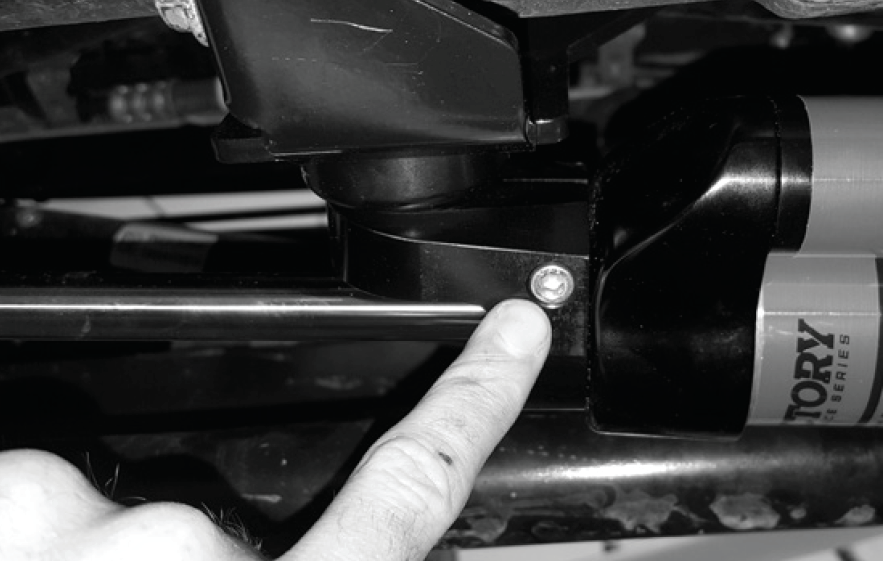

Fig. 6: Pinch bolt to rotate reservoir.

8 ADJUSTMENT (ATS ONLY)

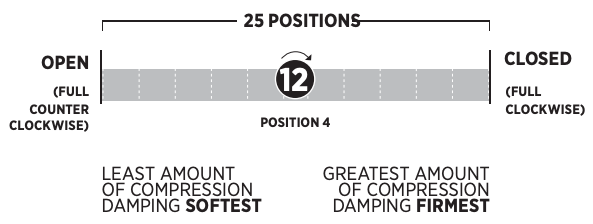

The Factory Race Series 2.0 ATS Stabilizer is equipped with a slotted adjustment screw on the eyelet that affects steering damping. Turning the adjustment screw clockwise will increase damping, making steering more firm. Turning the adjustment screw counter-clockwise will decrease damping and steering resistance.

MAINTENANCE

PROPER INSPECTION AND MAINTENANCE IS ESSENTIAL TO MAINTAIN THE PERFORMANCE AND RELIABILITY OF YOUR SHOCK ABSORBERS.

To avoid corrosion, you should keep the shocks, springs, and stabilizers clean, free of dirt and moisture. The wiper seal will clean deposits from the shaft, but the shock won’t necessarily fully compress every time. This means you could accumulate dirt at the bottom of the shaft and underneath the jounce bumper. Make sure you clean these areas completely to prevent shaft corrosion. Avoid using a high-pressure washer near the shaft seals or adjusters, as this could drive dirt inside the shock.

Make sure the ends of the spring and shock threads are clean and free of dirt before adjusting the preload ring. This will make the adjustment easier and reduce wear.

Ideally, the shocks should be clean around the adjusters. Use a small amount of contact cleaner before making adjustments will keep these parts clean and operating smoothly for years

NOTICE: Keep the shocks, springs, and stabilizers clean and free of dirt or water to avoid corrosion. Keep the shock shaft clean and free of mud. Avoid using a high-pressure washer near the shaft seals and adjusters. Before adjusting preload or the crossover ring, clean the threads of the shock body for easier adjustment and mitigating wear.
