GME Mag Mic Mount Kit for INEOS Grenadier by Agile Offroad

Installation Manual PDF Download Additional Information

Installation Manual

This mount repositions the GME radio’s magnet mount into a custom 3D-printed dash mount designed specifically for the INEOS Grenadier. It provides a secure, accessible spot for your GME mic or speaker-mic, keeping it firmly in place even over rough terrain.

Magnet not included. This kit reuses the magnetic puck provided with your GME radio system.

SKU: G18-1004

PARTS INCLUDED:

  • 1 x Dash Microphone Mount
  • 1 x Magnet Retainer Clip
  • 3 x M4 Short Screws
  • 1 x M4 Long Screw

TOOL NEEDED:

  • 3mm Allen Wrench
  • #2 Phillips Screwdriver

INSTALLATION TIME: 20 Minutes

Installation Steps

1

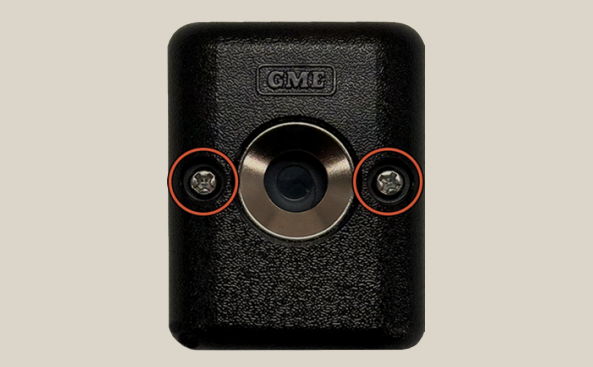

Use a #2 Phillips screwdriver to remove the two screws located on the GME Magnetic Microphone Mounting Bracket (GME Bracket Not Included).

2

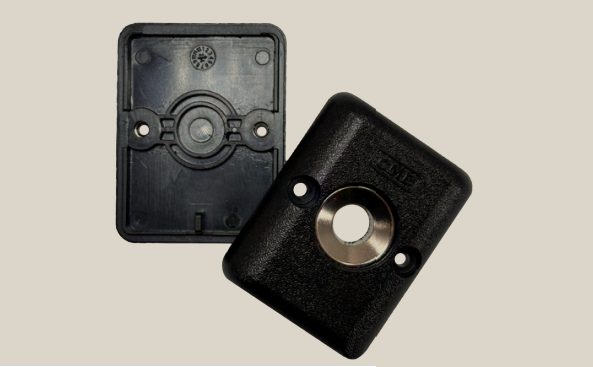

Separate the GME bracket as shown.

3

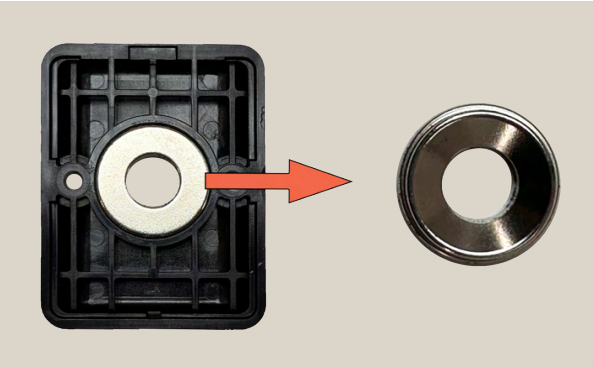

Remove the microphone mount magnet.

4

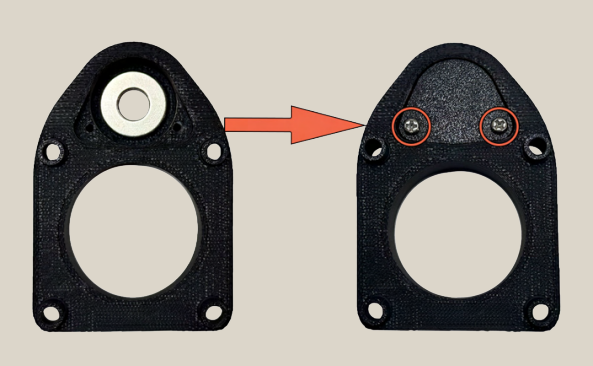

Insert the microphone magnet into the Microphone Mount with the flat side of the magnet facing towards the back of Mount. Install the Magnet Retainer clip using the two screws removed from the GME mount in step 1.

5

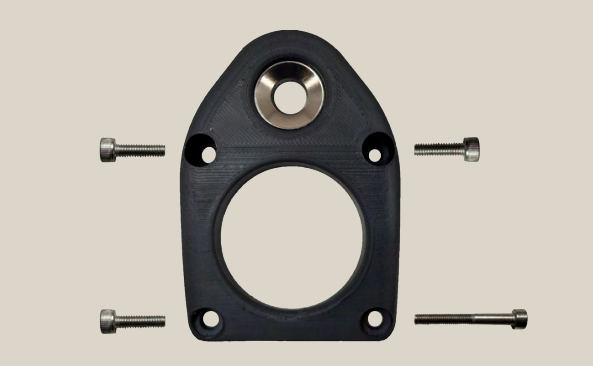

The Dash Microphone is now ready to be installed.

6

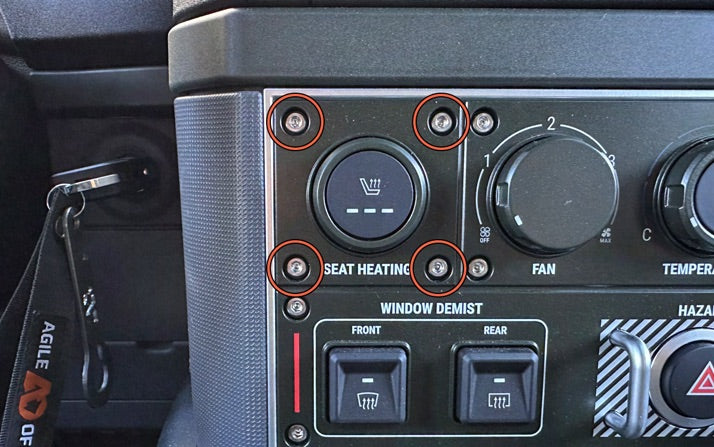

Use a 3mm Allen wrench to remove the four screws at the Seat Heating Switch.

7

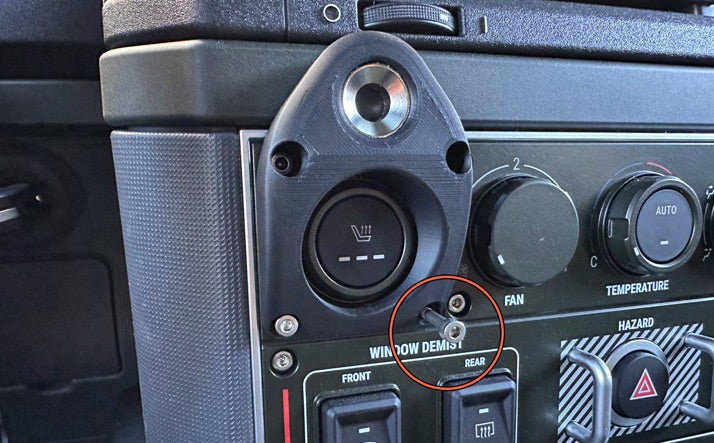

Install the Dash Microphone Mount using the three M4 short screws at the top and outside holes. Install the M4 long screw at the inside lower hole as shown.

8

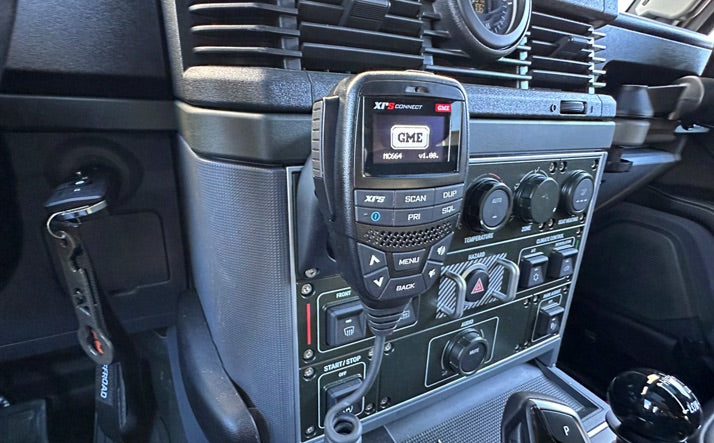

Mount the microphone.
