Resin Dash Ball Mount for INEOS Grenadier by Agile Offroad

Installation Manual PDF Download Video Additional Information

Installation Manual

The Dash Ball Mount for the INEOS Grenadier by Agile Offroad is a multi-purpose device mount designed to mount a variety of devices with the included B size – RAM Tough-Ball™ with 1/4”-20 x .625” Threaded Stud. The Agile Dash Ball Mount for INEOS Grenadier is constructed from ultra-sturdy ASA resin and mounts seamlessly over the OEM INEOS Grenadier or Quartermaster seat heat button dash bezel on driver or passenger side. This Grenadier interior device mount not only provides sturdy & convenient mounting location but it also looks great and is guaranteed to serve as a solid asset for your adventures.

SKU: AO-I1G-02

PARTS INCLUDED

  • 1 x AO Dash Ball Mount
  • 1 x RAM 1” B Size Tough-Ball
  • 1 x M4 x .70 Long Socket Head Bolt
  • 3 x M4 x .70 Short Socket Head Bolt

TOOL NEEDED

  • 3mm Allen Wrench
  • ¾” Wrench

INSTALLATION TIME: 10 Minutes

Installation Steps

1

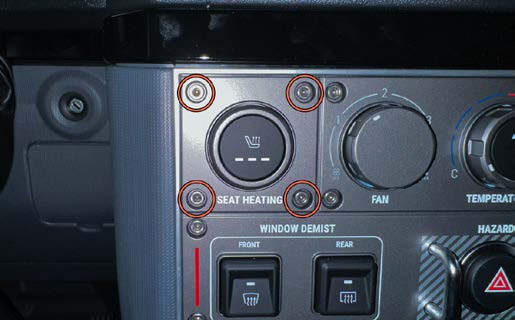

The AO Dash Ball Mount can be installed on either the driver or passenger side Seat Heating switch which is held on with four socket head bolts.

2

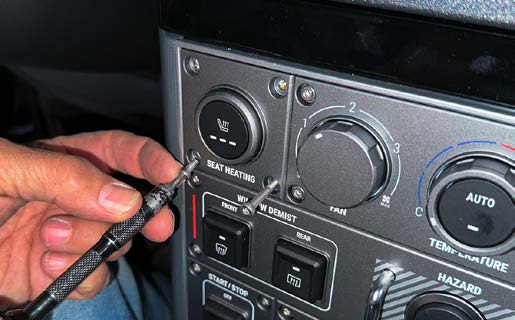

Use a 3mm Allen wrench to remove the switch four bolts.

3

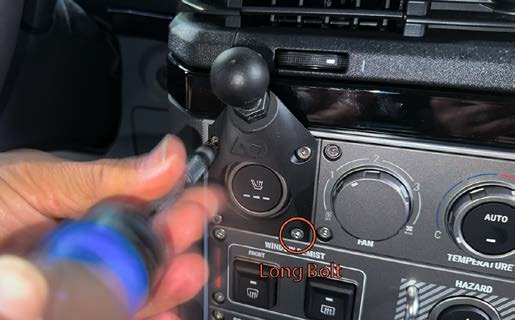

Install the AO Dash Ball Mount using the supplied bolts. The long socket head bolt must be installed on the lower inside corner. Install the supplied Tough-Ball onto the mount. Lightly tighten the ball using a ¾” wrench.

4

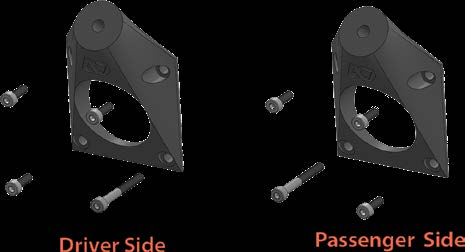

Install the long socket bolt as shown when installing the AO Dash Ball Mount on the driver or passenger side.
