RTL Series Mounting Instructions

NOTE: IDEAL MOUNTING DISTANCE BETWEEN HARDWARE = 25 INCHES

The RTL housing is equipped with a universal mounting system which allows it to be mounted both off the back of the housing, as well as the bottom. This allows for a variety of mounting options regardless of the size, spacing, or orientation of you mounting surfaces.

Installation Steps

1 RTL Series Mounting Instructions

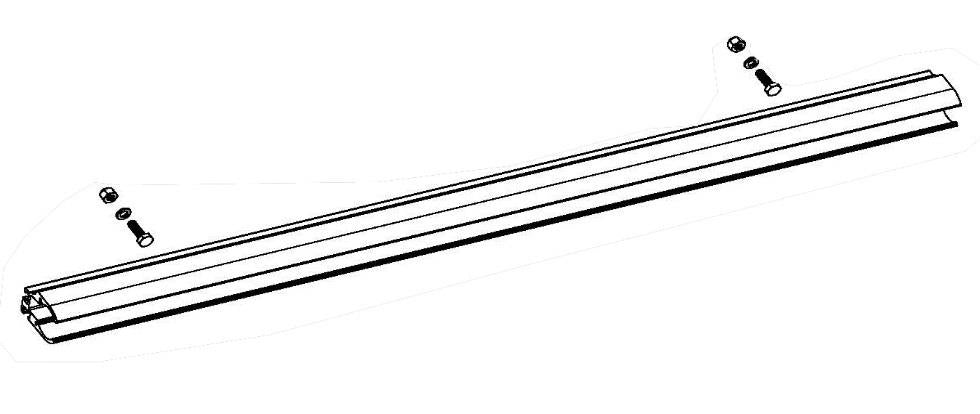

Begin by locating the ¼”-20 hardware in the provided hardware pack, and place the heads of the two bolts in the desired track of the housing.


2

Mount the bar to either a vertical or horizontal surface or mount, using the provided washers and nyloc nuts.


3

Tighten the nyloc nuts to the point where the RTL is unable to move left or right.


RTL / RTL-M Wiring Instructions

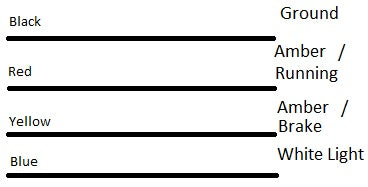

  • The RTL is able to run at 9-36 Volts
  • Red, yellow, and blue function off positive current
  • Yellow(brake) will only function is Red(running) is receiving power
  • In order to run the white light, it is recommended you put it on a switch

RTL-B / RTL-G Wiring Instructions

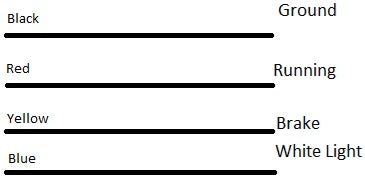

  • The RTL-B/G can run at 9-36 Volts
  • Red, yellow, and blue function off positive current
  • Yellow(brake) will only function when Red(running) is receiving power

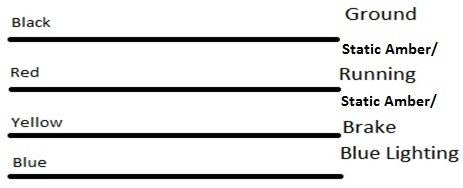

4-Wire Side of Light

  • The RTL-S can run at 9-36 Volts
  • Red, yellow, and blue function off positive current
  • Yellow(brake) will only function when Red(running) is receiving power
  • In order to run the white light, it is recommended you put it on a switch

2-Wire Side of Light

  • The RTL-S can run at 9-36 Volts
  • Yellow and Blue function as the turn signal power wires
  • Turn signal power wires should be spliced into their respective directional wiring
