Driveshaft Spacer Safety Kit For AWD Sprinter by Agile Offroad

Installation Manual PDF Download Video Additional Information

Installation Manual

General Information

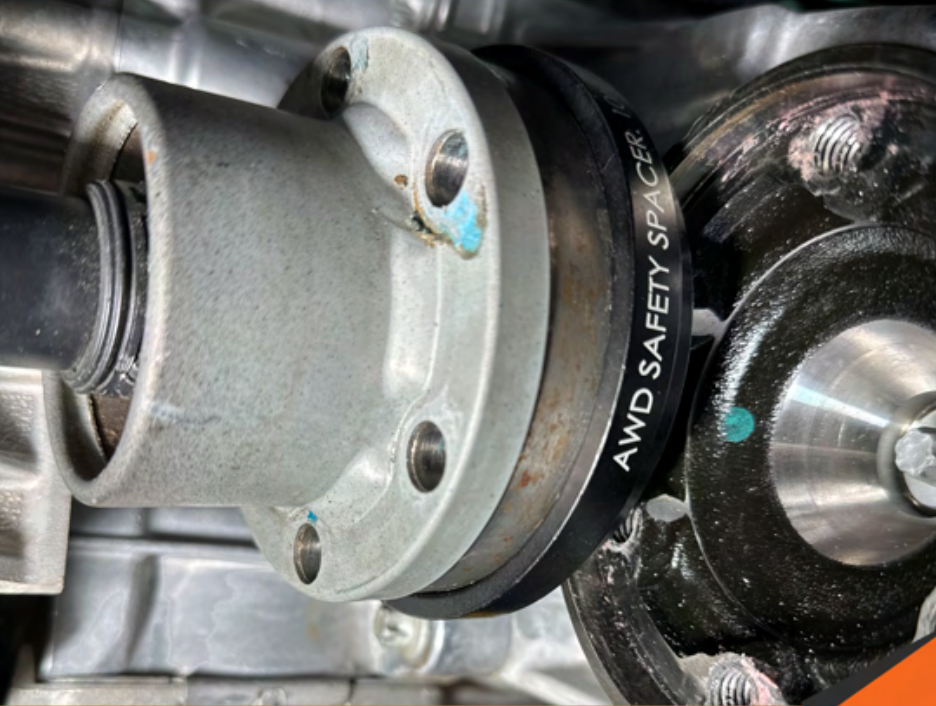

The AO Sprinter Driveshaft Safety Spacer is designed to be installed on 2023+ AWD Sprinters to help eliminate the front driveshaft from disconnecting from the front differential pinion. We recommend the Driveshaft Safety Spacer be installed by an authorized AO dealer (refer to agileoffroad.com to find a dealer near you).

Read the instructions completely before starting the installation process.

Parts Included

Part # AOR060

(1) Driveshaft Spacer

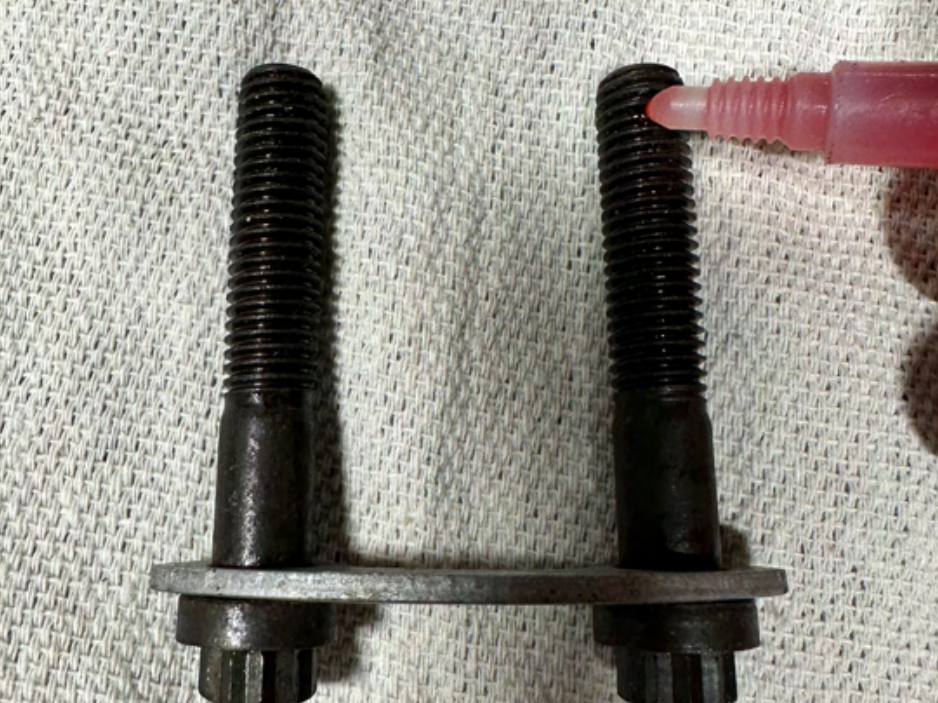

(1) Red Loctite Capsule
(6) M10-1.5 X 55 12 Point Cap Screws
(1) 3/8 Inch Drive x 10 mm 12-Point Socket

Tools Needed

T55 Torx Bit Socket
3/8” Drive Ratchet
3/8” Drive Torque Wrench
4-6” Strap Wrench

Installation Steps

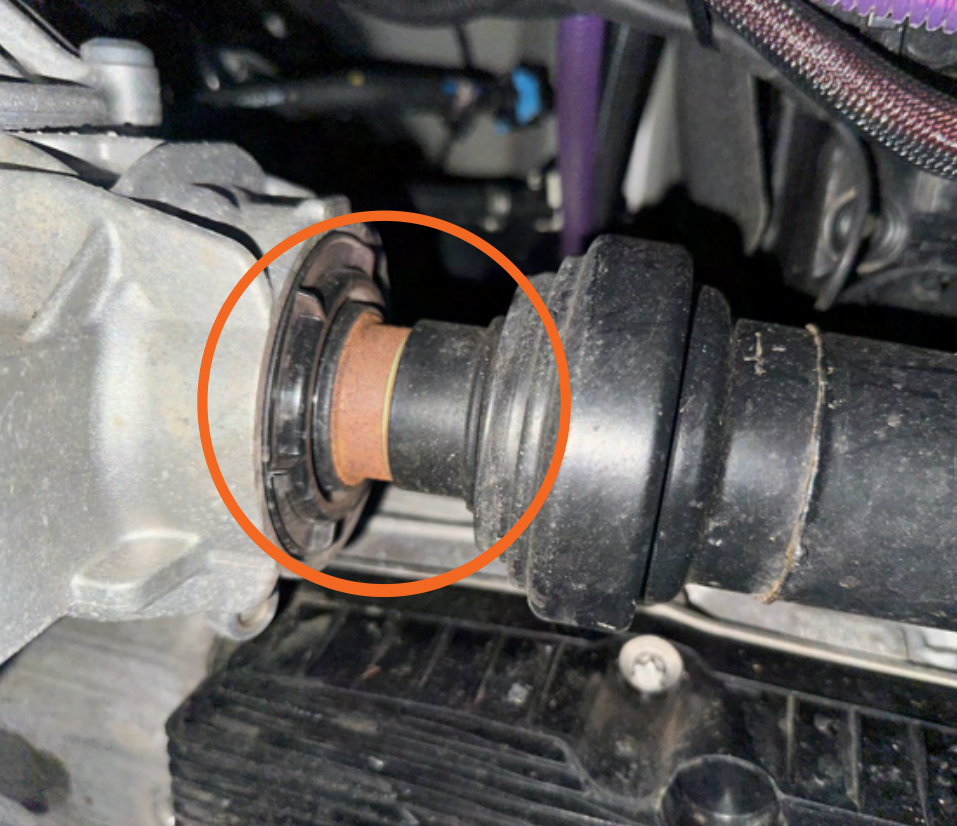

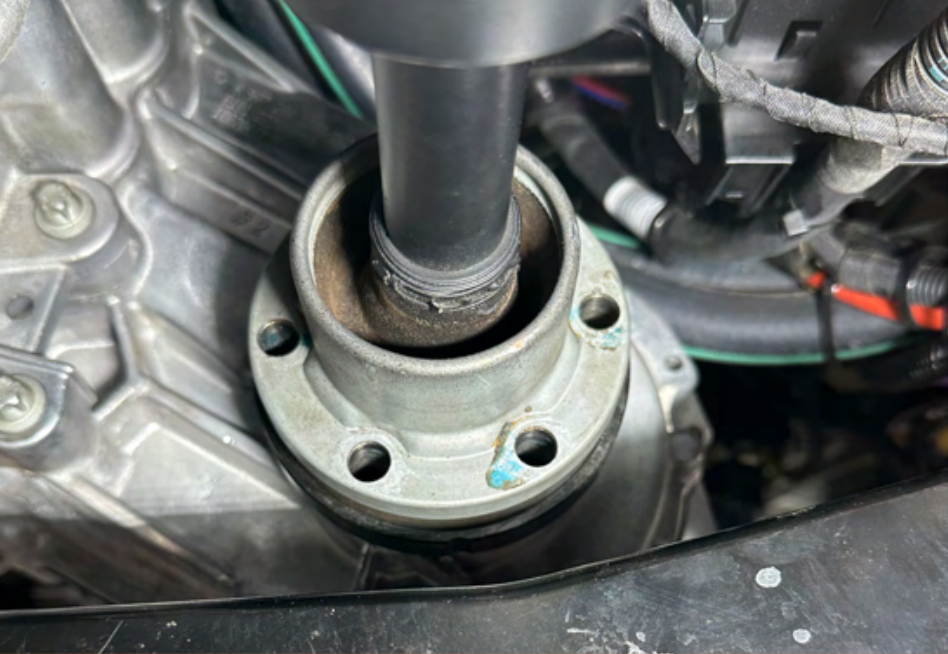

Measure the gap between the front driveshaft and the front differential pinion seal. The gap should be 1/8” or less.

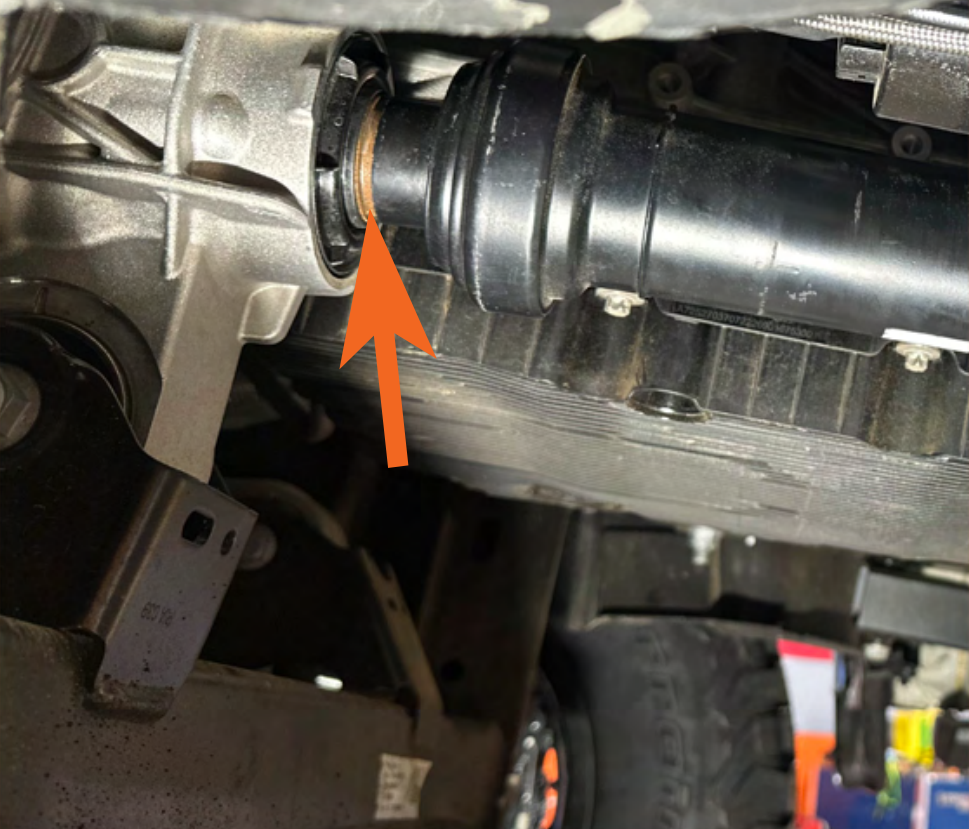

1a. The driveshaft pictured above has pulled out. We recommend the complete removal of driveshaft so that the seal and retaining clip can be inspected for damage.

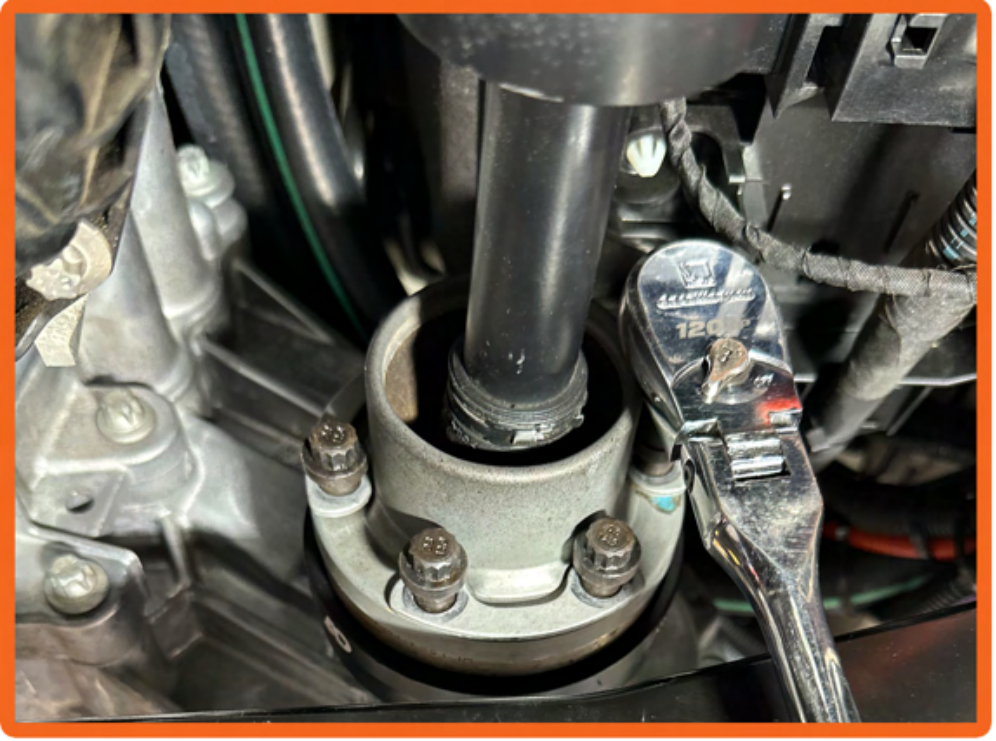

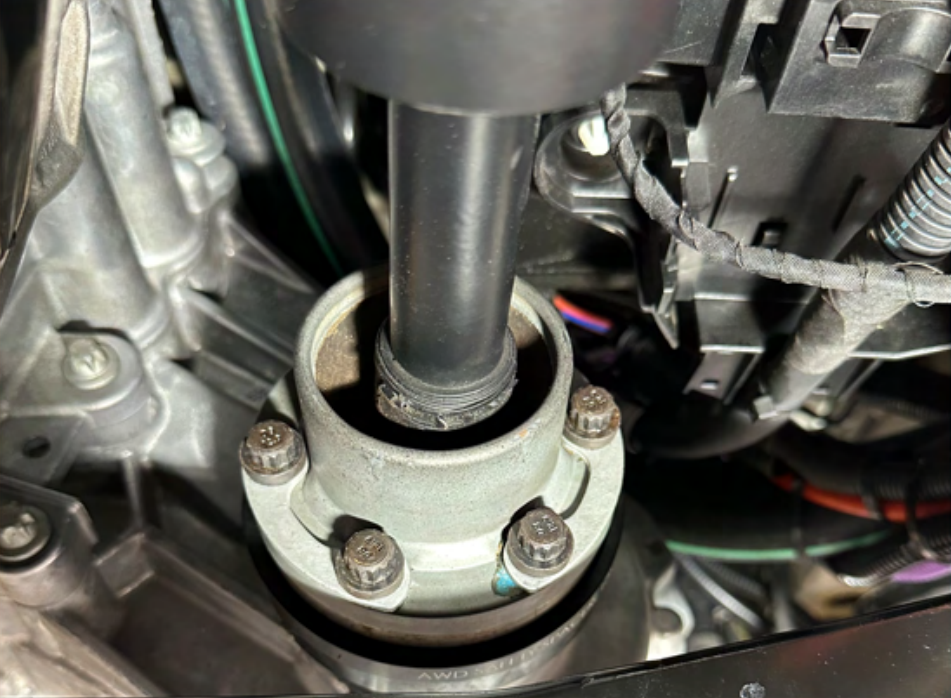

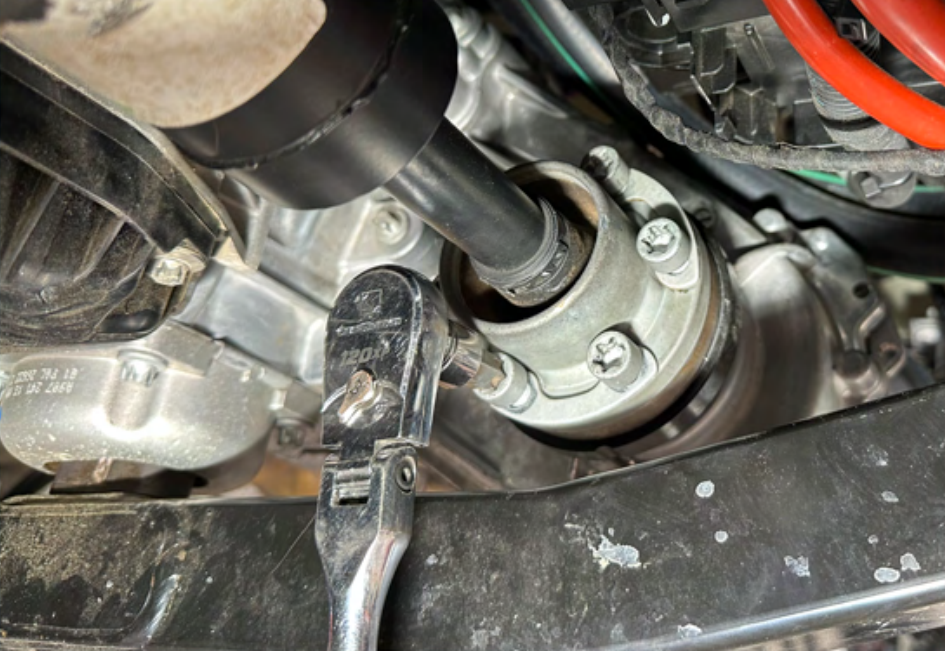

Use a T55 torx bit to remove the six bolts holding the rear of the driveshaft to the transfer case flange.

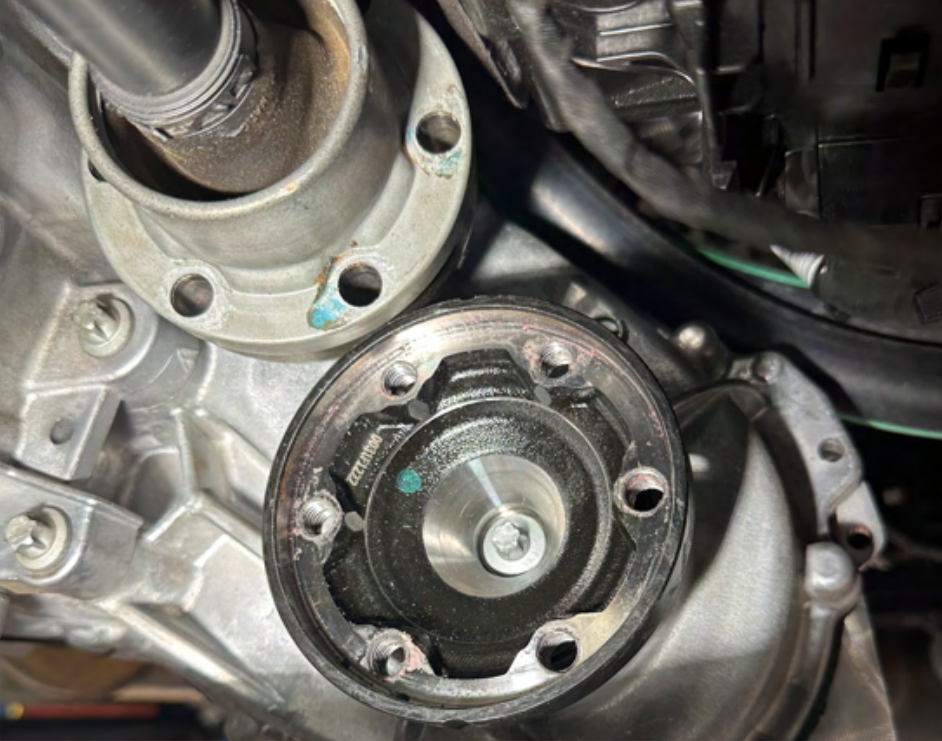

Completely remove all factory bolts and 2-hole spacer plates.

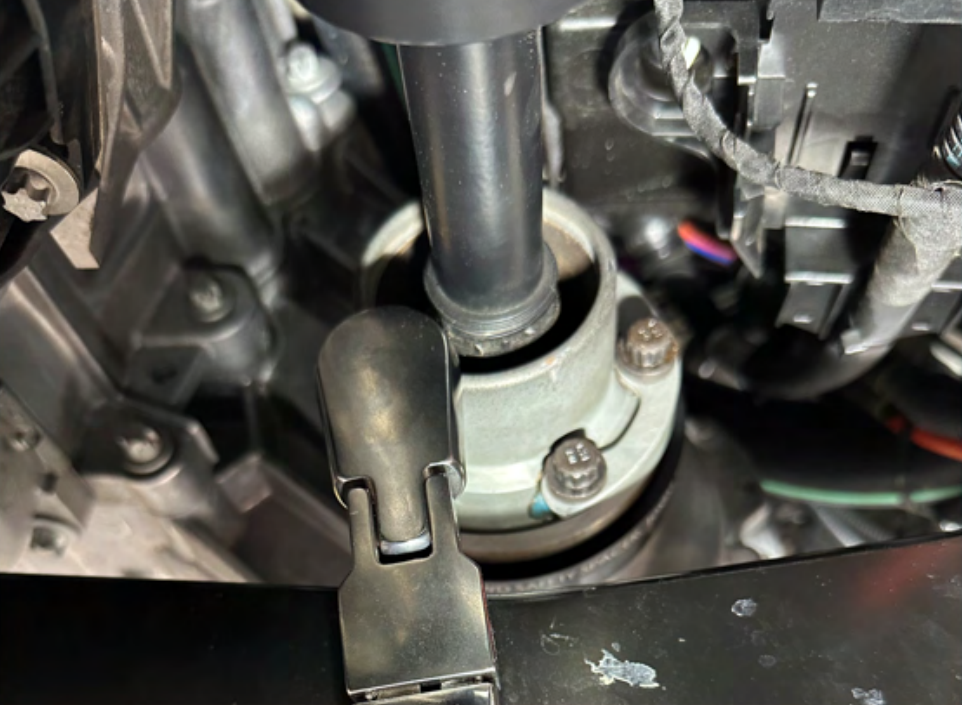

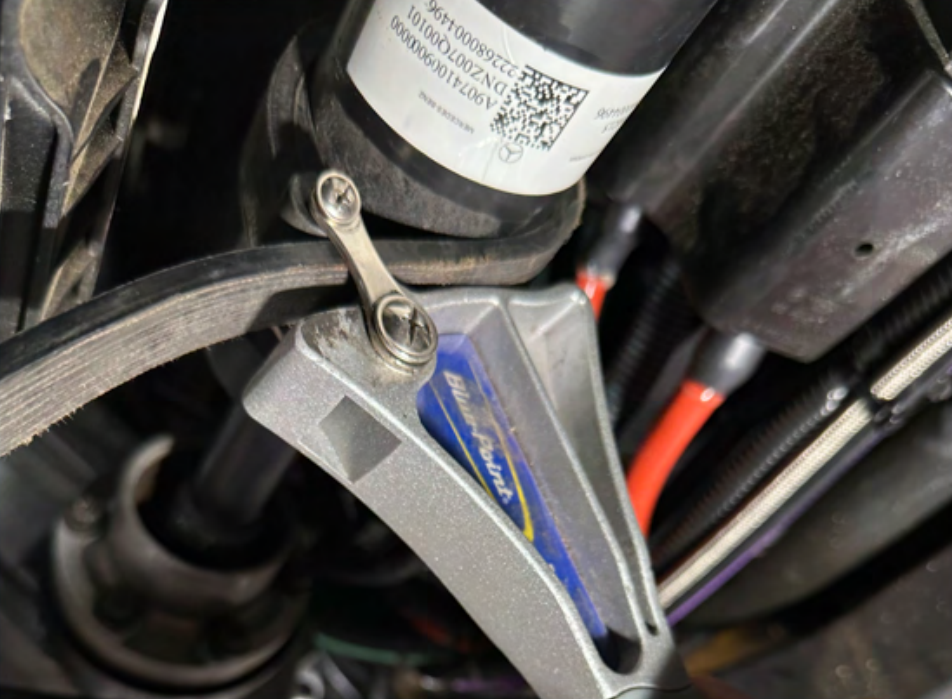

Compress driveshaft towards engine while pushing up towards transmission.

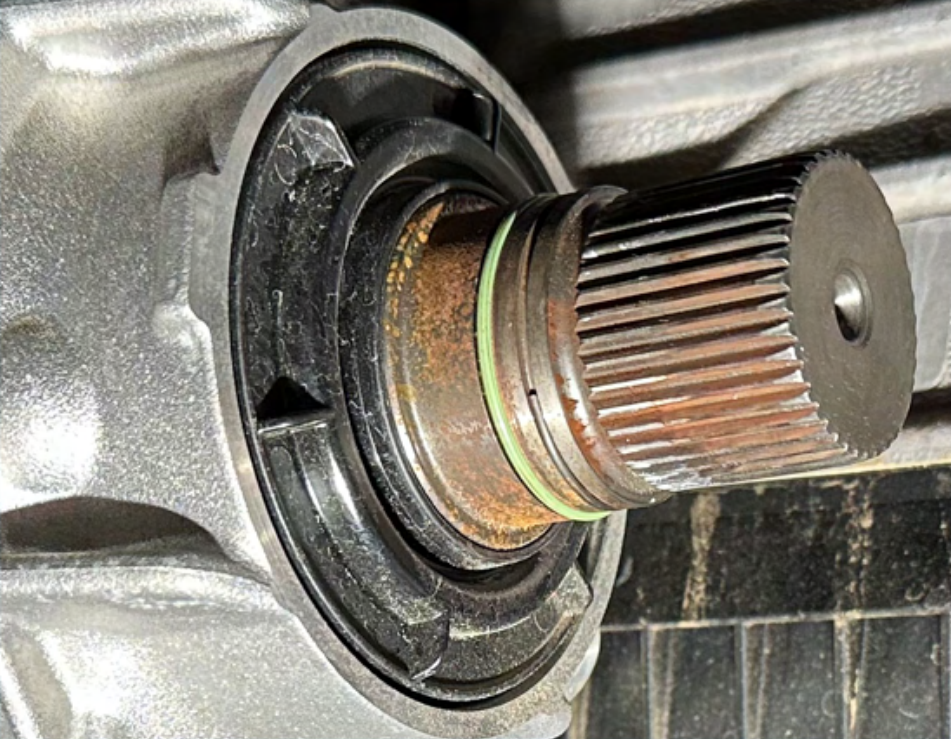

4a. If performing a seal and retaining clip inspection, pull driveshaft off of differential pinion. Use Mercedes # 9073300602 if seal or clip are damaged.
