Apex airLYNX Remote Fill Kit for Sprinter by Agile Offroad

Installation Manual PDF Download Video Additional Information

Installation Manual

SKU: AO-S4S-1

PARTS INCLUDED

2 x Apex airLYNX

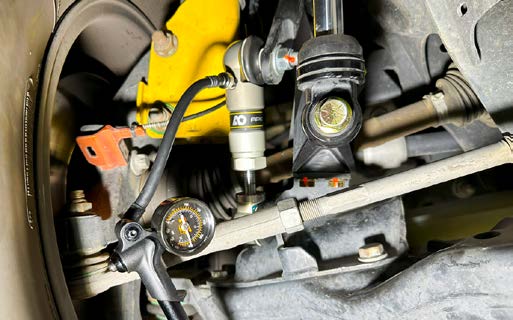

1 x Fox HP Shock Pump

TOOL NEEDED

¾” Socket/Wrench
15mm Open Wrench
18mm Open Wrench
19mm Open Wrench
6mm Allen Wrench

INSTALLATION TIME: 30 minutes - 1 hour

INSTRUCTIONS

The Apex Front airLYNX are a direct replacement for the OEM Mercedes sway bar links.

Sprinters equipped with the AO Max Auxiliary Shock Kit will require the removal of the front wheels/tires and the lower auxiliary shock mounts.

Refer to the Sprinter Owner’s Manual for proper front wheel/tire removal. Use jack stands to support the vehicle using standard safety procedures.

Installation Steps

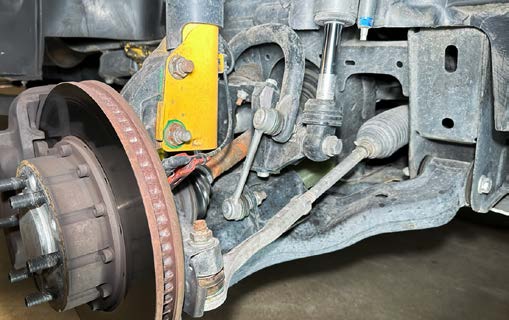

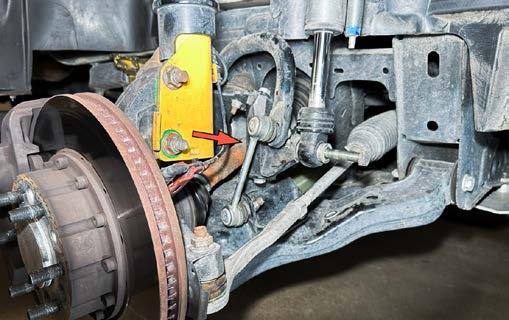

Locate the sway bar link. If your Sprinter does not have the AO Max Auxiliary Shock Kit, skip to step 4.

Use two ¾” wrenches to remove the lower auxiliary shock bolt. Take note of the spacer/washer placement.

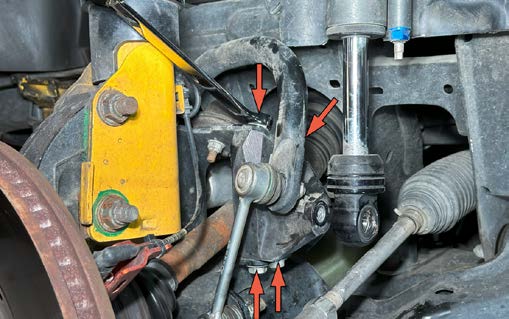

Use a 15mm wrench to remove the four lower shock mount bolts. Remove mount completely.

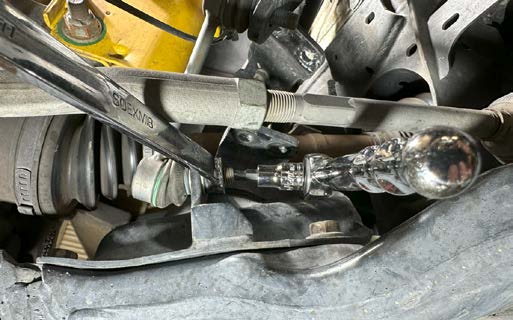

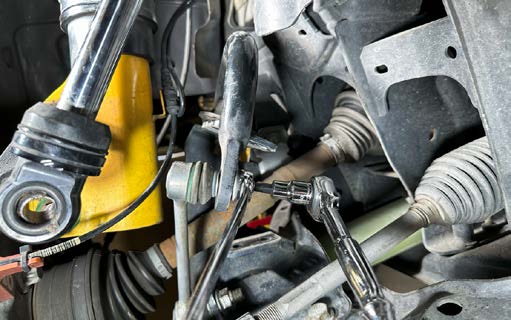

Use an 18mm open wrench and a T40 Torx bit to remove the upper sway bar link nut. The T40 Torx bit is required to keep the sway bar stud from rotating while removing the nut.

Use an 18mm open wrench and a T40 Torx bit to remove the lower sway bar link nut.

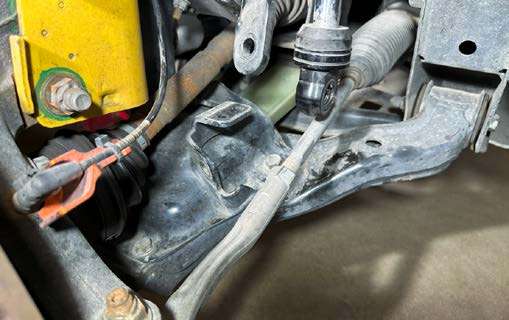

Completely remove the factory sway bar link. Clean the area if necessary.

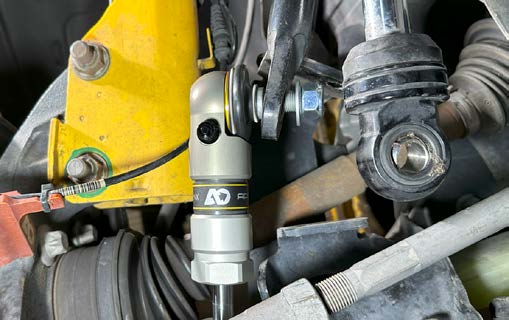

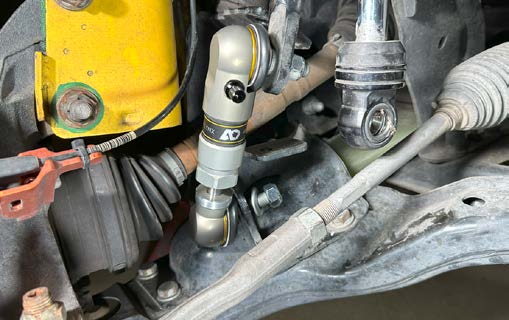

Install the Apex airLYNX to the sway bar using the supplied nut and washer. The Washer must be installed with the cup side of the washer facing the sway bar. Do not fully tighten.

Install the Apex airLYNX to the bottom a-arm mounting tab using the supplied nut and washer. The Washer must be installed with the cup side of the washer facing the a-arm mounting tab.

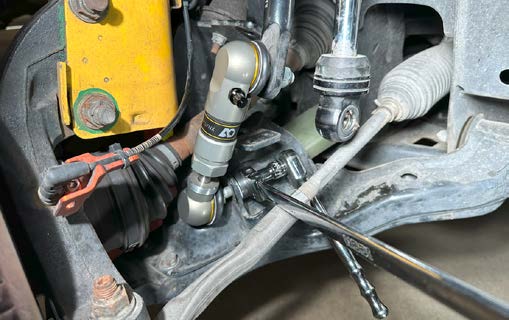

Use a 19mm open wrench and a 6mm Allen wrench to fully tighten the Apex airLYNX nuts. Torque nuts to 30 ft lbs.

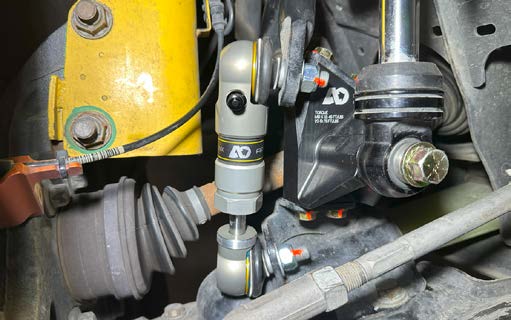

If your Sprinter does not have the AO Max Auxiliary Shock Kit, repeat steps 4-8 on the opposite side to complete the installation. Re-install the AO Max lower auxiliary shock mount using the previously removed hardware. Torque the mount bolts to 40 ft lbs. and the shock bolt to 80 ft lbs. Repeat steps 2-10 on the opposite side to complete the installation.
