Installation Guide

Home / Exterior / Body Accessories / 2019/2020+ Sprinter ABS/TPO Plastic "No Rub" Front Fender Installation Guide

No Rub Front Fenders For 2019+ Sprinter by Agile Offroad

Installation Manual PDF Download Additional Information

Installation Manual

Required tools for installation:

  • Hand drill
  • T-25 torx bit
  • 1/8" & 1/4" drill bit
  • #2 Philips screw driver
  • plastic trim removal tool
  • box knife
  • 10mm wrench / socket
  • hammer

Kit Contents:

  • (2) ABS/TPO Plastic No Rub Fenders
  • (2) Upper body molding screws
  • (2) Speed nuts
  • (2) 2" Mudflap anchor screws
  • (2) Lower fender bolts
  • (2) Lower fender nuts

Installation Steps

1

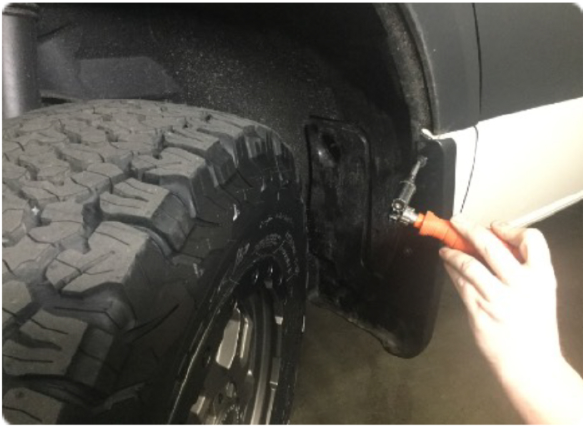

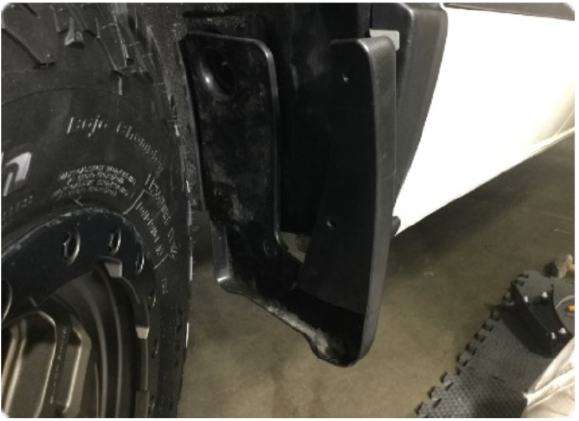

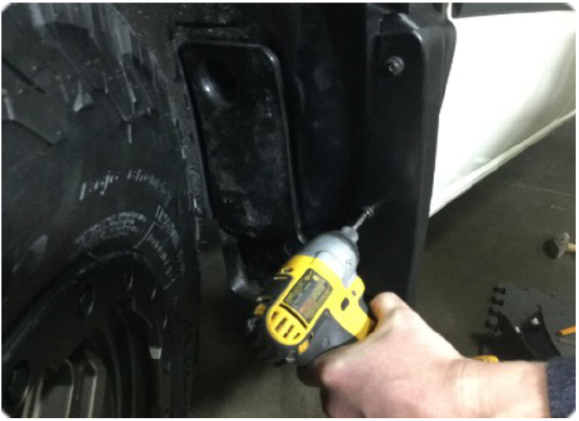

Remove mudflap

2

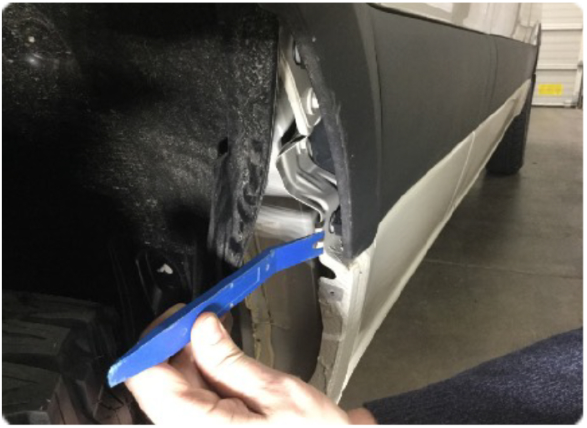

Remove cladding

3

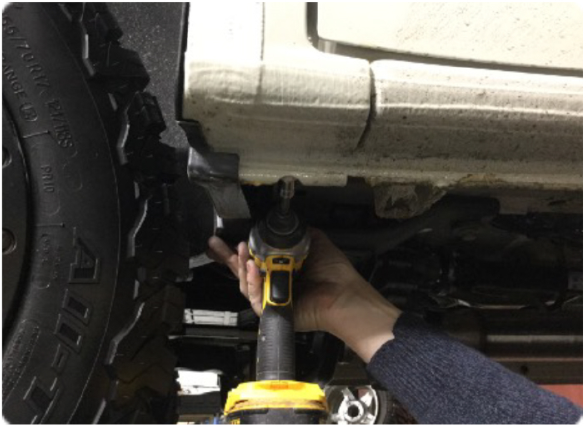

Remove 3 10mm bolts

4

Remove lower 10mm nut

5

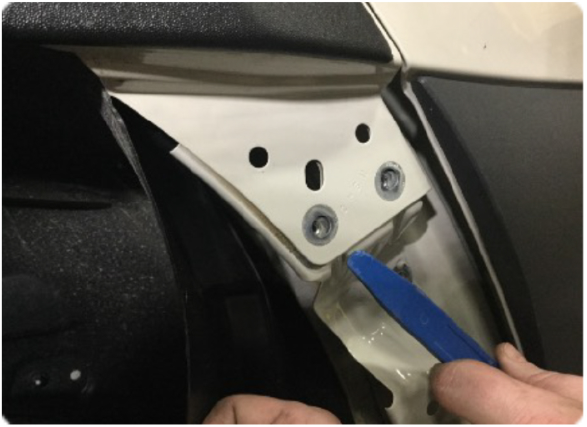

Pry fender from sill

6

Bend sill down and pull

7

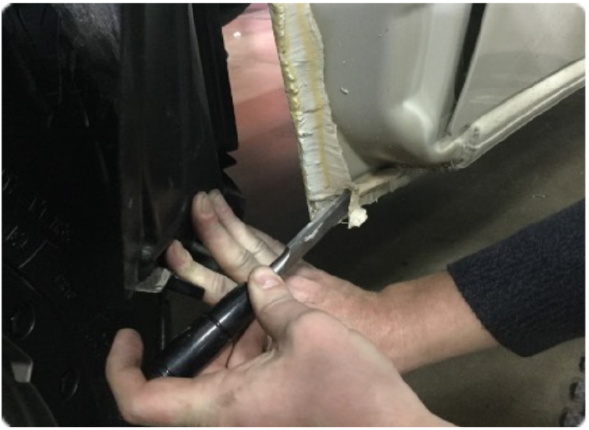

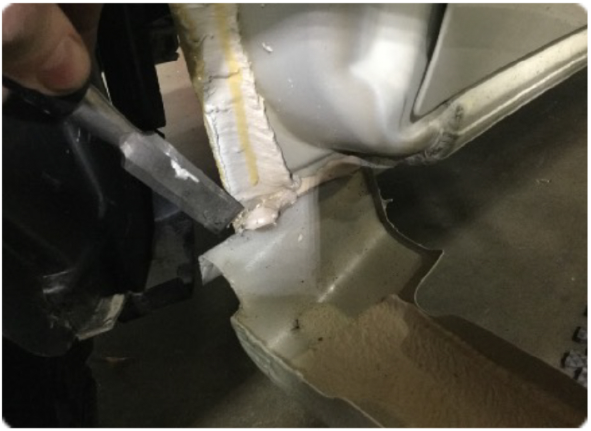

Cut sealant and pry here

8

Remove excess sealant

9

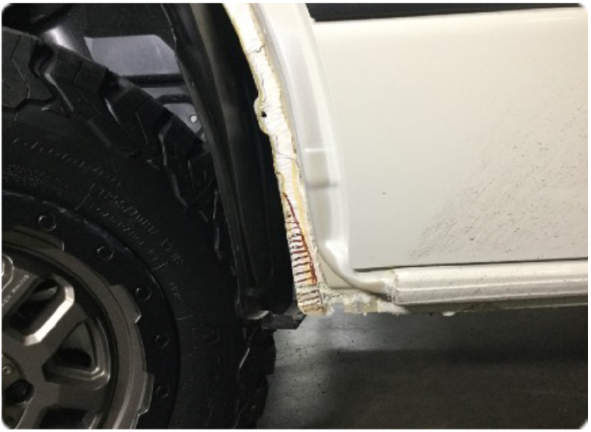

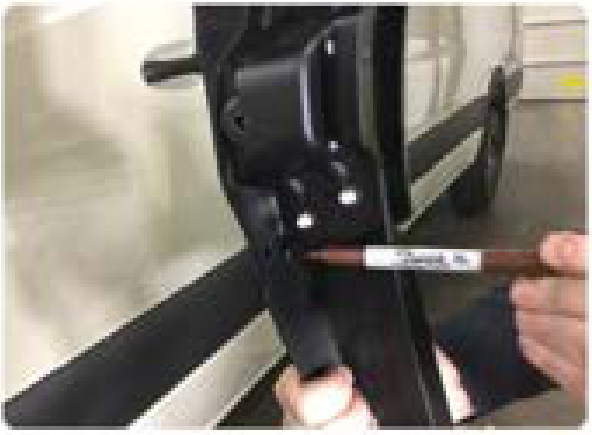

Mark section to be folded

10

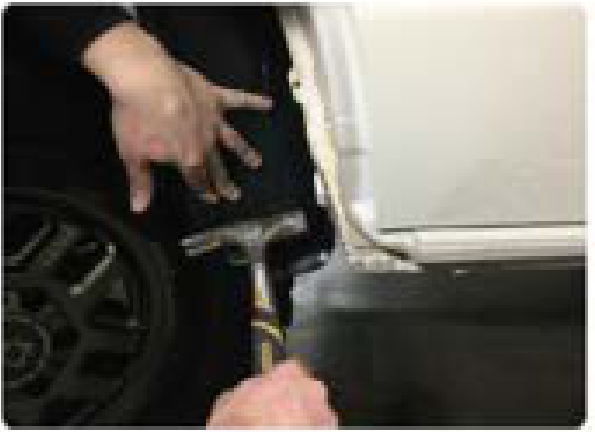

Fold over body seam 90 degrees

11

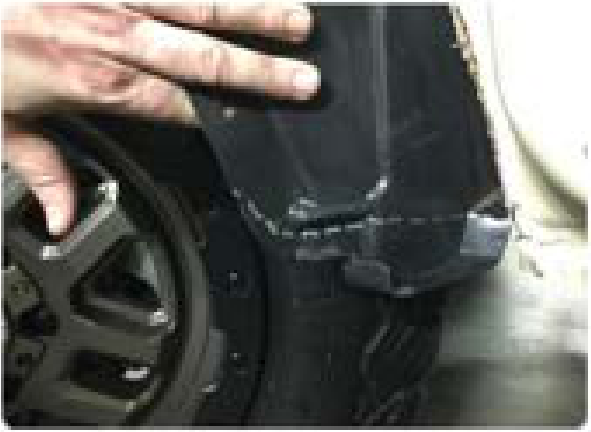

Cut liner as shown

12

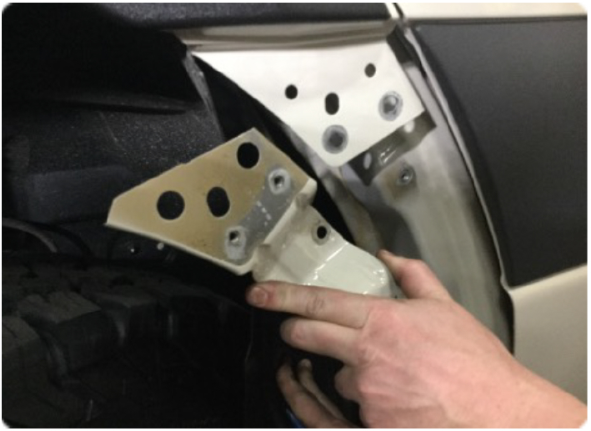

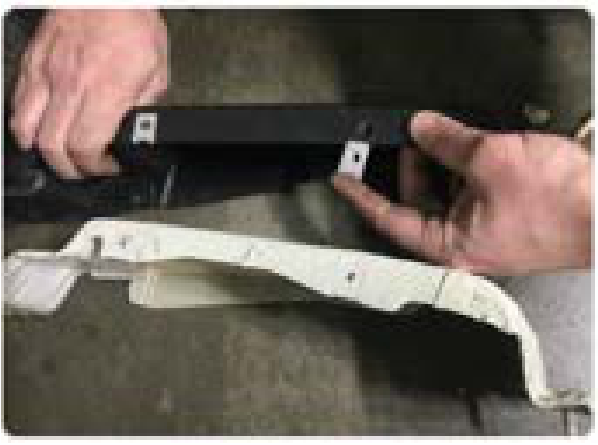

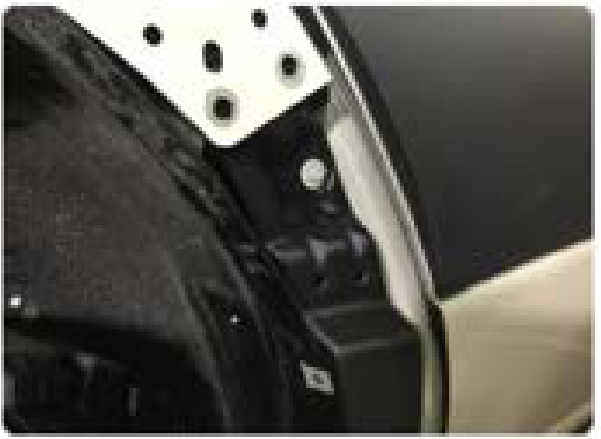

Remove liner bracket

13

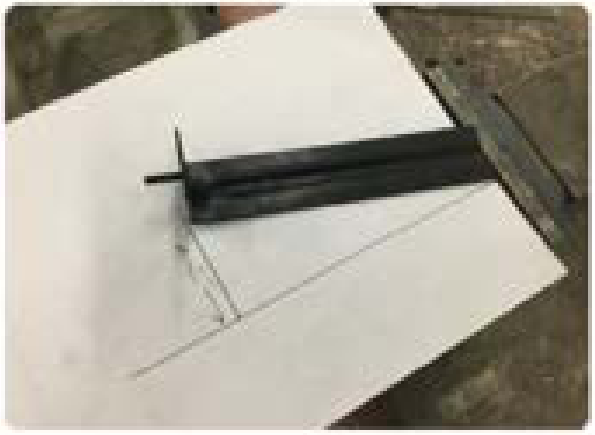

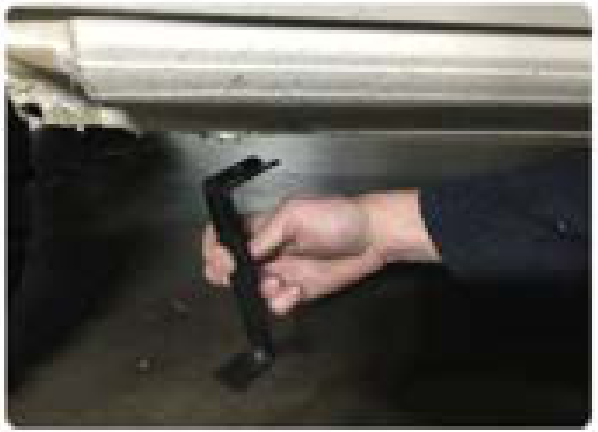

Modify bracket in vise 2 inches

2 inch bend rearward of front wheel

14

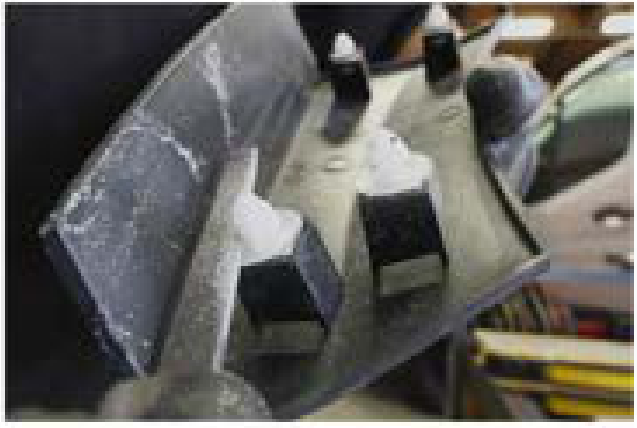

Trim bottom 2 clips with file

Because the 2 lower trim clips are going into the thicker plastic fender, they need to be clearanced by approx 1/16" to properly enlarge

15

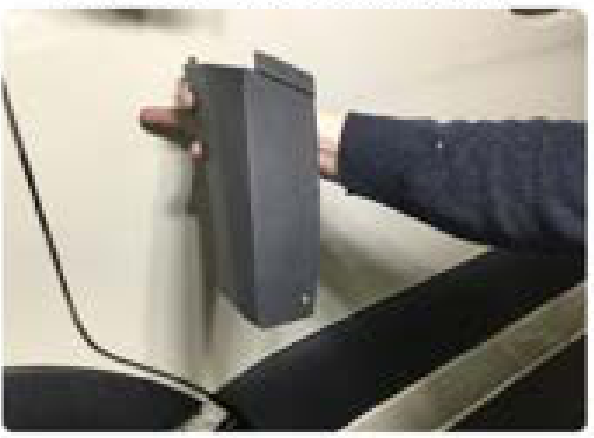

Attach trim to Ralley Rocker and mark hole

16

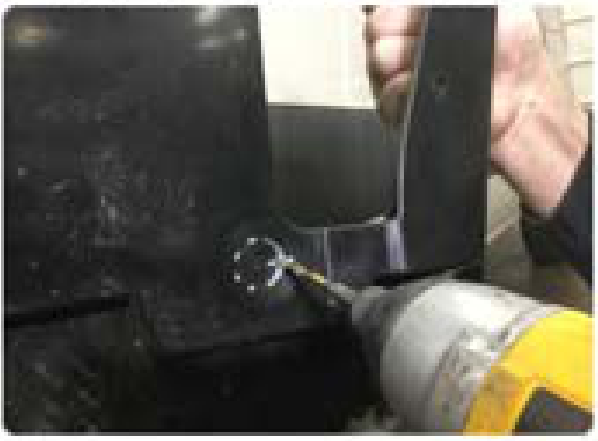

Drill 1/4" hole as shown

17

Swap mud flap clips over

18

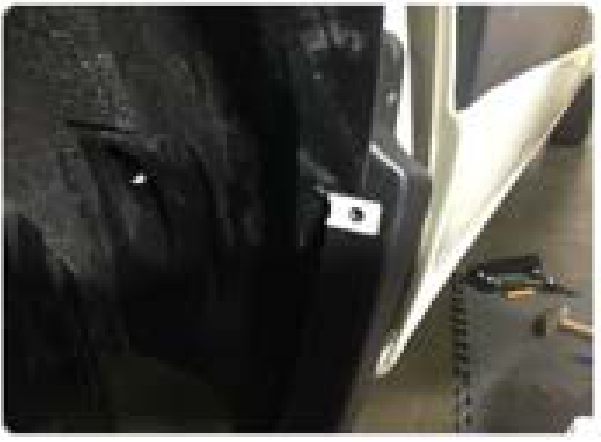

Install speed nut

19

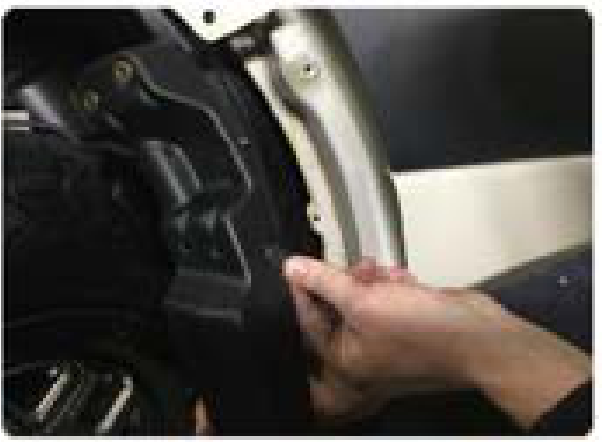

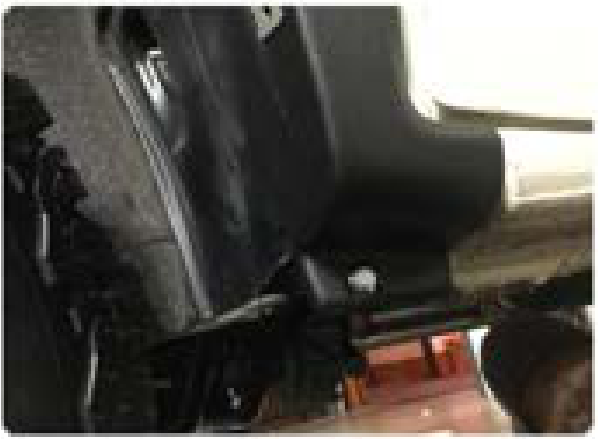

Tuck liner behind Rally Rocker

20

Hand tighten body bolt

21

Install lower bolt and nut

22

Install fender bolts

23

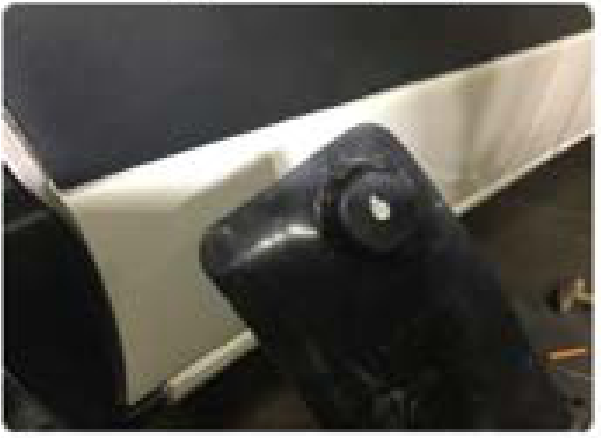

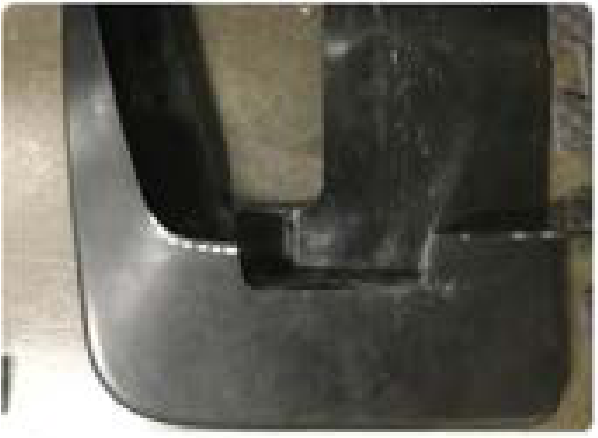

Modify mud flap top

24

Modify lower mud flap

25

Location for anchor screw

Anchor screw (optional) will add an additional .5" of clearance. Drill through mud flap into folded body seam that you hammered over. Use supplied 2" screw to anchor and pull mud flap closer to the body.

26

Install mud flap lower stud first

27

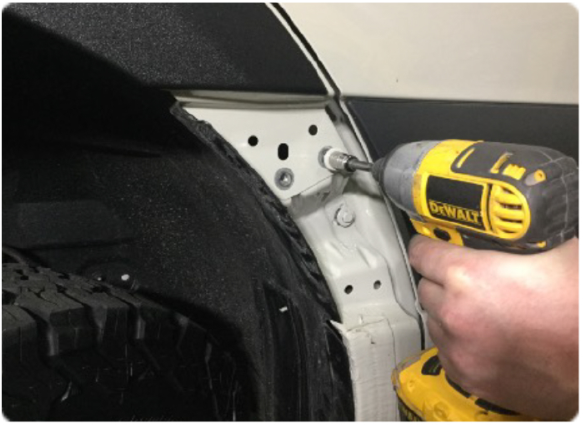

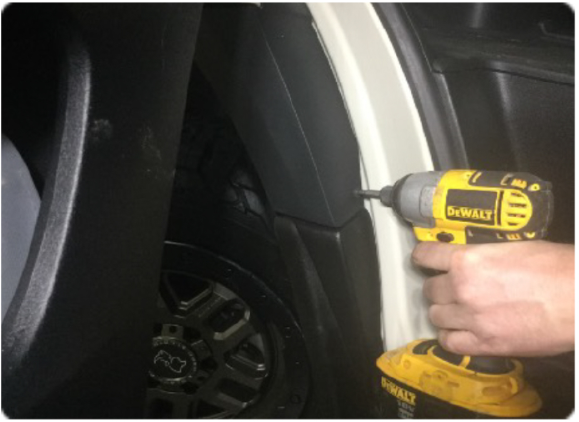

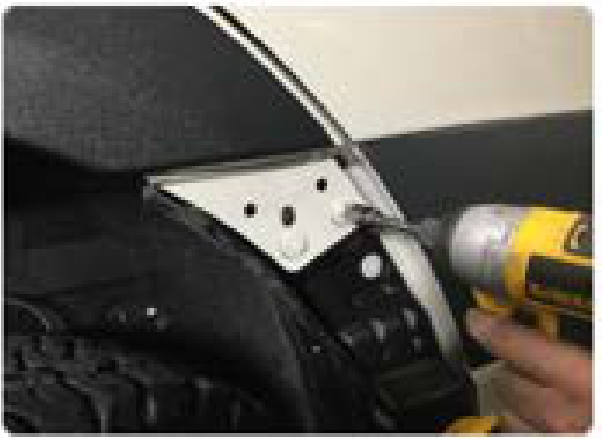

Install T-25 screws

28

Install body molding

29

Install modling screw

30

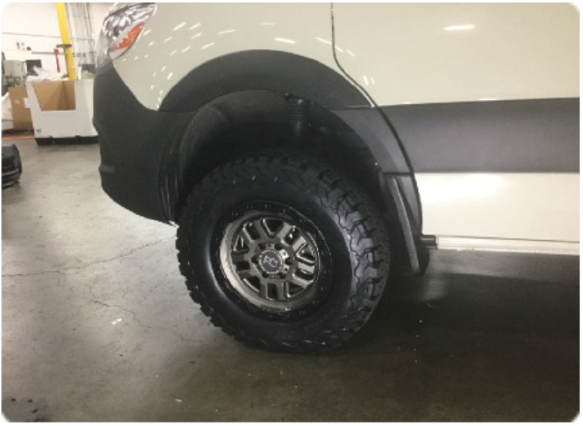

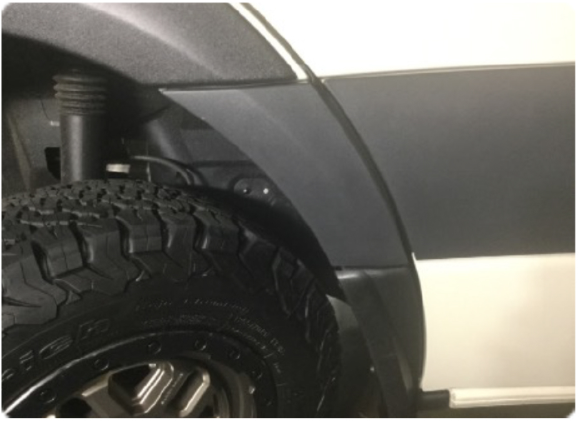

All done, repeat for the other side.

Final Installation Tips

  • Be sure to paint/coat any areas with exposed metal
  • Using a heat gun will help relax the fender liner
