Baja Designs Squadron 2.0 Fog Light Kit for Sprinter by Agile Offroad
Next-Generation Fog Lighting, Built for the Sprinter
Vehicle-Specific Baja Designs Squadron 2.0 Lighting with Plug-and-Play Wiring Options
Upgrade the factory fog light location on your Mercedes-Benz Sprinter with the Agile Offroad Baja Designs Squadron 2.0 Fog Light Kit. This complete system combines reinforced vehicle-specific brackets, Baja Designs Squadron 2.0 lights, and plug-and-play wiring for a clean, integrated installation.
Choose White or Amber Squadron 2.0 lights, along with either a simple plug-and-play configuration or a complete backlight-enabled harness that supports the Squadron 2.0’s integrated backlight functionality.
Designed specifically for the Mercedes-Benz Sprinter, this fog light kit brings modern auxiliary lighting performance into the factory fog light location. Each bracket is constructed from 14-gauge steel and reinforced with 1/4-inch steel, creating a strong, single-piece mounting solution engineered to securely support the Squadron 2.0 lights in demanding road and trail conditions.

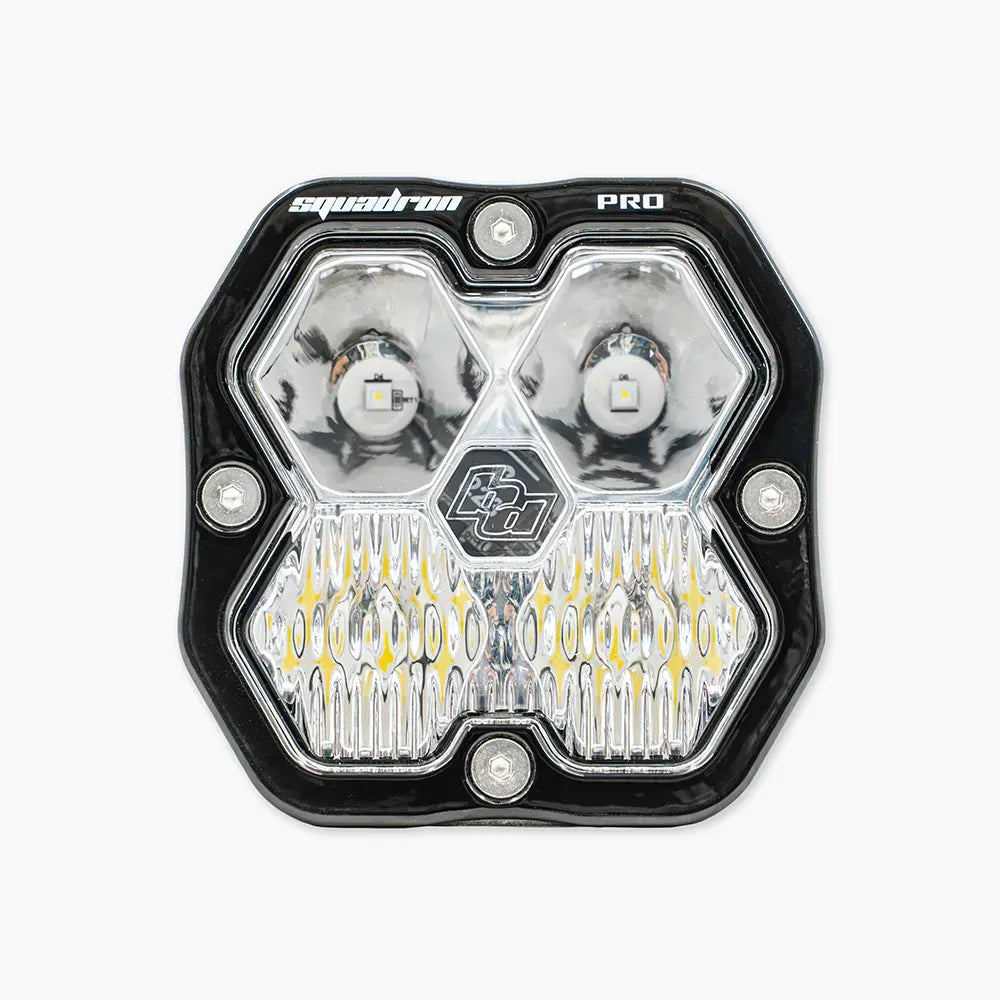

At the center of the system are Baja Designs Squadron 2.0 lights, producing 5,921 lumens per light at 65 watts. Next-generation optics are designed to improve beam control, usable output, and overall visibility while maintaining a clean, vehicle-specific installation.
Benefits
- Upgrades the factory Sprinter fog light location with high-output Baja Designs Squadron 2.0 lighting
- Provides a secure, reinforced mounting solution for demanding road, trail, and overland use
- Offers a straightforward installation path without requiring custom wiring
- Choice of White or Amber lighting to suit different driving conditions
- Backlight-enabled harness option provides full Squadron 2.0 lighting functionality without building or modifying a harness
- Vehicle-specific design maintains a clean, integrated appearance at the factory fog light location
Built Specifically for the Sprinter
Reinforced Vehicle-Specific Mounting

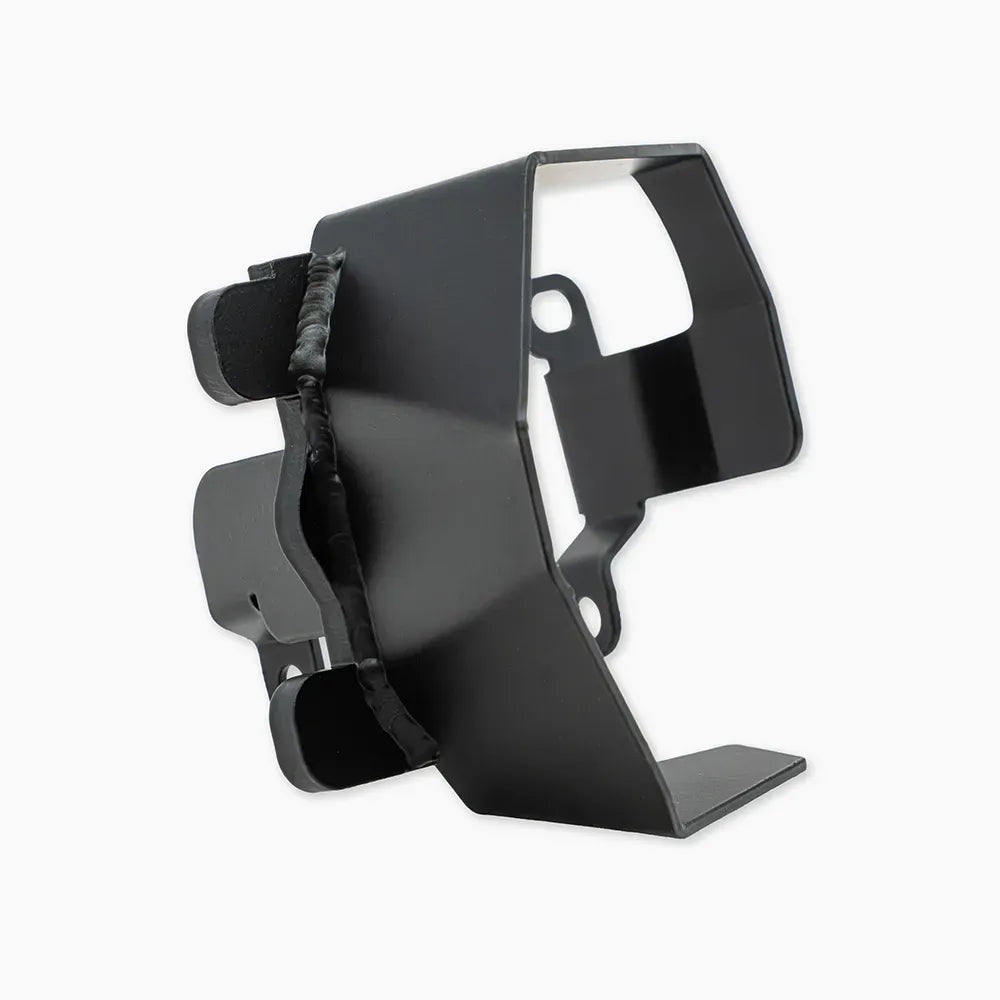

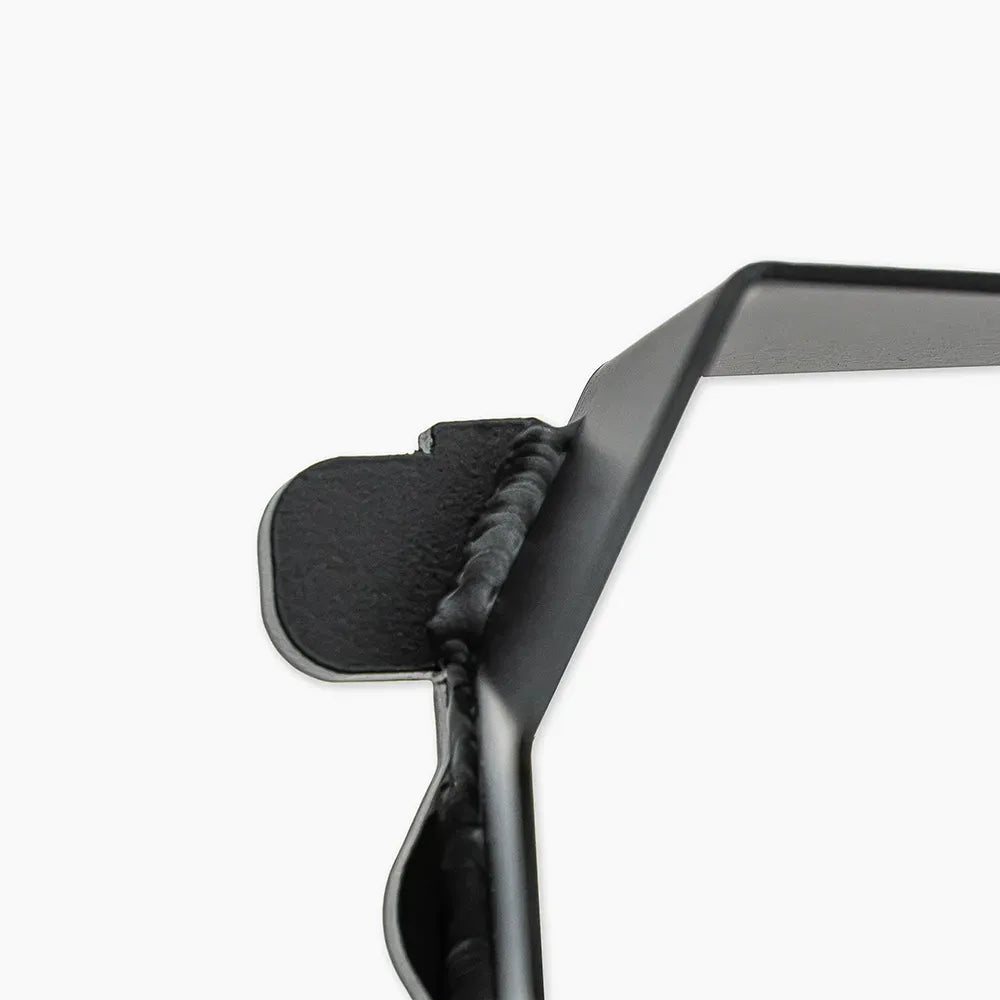

The vehicle-specific brackets are engineered around the Mercedes-Benz Sprinter’s factory fog light location. Constructed from 14-gauge steel with 1/4-inch steel reinforcement, the single-piece bracket design provides a strong and secure mounting platform for the Baja Designs Squadron 2.0 lights.
White or Amber Lighting
Choose the Light Configuration for Your Driving Conditions

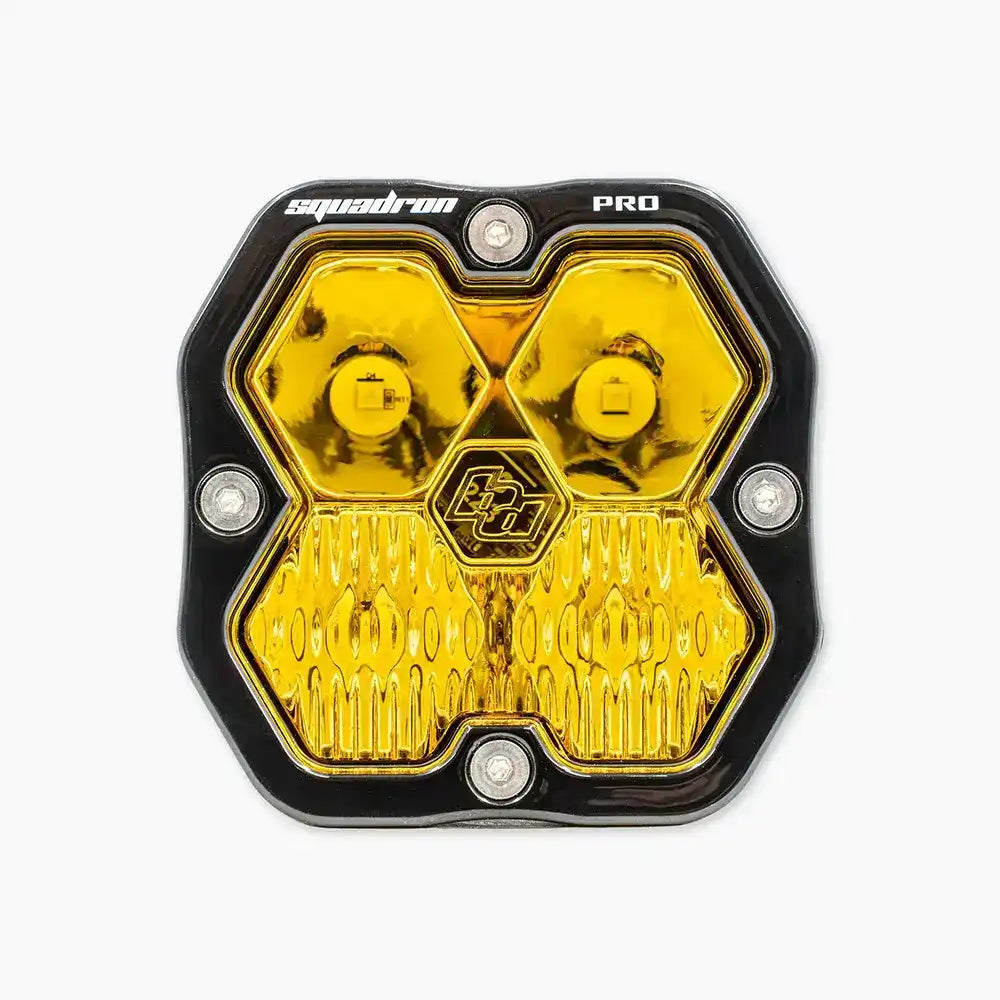

Select White Squadron 2.0 lights for maximum general-purpose visibility or Amber lighting for improved contrast in dust, fog, and other low-visibility conditions. Both options integrate with the same Sprinter-specific mounting system.
Plug-and-Play Simplicity
Clean Installation Without Custom Wiring
The standard configuration includes the required plug-and-play wiring adapter for straightforward primary-light operation. This setup provides a clean installation path without requiring you to build or modify a custom wiring solution.
Full Backlight Functionality Available
Complete Harness for Squadron 2.0 Backlight Operation
Select the backlight-enabled harness option for a complete wiring solution designed to support both primary lighting and the Squadron 2.0 integrated backlight. The complete harness eliminates the need to modify or build the backlight wiring yourself.
Backlight harness option coming soon.
Specifications
Vehicle & Mounting
- Vehicle Application: Mercedes-Benz Sprinter
- Mounting Location: Factory fog light location
- Bracket Material: 14-gauge steel
- Reinforcement: 1/4-inch steel
- Bracket Design: Single-piece construction
Baja Designs Squadron 2.0
- Output: 5,921 lumens per light
- Power: 65W per light
- Amperage: 4.7A @ 13.8V per light
- Operating Voltage: 12–32V
- Ingress Rating: IP69K
- Connector: 4-pin Deutsch
- Light Options: White or Amber
- Backlight: Integrated selectable backlight

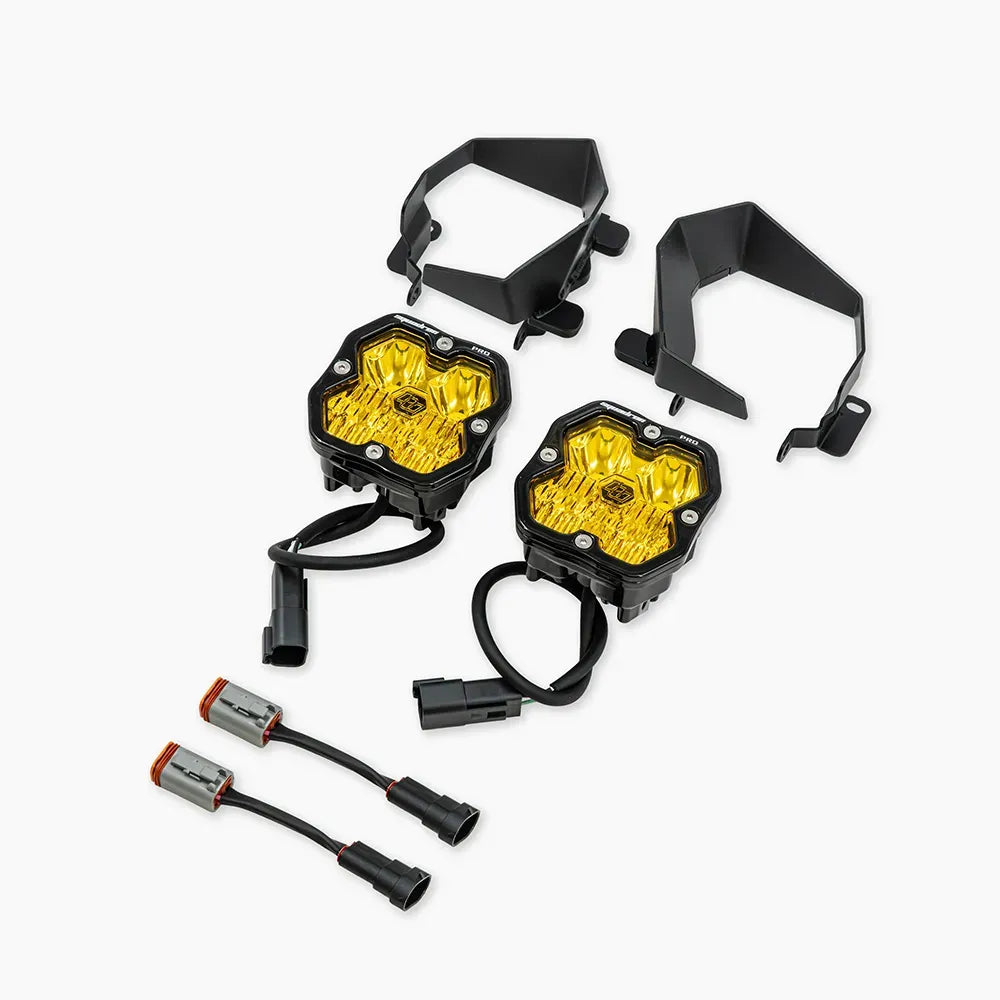

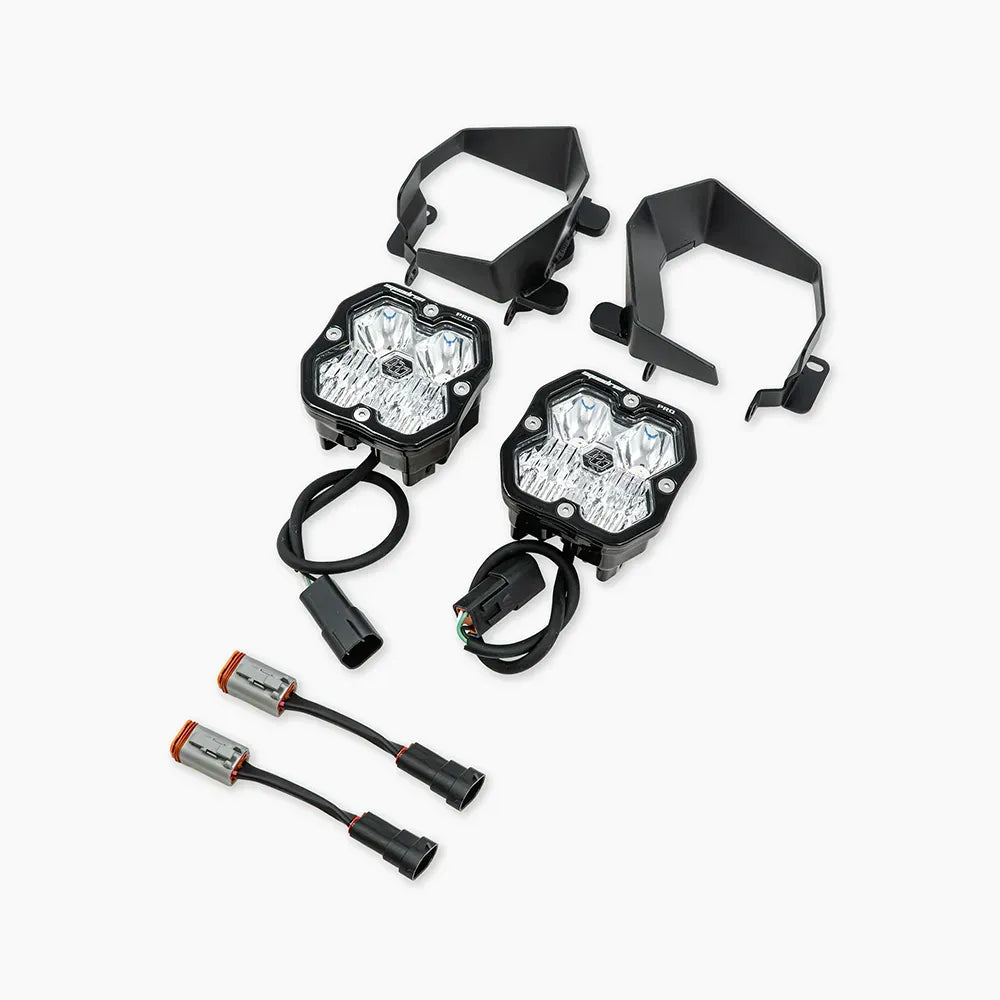

What’s Included
- Driver-side fog light bracket
- Passenger-side fog light bracket
- (2) Baja Designs Squadron 2.0 light pods in selected White or Amber configuration
- Plug-and-play wiring adapter or complete backlight-enabled harness, depending on selected option
- Required mounting hardware
Fitment
- Mercedes-Benz Sprinter
- Installs in the factory fog light location
Notes
- Choose White or Amber Squadron 2.0 lights when selecting your kit configuration.
- Standard wiring supports primary light operation and does not provide backlight functionality.
- Select the backlight-enabled harness option for integrated Squadron 2.0 backlight operation.
- Backlight-enabled harness option is coming soon.
- Confirm vehicle configuration and factory fog light compatibility before installation.
