AO MAX Auxiliary Front Shocks – Sprinter 4×4

$760.00$860.00

Finely tune your damping with AO MAX Auxiliary Front Shock’s Kit!

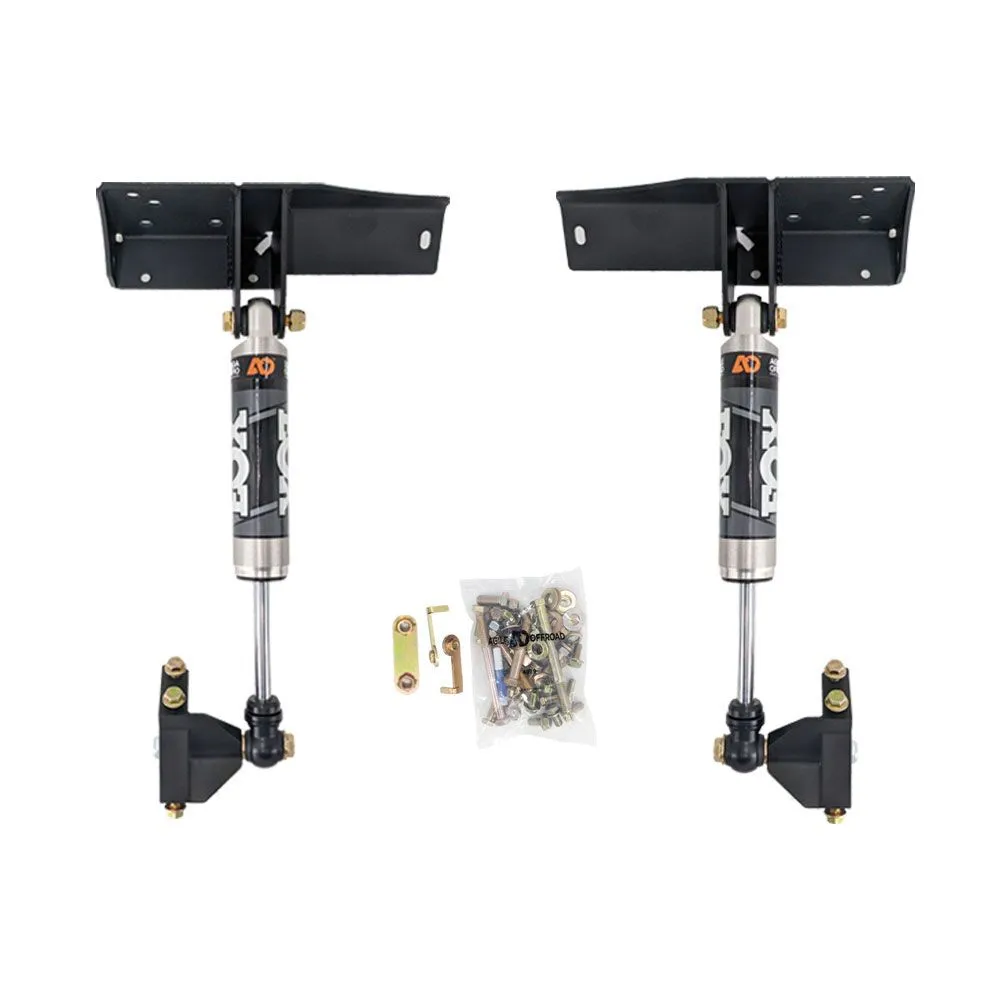

  • (2) Fox 2.0 or (2)Bilstein B8 auxiliary shocks
  • (2)Upper & (2)Lower shock brackets
  • Hardware kit

*AO Fox 2.0 Auxiliary Front Shocks and mount kit will NOT fit vans with factory rear mounted AC unit.

-

There are ways of improving the ride & handling of your Sprinter with all the shocks, RIP-Kits, sumo-springs, and add-a-leaf kits on the market. However, due to the lack of aftermarket support from the major players, there was no way to increase damping & restore motion control to the front end of the Sprinter 4×4.

Until now… Agile Off Road’s MAX Auxiliary Front Shock Kit is a bolt-on suspension upgrade for all NCV3 & VS30 Mercedes Sprinter 2500/3500 4x4s. The kit is built around our Agile Tuned Auxiliary front shocks. The design of the powder-coated steel mounting brackets allows for an industry-leading 4.5-inches of stroke. This long stroke is important because it improves the shocks ‘motion ratio’.

“Motion ratio in suspension of a vehicle describes the amount of shock travel for a given amount of wheel travel. Mathematically it is the ratio of shock travel and wheel travel. The amount of force transmitted to the vehicle chassis reduces with increase in motion ratio. A motion ratio close to one is desired in vehicle for better ride and comfort.” – Wikipedia

In layman’s terms, the AO MAX auxiliary shock’s 4.5 inches of stroke works more efficiently to provide you a comfortable ride and allows us to finely tune the damping to keep your vehicle under control. The best part is our kit fits on all 4×4 Sprinters no matter if it’s a 2500, 3500, RV, lifted or stock.

Note: Kit does not include coil-over converted front strut in photos.

*AO Fox 2.0 Auxiliary Front Shocks and mount kit will NOT fit vans with factory rear mounted AC unit.

Vehicle Fit

Mercedes Sprinter 2500 & 3500 (4x4 only)
Second Generation (NCV3) 2007 – 2018
Third Generation (VS30) 2019+

*AO Fox 2.0 Auxiliary Front Shocks and mount kit will NOT fit vans with factory rear mounted AC unit.

Weight 30 lbs
Dimensions 26 × 8 × 8 in
Auxiliary Shock

,

Specifications

  • (2) Fox 2.0 / Bilstein B8 auxiliary shocks
  • Passenger side upper shock bracket
  • Passenger side lower shock bracket
  • Passenger side nut plate
  • Driver side upper shock bracket
  • Driver side lower shock bracket
  • (2) Swaybar relocation plates
  • Hardware kit

*AO Fox 2.0 Auxiliary Front Shocks and mount kit will NOT fit vans with factory rear mounted AC unit.

Video

Instructions

Sprinter Auxiliary Shock Kit Instructions (PDF)
