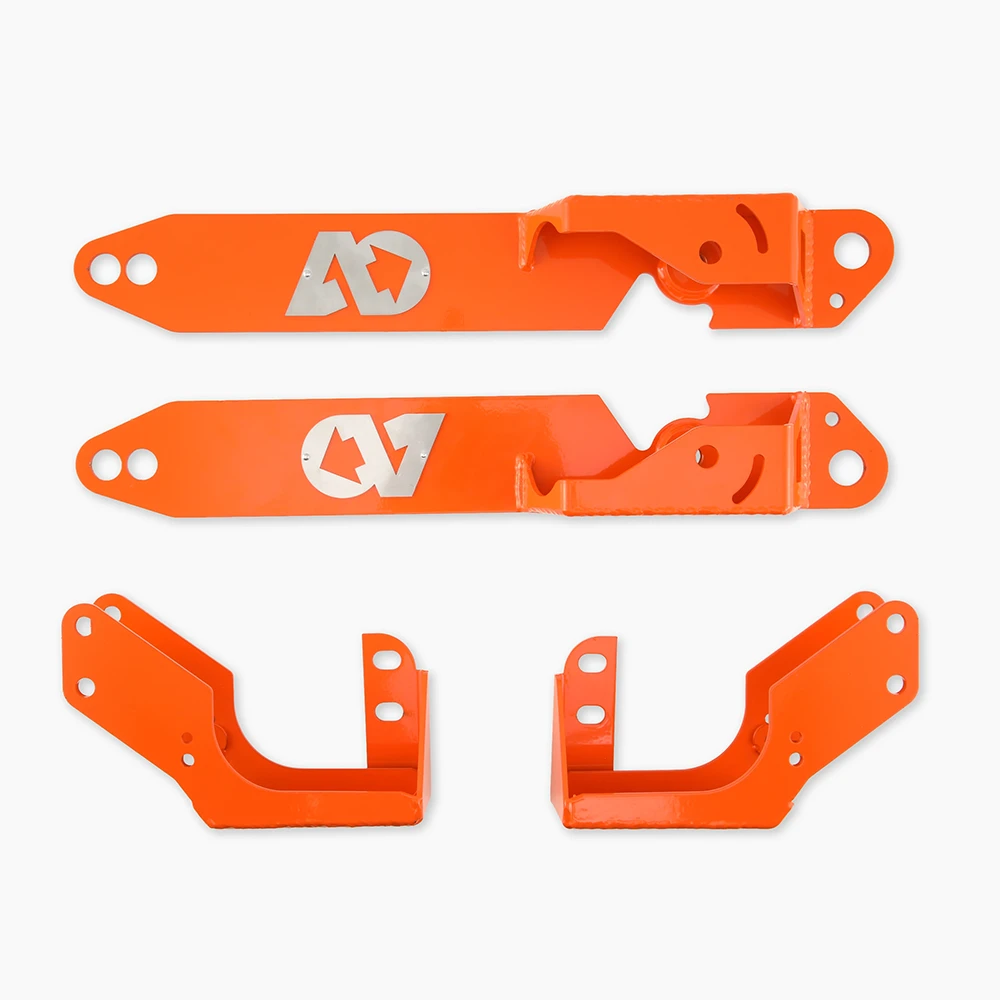

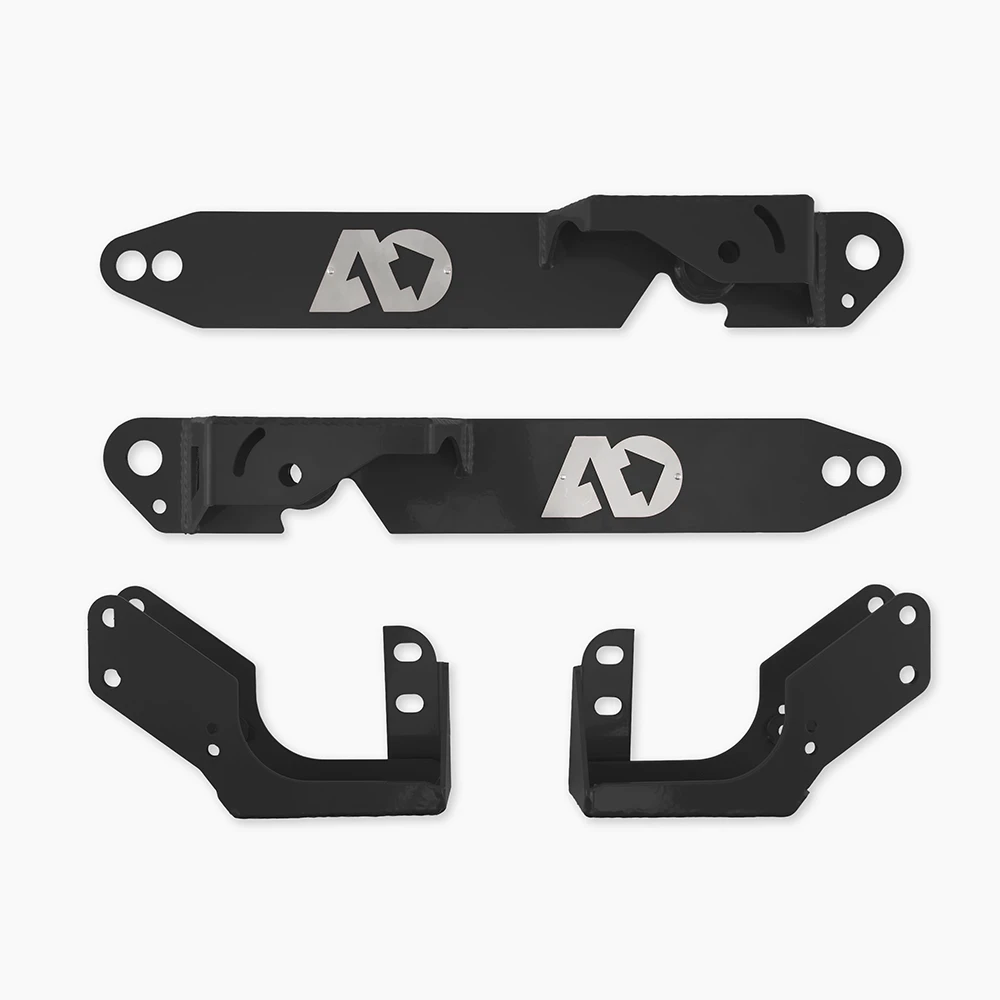

Agile Double Shear Bracket V2 for Sprinter by Agile Offroad
$799.98
- Doubles the strength of the rear mounting shock bolts
- Works with factory, aftermarket, or Agile tuned Fox shocks
- Works on stock or lifted vans
- Easy installation
Note: These redesigned double shear brackets (V2) are engineered to fit the FOX Performance Elite and Factory Race rear shocks. They are currently in production and expected to be available in late November. Pre-orders are now open for early reservation.
ADDONS
The ultimate reinforcement for your Sprinter’s rear suspension
The Agile Double Shear Bracket V2 is a redesigned and refined upgrade engineered to strengthen the rear suspension system on your Sprinter van. Developed in response to the factory shock mount’s known weak points, this updated version delivers improved durability, easier installation, and enhanced compatibility across a wider range of rear shocks.
The V2 Double Shear Bracket now accommodates Agile’s Fox Performance Elite Series (PES) and Fox Factory Race Series (FRS) rear shocks, along with factory and other aftermarket shock options. By reinforcing the upper and lower rear shock mounting points, it effectively doubles their strength, reducing the risk of failure under heavy loads and rough terrain.
Sprinter owners who push their vans off-road know that the factory shock bolt and lower axle bump stop mount are common points of stress and fatigue. The Agile Double Shear Bracket V2 solves these issues, delivering increased reliability and confidence whether your van is stock, lifted, or fully outfitted for overlanding.
*Does not fit 3500 models
*Upper bracket will work with aftermarket shocks but may require additional spacers/washers. Example: Falcon piggy back reservoir shocks
Upper Mount
- Doubles the strength of the rear upper mounting shock bolts
- Added outer shear plane
- Stainless Steel Lock tab for upper shock bolt
- Added frame reinforcement in upper bump stop location
- Works with factory or Agile tuned Fox Shocks
- Easy installation with basic automotive tools and equipment
- Black Powder coated brackets
- Zinc coated hardware
- Works on stock or lifted vans
Lower Bracket
- Doubles the strength of the lower shock mount
- Improves the motion ratio of rear shock
- Improves and strengthens the factory lower axle bump stop
- Works with factory or Agile tuned Fox Shocks
- Easy installation with basic automotive tools and equipment
- Black powder coated brackets
- Zinc coated hardware
- Works on stock or lifted vans
Vehicle Fit
Mercedes Sprinter 2500 *Does not fit 3500
Second Generation (NCV3): 2006-2018
Third Generation (VS30): 2019-22
144 / 170 Wheelbase
2WD / 4WD/AWD (2023+)
| Weight | 21 lbs |
|---|---|
| Dimensions | 24 × 8 × 7 in |
| Color | , |
| Vehicle Make | |
| Vehicle Model | |
| Vehicle Year | , , , , , , , , , , , , , , , , , , |
