IRVWPC Water Pressure Module by Agile Offroad

An Intelligent RV Water Pump Controller

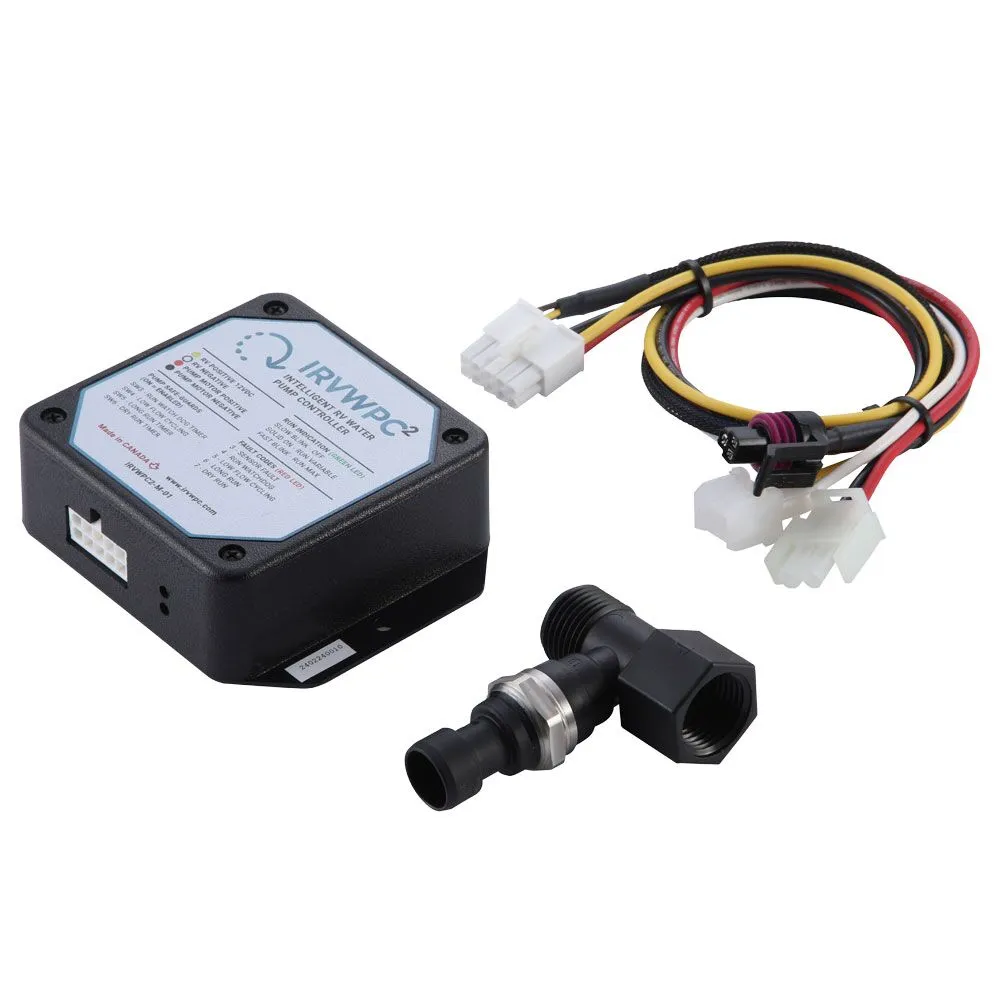

The IRVWPC Water Pressure Module is an intelligent RV water pump controller designed by Agile Offroad to be a plug-and-play solution for the Winnebago Revel.

Turn your noisy standard 12 VDC mechanical pressure switch controlled RV water pump, into a smoother running, quieter more efficient water pump, that modulates motor speed and automatically delivers just the right amount of water needed. Enjoy your Rv’ing experience – save water, electricity and reduce the noise of your water pump. Thousands have already made the switch and know first hand what a positive difference installing a IRVWPC2 can make to their RV experience!

*NOT FOR USE WITH VARIABLE SPEED PUMPS* The IRVWPC2 is designed to work with pressure switch controlled pumps and will not operate with pumps that have a built in pressure / speed controller.

• Provides precise regulated water pressure by controlling the pump motor speed.
• Eliminates pump cycling noise and vibration when using low water flows at the faucets.
• Reduces stress on pipes and reduces overall power consumption.
• Pump Safety Features for dry running, low flow detection and long run period.
• Low 32mA idle power consumption.
• 20 to 40 psi adjustable pressure range (30 to 50) Psi range programmable.
• 12 V DC operation – operates 10-16 volts.
• 8A Intermittent motor current rating handles up to 4 GPM pumps.
• The module has a GREEN and RED LEDs to indicate the running and fault status of the pump. Slow blinking GREEN to indicate the pump OFF or IDLE, solid GREEN to indicate the pump RUNNING variable speed and a fast blinking to indicate running at MAXIMUM speed. In a FAULT or ALARM condition the RED LED will blink the appropriate code.
• Internal rotary selector, slide switches and LED’s for programming.
• All water system components used carry NSF/61 approvals for potable water.
• Typical installation can be performed in less than 15 minutes.
• Industrial grade pressure transducer.
• Simple Easy Installation:
  • Color Coded 4-wire connection matches the pump motor wires and the RV power connection making it easy to deal with the pump RED wire connection in hard-to-reach places.
  • Cut the original wiring connection to the pump, then connect the RED and BLACK wires to the pump motor using the supplied WAGO connectors
  • Connect the YELLOW and WHITE wires to the original RV pump wires using WAGOs with the WHITE being the negative and the YELLOW the positive.
