Front Coilover Kit For Bilstein or Factory Sprinter Struts by Agile Offroad

$599.99

  • Increased spring force
  • Gain 1-1.5” of lift
  • Improves ride quality, handling, and comfort
  • Use with existing Bilstein B6 struts or factory Sprinter struts



-

Our front coilover conversion kit provides two benefits to Sprinter van owners. It increases spring force in the front suspension while simultaneously adding 1-1.5” of lift. Shocks & struts only control the rate of motion in your suspension. The spring is what holds your van up & keeps your wheels on the ground.  On a heavily built vehicle, the additional spring force will help your van maintain its composure and center of gravity. You’ll mostly notice the handling improvement our coilover provides during cornering. However, this kit will also benefit overlanders in a myriad of off-road situations.


This front coilover Sprinter suspension kit includes (2) Agile upper spring seats (2) Agile lower spring perches and  (2) Hyperco coil springs that can be installed with your existing Bilstein B6 struts or factory Sprinter struts.

Vehicle Fit

Mercedes Sprinter 2500 & 3500 (2WD,4WD/AWD)
Second Generation (NCV3) 2007 - 2018
Third Generation (VS30) 2019+

Fit Notes: Agile wheel spacers are required for the tire to safely clear the coil spring.

Weight 10 lbs
Dimensions 14 × 8 × 5 in
Spring Force

150, 200

Drive

4WD/AWD, 2WD

Vehicle Make

Mercedes-Benz

Vehicle Model

Sprinter 2500, Sprinter 3500

Vehicle Year

2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025

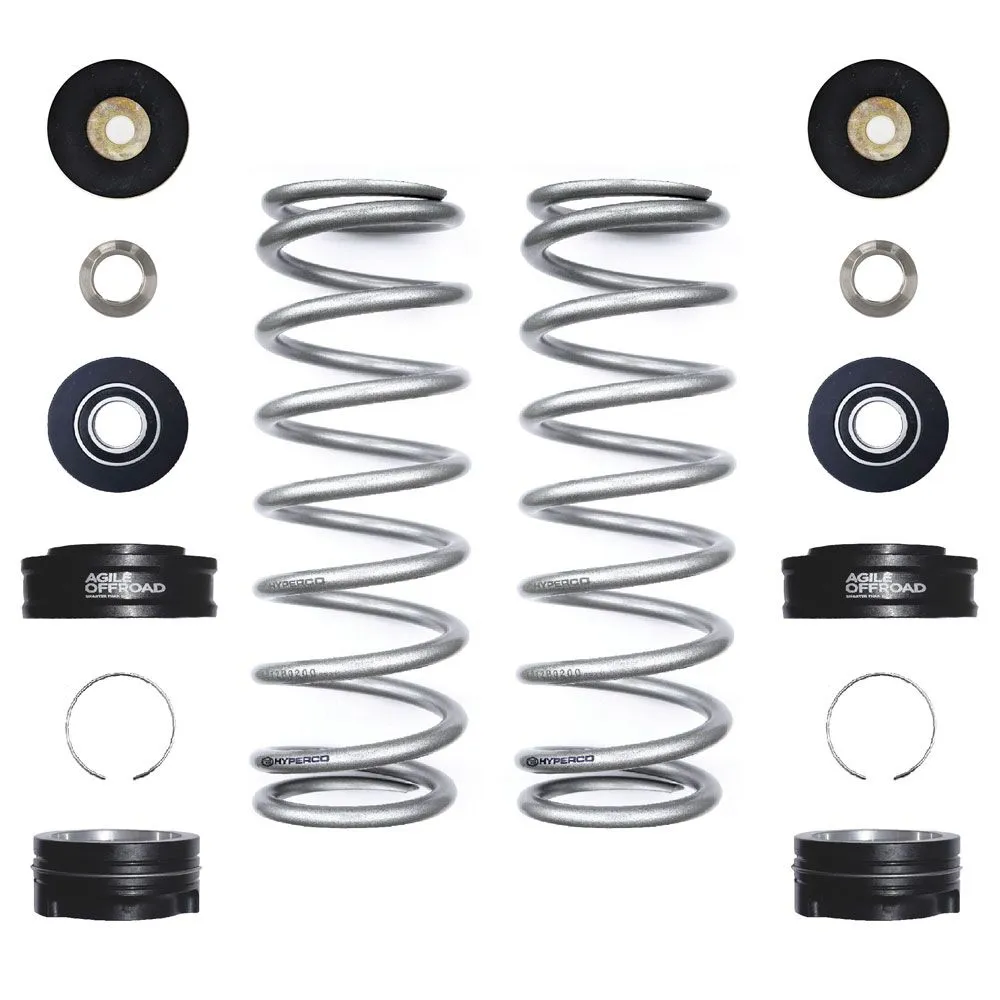

Package Includes

  • (2) Agile upper spring seats
  • (2) Agile lower spring perches
  • (2) Hyperco coil springs

*Use with existing Bilstein B6 struts or factory Sprinter struts.
