28 Gallon Auxiliary Fuel Tank for Sprinter by Agile Offroad
Extend your range with a Sprinter auxiliary fuel tank.
- 28 Gallon Fuel Capacity
- Mounts in place of OEM spare tire
- High-volume fuel transfer pump included
- Stainless steel construction
ONLY available for installation. Contact us for more info.
-
There are no gas stations in the great outdoors!
Extended range fuel tanks not only prevent you from being stranded but allow you and your family to explore deeper into the wilderness than ever before. We worked exclusively with Aero Tanks to design and manufacture this auxiliary fuel tank for Mercedes Sprinter vans.
Yes, will our tanks allow you to go further between fill-ups, but that’s useless if they hamper the off-road capabilities of your rig. By mounting our auxiliary tanks as centrally as possible underneath your rig we keep the center of gravity low to ensure predictable handling on unpredictable terrain. Our tanks are internally baffled to prevent sloshing. Stainless steel construction (double-layered on the bottom) ensures a corrosion-free life & impact damage for years to come.
This is a transfer-style auxiliary tank. Fuel is pumped to and from this tank to the main tank via a switch-controlled electric fuel pump. This tank mounts in place of the factory rear spare tire basket. Need a place to mount your now displaced spare tire? Check out our Sprinter rear door tire carriers.
- 28 Gallon Fuel Capacity

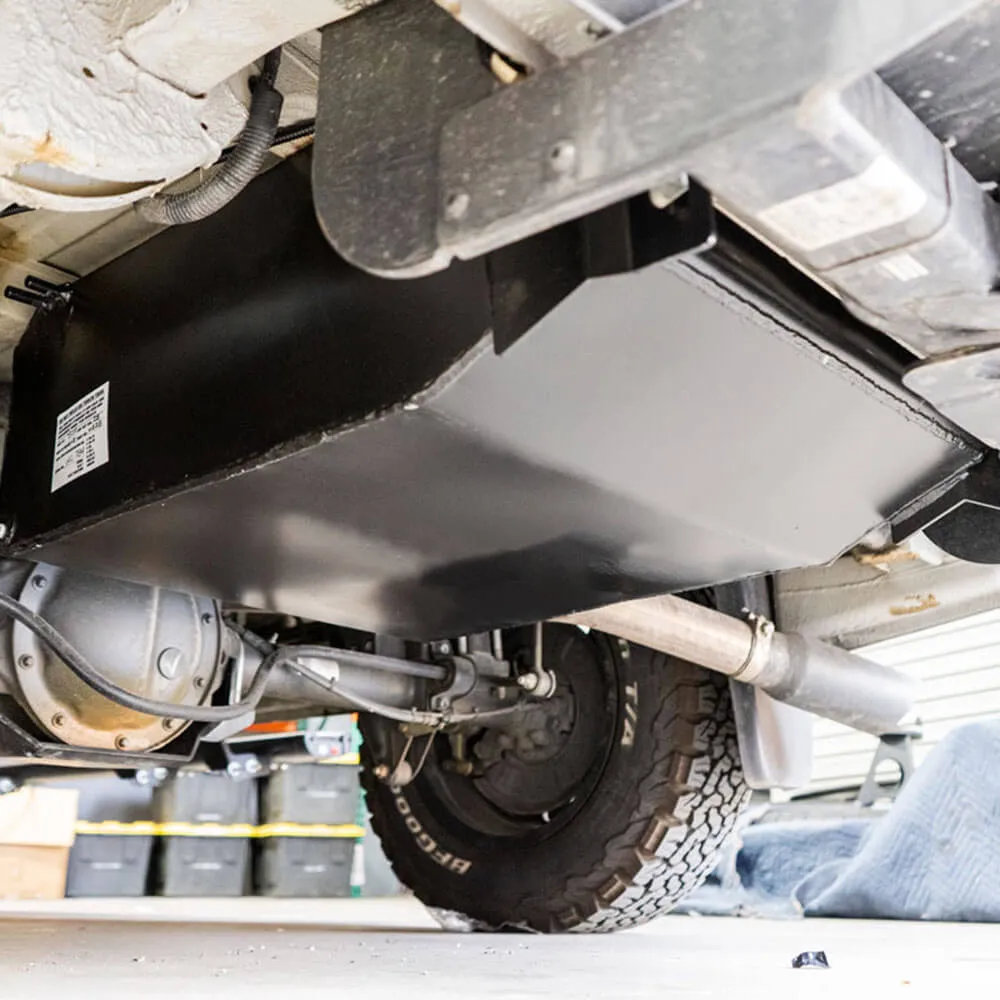

- Mounted underneath the rear of the vehicle where OEM spare tire would be (note: requires spare tire relocation to rear bumper/door/etc.)
- Includes high-volume fuel transfer pump
Priced at $2,999 (+installation)
28-gallon auxiliary Sprinter fuel tanks are only available as an installed part at our Santee, CA shop or one of several Authorized Agile Off Road dealers. Contact us directly to schedule an installation appointment.
Fit Notes: Fits 2007 & newer diesel Sprinter 2500 & 3500 models only.
Vehicle Fit
Mercedes Sprinter 2500/3500
Second Generation (NCV3): 2007 – 2018
Third Generation (VS30): 2019+
*DIESEL ONLY
| Weight | 98 lbs |
|---|---|
| Dimensions | 36 × 36 × 13 in |
| Capacity | |
| Vehicle Fit | NCV3 Sprinter 2500 2wd, NCV3 Sprinter 2500 4×4, NCV3 Sprinter 3500 2wd, NCV3 Sprinter 3500 4×4, VS30 Sprinter 2500 2wd, VS30 Sprinter 2500 4×4, VS30 Sprinter 3500 2wd, VS30 Sprinter 3500 4×4 |
| Vehicle Make | Mercedes-Benz |
| Vehicle Model | Sprinter 2500, Sprinter 3500 |
| Vehicle Year | 2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025 |
Specifications
- 28 Gallon Capacity
- Mounted underneath the rear of the vehicle where OEM spare tire would be (note: requires spare tire relocation to rear bumper/door/etc.)
- Includes high-volume fuel transfer pump
