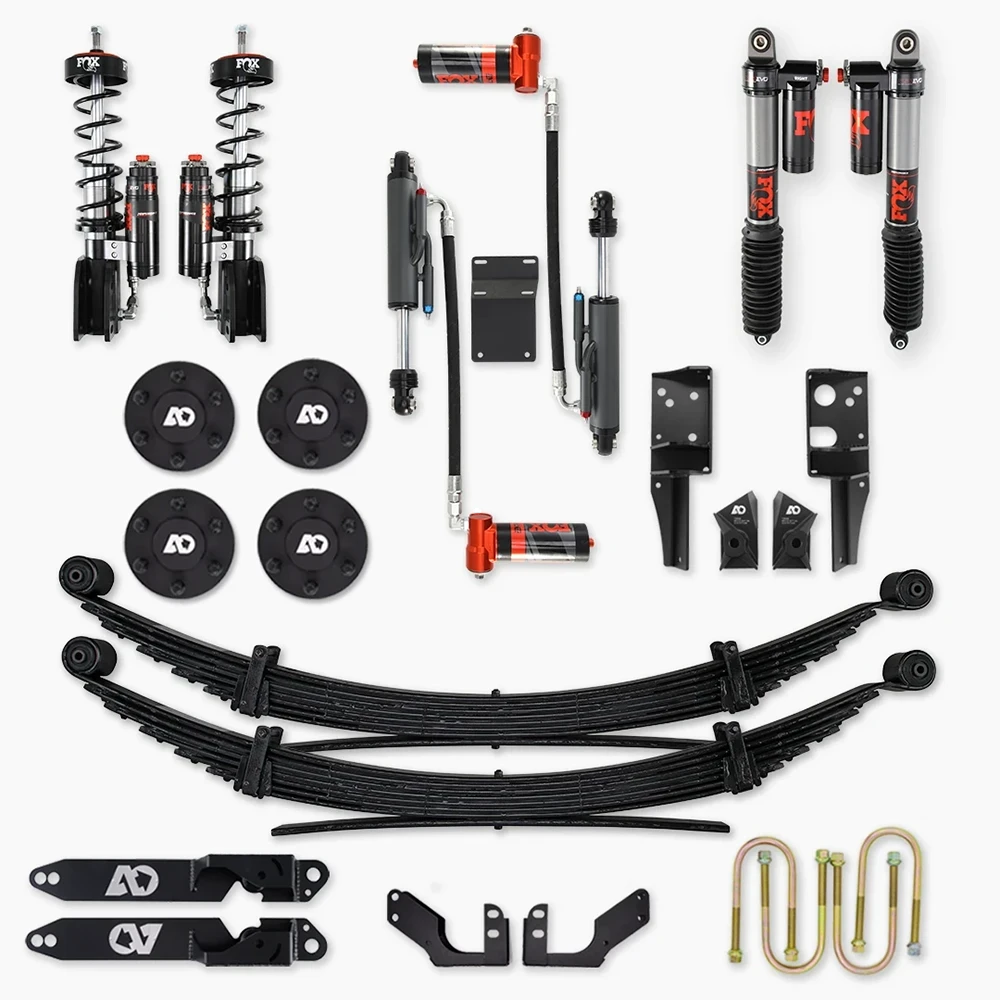

2.5 Performance Elite RIP Kit for Sprinter 2500 4WD/AWD by Agile Offroad
Price range: $8,182.84 through $12,482.83
- Fox Performance Elite Struts with Coil Springs (Front)
- Fox Performance Elite Rear Shocks
- Upper & Lower Shear Brackets
- Agile RIP Custom Rear Leaf Springs
- (4) Agile Hub-Centric Wheel Spacers & Stud Conversion Kit
- Complete Installation Hardware Kit
ADDONS
Sprinter Performance & Control Elevated
The 2500 4WD/AWD 2.5 Performance Elite RIP Kit by Agile Offroad
Agile Offroad’s Performance Elite RIP Kit is the ultimate suspension solution for 4WD, and AWD Sprinter 2500 vans built for serious off-road adventure, and on road performance. Centered around Fox’s 2.5 Performance Elite Series shocks and struts with DSC adjusters, this kit offers precision handling, improved ride quality, and long-lasting durability across a wide range of conditions.
Whether you’re navigating backcountry terrain or loaded down for extended travel, the Performance Elite RIP Kit is engineered to enhance comfort, stability, and control. It comes with a matched front coilover setup and robust rear upgrades to handle added weight and rough terrain with confidence. Optional front auxiliary shock packages let you tailor the system even further to your driving needs, from weekend explorers to full-time overlanders.
This kit contains heavy, oversized components and ships via freight. A team member will reach out before shipping to coordinate delivery.
Application specific tuning
Consistent dampening under load
Larger digressive pistons resist fade and overheating
Adjustable compression for customized performance
Built for bolt-on installation
Precision Compression Control at All Four Corners
FOX 2.5 Performance Elite dampers come equipped with Dual Speed Compression (DSC EVO) adjusters, allowing independent high- and low-speed tuning. Whether you're carving pavement, crawling rocks, or loaded with gear, this adjustability gives you full control over ride quality and responsiveness.
Heavy-Duty FOX 2.5 Platform for Demanding Terrain
The heart of this RIP Kit is FOX’s proven 2.5-inch Performance Elite platform, featuring oversized shock bodies and remote reservoirs. With increased oil capacity and improved heat dissipation, these dampers are built to handle long-distance overlanding, washboard trails, and rugged backcountry use.
Tailored Digressive Valving for Sprinter Vans
Upgrade Your Front End with Optional Aux Shocks
Level up your suspension with Agile’s front auxiliary shock upgrade. Choose FOX 2.0 Performance Series for general off-road control or go all in with Factory Race Series external auxiliary shocks for extreme damping performance, fine-tune adjustability, and superior cooling in high-speed off-road environments.
Proven System, Engineered to Work Together
This RIP Kit isn’t just a collection of upgrades, it’s a fully integrated suspension system refined through years of real-world testing. FOX struts and shocks, as well as Agile-tuned leaf springs all work in unison to deliver balanced performance, load control, and durability you can rely on wherever you roam.
Specifications
- Vehicle Fitment: Mercedes-Benz Sprinter 2500 4WD AWD (2015+)
- Front Shock Type: FOX 2.5 Performance Elite Coilover Strut
- Rear Shock Type: FOX 2.5 Performance Elite Reservoir Shock
- Adjustability: High- and Low-Speed Compression (DSC EVO)
- Rear Leaf Spring Options: 4200, 4200 with 1” Lift, 4700, 5400, or 6000 lb
- Installation: Bolt-on, no fabrication required
- Optional Upgrade: Front Auxiliary Shock Packages
Video
| Weight | 400 lbs |
|---|---|
| Dimensions | -- × -- × -- in |
| Vehicle Make | |
| Vehicle Model | |
| Vehicle Year | , , , , , , , , , , , , , , , , , , |
| Sprinter Generation | , |
| Auxiliary Shock | , , |
| Rear Spring Rate | , , , , |
| Wheel Hardware | , , , , |
