Victron Energy SolidSwitch 104 by Agile Offroad
$46.00
- 8–70V DC range
- 4A max load current
- ABS matte black housing
- Reliable low-power switching
- Ideal for BMS-controlled alternator triggers
In stock
ADDONS
Smart Switching for Small DC Loads

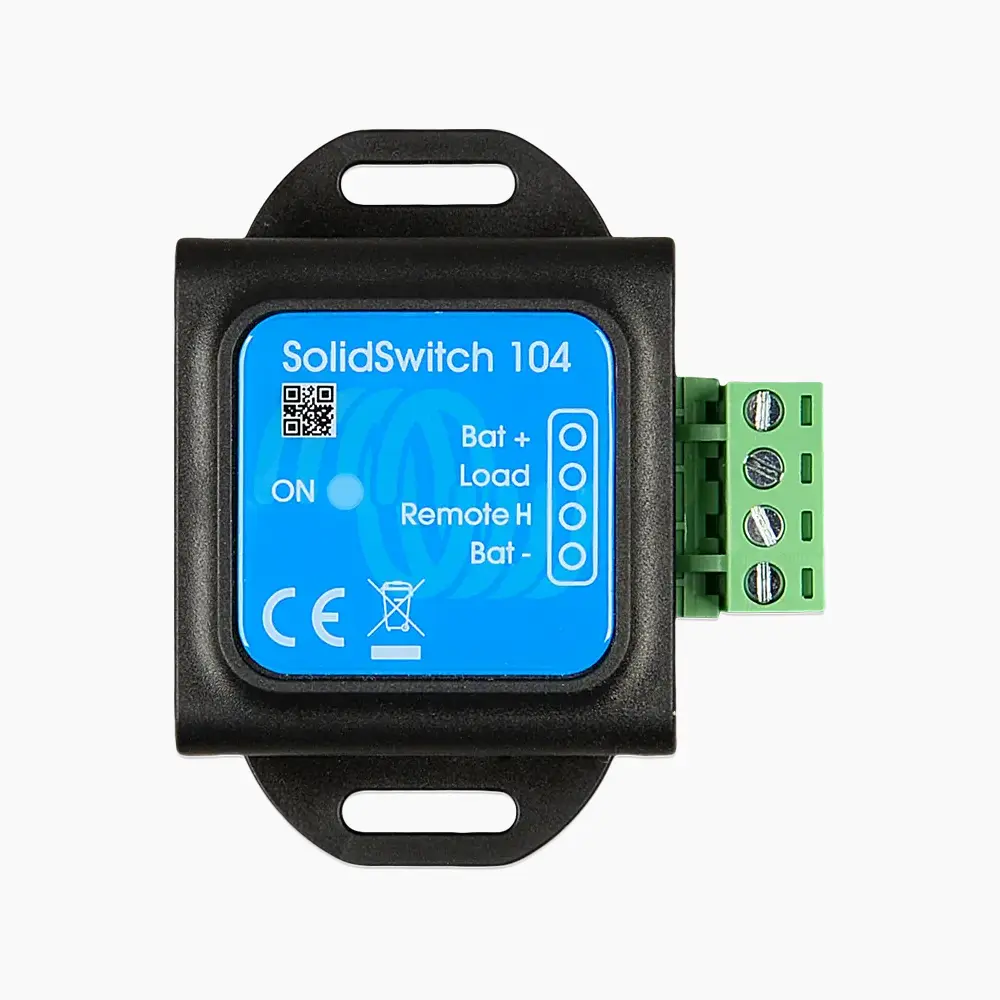

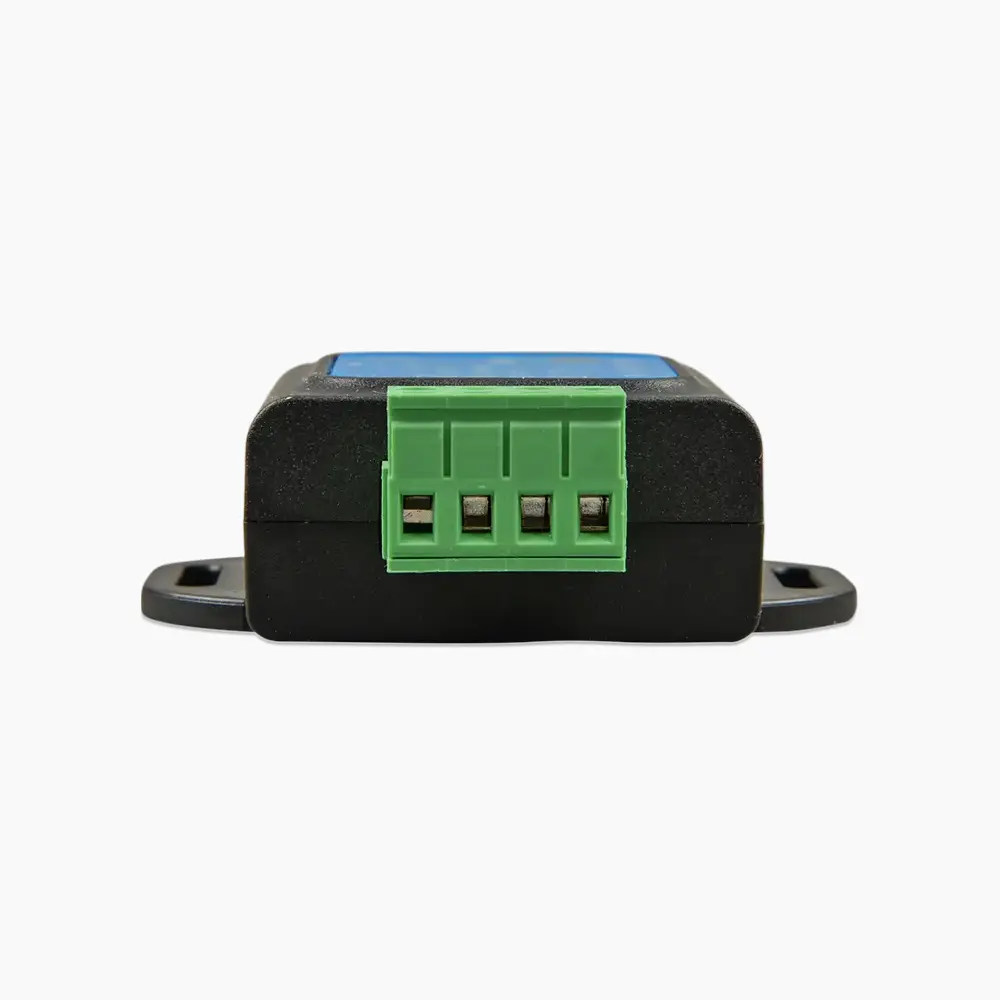

Victron Energy SolidSwitch 104 by Agile Offroad
The SolidSwitch 104 is a solid-state relay designed to switch small DC loads up to 4A and 70V, using a low-voltage trigger signal.
Victron’s SolidSwitch 104 is built for low-power DC switching applications. It handles up to 4 amps at 70VDC and responds to a control signal as low as 3.3V. Compact and reliable, it’s ideal for applications like turning an alternator on or off based on a signal from a lithium battery BMS. The device is protected against overload and features high resistance to humidity and temperature extremes, making it perfect for 12V, 24V, or 48V systems.
Specifications
- Input Voltage: 8–70V DC
- Max Load Current: 4A
- Max Capacitive Load: Up to 1000µF
- Max Inductive Load: Up to 1000mH (at 1A)
- Remote Trigger Input: 3.3V–70V (min. 30µA)
- Dimensions: 58 x 66 x 23 mm
- Protection Grade: IP20
- Operating Temp: -20°C to +50°C
- Housing Material: ABS, matte black
| Weight | 2 lbs |
|---|---|
| Dimensions | 5 × 5 × 2 in |
