Victron Energy SmartShunt 500A/50mV (Standard version)
$955.40
- Built-in 500A contactor
- Bluetooth connectivity
- Integrated battery monitor
- Enables safe system-wide battery shutoff
- Simplifies system setup and diagnostics
- Provides real-time battery health monitoring
- Supports 12V, 24V, and 48V lithium setups
In stock
ADDONS
Advanced Battery Management with Built-In Contactor

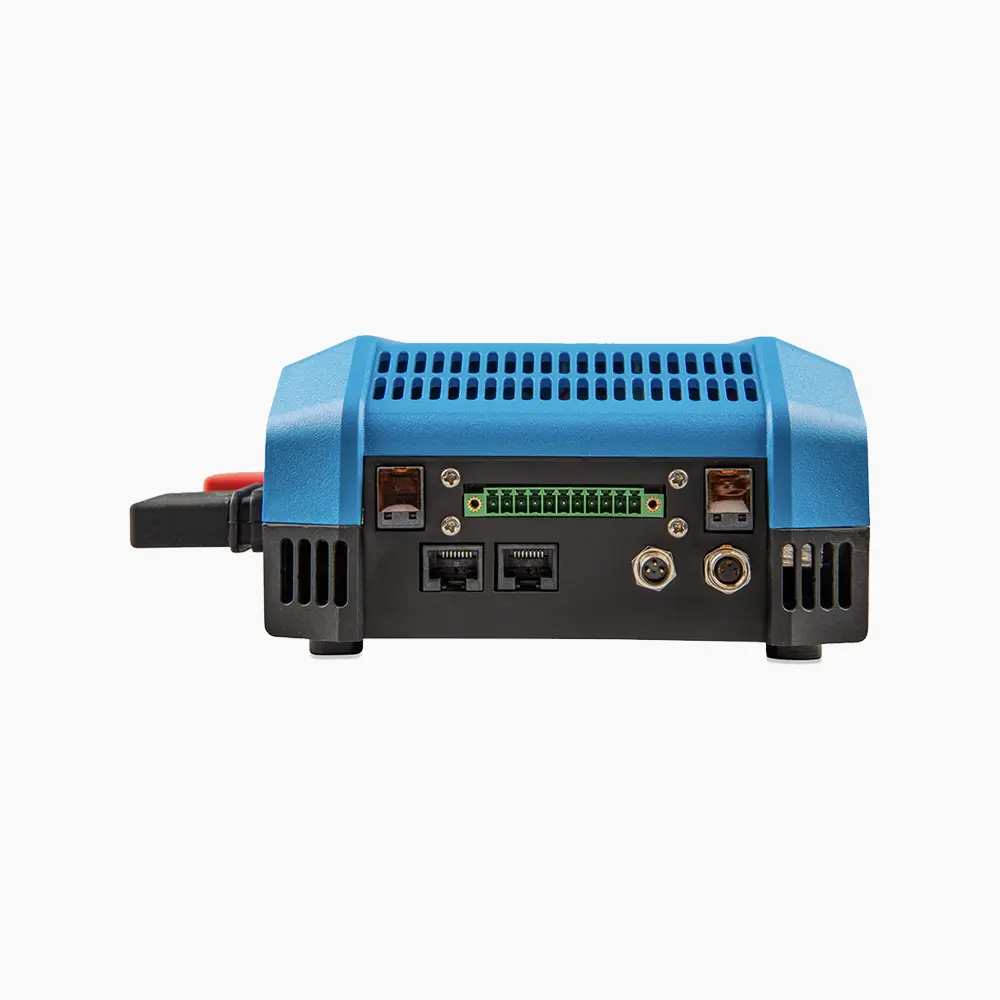

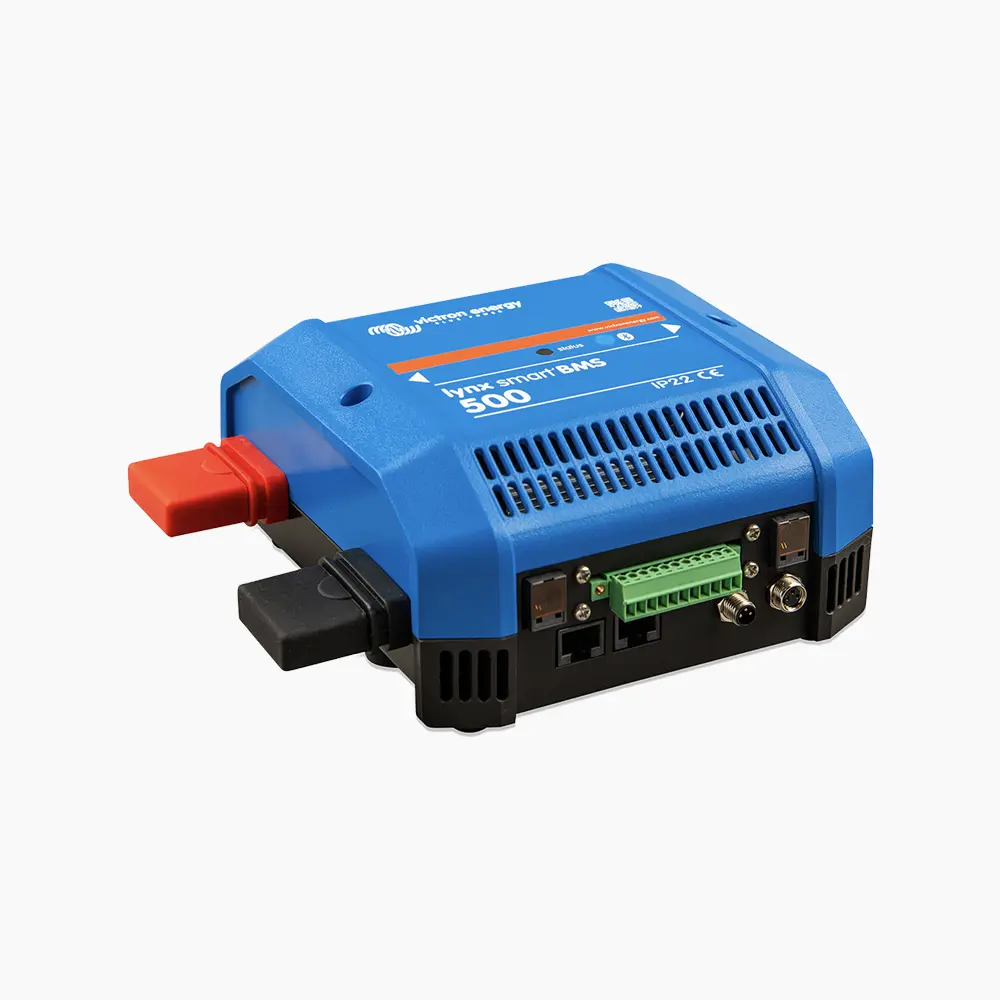

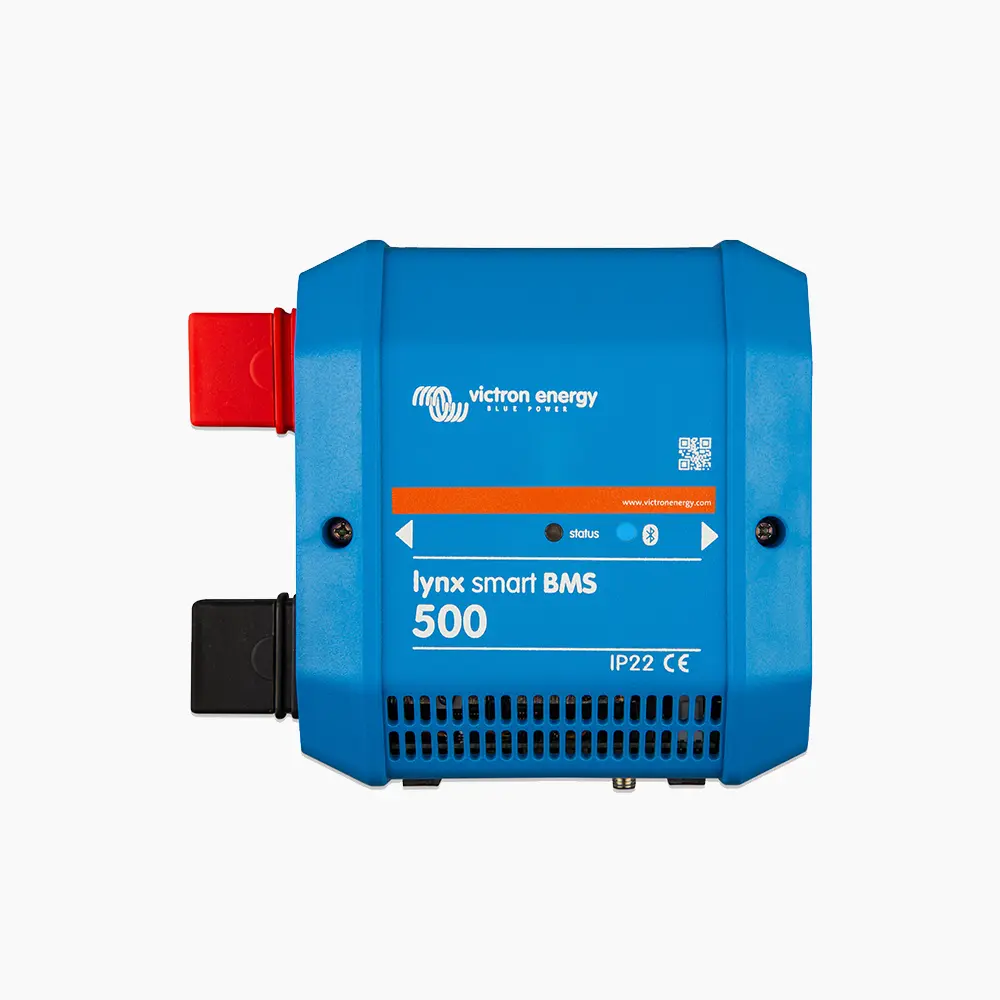

Victron Energy Lynx Smart BMS 500 (M8) by Agile Offroad
The Lynx Smart BMS 500 is Victron’s all-in-one battery management solution for Smart Lithium batteries. It features a built-in 500A contactor, battery monitor, Bluetooth connectivity, and pre-alarm functions. Ideal for integration into the modular Lynx power distribution system.
Specifications:
- Supply Voltage Range: 9–58 VDC
- Supported System Voltages: 12V, 24V, 48V
- Contactor Rating: 500A continuous / 600A for 5 min
- Max Current AUX Output: 1.1A @ 60VDC
- Allow-to-Charge/Discharge Ports: 0.5A @ 60VDC (fused)
- Alarm Relay (SPDT): 2A @ 60VDC
- Communication: RJ45 (VE.Can) / RJ10 (Lynx)

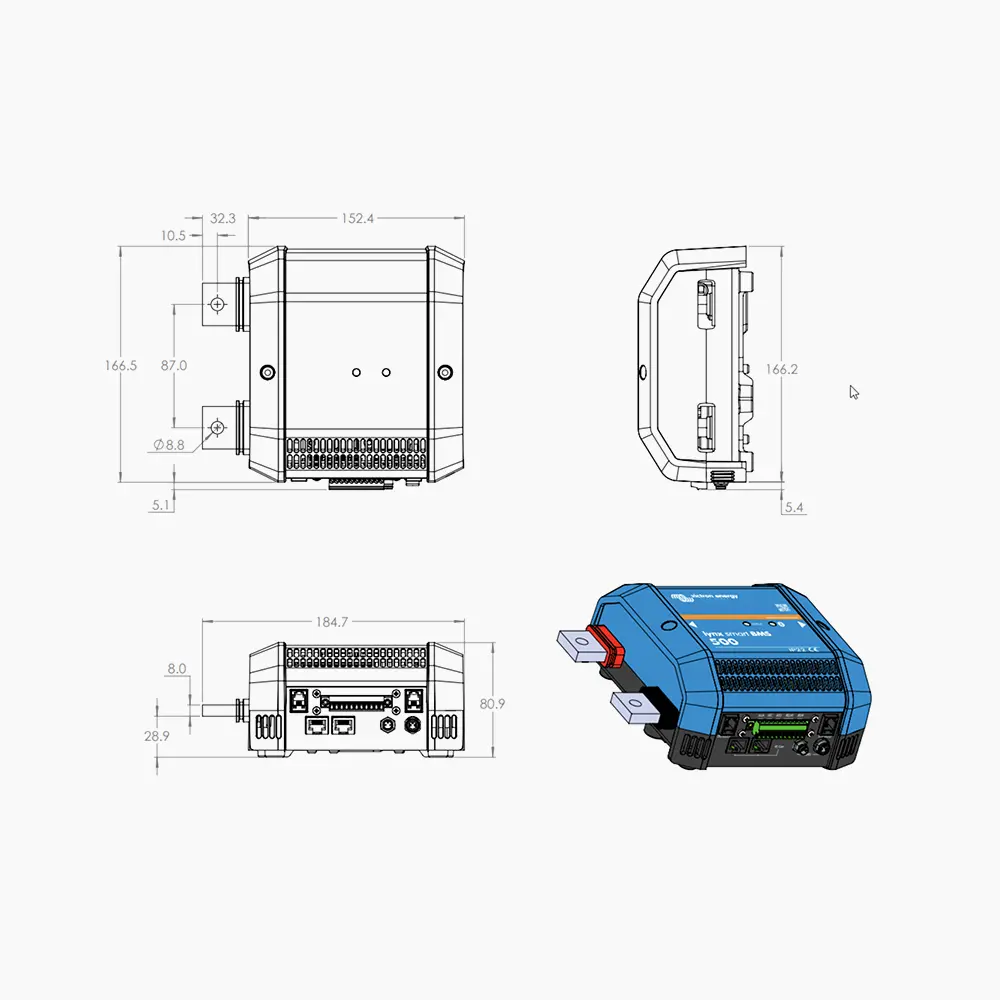

- Dimensions: 190 x 180 x 80 mm
- Weight: 1.9 kg
- Protection Class: IP22
- Operating Temp Range: -40°C to +60°C
| Weight | 5 lbs |
|---|---|
| Dimensions | 7 × 7 × 4 in |
