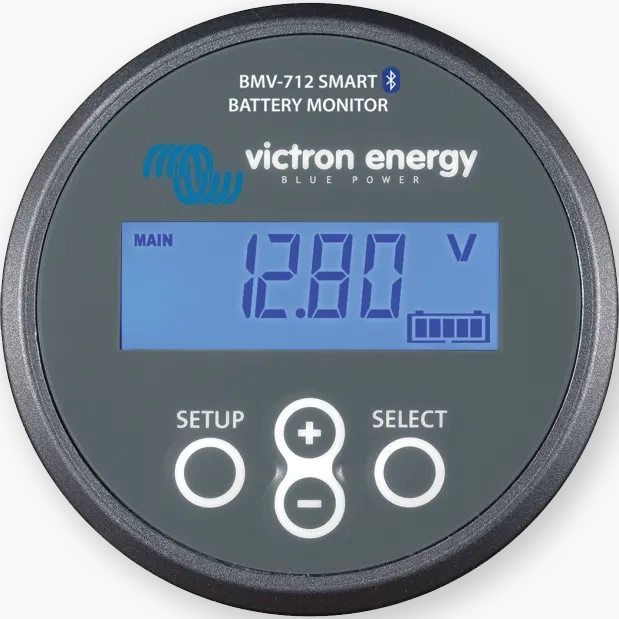

Victron BMV-712 Smart Battery Monitor with Bluetooth by Agile Offroad

Victron BMV-712 smart battery monitor

Victron BMV-712 smart battery monitor with Bluetooth

Smart battery monitor designed to track real-time battery health and performance. Bluetooth connectivity offers wireless configuration and data viewing through the Victron smartphone app.

The Victron BMV-712 Smart Battery Monitor provides detailed visibility into battery usage and performance, showing voltage, current, state of charge, and amp hours consumed. Integrated Bluetooth enables wireless configuration, historical data access, and firmware updates using the Victron app. Ideal for optimizing battery systems in mobile and off-grid applications.

Benefits

• Improves battery performance tracking
• Helps prevent unexpected outages
• Simplifies configuration and monitoring
• Extends battery system longevity

Key Features

• Bluetooth-enabled battery monitor
• Tracks voltage, current, and state of charge
• Records amp hours and historical trends
• Programmable alarms and relay
• VE.Direct communication port

Smart performance monitoring

Real-time battery system visibility

The BMV-712 offers detailed feedback on battery usage including voltage, current, state of charge, and amp hours consumed. This level of clarity helps identify consumption patterns, improve charging strategies, and plan for future electrical demands. By allowing accurate assessment of battery health, it enhances both reliability and system efficiency in demanding environments.

Bluetooth-enabled control

Wireless app-based configuration

Built-in Bluetooth support connects to the Victron app for wireless setup, data viewing, and firmware updates. Users can access historical graphs, troubleshoot performance changes, and refine system settings without direct panel access. Bluetooth also allows communication between Victron components for enhanced integration and smarter energy management.

Advanced alarm functions

Programmable visual and audible alerts

The BMV-712 includes configurable alarms for voltage, state of charge, and other critical conditions to support protective actions before a failure occurs. A bi-stable relay can interrupt non-critical loads or activate a generator when needed. These features help safeguard battery systems and ensure stable power availability in off-grid applications.

Efficient and easy to install

Quick-connect wiring and compact shunt

All electrical connections attach to the current shunt through quick-connect terminals, simplifying installation on existing systems. The included bezel allows square or round mounting options for a clean dashboard appearance. Low standby current draw preserves reserve capacity, which is especially valuable in lithium-based battery systems.

Specifications

• Communication port: VE.Direct
• Relay: Programmable
• Alarms: Programmable
• Monitoring: Voltage, current, power, amp hours, state of charge
• Data logging: Historical event logging
• Input voltage range: 6.5 to 70 V
• Current resolution: 10 mA
• Shunt capacity: Up to 10,000 A
• Standby consumption: Low

Important Notes

Clearance item sold as is, no returns.
