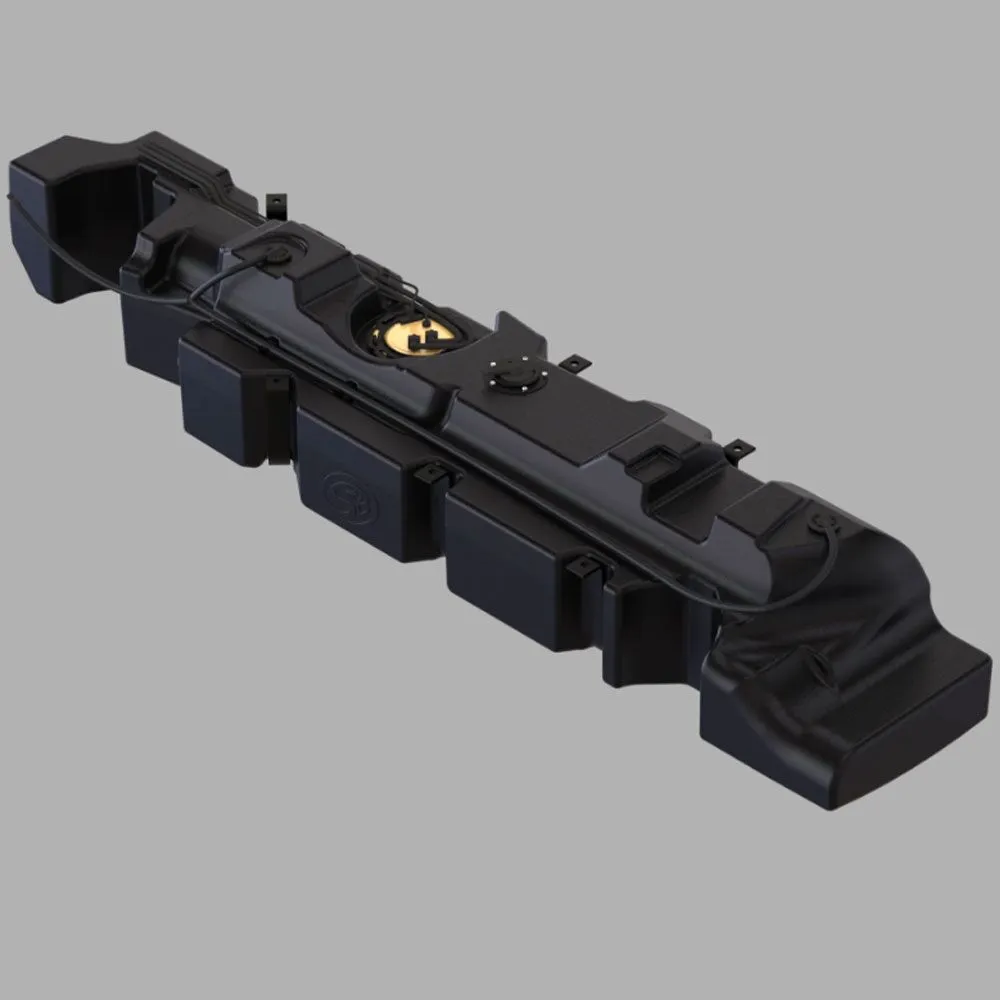

S&B 40 Gallon Fuel Tank for 2023+ Sprinter
$1,549.00
Availability: In stock
Free Shipping! (Continental US Only)
-
The S&B Tank for AWD vans fits 170″ Crew, Sanctuary, Tranquility, Entegra Launch, Jayco Terrain, 2025+ Revels and any builds that have plumbing or interference behind the original fuel tank.
When using the auxiliary fuel tap on stock tanks, tap stops pulling fuel around 1/4 tank. With the S&B Tank, it will stop pulling fuel around 1/3-1/2 tank.
Important: The fuel gauge will only work accurately on vans with the J51 fuel gauge (optimized for aux. fuel tap). All 2020+ Revels should have been built with this option but please confirm by sending us your vin or consulting with your installer.
Note: Will not fit 144″ Dually.
Vehicle Fit
Mercedes Sprinter 2500
2023+ Sprinter / 144" & 170" Wheelbase
2025 Winnebago Revel
2024 Jayco Terrain
2024 Entegra Launch
*DIESEL ONLY
| Weight | 70 lbs |
|---|---|
| Dimensions | 100 × 24 × 24 in |
| Vehicle Fit | VS30 Sprinter 2500 2wd, VS30 Sprinter 2500 4×4, VS30 Sprinter 3500 2wd, VS30 Sprinter 3500 4×4 |
| Capacity |
Specifications
- Dimensions: 79.91 x 15.94 x 14.18
- Drain: No
- Ground clearance compare to oe tank: 1.5"
- OEM capacity: 24 Gallons
- Sending unit: OE
- Straps included: Yes
- Sump: No
- S&B Capacity (Approximate): 40 Gallons
- Tank type: Midship
- Weight dry:37 lbs
Video
