Sale!

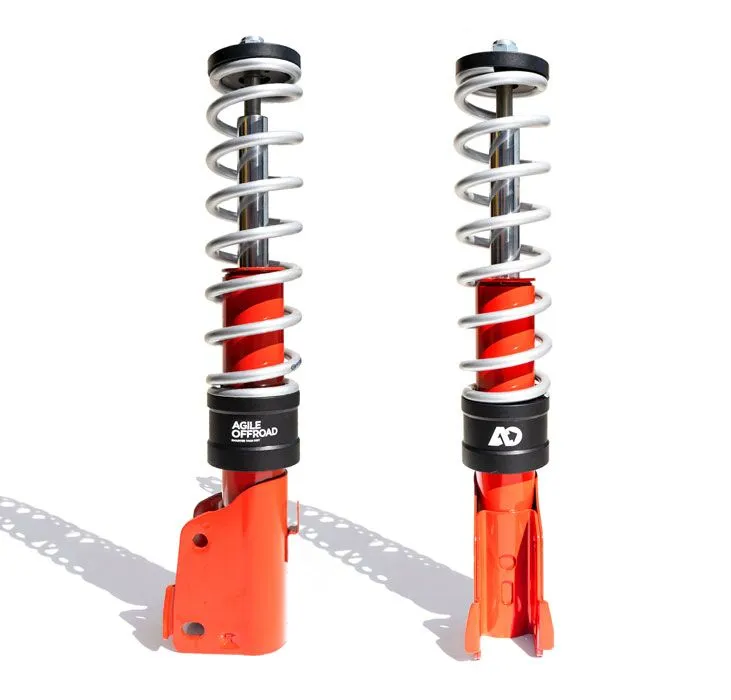

Front Coilover Koni Strut For Sprinter 4×4 / AWD by Agile Offroad

Original price was: $1,079.99.Current price is: $799.99.

  • Increased spring force improves front suspension performance
  • Gain 1-1.5” of lift
  • (2) Koni Special D precision tuned struts
  • Improves ride quality, handling, and comfort

-

Our front coil-over conversion kit provides two benefits to Sprinter van owners. It increases spring force in the front suspension while simultaneously adding 1-1.5” of lift. Shocks & struts only control the rate of motion in your suspension. The spring is what holds your van up & keeps your wheels on the ground.  On a heavily built vehicle, the additional spring force will help your van maintain its composure and center of gravity. You’ll mostly notice the handling improvement our coil-over provides during cornering. However, this kit will also benefit overlanders in a myriad of off-road situations.


Whether you’re looking to replace your worn existing front struts or upgrade to a better performing pair we have you covered. This kit includes (2) Koni Special D adjustable (Red) struts, which are an upgrade over the originally equipped factory strut.

Fit Notes: Agile wheel spacers are required for the tire to safely clear the coil spring.

Vehicle Fit

Mercedes Sprinter 2500 & 3500 (4x4 & AWD)
Second Generation (NCV3) 2007 - 2018
Third Generation (VS30) 2019+
2023

Fit Notes: Agile wheel spacers are required for the tire to safely clear the coil spring.

Weight 40 lbs
Dimensions 19 × 9 × 5 in
Spring Force

150, 200

Vehicle Make

Mercedes-Benz

Vehicle Model

Sprinter 2500, Sprinter 3500

Vehicle Year

2007, 2008, 2009, 2010, 2011, 2012, 2013, 2014, 2015, 2016, 2017, 2018, 2019, 2020, 2021, 2022, 2023, 2024, 2025

Package Includes

  • (2) Agile upper spring seats
  • (2) Agile lower spring perches
  • (2) Hyperco coil springs
  • (2) Koni adjustable front struts

Instructions

Koni 4x4 RIP Coil Installation Guide
