33 Gallon Left/Right Wheel Well Water Tank by Agile Offroad
$299.00
$349.99 Price reduced!
- Tank sits rear of wheel well on driver side and in front of wheel well on passenger side
- Tank is designed NOT to be pressurized (i.e. Needs to be vented)
- Can be placed either driver or passenger side
- Tanks are made from BPA Free Food Grade Plastic
TEI tested & listed / RVIA Approved
-
ADDONS
The 33 gallon potable wheel well water tank is designed to fit the Mercedes Sprinter 2500, Sprinter T1N, Ford Transit and RAM Promaster vans fitting snugly against the wall and around the rear wheel tubs. These tanks can be oriented in any direction to fit your build requirements.

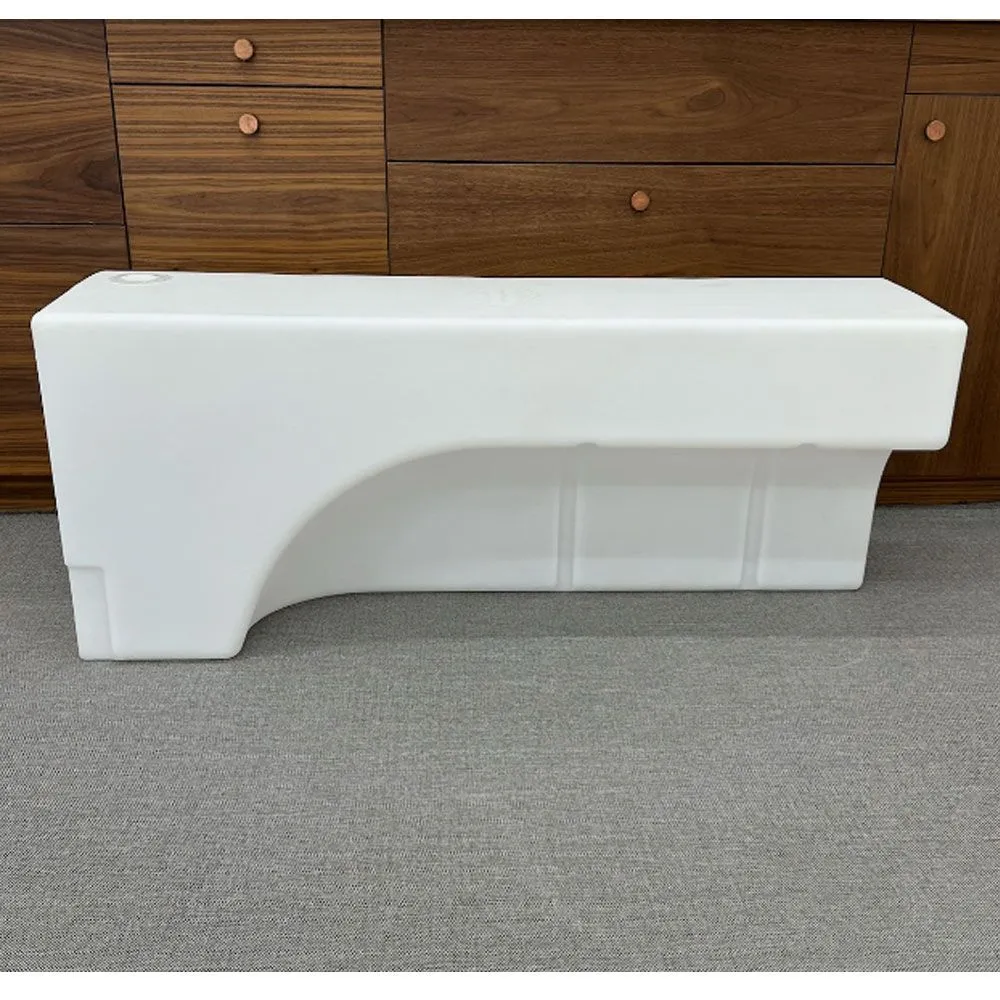

For clarity when ordering, we identify the tank with the offset towards the rear on the passenger side as the “Right” tank (pictured) and the driver side as the “Left” tank. These tanks accept 1/2″ (black plugs) and 1-1/2″ (need to be drilled) NPT fittings. The tanks measures 48″ long x 20″ tall x 12.5″ wide.
- Accepts variety of universal fittings
- 33-gallon capacity
- Driver & passenger side offset configurations
- Works on either side of vehicle
- External Dimensions: 46.5″ long x 20″ tall x 13.5″ deep
Made in the USA
Vehicle Fit
Mercedes Sprinter *Designed to fit Sprinter 2500 Single Tire (Not Dually)
Third Generation (VS30): 2019+
Second Generation (NCV3): 2008-2018
Ford Transit *Transit wheel wells are slightly smaller than the Sprinter so there is a bit more room for insulation around wheel well
Fifth Generation: 2015+
Promaster *The tank needs to be elevated 3.5" to fit the large wheel wells
| Weight | 25 lbs |
|---|---|
| Dimensions | 48 × 20 × 20 in |
| Fitment | , |
| Vehicle Fit | , , , , , , , , , , , |
| Capacity | |
| Vehicle Make | |
| Vehicle Model | , |
| Vehicle Year | , , , , , , , , , , , , , , , , , |
Instructions
