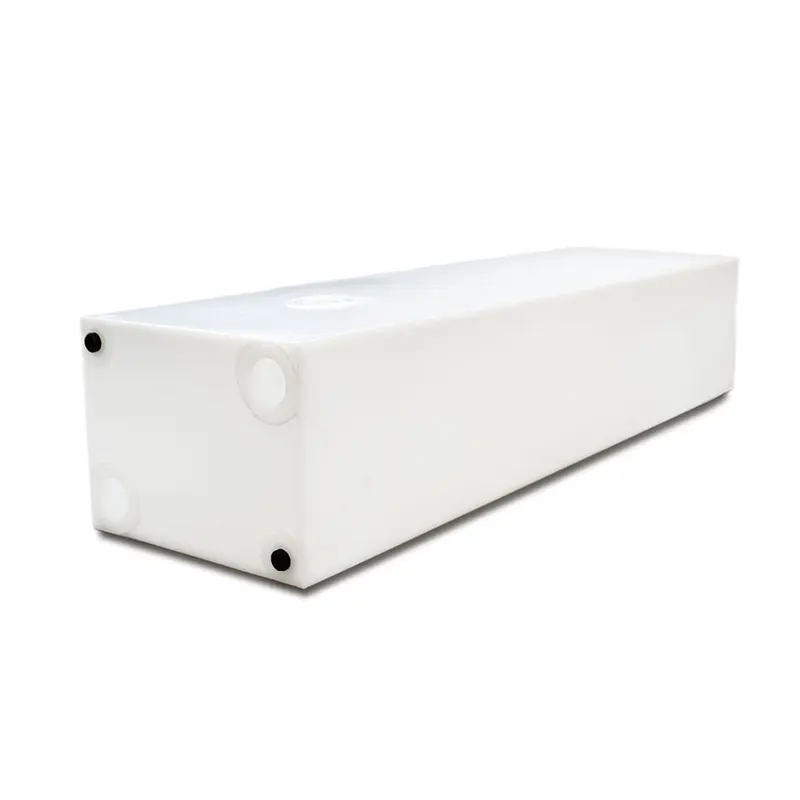

20-Gallon Sprinter Water Tank
$299.00
$369.99 Price reduced!
- 20 gallon capacity
- Tank can be used for fresh or grey water
- Overall dimensions: 46″L x 9.25″H x 12.25″W.
- BPA Free, food grade plastic.
Product Not Available
ADDONS

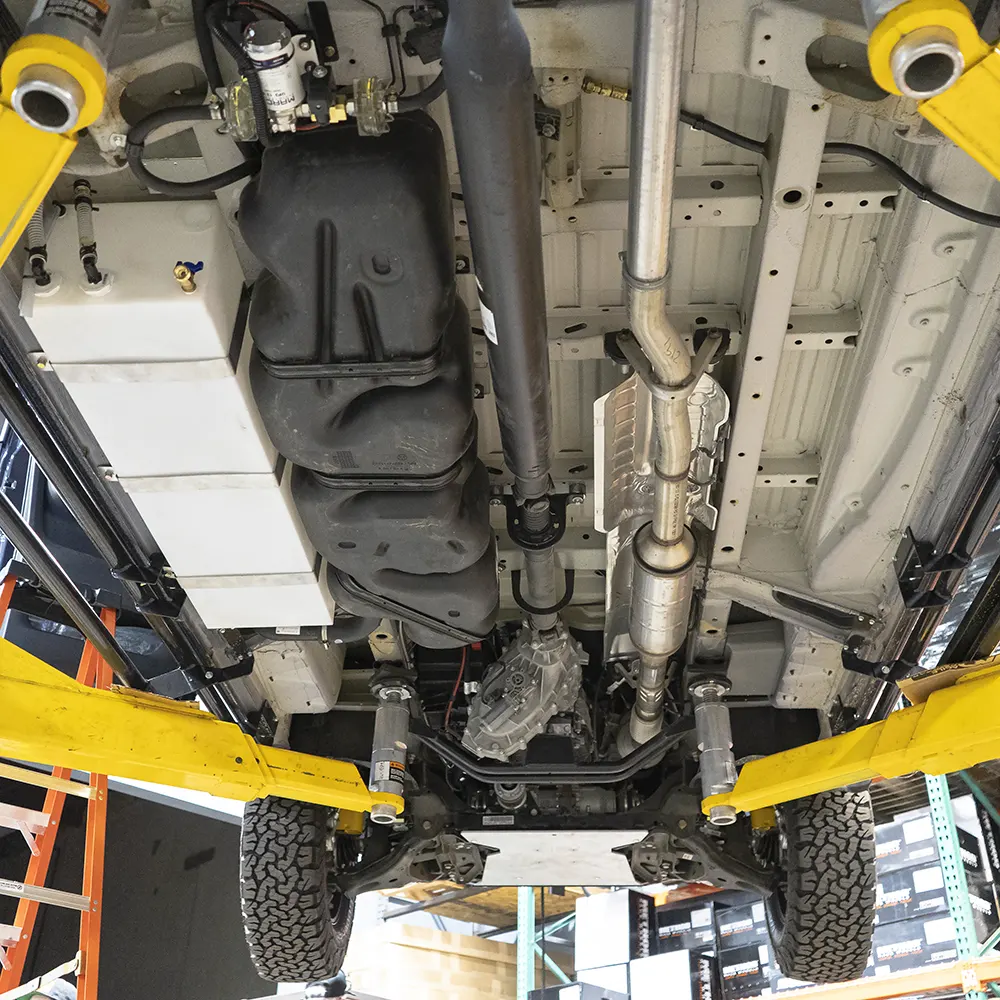

The 20-Gallon Universal Water Tank is designed to fit on the driver’s side of the vehicle, next to the factory fuel tank. It can be used to store fresh or gray water.
- Accepts variety of universal fittings
- 20-gallon capacity
- Works on either side of vehicle
- External Dimensions: 44.5″ long x 16″ tall x 12.5″ wide
- Driver & passenger side offset configurations
- If placed passenger side the tank sits with majority rear of wheel well and flush to front of wheel well.
- If placed driver side the tank sits with majority front of wheel well and flush to rear of wheel well.
- Designed to fit Sprinter Van
- Transit Van wheel wells are slightly smaller than the Sprinter so there is a bit more room for insulation around wheel well.
- Promaster needs to be elevated 3.5″ to fit the large wheel wells.

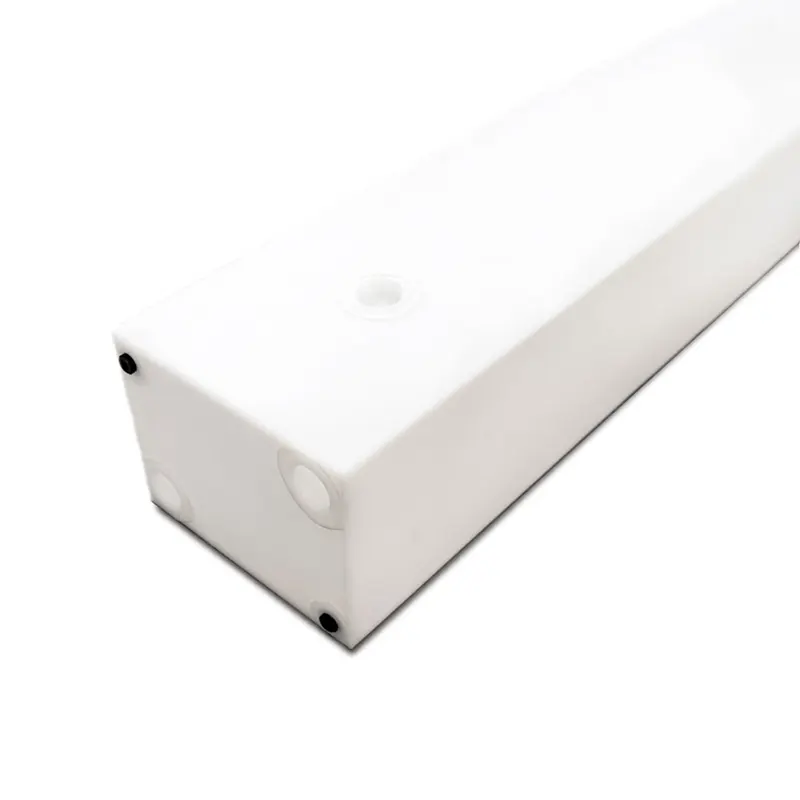

- Tank has (2) 1.5” NPT ports (need to be drilled out) and (2)1/2” NPT ports (drilled w/ plugs) on rectangular end
- Tank has (1) 1/2” NPT port (drilled w/ plug) on open end of tank
- Tank has (1) 1.5” NPT port (needs to be drilled out) on top or fill or level sensor
- Tank is designed for non pressurized systems. Needs to be vented.
- Tanks are made from BPA Free Food Grade Plastic
Vehicle Fit
Mercedes Sprinter
Third Generation (VS30): 2019+
Second Generation (NCV3): 2008-2018
Ford Transit
Fifth Generation: 2015+
Promaster
*Needs to be elevated 3.5″ to fit the large wheel wells.
| Weight | 10 lbs |
|---|---|
| Dimensions | 49 × 17 × 17 in |
